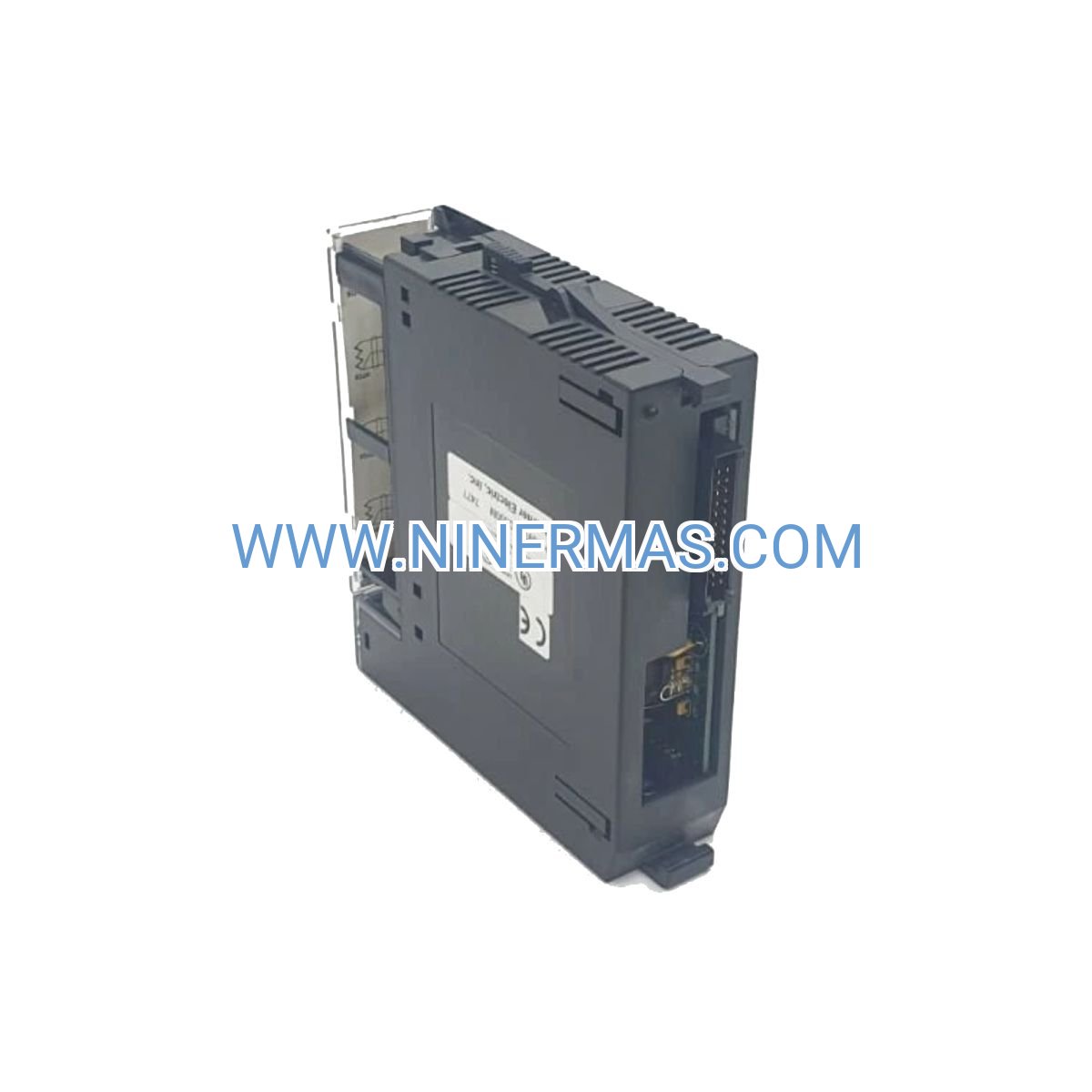

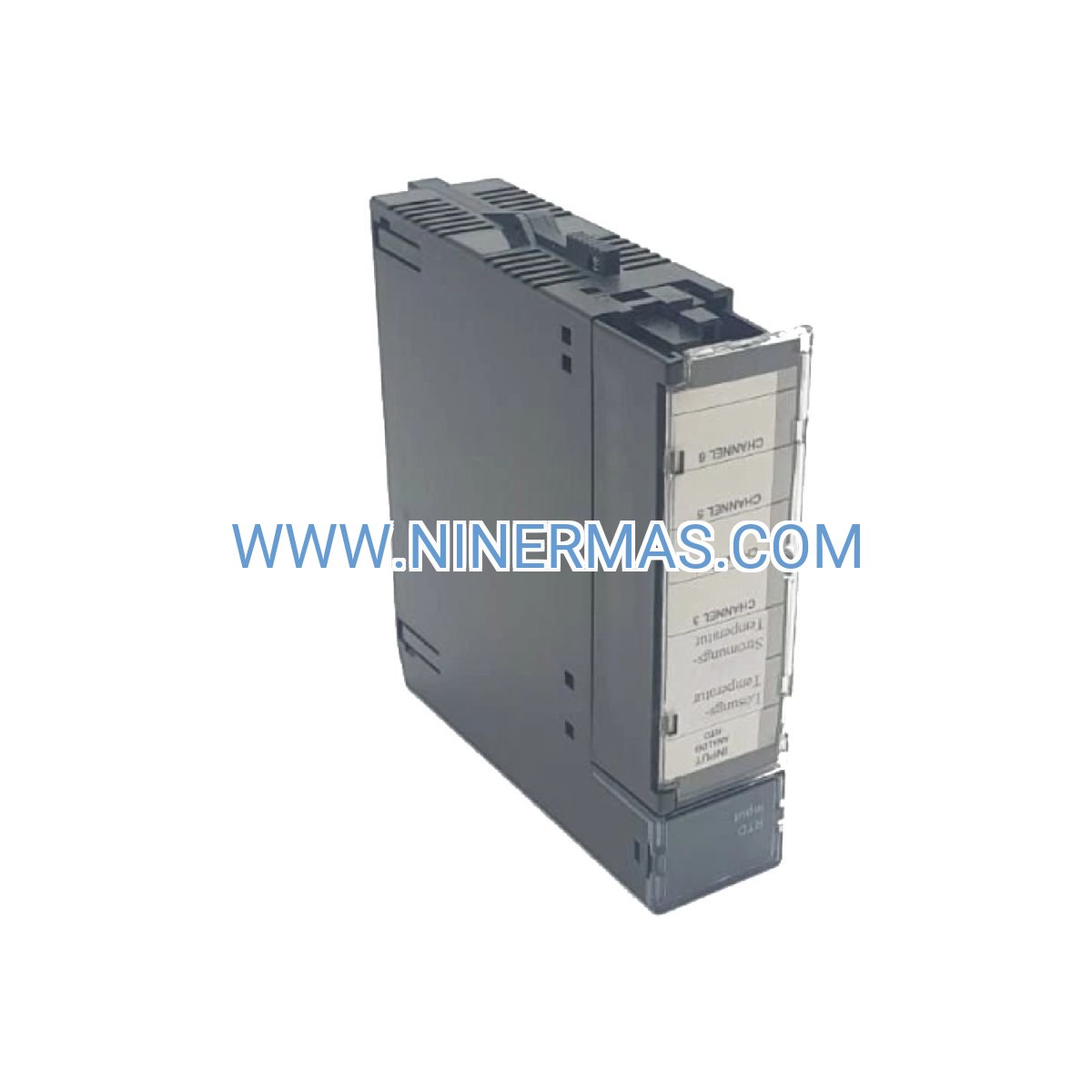

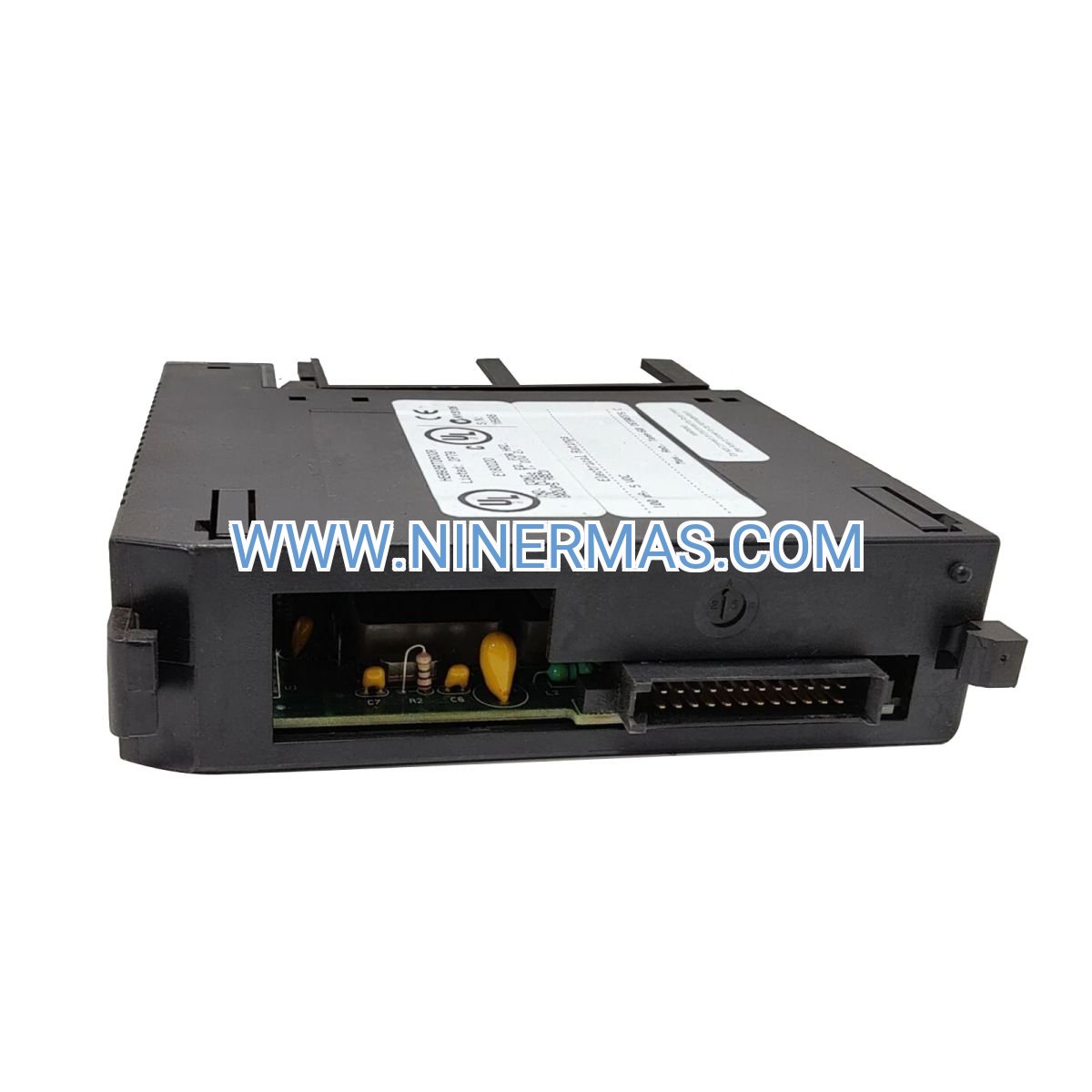

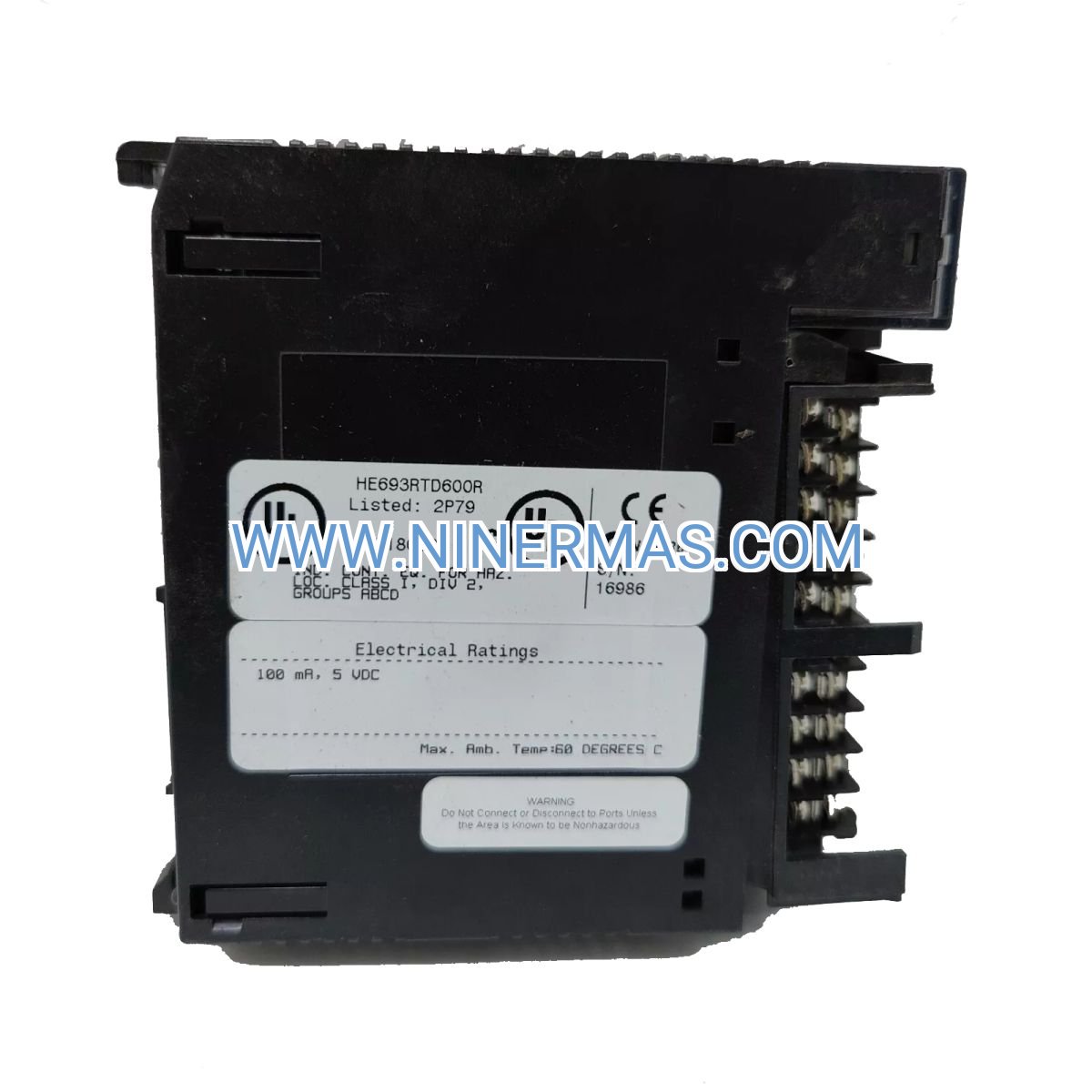

HE693RTD600 RTD Temperature Module (Industrial-Grade 6-Channel Solution)

The HE693RTD600 is a precision-engineered RTD temperature input module designed for demanding industrial environments. Built for seamless integration with GE Series 90-30 programmable logic controllers, this 6-channel solution transforms resistance temperature detector signals into accurate digital data for process monitoring, quality control, and automated temperature regulation across manufacturing, energy, and HVAC sectors.

Engineered to address the critical challenge of multi-point temperature surveillance in complex industrial systems, the HE693RTD600 eliminates the need for multiple single-channel modules while maintaining measurement integrity. Target users include automation engineers, plant maintenance teams, system integrators, and OEM equipment manufacturers seeking reliable, cost-effective temperature acquisition for mission-critical applications.

Key advantages include universal RTD sensor compatibility (2/3/4-wire configurations), hot-swappable architecture for zero-downtime maintenance, built-in diagnostic capabilities for predictive maintenance, and proven compatibility with legacy and modern GE 90-30 control platforms—delivering both operational flexibility and long-term investment protection.

Core Features & Benefits

→ Six Independent RTD Input Channels
Monitor multiple temperature zones simultaneously with dedicated signal processing per channel. Reduces system complexity and lowers total cost of ownership compared to single-channel alternatives while maintaining channel-to-channel isolation for noise immunity.

→ Universal Sensor Compatibility
Supports PT100, PT1000, Ni120, and Cu10 RTD types in 2-wire, 3-wire, or 4-wire configurations. Adaptive input circuitry automatically compensates for lead resistance in 3-wire and 4-wire modes, ensuring ±0.5°C accuracy across -200°C to +850°C measurement range.

→ Real-Time Fault Detection
Integrated diagnostics continuously monitor for sensor open-circuit, short-circuit, and out-of-range conditions. Immediate fault reporting to the PLC enables proactive maintenance scheduling and prevents process disruptions from undetected sensor failures.

→ Hot-Swap Capability
Replace or upgrade modules during live operation without system shutdown. Automatic configuration restoration upon insertion minimizes commissioning time and supports continuous production requirements in 24/7 manufacturing environments.

✓ Compact Footprint Design
Occupies single slot on Series 90-30 base plate (35mm × 118mm × 87mm), maximizing I/O density in space-constrained control cabinets. Low power consumption (3.5W @ 5VDC) reduces thermal load and extends power supply capacity.

✓ Industrial-Grade Construction
Operates reliably in 0°C to 60°C ambient temperatures with conformal coating protection against moisture, dust, and chemical exposure. Meets stringent industrial EMC standards for deployment in electrically noisy environments.

Typical Application Scenarios

Chemical & Pharmaceutical Processing
Monitor reactor vessel temperatures, distillation column profiles, and sterile processing zones where ±0.5°C accuracy ensures product quality and regulatory compliance. The module's multi-channel architecture reduces wiring complexity in batch processing systems with 10+ temperature control loops, while diagnostic features support FDA 21 CFR Part 11 validation requirements.

Food & Beverage Manufacturing
Track pasteurization temperatures, fermentation vessel conditions, and cold chain storage across production lines. Fast 100ms update rate per channel enables responsive control of rapid thermal processes like flash pasteurization, preventing product spoilage and ensuring food safety standards compliance.

Energy Generation & Distribution
Surveil turbine bearing temperatures, transformer winding heat, and cooling system performance in power plants and substations. The -200°C to +850°C range accommodates both cryogenic and high-temperature applications, while 4-wire RTD support maintains accuracy over extended cable runs in large facilities.

Building Automation & HVAC
Manage multi-zone climate control in commercial buildings, data centers, and cleanroom facilities. Integration with Ethernet-enabled Series 90-30 systems allows remote temperature monitoring via BACnet or Modbus protocols, reducing energy costs through precision setpoint control.

Plastics & Extrusion Systems
Control barrel zone temperatures in injection molding and extrusion equipment where thermal uniformity directly impacts part quality. Six-channel capacity matches typical 4-6 zone extruder configurations, simplifying machine control panel design and reducing spare parts inventory.

Technical Parameters & Selection Guide

Selection Criteria:

• Choose 3-wire or 4-wire RTD connections for cable runs exceeding 50 meters to minimize lead resistance errors
• Verify total system power budget—each HE693RTD600 draws 3.5W from the 5VDC backplane supply
• For applications requiring faster than 100ms updates, consider dedicated single-channel modules
• Ensure ambient temperature remains within 0-60°C range; use forced ventilation in enclosed cabinets if necessary
• Confirm compatibility with existing Series 90-30 CPU firmware version (consult GE compatibility matrix)

Extended Functions

Advanced Diagnostics & Predictive Maintenance
Beyond basic fault detection, the HE693RTD600 provides granular diagnostic data accessible via PLC programming. Monitor sensor drift trends, detect intermittent connection issues, and log calibration deviation over time. Integration with SCADA systems enables automated maintenance work order generation when sensor performance degrades below acceptable thresholds.

Multi-Protocol Communication Integration
When paired with GE Series 90-30 communication modules (Ethernet, Profibus, DeviceNet), temperature data becomes accessible to enterprise-level systems. Support for OPC UA, Modbus TCP, and EtherNet/IP protocols facilitates integration with MES, historian databases, and cloud-based analytics platforms for Industry 4.0 initiatives.

Custom Linearization & Scaling
Proficy Machine Edition software allows custom temperature curve linearization for non-standard RTD types or specialized sensor applications. User-defined scaling converts raw resistance values to engineering units (°C, °F, K) with offset and gain adjustments for sensor-specific calibration.

Redundancy & Failover Configurations
Deploy dual HE693RTD600 modules in hot-standby configurations for critical temperature monitoring applications. Automatic switchover logic in the PLC program ensures continuous operation if primary module fails, meeting high-availability requirements in pharmaceutical and semiconductor manufacturing.

Delivery & Service Assurance

Lead Time:
• Standard Stock Items: 3-5 business days (in-stock modules ship same day if ordered before 2 PM CST)
• Custom Configurations: 10-15 business days (includes factory testing and documentation)
• Express Shipping: Next-day and 2-day delivery options available for urgent requirements

Warranty Coverage:
12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Warranty includes free replacement module shipment and return shipping label for defective units. Extended warranty plans available for up to 36 months.

Technical Support:
Unlimited access to application engineering team for configuration assistance, troubleshooting, and system integration guidance. Support channels include email (response within 4 hours), phone consultation, and remote desktop assistance for programming questions. Multilingual support available in English, Spanish, and Mandarin.

Documentation Package:
Each module ships with installation quick-start guide, wiring diagrams, and digital access to complete user manual, programming examples, and CAD drawings. Sample ladder logic code provided for common temperature control applications including PID loop implementation and alarm management.

Frequently Asked Questions

What is the maximum recommended cable distance for RTD sensor connections?
For 3-wire and 4-wire RTD configurations, cable lengths up to 300 meters (984 feet) are supported using shielded twisted-pair cable (minimum 18 AWG). Two-wire RTDs should be limited to 100 meters (328 feet) to maintain ±0.5°C accuracy specification. Always use shielded cable with shield grounded at the module end only to minimize electrical noise interference.

Can I configure different RTD types on separate channels of the same module?
Yes, each of the six input channels features independent configuration. You can simultaneously connect PT100 sensors on channels 1-3, PT1000 on channel 4, and Ni120 on channels 5-6, with individual temperature range and alarm settings per channel. Configuration is performed through Proficy Machine Edition or VersaPro software.

How does the module handle sensor open-circuit or short-circuit faults?
The HE693RTD600 continuously monitors input impedance on each channel. Open-circuit conditions (broken sensor wire) trigger an immediate fault flag in the PLC input register, typically setting the temperature value to a predefined error code (e.g., -999°C). Short-circuit faults are detected when resistance falls below the minimum RTD value, similarly flagging the PLC for alarm processing.

Is specialized programming software required for module configuration?
Configuration requires GE Proficy Machine Edition (version 6.0 or later) or legacy VersaPro software. The module appears as a configurable I/O block in the hardware configuration tree. Basic setup involves selecting RTD type, wire configuration (2/3/4-wire), temperature units (°C/°F/K), and alarm thresholds. No additional licensing fees beyond standard PLC programming software.

What is the typical power consumption impact on my Series 90-30 power supply?
Each HE693RTD600 module draws 3.5 watts from the 5VDC backplane supply. For example, a 10-slot base plate with IC693PWR321 power supply (30W capacity) can support up to 8 HE693RTD600 modules plus CPU, assuming minimal additional I/O loading. Always verify total system power budget using GE's power supply calculator tool.

Does the module support cold junction compensation for thermocouples?
No, the HE693RTD600 is designed exclusively for RTD sensor inputs. For thermocouple applications (Type J, K, T, E, etc.), use the GE IC693PTM101 Process Temperature Module which includes built-in cold junction compensation and supports both thermocouples and RTDs in a single module.

Request a Quote or Technical Consultation

Ready to integrate precision temperature monitoring into your Series 90-30 control system? Our application engineers are available to discuss your specific requirements, recommend optimal sensor configurations, and provide detailed system integration support.

Contact our team today:
? Email: sale@ninermas.com
? Phone: +0086 187 5021 5667
? Technical Resources: https://ninermas.com

Request a formal quotation, schedule a technical consultation, or inquire about volume pricing for OEM applications. We support system integrators, end users, and equipment manufacturers worldwide with fast shipping, competitive pricing, and expert technical guidance.
