GE HE693PBM101F Profibus DP Network Interface Module | Series 90-30 PLC Integration Solution

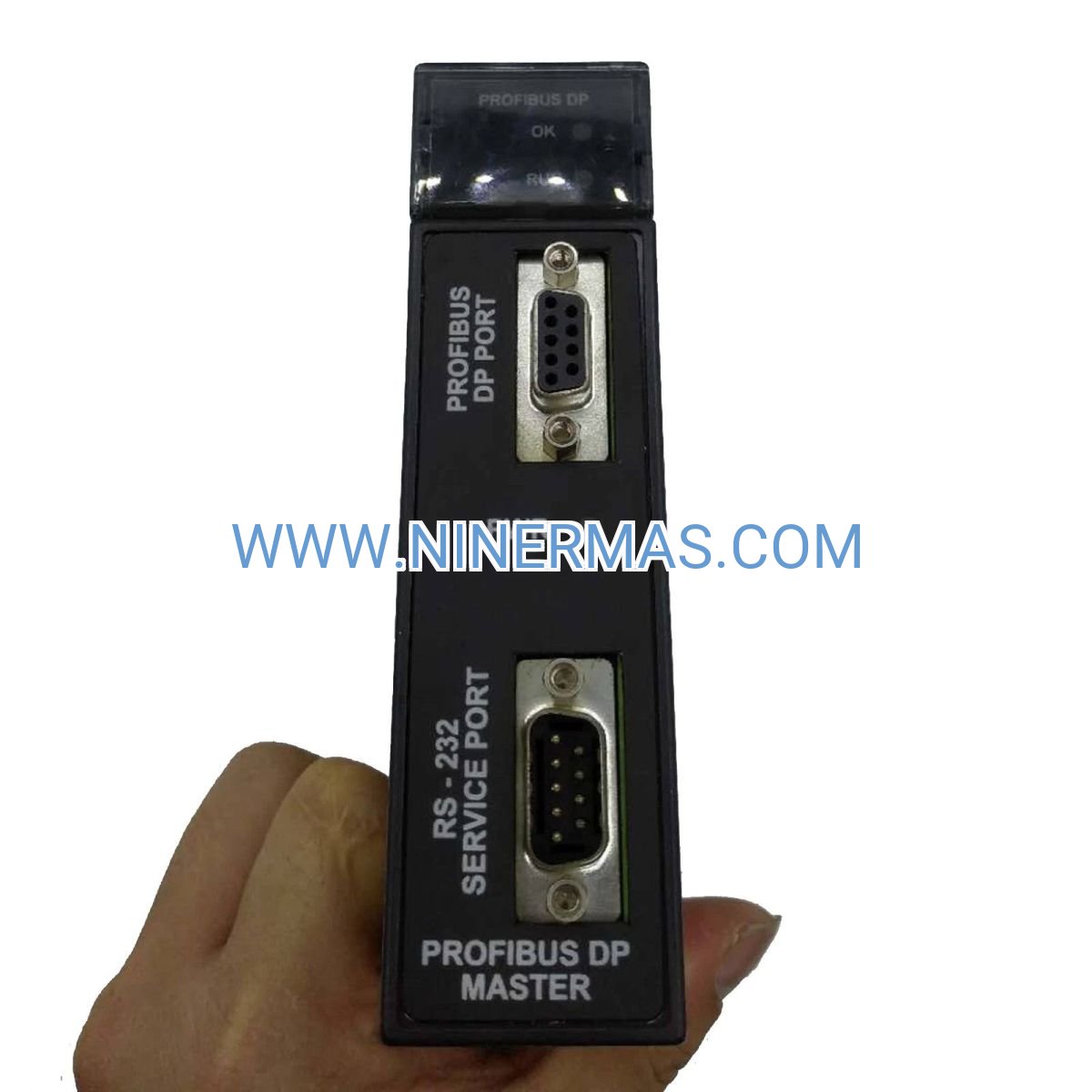

GE HE693PBM101F Profibus DP Network Interface Module (Industrial-Grade Fieldbus Integration System)

The GE HE693PBM101F Profibus DP Network Interface Module is an industrial communication device designed for Series 90-30 PLC systems, enabling seamless integration with Profibus DP fieldbus networks through high-speed data exchange, cyclic polling, and acyclic messaging capabilities. This module bridges automation controllers with distributed I/O, drives, and field instruments via standardized Profibus DP protocol.

Ideal for manufacturing automation, process control, and industrial data acquisition scenarios—including automotive assembly lines, chemical batch processing, water treatment SCADA systems, and packaging machinery control—this module addresses challenges such as incompatible communication protocols, slow data refresh rates, limited diagnostic visibility, and complex multi-vendor system integration.

Through proven hardware design and flexible configuration options, the HE693PBM101F delivers reliable fieldbus connectivity, real-time diagnostics, hot-swap capability, and broad compatibility with GE Fanuc legacy systems. Suitable for system integrators, control panel builders, OEM equipment manufacturers, and plant maintenance teams. Contact our engineers for application-specific selection guidance and technical quotations.

Core Features & Advantages

• Profibus DP Protocol Compliance
  Fully compliant with EN 50170 Profibus DP V0/V1 standards, supporting baud rates from 9.6 kbps to 12 Mbps, ensuring interoperability with Siemens, ABB, Phoenix Contact, and other certified Profibus devices across mixed-vendor installations.
• High-Speed Cyclic Data Exchange
  Achieves deterministic scan cycles as fast as 1-5 ms for critical I/O updates, reducing control loop latency and improving process response time in motion control, synchronized drives, and time-sensitive automation applications.
• Comprehensive Diagnostic Capabilities
  Provides real-time network status monitoring, slave device health checks, and fault location identification through LED indicators and PLC-accessible diagnostic registers, minimizing troubleshooting time and unplanned downtime.
• Flexible Master/Slave Configuration
  Operates as Profibus DP master or slave, supporting up to 32/125 slaves depending on configuration, with GSD file-based device integration for simplified commissioning and parameter assignment via standard Profibus configuration tools.
• Robust Industrial Design
  Built with conformal-coated PCB, wide operating temperature range (-20°C to +60°C), and immunity to electrical noise per IEC 61000-4 standards, ensuring reliable operation in harsh factory floors, outdoor enclosures, and high-EMI environments.
• Hot-Swap & Redundancy Support
  Allows module replacement without powering down the entire PLC rack, reducing maintenance windows; compatible with redundant Profibus topologies for mission-critical applications requiring high availability.

Typical Application Scenarios

This module is engineered for industrial environments demanding stable fieldbus communication, real-time data integrity, and long-term system reliability, particularly in:

• Automotive Manufacturing & Assembly Lines
  Connects Series 90-30 PLCs to Profibus-enabled robots, servo drives, vision systems, and safety I/O modules, synchronizing multi-station operations and enabling centralized production data collection for OEE analysis.
• Chemical & Petrochemical Process Control
  Integrates distributed field instruments (flow meters, pressure transmitters, valve positioners) with DCS/PLC supervisory layers, supporting batch recipe management, alarm handling, and regulatory compliance reporting in hazardous area installations.
• Water & Wastewater Treatment SCADA
  Links remote pump stations, filtration units, and chemical dosing systems to central SCADA servers via Profibus DP, providing real-time telemetry, remote setpoint adjustment, and predictive maintenance alerts across geographically dispersed facilities.
• Packaging & Material Handling Systems
  Coordinates conveyor drives, barcode scanners, weighing scales, and reject mechanisms through high-speed Profibus communication, ensuring precise product tracking, dynamic speed control, and seamless integration with MES/ERP systems.
• Building Automation & HVAC Control
  Facilitates integration of GE PLCs with Profibus-compatible chillers, air handling units, and energy meters, enabling centralized building management, demand-based ventilation control, and energy consumption optimization.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, we provide standardized technical parameters and configuration options. Custom configurations are available based on project-specific requirements.

Selection Recommendations

When selecting the HE693PBM101F module, consider the following factors: total number of Profibus slaves, required baud rate (influenced by network cable length and topology), maximum I/O data volume per scan, environmental conditions (temperature, vibration, EMI), and compatibility with existing GE 90-30 rack configuration. For systems requiring redundant communication or integration with non-GE Profibus masters, consult our application engineers with detailed network topology diagrams and device lists for optimized configuration recommendations.

Extended Functionality

• GSD File & Configuration Tool Support
  Includes manufacturer-provided GSD (General Station Description) file for seamless integration with Siemens STEP 7, Rockwell RSNetWorx, and other Profibus configuration software, enabling drag-and-drop device setup and automated parameter assignment.
• Acyclic Data Services
  Supports DP-V1 acyclic read/write operations for on-demand parameter tuning, firmware updates, and advanced diagnostics without interrupting cyclic process data exchange.
• Network Redundancy & Failover
  Compatible with redundant Profibus ring topologies and optical fiber media converters for extended distance (up to 90 km) and enhanced fault tolerance in critical infrastructure applications.
• Protocol Gateway Integration
  Can be paired with third-party gateways to bridge Profibus DP networks with Ethernet/IP, Modbus TCP, OPC UA, or MQTT for IIoT cloud connectivity and enterprise-level data analytics.

Delivery, Service & Quality Assurance

Lead Time: Standard stock items ship within 3-5 business days; custom-configured or bulk orders require 10-15 business days depending on quantity and specification complexity.

Warranty: All modules are covered by a 12-month manufacturer warranty against defects in materials and workmanship, with optional extended service plans available for mission-critical installations.

Technical Support: Comprehensive support includes remote commissioning assistance, on-site startup services (region-dependent), and access to detailed documentation—electrical schematics, wiring diagrams, GSD files, user manuals, and troubleshooting guides in PDF format.

Quality Certifications: Products are manufactured under ISO 9001:2015 quality management systems and comply with CE, UL508, ATEX, and IECEx directives for safe operation in industrial and hazardous locations.

Frequently Asked Questions (FAQ)

Q: How do I integrate the GE HE693PBM101F Profibus DP module with my existing Series 90-30 PLC system?
A: The module installs directly into any available slot on the Series 90-30 backplane. Configuration is performed via GE Proficy Machine Edition or Logicmaster 90-30 software, where you assign the module's rack/slot position, import the Profibus GSD file, and map I/O data to PLC memory registers. Physical connection requires a 9-pin D-sub Profibus connector with proper termination resistors at network endpoints.

Q: What is the maximum number of Profibus devices this module can control?
A: In DP-V0 mode, the module supports up to 32 slaves; in DP-V1 mode with extended addressing, it can manage up to 125 slaves. Actual capacity depends on total I/O data volume (max 244 bytes input/output per cycle) and required scan time performance.

Q: What energy savings or efficiency improvements can I expect from using this Profibus interface?
A: While the module itself does not directly reduce energy consumption, it enables centralized monitoring and control of variable-frequency drives, smart actuators, and energy meters, allowing implementation of demand-based control strategies that can reduce overall system energy use by 15-30% in HVAC, pumping, and compressed air applications.

Q: What are the environmental and installation requirements for this module?
A: The module is rated for -20°C to +60°C ambient temperature, 5-95% non-condensing humidity, and IP20 enclosure protection (suitable for indoor control cabinets). Ensure adequate ventilation, avoid direct exposure to corrosive gases or conductive dust, and maintain proper grounding per NEC/IEC standards. For outdoor or harsh environments, install within NEMA 4/4X or IP65-rated enclosures.

Q: Can I remotely monitor and collect data from Profibus devices through this module?
A: Yes. The module exchanges data with the Series 90-30 PLC's memory, which can be accessed via Ethernet modules (e.g., IC695ETM001) using Modbus TCP, EGD (Ethernet Global Data), or OPC DA/UA protocols. For cloud connectivity, integrate with industrial IoT gateways supporting MQTT, REST APIs, or Sparkplug B for real-time telemetry and predictive analytics.

Q: Is this module compatible with Siemens or other non-GE Profibus masters?
A: When configured as a Profibus DP slave, the HE693PBM101F can communicate with any certified Profibus DP master (Siemens S7-300/400, ABB AC800M, Schneider Modicon, etc.) using standard GSD file integration. Consult the interoperability matrix or contact technical support for specific master/slave pairing validation.

Request a Custom Solution

To receive a detailed selection proposal, technical quotation, or application engineering support, please provide the following information: project name and industry sector, application scenario (process control, motion, safety, etc.), number and types of Profibus slaves, required baud rate and network topology, Series 90-30 PLC model and rack configuration, environmental conditions, and any special certifications (ATEX, FM, marine, etc.). Our engineers will respond within 24 hours with a tailored recommendation and pricing.
