GE HE693DAC410 Analog Voltage Output Module | 4-Channel 12-Bit I/O for Series 90-30 PLC

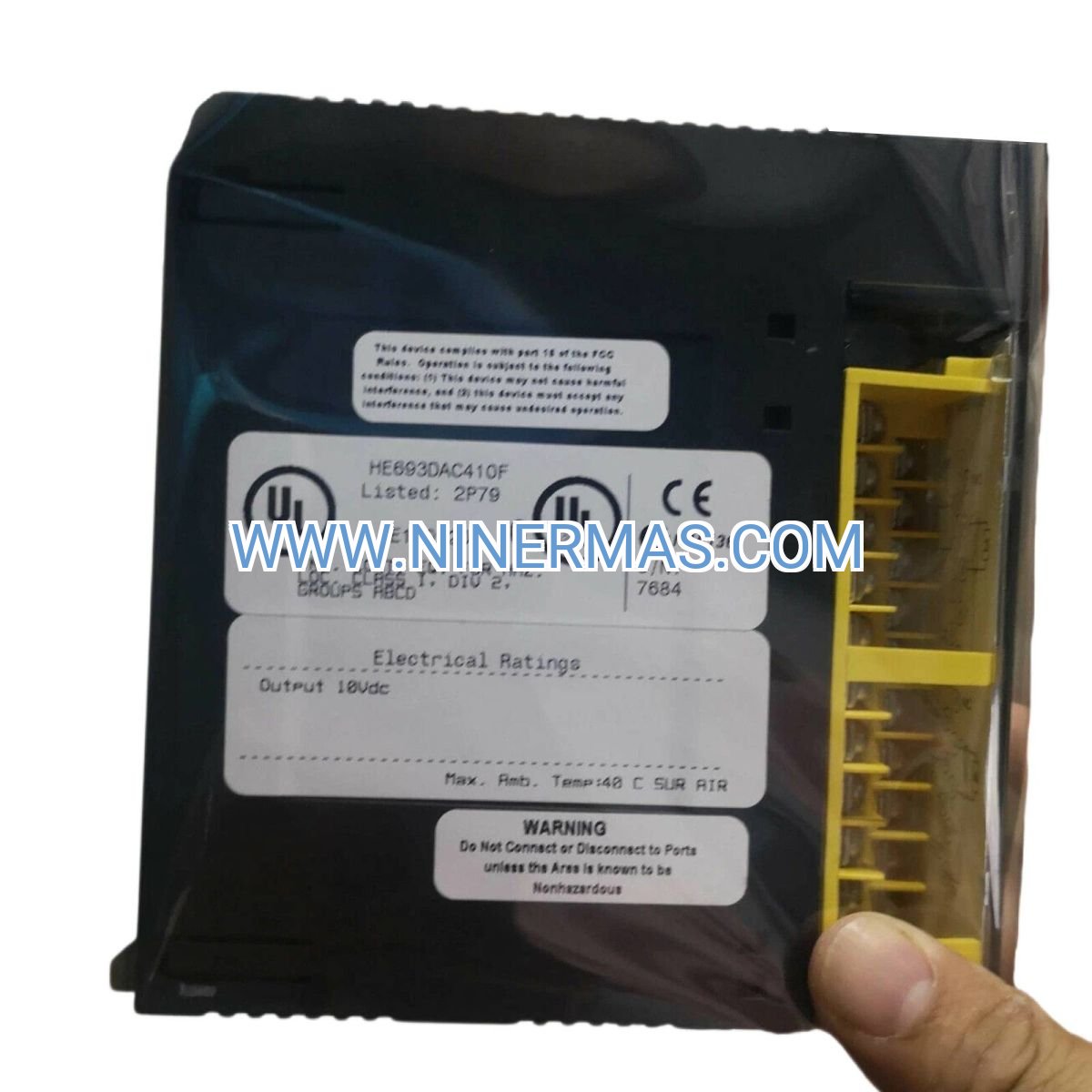

GE HE693DAC410 Analog Voltage Output Module (Industrial-Grade 4-Channel Control System)

The GE HE693DAC410 is a high-precision 4-channel analog voltage output module designed for Series 90-30 programmable logic controllers (PLCs). Through 12-bit digital-to-analog conversion (DAC) technology, it delivers accurate voltage signals (±10V DC range) to control field devices such as variable frequency drives (VFDs), valve positioners, and process instrumentation, enabling precise closed-loop control in industrial automation systems.

This module is widely deployed in process industries including chemical processing, water treatment, HVAC systems, and manufacturing automation where continuous analog control is required. It addresses critical challenges such as signal drift, noise interference, limited output channels, and integration complexity with legacy control systems.

With standardized Series 90-30 backplane compatibility and field-proven reliability, the HE693DAC410 offers seamless integration, diagnostic capabilities, and long-term availability—making it ideal for design engineers, system integrators, OEM partners, and plant maintenance teams. Contact our application engineers for configuration assistance and technical specifications tailored to your project requirements.

Core Features & Advantages

High-Resolution 12-Bit DAC Conversion
Provides 4096-step resolution across the ±10V output range, ensuring smooth and precise control of analog devices. Minimizes control hunting and improves process stability in temperature, pressure, and flow regulation applications.

Four Independent Output Channels
Each channel operates independently with isolated signal paths, allowing simultaneous control of multiple field devices from a single module. Reduces hardware footprint and simplifies wiring in multi-loop control systems.

Wide Output Voltage Range (±10V DC)
Compatible with industry-standard analog input devices including 0-10V, ±5V, and ±10V signal ranges. Supports both unipolar and bipolar control applications without external signal conditioning.

Robust Industrial Design & EMC Protection
Built to withstand harsh industrial environments with conformal coating, transient suppression, and EMI/RFI filtering. Operates reliably in temperature extremes (-20°C to +60°C) and high-vibration installations.

Integrated Diagnostics & Fault Detection
Provides real-time channel status monitoring, open-circuit detection, and over-range alarms through PLC programming. Reduces troubleshooting time and prevents undetected control failures.

Seamless Series 90-30 Integration
Hot-swappable installation on standard Series 90-30 backplanes with automatic configuration recognition. Fully supported by GE Logicmaster 90-30 and Proficy Machine Edition programming software with pre-built function blocks.

Typical Application Scenarios

The HE693DAC410 module is engineered for applications demanding stable, repeatable analog control with high reliability, particularly in:

Process Control & Chemical Manufacturing
Controls reactor temperature via heating/cooling valves, regulates flow rates through control valves, and adjusts pH levels with chemical dosing pumps. Ensures product quality consistency and reduces batch-to-batch variation in pharmaceutical and specialty chemical production.

Water & Wastewater Treatment Systems
Modulates VFD speed for pump flow control, adjusts chlorine dosing rates, and regulates aeration blower output in biological treatment processes. Optimizes energy consumption while maintaining effluent quality compliance.

HVAC & Building Automation
Controls damper actuators for air volume regulation, modulates chilled water valve positions, and adjusts VFD-driven fan speeds for VAV systems. Achieves precise zone temperature control and reduces HVAC energy costs by up to 25%.

Industrial Machinery & OEM Equipment
Provides proportional control for hydraulic servo valves, regulates tension control in web processing lines, and adjusts motor speed in packaging machinery. Suitable for integration into custom automation panels and skid-mounted systems.

Energy & Utilities Infrastructure
Controls turbine governor systems, regulates boiler feedwater flow, and adjusts transformer tap changers in power distribution. Supports critical infrastructure applications requiring long-term parts availability and proven reliability.

Technical Parameters & Selection Guide

To facilitate system design and module selection, we provide key specifications for the HE693DAC410. Custom configurations and extended temperature variants are available for specialized applications.

Key Specifications:

• Number of Channels: 4 independent analog voltage outputs
• Output Signal Range: ±10V DC (configurable per channel)
• Resolution: 12-bit (4096 steps, ~4.88mV per step)
• Accuracy: ±0.2% of full scale at 25°C
• Output Drive Capability: 5mA maximum per channel
• Update Rate: Configurable via PLC scan cycle (typically 10-100ms)
• Isolation: 1500V RMS channel-to-backplane isolation
• Power Consumption: 3.5W typical from backplane +5V supply
• Operating Temperature: -20°C to +60°C (standard), extended range available
• Mounting: Standard Series 90-30 backplane slot (single-slot width)
• Compliance: CE, UL508, CSA C22.2, RoHS compliant

Selection Considerations:
When specifying the HE693DAC410, consider the following project parameters: number of analog control loops required, field device input impedance (minimum 1kΩ recommended), maximum cable length (up to 300m with shielded twisted-pair cable), ambient temperature range, and PLC backplane power budget. For applications requiring current output (4-20mA), consider the companion HE693DAC420 module. Our application engineers can review your control system architecture and recommend optimal I/O distribution strategies.

Extended Capabilities & System Integration

Software Configuration & Programming Support
The module is fully supported in GE Logicmaster 90-30 and Proficy Machine Edition software environments. Pre-configured function blocks simplify analog output scaling, ramping, and limit checking. Supports both ladder logic and structured text programming with comprehensive diagnostic registers.

Redundancy & High-Availability Configurations
Can be deployed in redundant I/O architectures using Series 90-30 redundant CPU configurations. Supports automatic failover and bumpless transfer for critical control applications in utilities and continuous process industries.

Third-Party System Integration
Compatible with SCADA systems, DCS platforms, and MES software via Ethernet/IP, Modbus TCP, or serial communication protocols supported by Series 90-30 communication modules. Enables enterprise-level data integration and remote monitoring.

Delivery, Service & Quality Assurance

Standard catalog items are typically available from stock with 3-5 business day lead time. Custom-configured modules or bulk orders may require 2-4 weeks depending on specifications. All modules include a 12-month manufacturer warranty covering defects in materials and workmanship.

We provide comprehensive technical support including remote configuration assistance, on-site commissioning services (region-dependent), and access to detailed documentation packages. Each module ships with installation instructions, wiring diagrams, terminal block specifications, and software configuration examples compatible with Logicmaster 90-30 and Proficy Machine Edition.

Our quality management system is ISO 9001 certified, and all products undergo factory acceptance testing (FAT) including output accuracy verification, isolation testing, and burn-in cycles to ensure field-ready reliability.

Frequently Asked Questions (FAQ)

Q: How do I integrate the HE693DAC410 analog output module with my existing Series 90-30 PLC system?
A: The module installs directly into any available slot on your Series 90-30 backplane. After physical installation, configure the module address using the CPU's I/O configuration utility in Logicmaster 90-30 or Proficy Machine Edition. The software automatically recognizes the module type and allocates output registers. Wiring connections are made via removable terminal blocks with clearly labeled screw terminals for each channel.

Q: What is the maximum number of HE693DAC410 modules I can use in a single Series 90-30 system?
A: The number of modules is limited by available backplane slots and total system power budget. A standard 10-slot backplane can typically support 4-6 analog output modules depending on other I/O present. Each HE693DAC410 consumes approximately 3.5W from the +5V backplane supply. Consult the Series 90-30 power supply specifications to verify total capacity.

Q: What output accuracy and signal stability can I expect in real-world industrial environments?
A: The module maintains ±0.2% full-scale accuracy at 25°C, with typical drift of ±0.01% per °C. In environments with significant electrical noise, use shielded twisted-pair cable with proper grounding practices. The module's built-in EMI filtering and isolated outputs provide excellent noise immunity. For critical applications, periodic calibration verification is recommended every 12-24 months.

Q: Can the HE693DAC410 drive long cable runs to remote field devices?
A: Yes, the module can drive cable lengths up to 300 meters (1000 feet) when using shielded twisted-pair cable (18-22 AWG) with proper termination. Ensure the receiving device has input impedance of at least 1kΩ (10kΩ or higher recommended). For longer distances or noisy environments, consider using 4-20mA current output modules (HE693DAC420) which offer superior noise immunity.

Q: Does the module support remote monitoring and diagnostics via industrial networks?
A: The HE693DAC410 diagnostic data is accessible through the Series 90-30 CPU's communication interfaces. When paired with Ethernet, Profibus, or Modbus communication modules, you can monitor channel status, output values, and fault conditions remotely via SCADA systems or HMI platforms. The module supports standard GE diagnostic protocols including channel health status and open-circuit detection.

Q: What is the difference between the HE693DAC410 (voltage output) and HE693DAC420 (current output) modules?
A: The HE693DAC410 provides ±10V voltage outputs suitable for short to medium cable runs and devices with high input impedance. The HE693DAC420 provides 4-20mA current outputs, which are preferred for long cable runs (up to 1000m), noisy environments, and devices with low input impedance. Current loops offer superior noise immunity and are standard in process industries. Select based on your field device requirements and installation environment.

Request Technical Support & Custom Configuration

For detailed application engineering support, custom panel integration, or project-specific quotations, please provide the following information: project name and industry sector, control application description (temperature/pressure/flow/level control), number of analog control loops required, field device specifications (input impedance, signal range), cable run distances, environmental conditions (temperature, vibration, EMI exposure), and PLC system configuration (CPU model, existing I/O modules).

Our application engineers will provide one-on-one consultation including I/O module selection, wiring diagrams, software configuration examples, and system architecture recommendations. Typical response time is 24-48 hours for technical inquiries.
