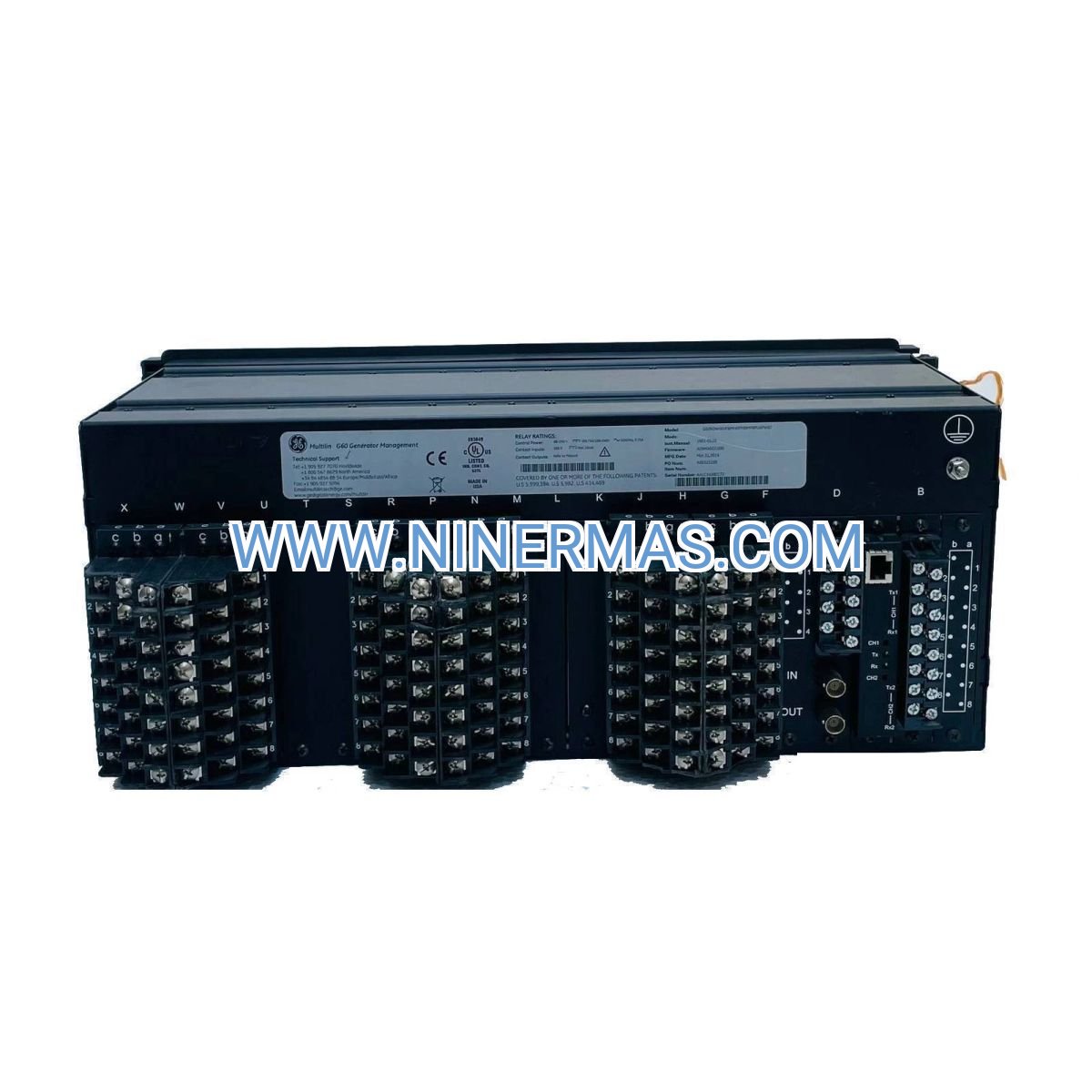

GE G60 Transformer Protection Relay (Industrial-Grade IEC 61850 Control System)

The GE G60 Transformer Protection Relay is an industrial-grade protection and control device designed for power transformer monitoring and fault detection. Through advanced differential protection algorithms, IEC 61850 communication protocol, and programmable logic control (PLC), it delivers real-time transformer health monitoring, rapid fault isolation, and intelligent substation automation.

Ideal for power utilities, industrial substations, renewable energy plants, oil & gas facilities, and manufacturing complexes, this relay addresses critical challenges including transformer overload, internal faults, undetected winding failures, communication protocol incompatibility, and delayed fault response times.

With standardized design and customizable configuration options, the GE G60 offers superior reliability, seamless integration with SCADA systems, comprehensive protection coverage, advanced diagnostics, and multi-protocol communication support. Suitable for consulting engineers, EPC contractors, system integrators, and end-user facility managers. Contact our engineering team for application-specific configuration and technical quotations.

Core Functions & Advantages

• Advanced Differential Protection
  Utilizes percentage differential and harmonic restraint algorithms to detect internal transformer faults with high sensitivity while preventing false trips during inrush conditions or external faults.
• IEC 61850 Native Communication
  Fully compliant with IEC 61850 Ed2 standard, enabling seamless integration with modern digital substations, GOOSE messaging for peer-to-peer communication, and MMS for SCADA connectivity.
• Comprehensive Protection Suite
  Includes overcurrent, earth fault, restricted earth fault (REF), overexcitation, thermal overload, and breaker failure protection—providing multi-layer defense for critical power transformers.
• Intelligent Diagnostics & Monitoring
  Built-in transformer condition monitoring features track oil temperature, winding temperature, tap changer position, and dissolved gas analysis (DGA) integration, reducing unplanned downtime and maintenance costs.
• Flexible Configuration & Scalability
  Supports multiple voltage classes (distribution to transmission), configurable I/O modules, and software-based function activation, allowing tailored solutions for diverse transformer applications.
• Robust Design for Harsh Environments
  Engineered to withstand extreme temperatures, electromagnetic interference (EMI), and high-voltage transients, ensuring reliable operation in demanding industrial and utility environments.

Typical Application Scenarios

This relay is engineered for applications demanding high reliability, precise protection coordination, and advanced communication capabilities, including:

• Power Utility Substations
  Protects transmission and distribution transformers in grid substations, ensuring power quality and system stability while enabling remote monitoring and control through SCADA integration.
• Industrial Power Distribution Systems
  Safeguards critical transformers in manufacturing plants, petrochemical facilities, mining operations, and data centers where unplanned outages result in significant production losses.
• Renewable Energy Installations
  Provides protection for step-up transformers in solar farms, wind parks, and hydroelectric plants, supporting grid code compliance and facilitating seamless renewable energy integration.
• Railway & Transportation Infrastructure
  Ensures reliable operation of traction transformers and auxiliary power systems in railway electrification, metro systems, and airport facilities.
• Oil & Gas Upstream/Downstream Facilities
  Delivers dependable transformer protection in offshore platforms, refineries, and pipeline compressor stations where safety and continuous operation are paramount.

Technical Parameters & Selection Guide

To facilitate engineering design and equipment selection, we provide standardized configurations covering voltage ratings, CT/VT inputs, communication interfaces, and protection functions. Custom configurations are available based on project-specific requirements.

Key Technical Specifications:

• Voltage Rating: Up to 765kV transformer applications
• CT Inputs: 6-12 current inputs (configurable)
• VT Inputs: 6-9 voltage inputs (configurable)
• Communication Protocols: IEC 61850, Modbus, DNP3, IEC 60870-5-103
• Digital I/O: 16-32 configurable inputs/outputs
• Power Supply: 48-250VDC / 100-240VAC
• Operating Temperature: -40°C to +70°C
• Protection Class: IP54 (front panel), IP20 (rear terminals)
• Compliance Standards: IEC 60255, IEEE C37.91, ANSI

Selection Recommendations:
When selecting a configuration, consider: transformer MVA rating, voltage class, winding configuration (delta/wye), CT ratio and accuracy class, required communication protocols, existing SCADA infrastructure, environmental conditions, and available panel space. For engineering assistance, please provide transformer nameplate data, single-line diagram, protection coordination study requirements, and site-specific conditions. Our application engineers will recommend optimal relay configuration and settings.

Extended Functionality

• Integrated Oscillography & Event Recording: High-resolution fault recording with pre-fault and post-fault data capture for detailed incident analysis
• Synchrophasor Measurement (PMU): Optional phasor measurement unit functionality for wide-area monitoring and grid stability analysis
• Cybersecurity Features: Role-based access control, encrypted communication, audit logging, and compliance with IEC 62351 security standards
• Adaptive Protection Schemes: Dynamic protection setting adjustment based on system topology changes and operational modes
• Remote Configuration & Diagnostics: Web-based interface and engineering software for remote commissioning, troubleshooting, and firmware updates

Delivery, Service & Quality Assurance

Lead Time: Standard configurations typically ship within 4-6 weeks; custom-engineered solutions require 8-12 weeks depending on specification complexity.

Warranty: 12-month comprehensive warranty covering manufacturing defects and component failures under normal operating conditions.

Technical Support: Factory-trained engineers provide remote technical guidance, on-site commissioning assistance (region-dependent), protection setting calculation, and coordination study support.

Documentation Package: Complete delivery includes electrical schematic diagrams, terminal wiring drawings, protection setting files, configuration software, user manual, quick start guide, and factory test reports—ensuring smooth installation and commissioning.

Certifications: Factory-tested and certified to international standards including IEC, IEEE, ANSI, and CE marking for global deployment.

Frequently Asked Questions (FAQ)

Q: How does the GE G60 transformer protection relay integrate with existing substation automation systems?
A: The G60 supports multiple communication protocols including IEC 61850 (GOOSE and MMS), Modbus RTU/TCP, DNP3, and IEC 60870-5-103. Integration requires configuring the appropriate protocol, IP addressing (for Ethernet-based protocols), and mapping data points in your SCADA system. Our engineering team can provide ICD/CID files and communication matrices to streamline integration.

Q: What is the maximum number of transformers or winding configurations this relay can protect?
A: The G60 can protect single transformers up to 5-winding configurations or multiple transformers in parallel/series arrangements. Configuration depends on available CT/VT inputs and protection function requirements. For complex applications like auto-transformers or phase-shifting transformers, consult our application engineers.

Q: What level of energy savings or efficiency improvement can be expected?
A: While the relay itself doesn't directly reduce energy consumption, its advanced monitoring and diagnostic capabilities enable optimized transformer loading, early detection of inefficiencies (such as tap changer malfunctions or cooling system issues), and prevention of catastrophic failures—potentially avoiding 15-30% energy waste from damaged equipment and extended outages.

Q: What are the environmental and installation requirements for this relay?
A: The relay operates reliably in ambient temperatures from -40°C to +70°C with front panel protection rated IP54 (suitable for control room environments). Installation requires standard 19-inch rack mounting or panel cutout. Ensure adequate ventilation, avoid direct sunlight exposure, and maintain humidity below 95% non-condensing. For outdoor or harsh industrial environments, consider additional enclosure protection.

Q: Does the relay support remote monitoring, data acquisition, and cybersecurity protocols?
A: Yes, the G60 features comprehensive remote access via IEC 61850 MMS, web server interface, and engineering software connectivity. Cybersecurity features include user authentication, role-based access control (RBAC), encrypted communication (TLS/SSL), event logging, and compliance with IEC 62351 standards. For critical infrastructure applications, we recommend implementing network segmentation and firewall policies.

Q: Can the relay be retrofitted into existing transformer protection schemes?
A: Absolutely. The G60 is designed for both new installations and retrofit applications. It can replace legacy electromechanical or older digital relays while maintaining compatibility with existing CT/VT circuits and control wiring. Migration services include settings translation, functional testing, and commissioning support to ensure seamless transition with minimal downtime.

Request Technical Consultation

For detailed application engineering, customized configuration proposals, or technical quotations, please provide the following information: project name and location, application scenario (utility/industrial/renewable), transformer specifications (MVA, voltage class, winding configuration), CT/PT ratios and accuracy class, required communication protocols, existing SCADA/automation infrastructure, environmental conditions, and any special protection requirements. Our protection engineering team will deliver tailored recommendations and comprehensive technical support within 24-48 hours.
