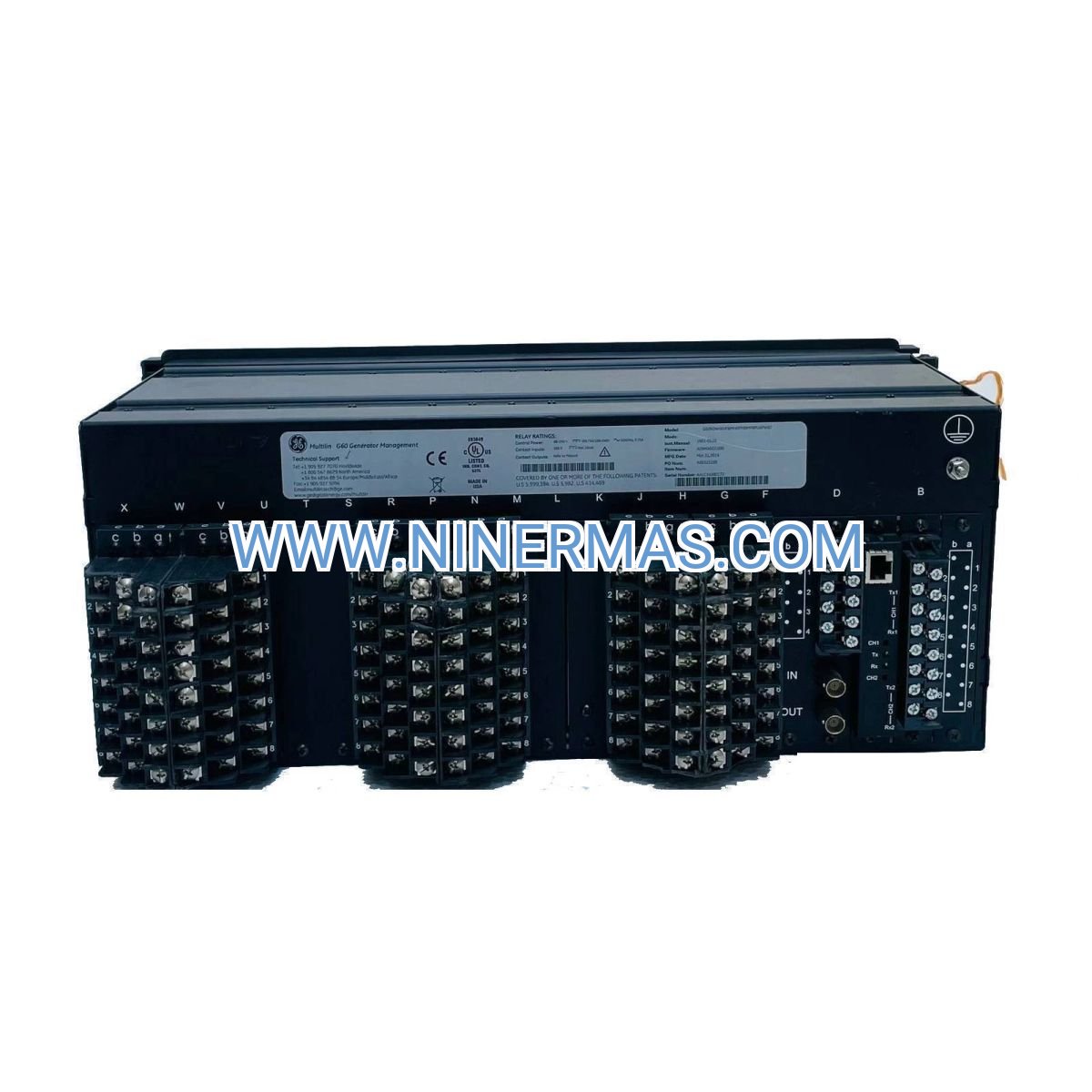

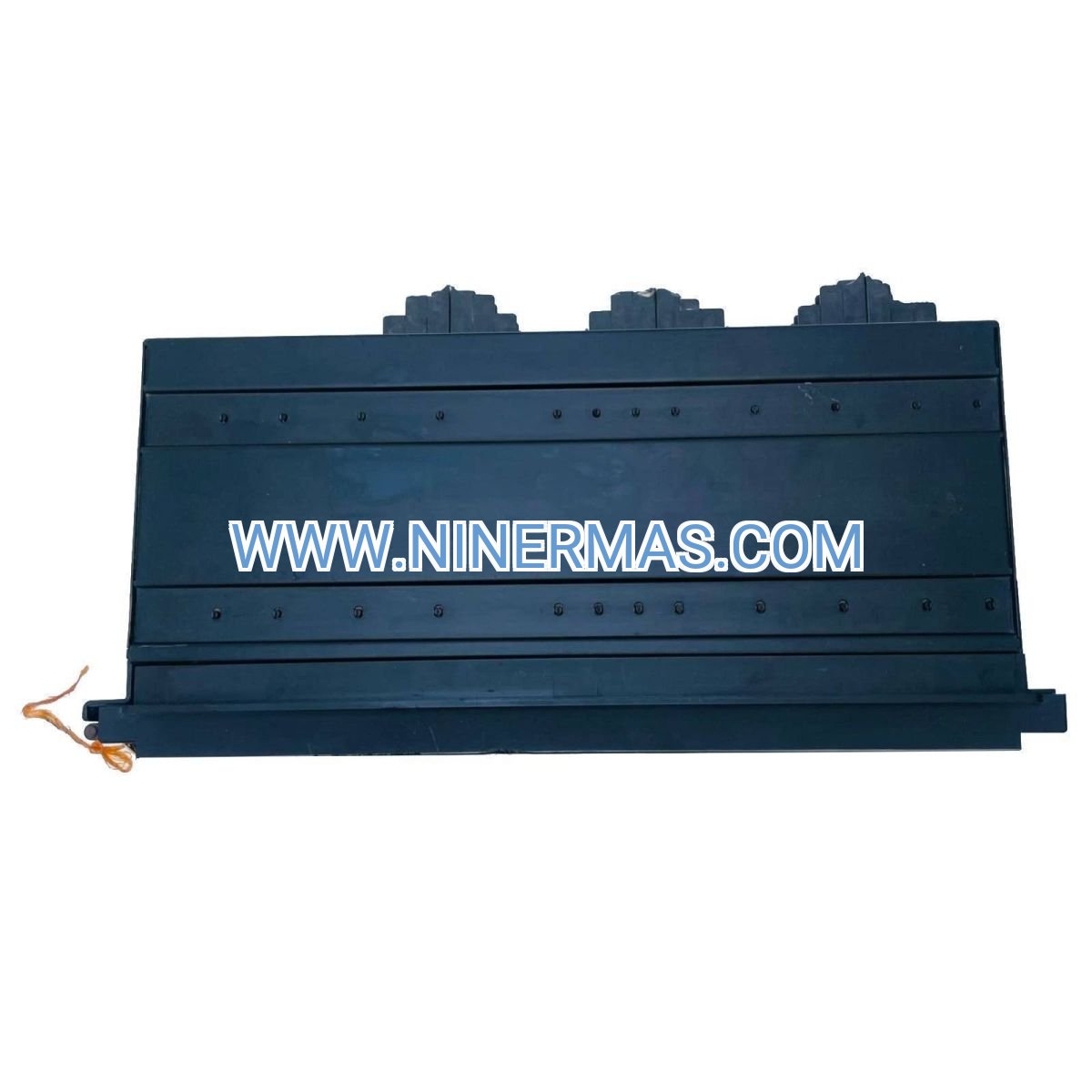

GE Multilin G60 Generator Protection Relay (Industrial-Grade Control & Monitoring System)

The GE Multilin G60 Generator Protection and Control Relay is an advanced industrial protection device designed for comprehensive generator monitoring, fault detection, and control in power generation systems. Through integrated digital protection algorithms, multi-function relay logic, and real-time data acquisition, it delivers reliable safeguarding for synchronous generators, gas turbines, steam turbines, and hydro generators across utility, industrial, and distributed energy applications.

Engineered for mission-critical environments including power plants, co-generation facilities, industrial manufacturing sites, and renewable energy installations, the G60 addresses challenges such as generator faults, excitation system failures, stator/rotor overheating, loss of synchronism, and unbalanced loading—ensuring continuous operation, minimizing downtime, and protecting high-value assets.

With IEC 61850 protocol support, modular I/O architecture, and customizable protection schemes, this relay integrates seamlessly into modern SCADA systems and substation automation networks. Suitable for consulting engineers, EPC contractors, system integrators, and plant operators seeking proven, standards-compliant protection solutions. Contact our application engineers for configuration guidance, protection coordination studies, and technical specifications.

Core Functions & Advantages

Comprehensive Multi-Function Protection
Integrates over 20 protection elements including differential (87G), overcurrent (50/51), overvoltage/undervoltage (27/59), frequency (81O/U), reverse power (32), loss of excitation (40), and stator ground fault (64G/59N), providing complete generator safeguarding in a single platform and reducing panel space requirements.

Advanced Fault Detection & Diagnostics
High-speed digital signal processing enables sub-cycle fault detection with precise event recording, sequence-of-events (SOE) logging, and oscillography capture, facilitating rapid root-cause analysis and reducing troubleshooting time by up to 60% compared to legacy electromechanical relays.

IEC 61850 & Multi-Protocol Connectivity
Native support for IEC 61850 MMS, GOOSE messaging, Modbus TCP/RTU, DNP3, and Ethernet/IP ensures seamless integration with modern DCS, SCADA, and substation automation systems, enabling centralized monitoring, remote diagnostics, and predictive maintenance strategies.

Flexible Configuration & Scalability
Modular hardware design with expandable I/O cards, programmable logic functions, and user-defined protection schemes allows tailored solutions for generators ranging from 500 kW to 500+ MW, accommodating diverse voltage classes (480V to 25kV) and connection configurations (wye, delta, grounded/ungrounded).

Robust Industrial Design & Reliability
Ruggedized construction with wide operating temperature range (-40°C to +70°C), EMI/RFI immunity per IEC 61000-4 standards, and conformal-coated PCBs ensure dependable performance in harsh industrial environments including high-vibration, high-humidity, and electrically noisy installations.

Intuitive Human-Machine Interface
Front-panel LCD display with multi-language support (English/Chinese/Spanish) provides real-time metering, alarm annunciation, and protection status visualization, while web-based HMI enables remote access via standard browsers without proprietary software requirements.

Typical Application Scenarios

This relay is engineered for applications demanding high reliability, precise protection coordination, and comprehensive generator monitoring, particularly in:

Utility & Independent Power Plants
Protects large synchronous generators (10 MW to 500+ MW) in coal, gas, nuclear, and combined-cycle power stations, coordinating with transformer protection, bus differential schemes, and grid interconnection requirements per IEEE/IEC standards.

Industrial Co-Generation & CHP Systems
Safeguards on-site generation assets in chemical plants, refineries, pulp & paper mills, and manufacturing facilities, ensuring continuous process steam/power supply while managing grid paralleling, load sharing, and islanding detection per IEEE 1547 and local utility interconnection agreements.

Renewable Energy & Distributed Generation
Provides protection for hydro generators, biogas gensets, and synchronous condensers in microgrids, mini-hydro projects, and renewable energy parks, supporting anti-islanding, voltage ride-through (LVRT/HVRT), and frequency response requirements.

Marine & Offshore Power Systems
Delivers reliable generator protection for shipboard power plants, offshore platforms, and floating production units where space constraints, vibration, and corrosive atmospheres demand compact, ruggedized solutions with proven maritime certifications.

Data Centers & Mission-Critical Facilities
Ensures backup generator reliability for Tier III/IV data centers, hospitals, telecom hubs, and emergency power systems, integrating with automatic transfer switches (ATS), paralleling switchgear, and building management systems (BMS) for seamless failover and load management.

Technical Parameters & Selection Guide

To facilitate engineering design and equipment selection, we provide standardized configuration options with flexibility for project-specific customization:

Key Specifications:

• Generator Rating: 500 kW to 500+ MW (voltage classes: 480V to 25kV)
• Protection Functions: 87G, 50/51, 27/59, 81O/U, 32, 40, 64G, 59N, 46, 24, 78, 25, and more (configurable)
• Current Inputs: 1A or 5A nominal, up to 100x CT rating
• Voltage Inputs: Phase and neutral VTs, 50/60 Hz, configurable wye/delta
• Digital I/O: 16–32 configurable inputs, 16–24 relay outputs (expandable)
• Communication Ports: Dual Ethernet (IEC 61850), RS-485 (Modbus/DNP3), rear/front accessible
• Power Supply: 24–250 VDC / 100–240 VAC, redundant option available
• Operating Temperature: -40°C to +70°C (-40°F to +158°F)
• Enclosure Rating: IP54 front, IP20 rear (panel-mount); IP65 available for harsh environments
• Compliance Standards: IEC 61850, IEEE C37.90, IEC 60255, UL/cUL, CE
• Dimensions: 1/2 rack (8.5" W) or full rack (19" W), 7U–10U height depending on I/O configuration

Selection Recommendations:
When specifying the G60 relay, consider the following parameters: generator rated power and voltage, CT/VT ratios, required protection functions per utility interconnection agreements, communication protocol requirements (IEC 61850 vs. legacy Modbus/DNP3), available panel space, and environmental conditions (temperature, humidity, vibration). For complex applications involving multiple generators, bus-tie schemes, or grid synchronization, consult with our protection engineers who can provide coordination studies, settings calculations, and one-line diagram reviews. Submit your project datasheet including generator nameplate data, single-line diagram, and protection philosophy for tailored model recommendations.

Extended Capabilities & Integration Options

Cybersecurity & Network Hardening: Role-based access control (RBAC), encrypted communications (TLS/SSL), audit logging, and compliance with NERC CIP standards for critical infrastructure protection.

Predictive Maintenance & Condition Monitoring: Continuous tracking of generator insulation resistance (RTD inputs), bearing temperature, vibration trends, and partial discharge indicators, with alarm thresholds and trend analysis for proactive maintenance scheduling.

Synchrophasor & PMU Functionality: Optional phasor measurement unit (PMU) capability per IEEE C37.118 for wide-area monitoring, grid stability analysis, and real-time situational awareness in interconnected power systems.

Third-Party System Integration: Pre-configured drivers for Siemens SICAM, ABB MicroSCADA, Schneider Electric EcoStruxure, GE iFIX/CIMPLICITY, and Wonderware System Platform, accelerating commissioning and reducing integration costs.

Delivery, Service & Quality Assurance

Lead Time: Standard configurations ship within 4–6 weeks; custom-engineered solutions require 8–12 weeks depending on I/O complexity and factory acceptance testing (FAT) requirements.

Warranty & Support: 12-month manufacturer warranty covering materials and workmanship; extended warranty and annual calibration service contracts available. Technical support includes remote diagnostics, firmware updates, and 24/7 emergency hotline for critical installations.

Commissioning Assistance: On-site or remote commissioning support available, including relay settings verification, protection coordination validation, secondary injection testing, and operator training. Comprehensive documentation package includes protection settings files, AutoCAD wiring diagrams, relay logic schematics, and IEC 61850 ICD/CID configuration files.

Certifications & Compliance: Factory-tested per IEC 60255 type test requirements; UL/cUL listed for North American installations; CE marked for European markets; compliant with IEEE C37.90 seismic and surge withstand standards.

Frequently Asked Questions (FAQ)

Q: How does the GE Multilin G60 generator protection relay integrate with existing DCS or SCADA systems?
A: The G60 supports multiple industrial protocols including IEC 61850 (MMS and GOOSE), Modbus TCP/RTU, DNP3 Serial/IP, and Ethernet/IP. Integration typically involves configuring the relay's communication parameters (IP address, baud rate, data mapping) and importing the IEC 61850 ICD file into your SCADA engineering tool. For legacy systems using Modbus or DNP3, standard register maps are provided in the user manual. Our application engineers can assist with protocol gateway configuration if required.

Q: What is the maximum number of generators that can be protected using a single G60 relay?
A: The G60 is designed as a dedicated single-generator protection relay, providing comprehensive protection for one generator unit. For multi-generator installations (e.g., paralleled gensets or power plant auxiliary generators), each generator requires its own G60 relay to ensure selective protection coordination and independent fault isolation. However, all relays can be networked via IEC 61850 or Modbus for centralized monitoring and control.

Q: What energy savings or efficiency improvements can be expected with the G60 relay?
A: While the G60 is primarily a protection device rather than an efficiency optimizer, it indirectly supports operational efficiency by: (1) reducing unplanned downtime through fast fault clearing (minimizing repair costs and lost production), (2) enabling condition-based maintenance via continuous monitoring (reducing unnecessary preventive maintenance), and (3) providing precise metering for power factor correction and load optimization. Typical users report 15–25% reduction in maintenance costs and 40–60% faster fault diagnosis compared to legacy relay systems.

Q: What are the environmental and installation requirements for the G60 relay?
A: The G60 operates reliably in ambient temperatures from -40°C to +70°C with front panel rating of IP54 (dust and splash resistant). It is designed for panel-mount installation in standard 19" relay racks or custom control panels. Ensure adequate ventilation (minimum 2" clearance above/below) and avoid direct exposure to corrosive gases or condensation. For outdoor or harsh industrial environments, specify IP65-rated enclosures or NEMA 4X cabinets. The relay meets IEC 61000-4 EMC standards for immunity to electrical fast transients, surge, and radiated interference.

Q: Can the G60 relay support remote monitoring and data acquisition for predictive maintenance?
A: Yes, the G60 provides comprehensive remote access capabilities via Ethernet-based protocols. IEC 61850 MMS enables real-time data retrieval of all metering values, protection status, and event logs. The relay also features a built-in web server for browser-based access to settings, waveform captures, and diagnostic information without requiring proprietary software. For integration with enterprise asset management (EAM) or computerized maintenance management systems (CMMS), standard OPC UA or Modbus TCP interfaces can be configured to stream continuous condition monitoring data including RTD temperatures, CT/VT health status, and relay self-diagnostics.

Q: Is the G60 relay compatible with renewable energy applications and grid code requirements?
A: Absolutely. The G60 is widely deployed in hydro, biogas, and synchronous condenser applications within renewable energy projects. It supports critical grid code functions including low/high voltage ride-through (LVRT/HVRT), frequency ride-through, anti-islanding detection (IEEE 1547), and active/reactive power control. For wind and solar projects using synchronous generators or motor-generator sets, the G60 provides the necessary protection coordination with inverter-based resources and meets interconnection requirements of major grid operators worldwide.

Request Technical Support & Custom Configuration

To obtain detailed application engineering support, protection coordination studies, relay settings files, or project quotations, please provide the following information: project name and location, generator nameplate data (kW/kVA rating, voltage, frequency, connection type), CT/VT ratios, single-line diagram, utility interconnection requirements, communication protocol preferences, and environmental conditions. Our protection engineers will deliver a comprehensive technical proposal including recommended model configuration, settings calculations, and integration guidance within 48–72 hours.
