GE Multilin G60 Generator Protection Relay | Advanced Differential & Monitoring System

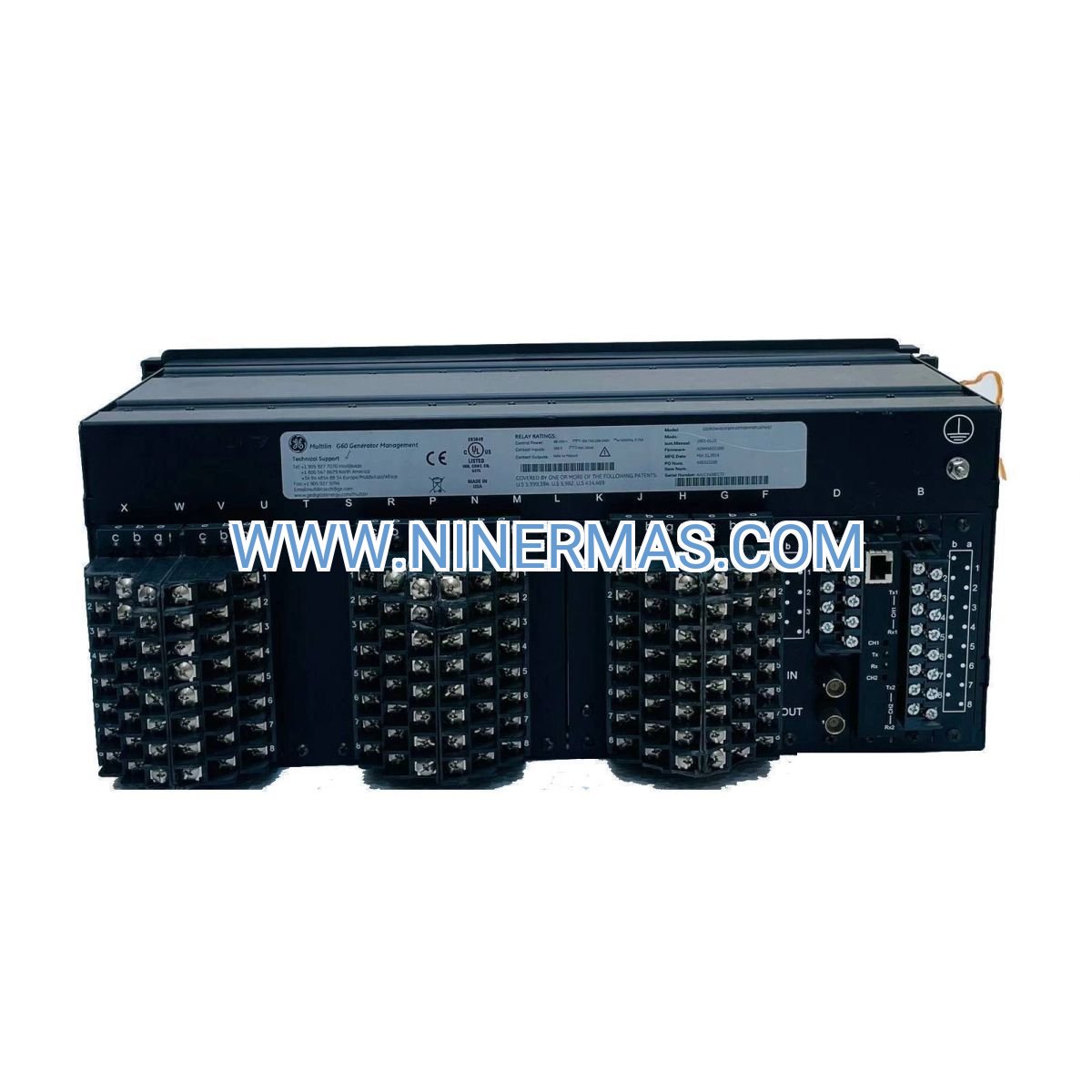

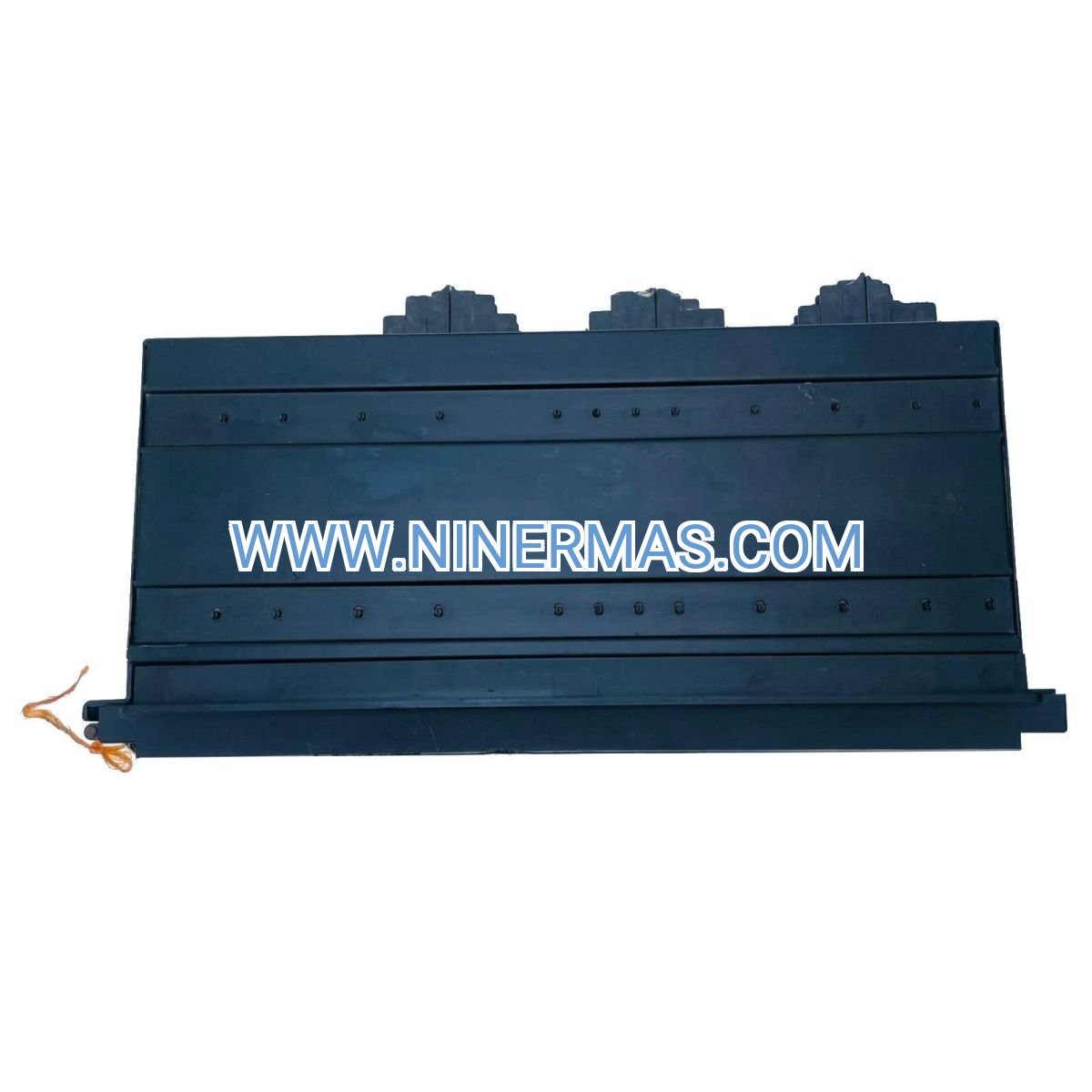

GE Multilin G60 Generator Protection Relay (Industrial-Grade Control & Monitoring System)

The GE Multilin G60 Generator Protection and Control Relay is an advanced industrial protection device designed for synchronous generators and motor applications. Through integrated differential protection algorithms, real-time monitoring capabilities, and comprehensive control logic, it delivers reliable safeguarding for critical power generation assets ranging from small industrial units to large utility-scale generators up to 500MW.

Engineered for power plants, co-generation facilities, industrial manufacturing sites, and utility substations, the G60 addresses common operational challenges including stator ground faults, rotor earth faults, loss of excitation, reverse power conditions, and thermal overload scenarios. Its modular architecture enables precise fault detection while minimizing nuisance trips and unplanned downtime.

With field-proven reliability, flexible configuration options, and seamless integration with SCADA systems, the G60 relay serves design engineers, system integrators, maintenance teams, and plant operators who demand precision protection with operational transparency. Contact our application engineers for customized protection schemes and technical consultation.

Core Functions & Technical Advantages

• Multi-Element Differential Protection
  Employs high-speed percentage differential algorithms with harmonic restraint to detect internal stator faults within 15-20ms, preventing catastrophic damage while maintaining stability during external fault conditions and CT saturation events.
• Comprehensive Protection Portfolio
  Integrates 87G differential, 21 distance, 27/59 voltage, 32 reverse power, 40 loss of field, 46 negative sequence, 50/51 overcurrent, 64F/64G ground fault, 81 frequency, and thermal overload elements—reducing panel space and wiring complexity compared to discrete relay installations.
• Real-Time Condition Monitoring
  Continuously tracks generator parameters including stator current/voltage, rotor current, power factor, MW/MVAR output, bearing RTD temperatures, and vibration inputs, enabling predictive maintenance strategies and early fault detection.
• Flexible Communication & Integration
  Supports Modbus RTU/TCP, DNP3, IEC 61850, and Ethernet protocols for seamless connectivity with DCS, SCADA, and plant historians. Enables remote monitoring, event retrieval, and settings management without on-site visits.
• Enhanced Reliability Features
  Dual-redundant power supplies, self-diagnostic routines, and event/fault recording with high-resolution waveform capture ensure maximum uptime. Meets IEC 61850-3, IEEE C37.90, and ANSI standards for harsh industrial environments.
• Intuitive User Interface
  Features a backlit LCD display with multi-language support (English/Chinese/Spanish), graphical metering screens, and context-sensitive help menus. Simplifies commissioning, troubleshooting, and operator training while reducing human error.

Typical Application Scenarios

The GE Multilin G60 relay is engineered for environments demanding high availability, precise protection coordination, and regulatory compliance:

• Utility Power Generation Stations
  Protects steam, gas, and hydro turbine-driven synchronous generators in central power plants. Coordinates with transformer differential relays and bus protection schemes to ensure selective fault isolation and grid stability.
• Industrial Co-Generation & CHP Plants
  Safeguards generators in chemical, petrochemical, pulp & paper, and steel manufacturing facilities where process continuity is critical. Interfaces with turbine controls and heat recovery systems for optimized energy efficiency.
• Renewable Energy & Hybrid Systems
  Applicable to biomass, biogas, and small hydro installations requiring grid-compliant protection. Supports synchronization control and anti-islanding functions for distributed generation applications.
• Marine & Offshore Platforms
  Provides robust protection for shipboard generators and offshore oil & gas platform power systems operating in extreme environmental conditions with limited maintenance access.
• Data Centers & Mission-Critical Facilities
  Ensures uninterrupted power supply for backup diesel generators supporting Tier III/IV data centers, hospitals, and telecommunications hubs where downtime costs are prohibitive.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide standardized configurations with customization options for project-specific requirements:

Selection Considerations: When specifying the G60 relay, engineers should evaluate generator nameplate data (MVA, voltage, current), protection philosophy (unit vs. overall differential), existing CT/PT ratios, communication infrastructure, and environmental conditions. Our application team can review single-line diagrams and provide optimized protection settings files to accelerate commissioning.

Advanced Configuration Options

• RTD Temperature Monitoring: Supports up to 12 RTD inputs for stator winding, bearing, and cooling system temperature surveillance with programmable alarm/trip thresholds.
• Synchro-Check & Auto-Synchronization: Optional 25 sync-check element enables safe paralleling with grid or other generators, reducing mechanical stress during closure.
• Breaker Failure Protection: Integrated 50BF logic initiates backup tripping to adjacent breakers if primary breaker fails to clear fault within preset time.
• Oscillography & Event Recording: Captures 64 cycles of high-resolution waveforms (128 samples/cycle) for post-fault analysis and protection performance validation.
• Cybersecurity Features: Role-based access control, encrypted communications, and audit logging comply with NERC CIP and IEC 62351 standards for critical infrastructure protection.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog units ship within 2-4 weeks; custom-configured relays with specialized I/O or firmware require 6-8 weeks. Expedited delivery available for emergency replacements.

Warranty & Support: All G60 relays include a 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and preventive maintenance contracts available. Technical support includes remote diagnostics, settings file review, and on-site commissioning assistance (region-dependent).

Documentation Package: Each relay ships with instruction manual, quick-start guide, protection settings template, AutoCAD wiring diagrams, IEC 61850 ICD files, and Modbus register maps—ensuring seamless integration and reducing engineering hours.

Certifications: Factory acceptance testing (FAT) reports, calibration certificates, and material traceability documentation provided upon request to satisfy quality management and regulatory audit requirements.

Frequently Asked Questions (FAQ)

Q: How does the GE G60 generator protection relay integrate with existing DCS or SCADA systems?
A: The G60 supports multiple industrial protocols including Modbus RTU/TCP, DNP3.0, and IEC 61850 MMS/GOOSE. Connection is typically via RS485 or Ethernet. Our engineers provide pre-configured communication templates and can assist with protocol mapping during commissioning to ensure seamless data exchange with your supervisory systems.

Q: What is the maximum generator size this relay can protect?
A: The G60 is rated for generators up to 500MW when properly configured with appropriate CT and PT ratios. For larger units or special applications (e.g., pumped storage, variable-speed drives), consult our protection engineering team for relay coordination studies and settings calculations.

Q: Can the G60 relay monitor generator bearing temperatures and vibration?
A: Yes. The relay accepts up to 12 RTD inputs (Pt100/Pt1000) for temperature monitoring of stator windings, bearings, and cooling systems. Vibration monitoring requires external transducers with 4-20mA outputs connected to analog input modules. Programmable alarm and trip thresholds enable condition-based maintenance strategies.

Q: What environmental conditions can the G60 withstand?
A: Standard units are rated IP20 for panel mounting in controlled environments (-40°C to +70°C). For outdoor substations or harsh industrial settings, IP54-rated enclosures with conformal coating are available. The relay meets IEEE C37.90 seismic, surge withstand, and EMI/RFI immunity requirements.

Q: Does the relay support remote firmware updates and settings changes?
A: Yes. Using GE's EnerVista software suite over Ethernet or serial connections, authorized personnel can remotely upload firmware, modify protection settings, retrieve event records, and perform diagnostic tests—minimizing site visits and reducing maintenance costs. Role-based security ensures only qualified engineers can make critical changes.

Q: How long does commissioning typically take for a G60 relay?
A: For experienced protection technicians with pre-configured settings files, commissioning averages 1-2 days including CT/PT verification, protection element testing, and communication validation. First-time users or complex multi-unit installations may require 3-5 days. We offer factory training courses and on-site commissioning support to accelerate deployment.

Request Technical Consultation & Quotation

To receive a customized protection scheme, detailed specifications, or commercial quotation, please provide the following project information:

• Generator nameplate data (MVA, voltage, power factor, connection type)
• Existing CT/PT ratios and accuracy class
• Protection philosophy and coordination requirements
• Communication protocol and network architecture
• Environmental conditions and enclosure preferences
• Delivery timeline and installation location

Our protection engineering team will respond within 24 hours with application-specific recommendations, settings calculations, and budget pricing.
