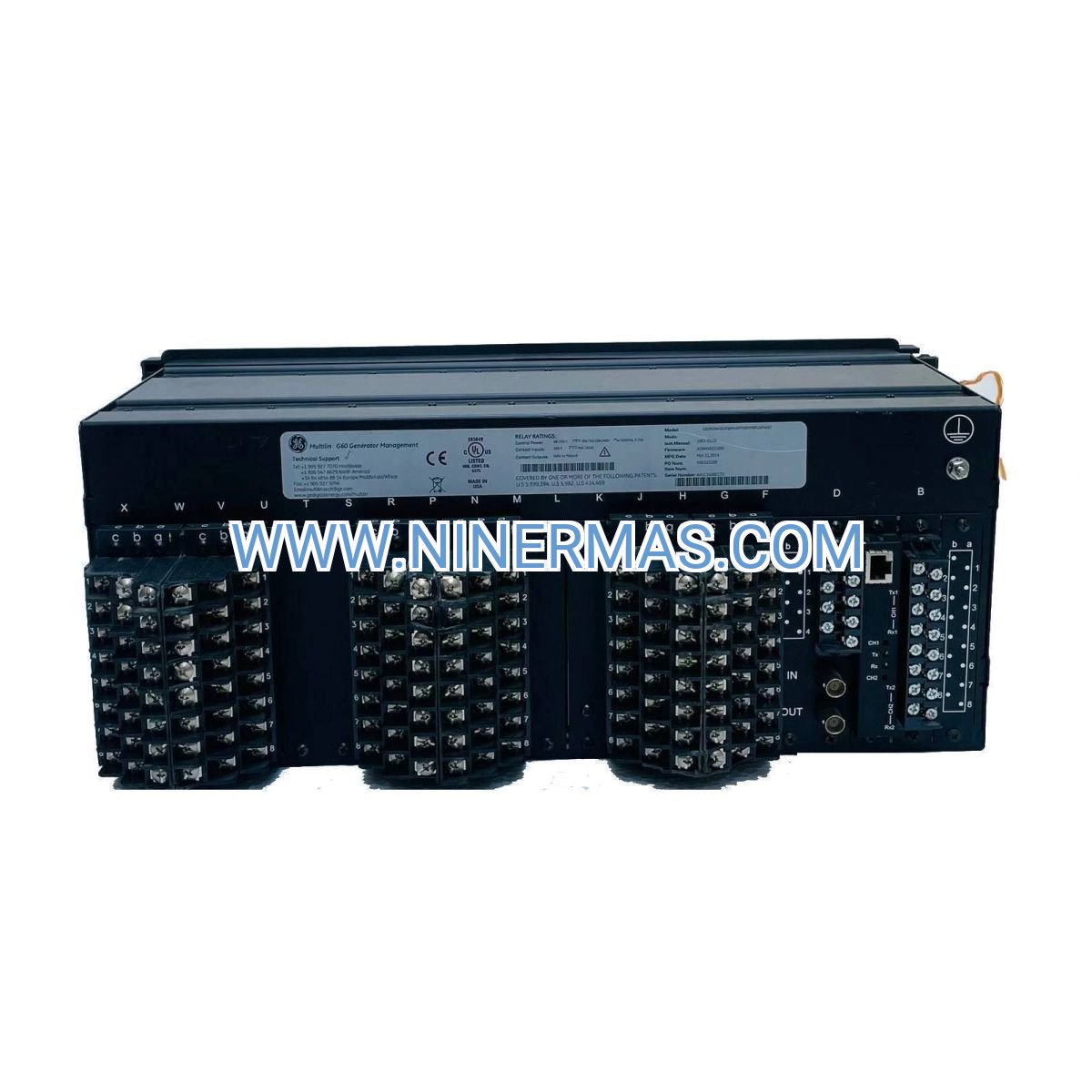

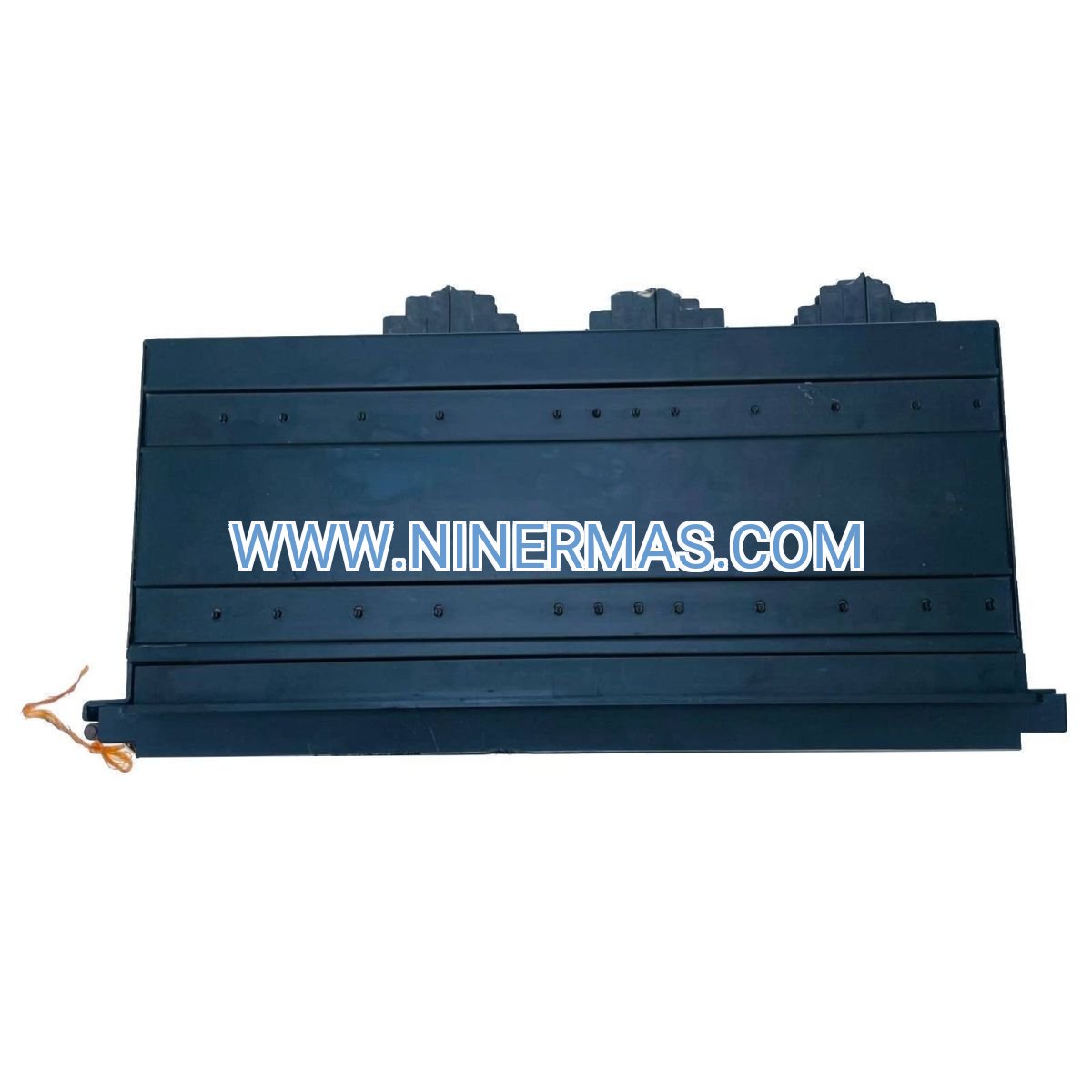

GE G60 Transformer Protection Relay (Industrial Multi-Winding Differential Control System)

The GE G60-G01-VFL-F8F-H6EM8F-PXX is an advanced transformer protection relay designed for comprehensive monitoring and protection of power transformers in utility substations, industrial power distribution systems, and critical infrastructure facilities. Through integrated differential protection algorithms, multi-stage overcurrent detection, and real-time monitoring capabilities, this relay ensures reliable transformer operation while minimizing downtime and equipment damage risks.

Ideal for high-voltage substations, power generation plants, petrochemical facilities, steel mills, and large-scale manufacturing operations, the G60 relay addresses critical challenges including transformer internal faults, through-fault conditions, overload scenarios, thermal stress management, and communication failures in SCADA systems.

Leveraging standardized design with flexible configuration options, this protection relay delivers superior fault detection accuracy, seamless integration with existing substation automation systems, comprehensive event recording, and intuitive diagnostics—making it the preferred choice for protection engineers, utility operators, EPC contractors, and OEM panel builders. Contact our application engineers for customized protection schemes and technical consultation.

Core Functions & Technical Advantages

• Multi-Winding Differential Protection
  Employs percentage differential algorithms with harmonic restraint and blocking logic to distinguish between internal faults and magnetizing inrush conditions, providing fast and selective protection for two-winding, three-winding, and auto-transformer configurations.
• Comprehensive Overcurrent & Earth Fault Protection
  Features multiple stages of phase and ground overcurrent elements (ANSI 50/51, 50N/51N) with definite-time and inverse-time characteristics, ensuring coordinated protection with upstream and downstream devices while reducing nuisance tripping.
• Advanced Monitoring & Diagnostics
  Continuously monitors transformer load current, winding temperatures (via RTD inputs), oil/gas levels, tap changer position, and bushing conditions—enabling predictive maintenance and early fault detection to extend transformer service life.
• Substation Automation Integration
  Supports IEC 61850, DNP3, Modbus, and IEC 60870-5-103 protocols for seamless integration with SCADA systems, enabling remote monitoring, control, and data acquisition across distributed substations.
• Robust Protection Features
  Includes overload thermal protection, restricted earth fault (REF), voltage-controlled/voltage-restrained overcurrent, breaker failure protection, and comprehensive alarm management—reducing operational risks and maintenance costs.
• User-Friendly Interface & Configuration
  Equipped with a high-resolution graphical display, intuitive menu navigation, and EnerVista software suite for offline setting calculations, event analysis, and firmware updates—simplifying commissioning and troubleshooting workflows.

Typical Application Scenarios

This relay is engineered for demanding environments requiring high reliability, precise protection coordination, and comprehensive monitoring capabilities, including:

• Utility Transmission & Distribution Substations
  Protects grid-connected power transformers (up to 500 kV class) against internal faults, external short circuits, and abnormal operating conditions, ensuring grid stability and minimizing outage duration.
• Industrial Power Distribution Systems
  Safeguards plant transformers in petrochemical refineries, steel manufacturing, mining operations, and automotive production facilities where process continuity and equipment protection are mission-critical.
• Renewable Energy Integration Projects
  Provides reliable protection for step-up transformers in wind farms, solar power plants, and energy storage systems, supporting grid code compliance and fault ride-through requirements.
• Data Centers & Mission-Critical Facilities
  Ensures uninterrupted power supply to IT infrastructure, telecommunications hubs, and healthcare facilities by detecting and isolating transformer faults before cascading failures occur.
• Railway Traction & Metro Systems
  Protects traction transformers and auxiliary power supplies in electrified rail networks, maintaining service reliability and passenger safety.

Technical Parameters & Selection Guide

To facilitate engineering design and equipment selection, we provide standardized configuration options with customization capabilities to match specific project requirements.

Selection Recommendations: When specifying the G60 relay, consider transformer MVA rating, voltage class, winding configuration (delta/wye), CT ratios, required protection functions, communication protocol requirements, and panel space constraints. For complex applications involving auto-transformers, phase-shifting transformers, or multi-terminal configurations, consult with our protection engineers who can provide detailed setting calculations and coordination studies.

Extended Capabilities

• Adaptive Protection Schemes: Supports load-dependent protection settings and automatic scheme switching based on transformer tap position or system configuration changes.
• Cybersecurity Features: Role-based access control, encrypted communication (TLS/SSL), audit logging, and compliance with NERC CIP standards for critical infrastructure protection.
• Redundancy & Reliability: Dual power supply inputs, watchdog monitoring, self-diagnostics with automatic fault reporting, and hot-swappable communication modules (model-dependent).
• Integration with Asset Management: Exports condition monitoring data to enterprise asset management systems for lifecycle analysis, maintenance scheduling, and regulatory compliance reporting.

Delivery, Service & Quality Assurance

Lead Time: Standard configurations typically ship within 3–5 business days from stock; custom-configured units require 2–3 weeks for factory programming and testing.

Warranty: 12-month manufacturer warranty covering defects in materials and workmanship; extended warranty and service contracts available.

Technical Support: Comprehensive pre-sales application engineering support, commissioning assistance (remote or on-site, region-dependent), and post-sales troubleshooting via phone, email, or web portal.

Documentation Package: Each relay ships with complete instruction manual, setting calculation worksheets, CAD drawings (panel cutout dimensions), wiring diagrams, IEC 61850 ICD files, and DNP3 point lists—facilitating smooth installation and integration.

Testing & Certification: Factory acceptance testing (FAT) available upon request; all units undergo routine production testing per IEC 60255-27 and IEEE C37.90 standards before shipment.

Frequently Asked Questions (FAQ)

Q: How does the GE G60 transformer protection relay integrate with existing substation SCADA systems?
A: The G60 supports multiple industry-standard protocols including IEC 61850 (MMS and GOOSE), DNP3.0 (serial and TCP/IP), Modbus RTU/TCP, and IEC 60870-5-103. It provides Ethernet and RS-485 connectivity, allowing seamless integration with legacy RTUs and modern substation automation platforms. IEC 61850 ICD files are provided for easy configuration in substation engineering tools.

Q: What is the maximum number of transformer windings the G60 can protect?
A: The G60-G01 model supports differential protection for up to three transformer windings (e.g., primary, secondary, and tertiary windings in a three-winding transformer or auto-transformer configuration). For applications requiring protection of more than three windings, consult our engineering team for alternative solutions or multi-relay schemes.

Q: What energy savings or efficiency improvements can be expected with the G60 relay?
A: While the relay itself is a protection device (not a power-saving device), its advanced monitoring and diagnostic capabilities enable early detection of transformer inefficiencies such as core saturation, winding hot spots, and tap changer malfunctions—allowing operators to optimize transformer loading and prevent energy losses due to unplanned outages. Proper protection coordination can reduce fault clearing time by up to 40%, minimizing equipment damage and restoration costs.

Q: What are the environmental and installation requirements for the G60 relay?
A: The relay is designed for harsh industrial and utility environments, with an operating temperature range of -40°C to +85°C and front panel protection rating of IP52 (dust-protected and drip-proof). It requires a standard 1/4 or 1/2 rack panel cutout and can be mounted in indoor control panels or outdoor kiosks (with appropriate environmental enclosures). Ensure adequate ventilation and avoid direct exposure to corrosive gases or excessive vibration.

Q: Can the G60 relay support remote monitoring and data logging for predictive maintenance?
A: Yes, the G60 features comprehensive data logging including time-stamped sequence of events (SOE), fault oscillography (waveform capture), load profile recording, and thermal accumulation tracking. This data can be accessed remotely via Ethernet communication and exported to asset management or condition monitoring systems. The relay also supports DNP3 file transfer and IEC 61850 reporting for automated data retrieval.

Q: Is the GE G60 relay compatible with renewable energy applications such as solar or wind farms?
A: Absolutely. The G60 is widely deployed in renewable energy projects to protect step-up transformers connecting solar inverters or wind turbine generators to the utility grid. Its fast fault detection, harmonic blocking algorithms, and support for grid code compliance (including fault ride-through and anti-islanding protection) make it ideal for distributed generation and energy storage integration.

Request a Customized Protection Scheme

To receive a detailed application engineering proposal, technical specification sheet, or pricing quotation, please provide the following project information: transformer MVA rating and voltage class, winding configuration (delta/wye/zigzag), CT and VT ratios, required protection functions (differential, overcurrent, REF, etc.), communication protocol preferences, environmental conditions, and any special compliance requirements. Our protection engineers will deliver a tailored solution with setting recommendations and coordination studies within 2–3 business days.
