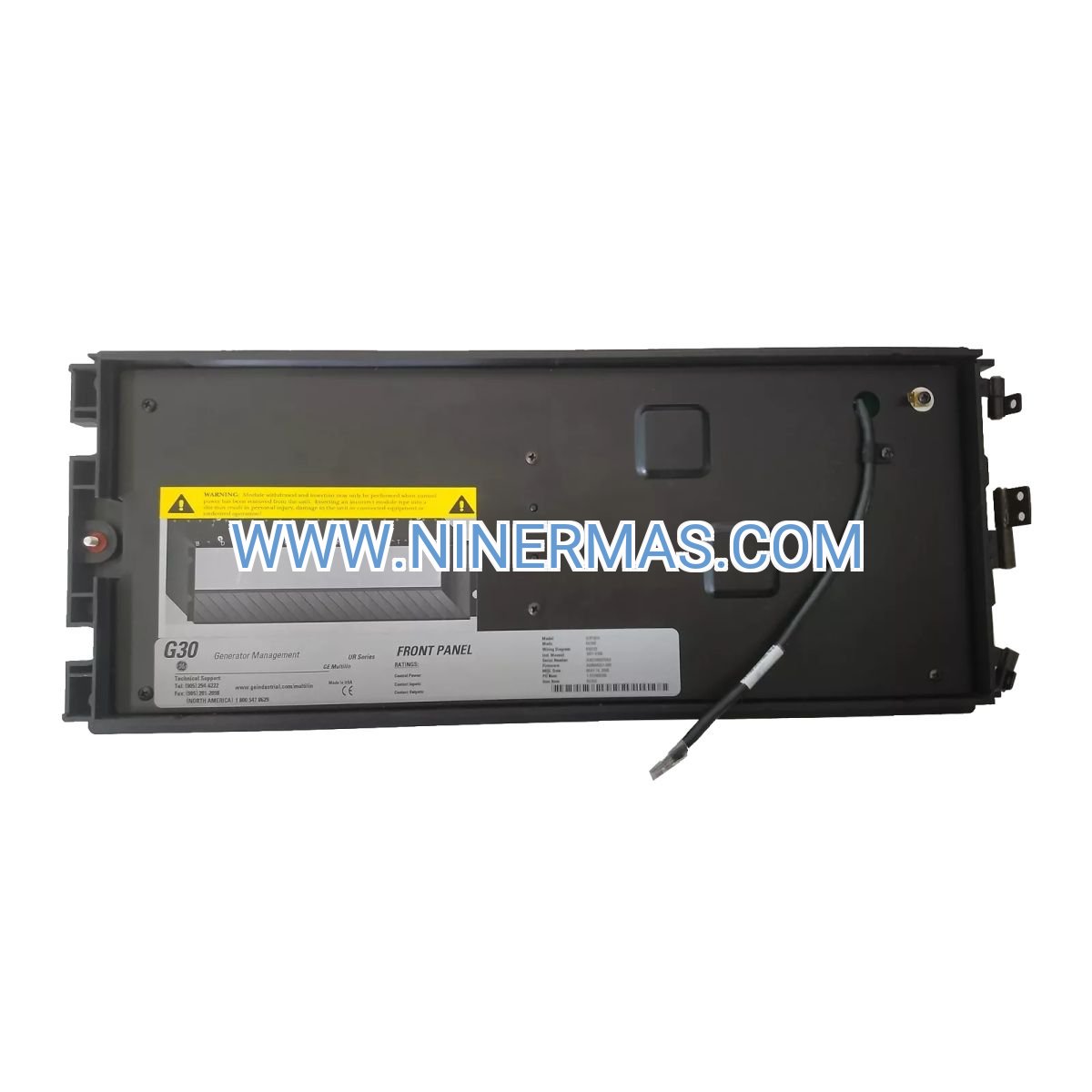

GE G30 Generator Protection Relay (Industrial-Grade Power Control System)

The GE G30 Generator Protection Relay is an industrial-grade protection and control device designed for comprehensive monitoring and safeguarding of small to medium-sized generators (500kVA to 10MVA). Built on GE's proven Universal Relay (UR) platform, this system delivers multi-function protection through advanced microprocessor technology, PLC-based logic control, and real-time fault detection to ensure continuous power generation reliability.

Suitable for distributed generation facilities, industrial cogeneration plants, commercial backup power systems, and renewable energy installations, the G30 addresses critical challenges including generator fault protection, voltage/frequency instability, thermal overload risks, and inadequate fault diagnostics. Through standardized design and flexible configuration options, this relay offers rapid fault response (sub-cycle detection), comprehensive event logging, seamless SCADA integration, and multi-protocol communication compatibility—ideal for consulting engineers, EPC contractors, system integrators, and facility maintenance teams. Contact our application engineers for customized protection scheme design and technical quotations.

Core Functions & Advantages

Multi-Layer Generator Protection
Integrates 15+ protection elements including differential (87G), overcurrent (50/51), voltage (27/59), frequency (81O/U), reverse power (32), loss of excitation (40), and stator/rotor ground fault (64G/64R) protection. Provides comprehensive coverage against electrical faults, mechanical failures, and abnormal operating conditions, reducing unplanned downtime by up to 40%.

Proven Energy Efficiency & Cost Reduction
Real-time power factor monitoring and reactive power control optimize generator loading efficiency. Integrated thermal modeling prevents overheating while maximizing output capacity. Compared to electromechanical relay systems, digital protection reduces nuisance tripping by 60% and extends generator service life through precise load management.

Intelligent Multi-Unit Coordination
Supports automatic synchronization, load sharing, and sequential start/stop control for multi-generator installations. Built-in breaker failure protection (50BF) and automatic transfer schemes ensure seamless transition during fault conditions, maintaining power continuity for critical loads.

Comprehensive Fault Diagnostics & Protection
Features overcurrent protection, phase unbalance detection, under/over voltage protection, under/over frequency protection, reverse power detection, ground fault isolation, thermal overload monitoring, and breaker wear tracking. Advanced oscillography captures fault waveforms with 1ms resolution, enabling rapid root-cause analysis and reducing troubleshooting time by 70%.

User-Friendly Interface & Remote Access
Equipped with a 40-character backlit LCD display and intuitive keypad navigation, supporting bilingual (English/Chinese) menus. Front-panel LEDs provide instant status indication for protection trips, alarms, and breaker position. Ethernet connectivity enables web-based configuration via EnerVista UR Setup software, allowing remote monitoring, parameter adjustment, and firmware updates without site visits.

Typical Application Scenarios

This protection relay is engineered for applications demanding high reliability, continuous operation, and stringent safety compliance, particularly in:

Industrial Cogeneration & On-Site Power Generation
Protects diesel, natural gas, and dual-fuel generators in manufacturing facilities, chemical plants, refineries, and food processing operations. Ensures stable power supply for production lines while managing grid-parallel and island-mode operation. Coordinates with utility protective relays to prevent backfeed during grid outages.

Commercial & Institutional Backup Power Systems
Safeguards emergency standby generators in hospitals, data centers, telecommunications facilities, and high-rise buildings. Provides automatic mains failure (AMF) control, load shedding prioritization, and black-start capability. Meets NFPA 110 and Joint Commission requirements for critical facility power systems.

Distributed Energy Resources & Microgrids
Monitors and controls small-scale renewable generators including biomass, biogas, and micro-hydro units connected to utility grids or operating in islanded microgrids. Supports IEEE 1547 anti-islanding protection and voltage/frequency ride-through requirements for grid interconnection compliance.

Utility & Municipal Power Stations
Deployed in small utility peaking plants, municipal wastewater treatment generators, and district heating/cooling cogeneration facilities. Integrates with substation automation systems via IEC 61850 GOOSE messaging for coordinated protection schemes and centralized SCADA monitoring.

Technical Parameters & Selection Guide

To facilitate engineering design and equipment selection, we provide standardized configuration options with customization available for project-specific requirements:

Selection Recommendations:
When specifying the G30 relay, consider the following parameters: generator rated capacity (kVA/MVA), voltage class (LV/MV), current transformer ratios, required protection functions, communication protocol requirements, environmental conditions (temperature/humidity/altitude), panel space constraints, and integration with existing control systems. For assistance with protection coordination studies, CT sizing calculations, or custom logic programming, please provide your project specifications including single-line diagrams, generator nameplate data, utility interconnection requirements, and site electrical drawings. Our application engineers will recommend the optimal configuration and provide detailed submittal documentation.

Advanced Features & Customization Options

Programmable Logic Control (PLC)
Built-in FlexLogic™ engine with 512 logic gates enables custom protection schemes, interlocking sequences, and automated control routines without external PLCs. Supports Boolean logic, timers, counters, and analog comparators for application-specific requirements.

Multi-Protocol SCADA Integration
Simultaneous support for Modbus RTU (serial), DNP3.0 (serial/Ethernet), and IEC 61850 (MMS/GOOSE) allows integration with legacy and modern control systems. Configurable data mapping provides access to 200+ metering points, protection status, and alarm conditions.

Synchro-Check & Auto-Synchronization
Optional synchronizer module (requires hardware upgrade) enables automatic paralleling of generators to utility grid or other generators. Monitors voltage magnitude, frequency, and phase angle differences with adjustable tolerance windows to prevent out-of-phase closing.

Cybersecurity & Access Control
Role-based password protection with four security levels (View/Control/Configure/Factory). Supports HTTPS encryption for web access and event logging of all configuration changes for audit compliance.

Delivery, Service & Quality Assurance

Lead Time & Availability: Standard catalog configurations ship within 3-5 business days from regional stock. Custom-configured units with specific firmware versions or hardware options require 2-3 weeks factory lead time. Expedited processing available for emergency replacements.

Warranty Coverage: All GE G30 relays include a comprehensive 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for up to 5 years with optional advance replacement service.

Technical Support & Commissioning: Complimentary pre-sales application engineering support including protection setting calculations and coordination studies. Post-delivery support includes remote commissioning assistance via web conference, on-site startup services (quoted separately based on location), and 24/7 technical hotline access for critical issues.

Documentation Package: Each relay ships with complete technical documentation including installation manual, wiring diagrams, protection setting guidelines, Modbus/DNP3 register maps, IEC 61850 ICD files, and EnerVista UR Setup software license. CAD drawings (DWG/PDF) and 3D STEP models available for panel design integration.

Frequently Asked Questions (FAQ)

Q: How does the GE G30 generator protection relay integrate with existing control panels?
A: The G30 features a standard 1/4 DIN (96mm × 96mm) panel cutout compatible with most generator control enclosures. Rear terminal blocks accept 14-22 AWG wire for CT/PT inputs, digital I/O, and power supply connections. Wiring is compatible with legacy electromechanical relay footprints, simplifying retrofit projects. Mounting hardware and terminal block covers are included.

Q: What is the maximum number of generators one G30 relay can protect in a multi-unit installation?
A: Each G30 relay is designed to protect a single generator unit. For multi-generator plants, deploy one relay per generator with coordination achieved through communication networks (Modbus/DNP3/IEC 61850) and shared digital I/O for load sharing and synchronization control. The relay supports peer-to-peer GOOSE messaging for high-speed interlocking between units.

Q: What energy savings can be achieved with the G30 protection system compared to traditional relays?
A: While the relay itself does not directly reduce fuel consumption, its advanced features enable operational efficiencies: (1) Precise load management prevents generator oversizing and part-load inefficiency, (2) Power factor monitoring identifies reactive power issues reducing electrical losses by 5-15%, (3) Thermal modeling allows safe operation closer to rated capacity without derating, and (4) Reduced nuisance tripping minimizes costly start/stop cycles and fuel waste during black starts.

Q: What are the environmental requirements for installing the G30 relay? What is its protection rating?
A: The relay operates reliably in ambient temperatures from -40°C to +85°C without derating. Humidity tolerance is 5% to 95% non-condensing. The front panel is IP20 rated (finger-safe, protected against solid objects >12mm), while the rear terminals are IP10 (protected against hand contact). For harsh environments, install the relay in a NEMA 1 or higher-rated enclosure. Altitude operation is certified up to 2000m without derating; consult factory for high-altitude installations above 2000m.

Q: Does the G30 support remote monitoring and data acquisition? Which protocols are compatible?
A: Yes, the G30 provides comprehensive remote access capabilities. Ethernet connectivity supports web-based monitoring via standard browsers (no plugins required) and EnerVista UR Setup software for configuration. SCADA integration is available via Modbus RTU (RS485), Modbus TCP/IP (Ethernet), DNP3.0 Level 2 (serial or Ethernet), and IEC 61850 Edition 1/2 (MMS client/server and GOOSE publisher/subscriber). All protocols can operate simultaneously without performance degradation.

Q: Can the G30 relay be used for renewable energy generator applications such as biogas or hydro?
A: Absolutely. The G30 is well-suited for renewable and alternative fuel generators including biogas, biomass, landfill gas, and micro-hydro installations. It supports IEEE 1547 anti-islanding protection requirements for utility interconnection and provides configurable voltage/frequency ride-through settings for grid code compliance. For wind and solar inverter-based generation, consider GE's dedicated feeder protection relays with specialized inverter protection algorithms.
