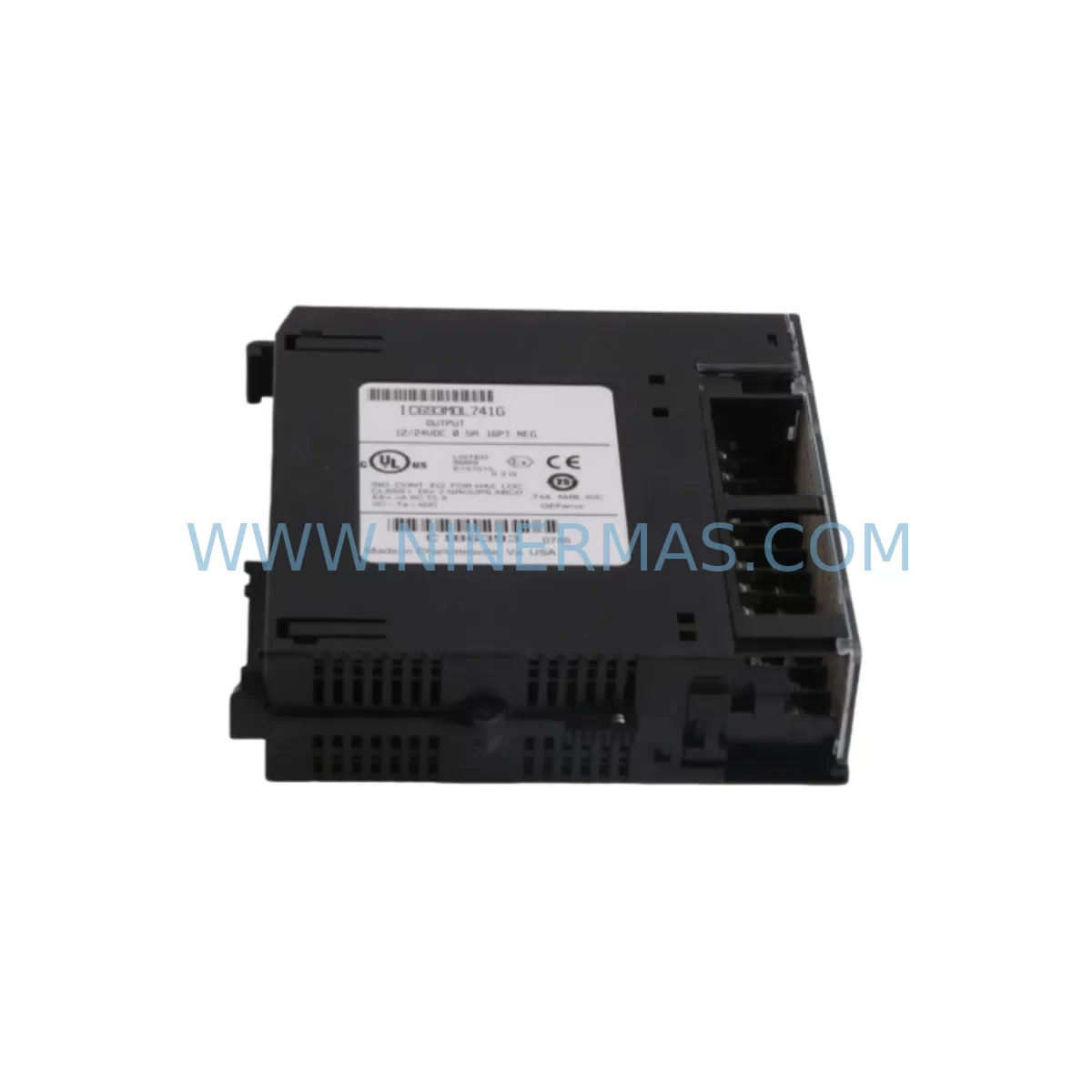

GE Fanuc IC693MDL741 Service-Ready Output Module Spare

GE Fanuc IC693MDL741 Service-Ready Output Module Spare

The GE Fanuc IC693MDL741 is a 120 VAC discrete output module designed for the Series 90-30 programmable logic controller platform — one of the most widely deployed PLC families in continuous manufacturing, utilities, and process automation. As production lines age and OEM support windows close, maintaining a reliable inventory of service-ready spare parts like the IC693MDL741 becomes a critical pillar of any maintenance strategy. Whether you are managing a scheduled annual shutdown, responding to an unplanned trip, or building a strategic spare parts buffer for a remote facility, this module delivers the compatibility, electrical performance, and supply assurance your team needs to restore operations with minimal downtime.

The IC693MDL741 provides 8 output points at 120 VAC, with isolated output groups that protect the PLC backplane from field-side voltage transients and inductive load kickback. Its compact form factor fits directly into any Series 90-30 5-slot, 10-slot, or expansion rack without firmware modification or hardware reconfiguration. For maintenance engineers managing legacy control cabinets, this plug-and-replace compatibility is essential — it eliminates the risk of introducing configuration errors during emergency repairs and allows technicians to restore output control within minutes of module swap.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the IC693MDL741 in a Series 90-30 control cabinet, a thorough maintenance inspection of the surrounding system components is strongly recommended. Output module failures rarely occur in isolation — they are often preceded or accompanied by degradation in adjacent power, I/O, and communication components that share the same backplane bus and field wiring infrastructure.

Begin by inspecting the rack power supply. The IC693PWR321 or IC693PWR330 power supply modules are the most common companions to the IC693MDL741 in 5-slot and 10-slot racks. A failing or under-rated power supply can cause intermittent output faults that mimic module failure. Verify output voltage stability under load before condemning the output module itself.

Next, review the CPU module — typically an IC693CPU364 or IC693CPU374 in mid-range Series 90-30 configurations. Check for diagnostic fault codes logged in the CPU fault table that may indicate backplane communication errors or I/O scan timeouts. If the CPU has not been replaced in over five years of continuous operation, consider scheduling a proactive swap during the same maintenance window.

Inspect the discrete input modules sharing the same rack. The IC693MDL655 (24 VDC input, 32-point) and IC693MDL645 (120 VAC input, 16-point) are frequently installed alongside the IC693MDL741 in mixed I/O racks. Verify that input signal levels are within specification and that field wiring terminal blocks show no signs of corrosion, loose terminations, or insulation breakdown.

For systems using analog control loops, check the IC693ALG221 analog input module and IC693ALG390 analog output module for signal drift or calibration deviation. Analog modules in high-vibration or high-humidity environments are particularly susceptible to contact oxidation on the backplane connector, which can cause intermittent faults that are difficult to diagnose without module substitution.

Communication modules also warrant inspection during any output module replacement. The IC693CMM321 communications coprocessor or IC693CMM311 Ethernet interface module should be checked for firmware version compatibility and network link stability. A degraded communication module can cause the CPU to lose synchronization with SCADA or HMI systems, masking the true source of control faults.

Finally, inspect the IC693CHS392 or IC693CHS398 expansion rack chassis and the IC693BEM331 bus expansion module if remote I/O racks are part of the system architecture. Backplane connector wear and bus cable degradation are common failure modes in systems that have been in service for more than a decade, and these components should be part of any comprehensive spare parts inventory alongside the IC693MDL741.

Site Replacement Workflow

Replacing the IC693MDL741 on-site is a straightforward process when the correct spare is available and pre-tested. Follow this workflow to minimize downtime and ensure a safe, verified restoration:

Step 1 — Isolate and de-energize: Place the PLC CPU in STOP mode via the programming terminal or keyswitch. De-energize the field-side 120 VAC supply feeding the output module terminal block. Verify absence of voltage with a calibrated meter before touching field wiring.

Step 2 — Document field wiring: Photograph or record the terminal block wiring assignments before disconnecting. The IC693MDL741 uses a removable terminal block — remove it as a unit to preserve wiring integrity and reduce reconnection errors.

Step 3 — Remove the faulty module: Press the module release latch and slide the IC693MDL741 out of the rack slot. Inspect the backplane connector on both the module and the rack for bent pins, debris, or burn marks.

Step 4 — Install the replacement module: Slide the pre-tested replacement IC693MDL741 into the same slot until the latch engages. Reattach the terminal block. Verify that all field wiring connections are secure and correctly positioned.

Step 5 — Power-up and verify: Re-energize the field supply and place the CPU back in RUN mode. Monitor the per-point LED indicators on the module and verify output states match the expected logic from the SCADA or HMI display. Log the replacement in the maintenance record with date, technician ID, and module serial number.

This workflow applies equally to planned annual maintenance replacements and emergency fault recovery scenarios. Having a pre-tested IC693MDL741 spare on the shelf reduces mean time to repair (MTTR) from hours to minutes — a critical advantage in continuous process environments where every minute of unplanned downtime carries measurable production cost.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the IC693MDL741?
All IC693MDL741 units supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers functional failure under normal operating conditions. Each unit undergoes a full functional test prior to dispatch, and a test report is available upon request.

Q2: Is this module compatible with all Series 90-30 rack configurations?
Yes. The IC693MDL741 is compatible with all standard Series 90-30 5-slot and 10-slot racks, including the IC693CHS391, IC693CHS392, IC693CHS393, and IC693CHS398 chassis, as well as expansion racks connected via the IC693BEM331 bus expansion module. No firmware changes or hardware modifications are required for installation.

Q3: Can NINERMAS supply IC693MDL741 units for long-term or blanket purchase orders?
Yes. NINERMAS maintains strategic inventory of end-of-life and hard-to-source GE Fanuc Series 90-30 components to support long-term maintenance contracts and annual shutdown planning. Contact our team to discuss reserved stock agreements, lead time commitments, and volume pricing for multi-unit procurement.

Q4: How do I verify compatibility before ordering if my system has been modified?
Provide your rack model number, CPU part number, and current firmware version when placing your inquiry. Our technical team will confirm compatibility and advise on any configuration considerations. For systems that have been upgraded with third-party I/O or communication modules, we can also advise on backplane load calculations to ensure the replacement module operates within rack power budget.
