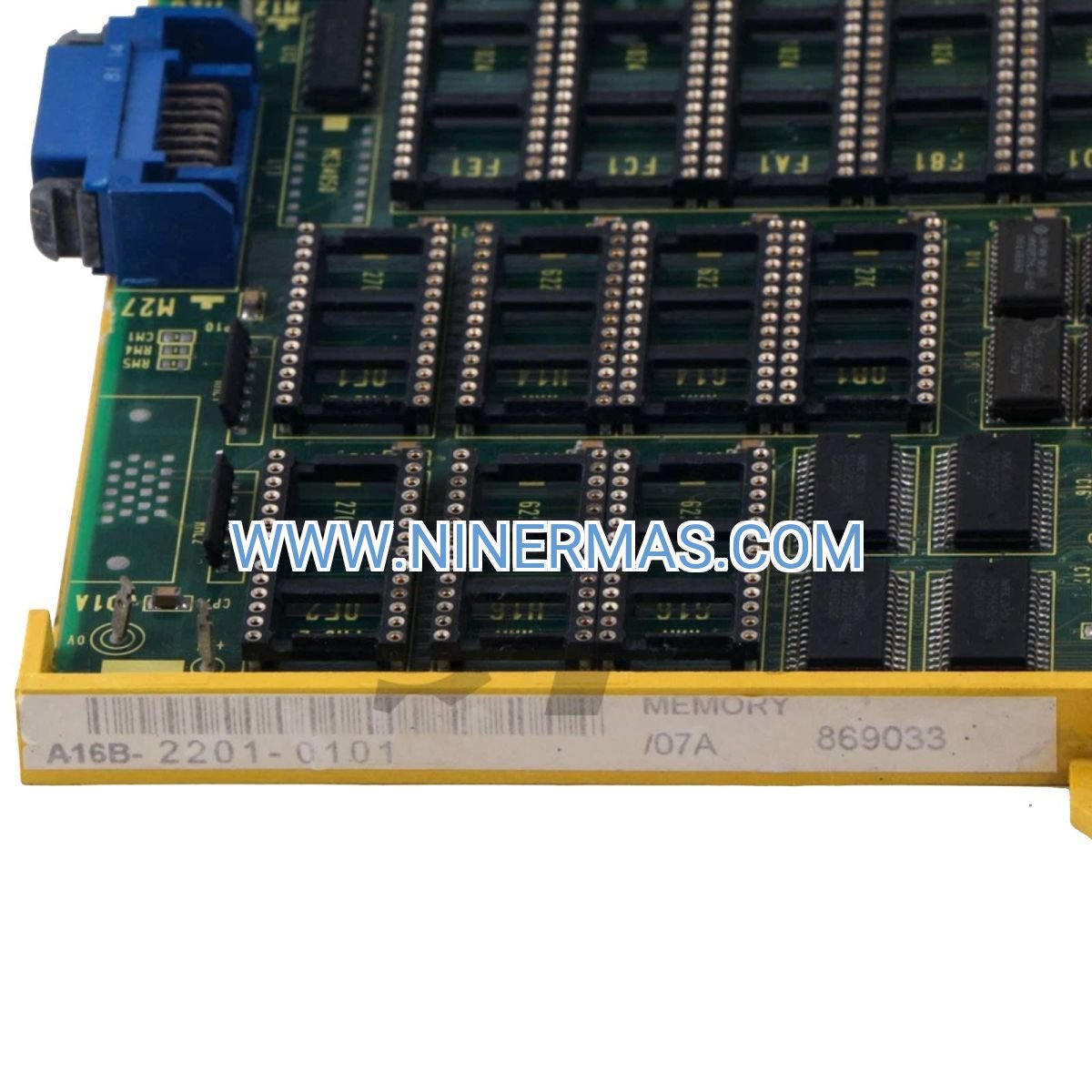

A16B-2201-0101 Serial Memory Board for Industrial CNC Control Systems

The GE Fanuc A16B-2201-0101 is a precision-engineered 32-bit serial memory module designed for Series 0 CNC control platforms. Through advanced non-volatile storage architecture and RS-232 serial communication, this board delivers reliable program retention and rapid data transfer for machining centers, turning equipment, and automated manufacturing cells.

Ideal for machine tool builders, production facilities managing multi-product workflows, and maintenance teams supporting legacy CNC infrastructure. This memory board solves critical challenges including program loss during power interruptions, slow data transfer bottlenecks, and costly control system replacements when only memory components require service.

Featuring plug-and-play PCB edge connector installation, industrial-grade temperature tolerance (0°C to 55°C operating range), and proven compatibility with Fanuc Ladder III programming environments, the A16B-2201-0101 enables rapid deployment with minimal system downtime. Contact our application engineers for system-specific integration guidance, compatibility verification, and volume pricing.

Core Functions & Technical Advantages

Non-Volatile Program Storage
Battery-backed memory architecture preserves CNC programs, parameter sets, and offset tables during power cycles and emergency shutdowns, eliminating re-entry time and reducing setup errors in high-mix production environments.

High-Speed Serial Data Transfer
RS-232 interface supports program upload/download at standard baud rates (up to 19,200 bps), enabling rapid program changes between production runs and efficient backup workflows to external storage media.

Proven System Compatibility
Engineered to OEM specifications for Series 0 control architecture, ensuring seamless integration with existing servo amplifiers, I/O modules, and operator interface panels without firmware modifications or parameter reconfiguration.

Industrial Environmental Protection
Conformal-coated PCB construction withstands machine shop conditions including coolant mist, metal particulates, and temperature fluctuations, delivering 10-15 year operational lifespan in demanding manufacturing environments.

Rapid Maintenance & Replacement
Standardized edge connector design enables technician-level replacement in under 15 minutes, minimizing production interruptions and eliminating specialized tooling requirements for emergency repairs.

Multi-Program Management
Supports storage of multiple G-code programs, macro libraries, and custom subroutines, facilitating job shop flexibility and reducing program transfer frequency for high-volume production runs.

Typical Application Scenarios

This memory board addresses program storage and data management requirements across precision manufacturing operations, particularly in:

Vertical & Horizontal Machining Centers
Maintains complex 3-axis and 4-axis milling programs for aerospace components, automotive tooling, and precision mold fabrication. Supports rapid program switching for low-volume, high-variety production strategies while preserving tool offset libraries and work coordinate systems.

CNC Turning & Lathe Operations
Stores turning cycles, threading routines, and bar-feeding sequences for shaft production, hydraulic component manufacturing, and precision bearing races. Enables unattended operation through reliable program retention during extended production shifts.

Legacy Equipment Modernization
Extends operational life of Series 0-equipped machine tools through cost-effective memory replacement versus complete control retrofits. Preserves operator familiarity and existing program libraries while restoring full system functionality at 15-20% of new control costs.

Job Shop & Contract Manufacturing
Facilitates frequent program changes for custom part production, prototype development, and short-run manufacturing. RS-232 connectivity enables centralized program management and version control across multiple CNC machines.

OEM Machine Integration
Supports equipment manufacturers building custom CNC machinery for woodworking, stone fabrication, and composite machining applications. Provides reliable program storage foundation for turnkey automation systems and specialized production equipment.

Technical Parameters & Selection Guide

To ensure optimal system integration and performance, reference the following specifications during selection and installation planning:

Selection Considerations
When specifying the A16B-2201-0101 for your application, evaluate: existing control cabinet space and slot availability, ambient temperature conditions in machine enclosure, required program storage capacity for your part mix, data transfer frequency and backup workflow requirements, and compatibility with installed Fanuc control firmware version. For systems requiring expanded memory capacity or modern storage interfaces, consult our engineering team regarding upgrade paths to compact flash or Ethernet-based solutions.

Extended Capabilities & System Integration

Network Connectivity Options
While the A16B-2201-0101 provides RS-232 serial communication as standard, integration with modern DNC (Direct Numerical Control) systems is achievable through RS-232-to-Ethernet converters or USB-to-serial adapters. This enables centralized program management, remote backup operations, and integration with MES (Manufacturing Execution System) platforms for Industry 4.0 initiatives.

Data Backup & Archive Strategies
Implement systematic backup protocols using the RS-232 interface to transfer programs to PC-based storage, network drives, or cloud repositories. Recommended backup frequency: daily for active production programs, weekly for complete system parameter sets, and immediately following any program modifications or offset adjustments.

Multi-Machine Program Distribution
For facilities operating multiple Series 0 CNC machines, establish a master program library on a central PC and distribute verified programs via RS-232 connections. This workflow reduces programming errors, ensures version control, and accelerates new job setup across your machine fleet.

Preventive Maintenance Integration
Incorporate memory board inspection into scheduled CNC maintenance intervals. Check battery voltage annually (replace at 2.7V or below), verify data integrity through program comparison tests, and maintain spare boards for critical production equipment to minimize unplanned downtime.

Delivery, Service & Quality Assurance

Lead Time & Availability
Standard A16B-2201-0101 units ship from stock within 2-3 business days for single-unit orders. Volume requirements (10+ units) or custom testing specifications may extend delivery to 5-7 business days. Expedited shipping options available for emergency breakdown situations.

Warranty Coverage
Each memory board includes a comprehensive 12-month warranty covering manufacturing defects, component failures, and workmanship issues. Warranty terms include free replacement or repair, return shipping coverage, and technical support for installation troubleshooting.

Technical Support Services
Our application engineering team provides pre-sale compatibility verification, installation guidance via phone/email, parameter configuration assistance, and post-installation troubleshooting support. Remote diagnostic services available for complex integration challenges or system performance optimization.

Documentation Package
Every shipment includes: installation quick-start guide, RS-232 communication parameter settings, battery replacement procedures, dimensional drawings for mechanical planning, and compatibility cross-reference charts for related Fanuc components.

Quality Certifications
All units undergo functional testing including power-on self-test verification, RS-232 communication loop-back testing, and environmental stress screening. Products meet ISO 9001 quality management standards and RoHS compliance for electronic components.

Frequently Asked Questions

Q: How do I verify compatibility with my specific Series 0 control model?
A: Check your control's main board part number and firmware version. The A16B-2201-0101 is compatible with Series 0-M (Model A/B/C) and Series 0-T controls manufactured between 1985-2000. Provide your control's serial number to our technical team for definitive compatibility confirmation and any required parameter settings.

Q: What is the maximum number of programs this board can store?
A: Storage capacity depends on your control's configuration and individual program size. Typical capacity ranges from 40-80 programs (averaging 5-10KB each). For exact capacity calculation, consult your Series 0 control operator's manual or contact our support team with your control model details.

Q: Can I transfer programs from this board to newer Fanuc controls?
A: Yes, G-code programs are generally portable across Fanuc control generations with minor syntax adjustments. Use RS-232 transfer to extract programs, then import to newer controls (0i, 30i, 31i series) via their respective communication interfaces. Macro programs may require conversion for compatibility with newer macro executor versions.

Q: How often should the backup battery be replaced?
A: Lithium backup batteries typically provide 5-7 years of service under normal operating conditions. Monitor battery voltage annually using control diagnostics (alarm 9000 series indicates low battery). Replace proactively at 5-year intervals for critical production equipment to prevent data loss during power interruptions.

Q: What tools are required for installation?
A: Installation requires only basic hand tools: Phillips screwdriver for control cabinet access, anti-static wrist strap for ESD protection, and optionally a digital multimeter for voltage verification. No specialized programming devices or calibration equipment needed. Complete installation typically takes 10-15 minutes for experienced maintenance personnel.

Q: Is this board suitable for 24/7 continuous operation environments?
A: Absolutely. The A16B-2201-0101 is designed for industrial continuous-duty applications including lights-out manufacturing, multi-shift operations, and unmanned production cells. Ensure adequate control cabinet ventilation to maintain operating temperature below 50°C for optimal component longevity.

Request Technical Consultation

For detailed application engineering support, custom configuration assistance, or volume pricing quotations, please provide the following information to our technical sales team:

• CNC machine make, model, and year of manufacture
• Fanuc control series and firmware version (displayed on control power-up screen)
• Current memory board part number (if replacing existing module)
• Typical program sizes and quantity of programs managed
• Operating environment conditions (temperature range, enclosure type)
• Required delivery timeline and quantity

Our engineers will provide system-specific recommendations, compatibility verification, and integration support to ensure successful deployment in your manufacturing operation.
