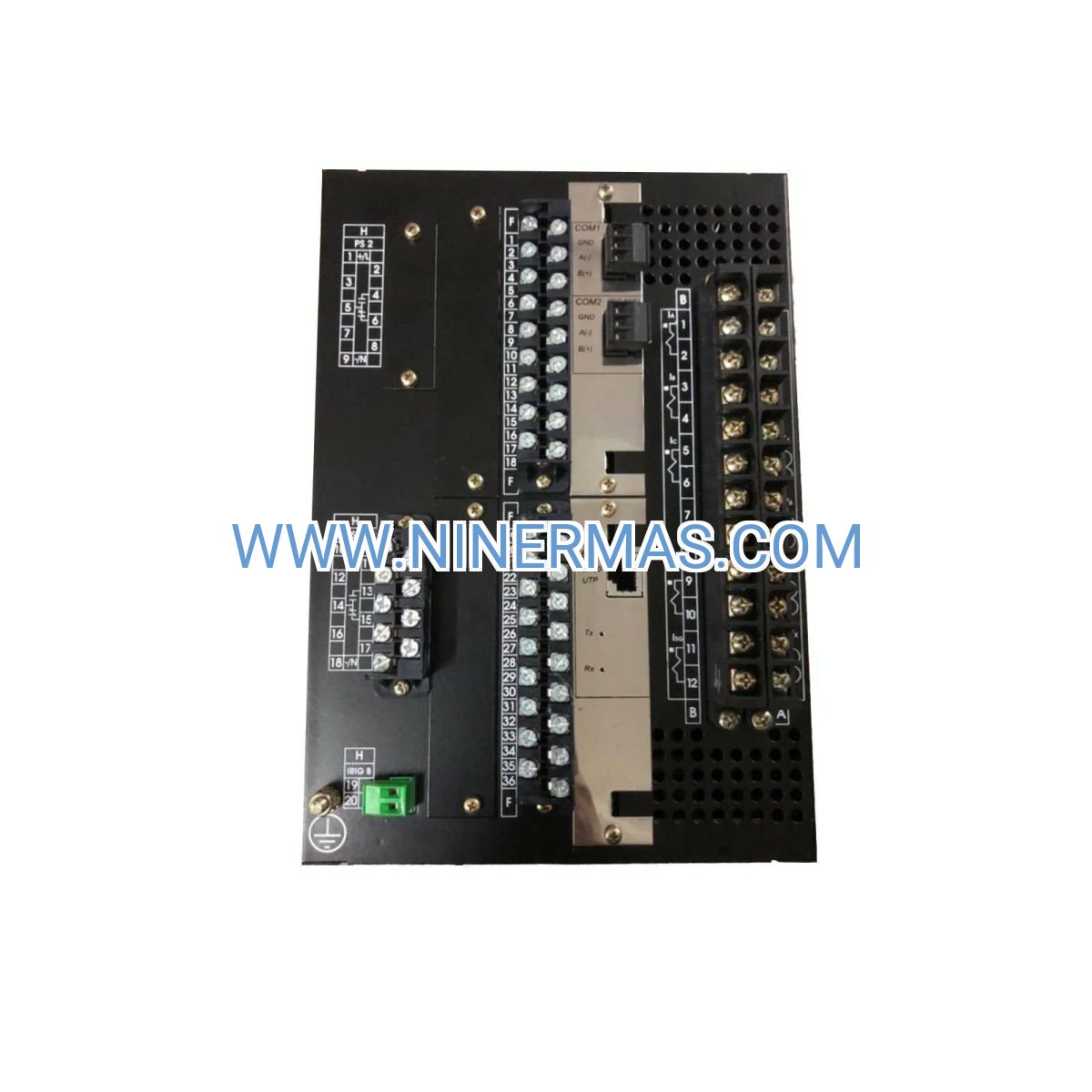

GE F650 Digital Bay Controller (Industrial-Grade Feeder Protection & Automation System)

The GE F650 Digital Bay Controller is an advanced protection and control device engineered for medium-voltage feeder circuits, substation automation, and power distribution networks. Through integrated microprocessor-based protection algorithms, comprehensive monitoring capabilities, and IEC 61850 communication protocols, it delivers reliable overcurrent protection, fault detection, and real-time system diagnostics in a single compact platform.

Designed for utility substations, industrial power distribution facilities, renewable energy plants, and critical infrastructure projects, the F650 addresses challenges including inadequate fault isolation, limited remote monitoring visibility, complex multi-vendor integration, and insufficient event recording for post-fault analysis.

Leveraging field-proven protection logic, flexible configuration options, and multi-protocol connectivity (Modbus, DNP3, IEC 61850), this controller offers superior reliability, seamless SCADA integration, intuitive commissioning workflows, and comprehensive cybersecurity features. Ideal for consulting engineers, system integrators, utility operators, and industrial facility managers seeking a scalable, standards-compliant protection solution. Contact our application engineers for customized protection schemes and technical specifications.

Core Functions & Advantages

• Comprehensive Feeder Protection
  Implements time-overcurrent (ANSI 50/51), directional overcurrent (67), earth fault (50N/51N), and sensitive ground fault protection with programmable curves and coordination settings, ensuring selective fault clearance and minimizing downtime.
• Integrated Bay Control & Automation
  Supports breaker control, interlocking logic, automatic transfer schemes, and load shedding functions, reducing the need for external control relays and simplifying panel design.
• IEC 61850 Native Communication
  Fully compliant with IEC 61850 Edition 2, enabling GOOSE messaging for peer-to-peer communication, MMS for SCADA integration, and seamless interoperability with multi-vendor substation automation systems.
• Advanced Monitoring & Diagnostics
  Provides real-time metering (voltage, current, power, energy), waveform capture, sequence-of-events recording, and disturbance fault recording with precise time-stamping (IEEE 1588 / IRIG-B), facilitating rapid fault analysis and system optimization.
• Flexible Configuration & Scalability
  Configurable via EnerVista software with graphical logic editor, supporting custom protection schemes, user-defined alarms, and expansion modules for additional I/O or communication ports.
• Robust Cybersecurity & Compliance
  Features role-based access control, encrypted communication (TLS), audit logging, and compliance with IEC 62351 and NERC CIP standards, safeguarding critical infrastructure against cyber threats.

Typical Application Scenarios

The GE F650 is engineered for environments demanding high protection reliability, continuous power availability, and advanced automation capabilities, including:

• Utility Substations & Distribution Networks
  Protects medium-voltage feeders (up to 72.5 kV) in transmission and distribution substations, coordinating with upstream relays and downstream reclosers to isolate faults while maintaining service continuity.
• Industrial Power Distribution & Manufacturing Plants
  Ensures stable power supply for critical production equipment in petrochemical, mining, steel, and automotive facilities, minimizing unplanned outages and supporting predictive maintenance strategies.
• Renewable Energy & Microgrid Systems
  Manages protection and control for solar farms, wind plants, and battery storage systems, adapting to bidirectional power flows and supporting grid-tied or islanded operation modes.
• Data Centers & Mission-Critical Facilities
  Provides fast fault detection and isolation for redundant power distribution architectures, ensuring uptime for IT infrastructure, healthcare facilities, and telecommunications hubs.
• Infrastructure & Transportation Projects
  Deployed in railway traction substations, airport electrical systems, and water treatment plants where reliability, remote monitoring, and compliance with international standards are mandatory.

Technical Parameters & Selection Guide

To streamline engineering design and procurement, we provide standardized configurations based on voltage class, protection requirements, communication needs, and environmental conditions. Custom configurations are available to meet project-specific demands.

Key Technical Specifications:

• Voltage Rating: Up to 72.5 kV (phase-to-phase)
• Current Inputs: 1A or 5A nominal, multi-range CT compatibility
• Protection Functions: ANSI 50/51, 50N/51N, 67, 67N, 27, 59, 81, 25, 79, 50BF, and more
• Communication Protocols: IEC 61850 (GOOSE, MMS), Modbus RTU/TCP, DNP3, IEC 60870-5-103
• Digital Inputs/Outputs: Configurable up to 32 DI / 24 DO (expandable)
• Power Supply: 24-250 VDC / 100-240 VAC, wide-range input
• Operating Temperature: -40°C to +70°C
• Enclosure Rating: IP54 (front panel), suitable for indoor substation environments
• Time Synchronization: IRIG-B, IEEE 1588 PTP, SNTP
• Certifications: IEC 60255, IEEE C37.90, CE, UL, GOST

Selection Recommendations:
When specifying the F650, consider the following project parameters: nominal system voltage and frequency, CT/VT ratios, required protection functions (overcurrent, directional, distance), communication architecture (IEC 61850 vs. legacy protocols), available panel space, and environmental conditions (temperature, humidity, altitude). For assistance with protection coordination studies, settings calculations, or IEC 61850 SCD file preparation, our application engineers can provide tailored recommendations and technical documentation.

Extended Capabilities

• Fault Location & Arc Flash Mitigation: Optional fault location algorithms and integration with arc flash detection systems to enhance personnel safety and reduce incident energy exposure.
• Condition Monitoring: Breaker wear monitoring, thermal overload tracking, and predictive maintenance alerts based on operational data trends.
• Multi-Language HMI: Front-panel display supports English, Chinese, Spanish, and other languages for global deployment.
• Redundancy & Hot-Swap Modules: Dual communication ports and hot-swappable I/O modules for high-availability applications.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog models typically ship within 4-6 weeks; custom-configured units require 6-10 weeks depending on specification complexity and factory workload.

Warranty: Minimum 2-year manufacturer warranty covering defects in materials and workmanship; extended warranty and service contracts available.

Commissioning Support: Remote technical assistance for configuration, testing, and troubleshooting; on-site commissioning services available in select regions (subject to location and project scope).

Technical Documentation: Each unit ships with complete electrical schematics, wiring diagrams, protection settings templates, IEC 61850 ICD files, EnerVista configuration software, and multilingual operation manuals to facilitate installation, testing, and ongoing maintenance.

Compliance & Certifications: Manufactured in ISO 9001-certified facilities; products meet IEC 60255, IEEE C37.90, and regional safety/EMC standards (CE, UL, CCC, GOST).

Frequently Asked Questions (FAQ)

Q: How does the GE F650 Digital Bay Controller integrate with existing substation SCADA systems?
A: The F650 supports multiple communication protocols including IEC 61850 (MMS and GOOSE), Modbus RTU/TCP, and DNP3. For legacy SCADA systems, Modbus or DNP3 can be used; for modern substation automation, IEC 61850 provides seamless integration with multi-vendor IEDs, gateways, and HMI platforms. Configuration is performed via EnerVista software, and ICD/SCD files can be exported for system integration.

Q: What is the maximum number of protection functions and logic equations the F650 can handle?
A: The F650 supports over 30 ANSI protection functions simultaneously, including overcurrent, directional, voltage, frequency, and breaker failure protection. The integrated logic editor allows creation of custom interlocking schemes, automatic transfer logic, and user-defined alarms with up to 256 programmable logic equations, providing exceptional flexibility for complex protection and control applications.

Q: Can the F650 be used in high-altitude or extreme-temperature environments?
A: Yes, the F650 is designed for industrial and utility environments with an operating temperature range of -40°C to +70°C and altitude capability up to 2,000 meters (higher altitudes may require derating or consultation). For harsh environments, consider additional panel climate control or conformal coating options.

Q: Does the GE F650 support remote firmware updates and cybersecurity compliance?
A: The F650 supports secure remote firmware updates via encrypted communication channels. It includes role-based access control, password protection, audit logging, and compliance with IEC 62351 and NERC CIP cybersecurity standards, making it suitable for critical infrastructure and regulated utility applications.

Q: What are the typical energy savings or operational benefits of deploying the F650 in industrial facilities?
A: While the F650 is primarily a protection and control device (not an energy-saving device per se), its advanced monitoring and diagnostics enable optimized system operation, reduced downtime, faster fault restoration, and predictive maintenance—collectively reducing operational costs by 15-25% compared to legacy electromechanical or early-generation digital relays. Integration with energy management systems can further enhance efficiency.

Q: Is factory acceptance testing (FAT) or witness testing available before shipment?
A: Yes, factory acceptance testing can be arranged for large orders or critical projects. Customers or third-party inspectors can witness functional testing, protection settings verification, and communication protocol validation at the manufacturing facility prior to shipment.

Request a Customized Solution

To receive a detailed protection scheme design, technical specification sheet, or quotation tailored to your project, please provide the following information: project name and location, application type (utility substation, industrial plant, renewable energy, etc.), system voltage and frequency, CT/VT ratios, required protection functions, communication protocol preferences (IEC 61850, Modbus, DNP3), environmental conditions, and any special requirements (redundancy, arc flash mitigation, etc.). Our application engineers will respond with a comprehensive selection guide and pricing within 24-48 hours.
