GE F650 Digital Bay Controller (Industrial-Grade Feeder Protection & Substation Automation System)

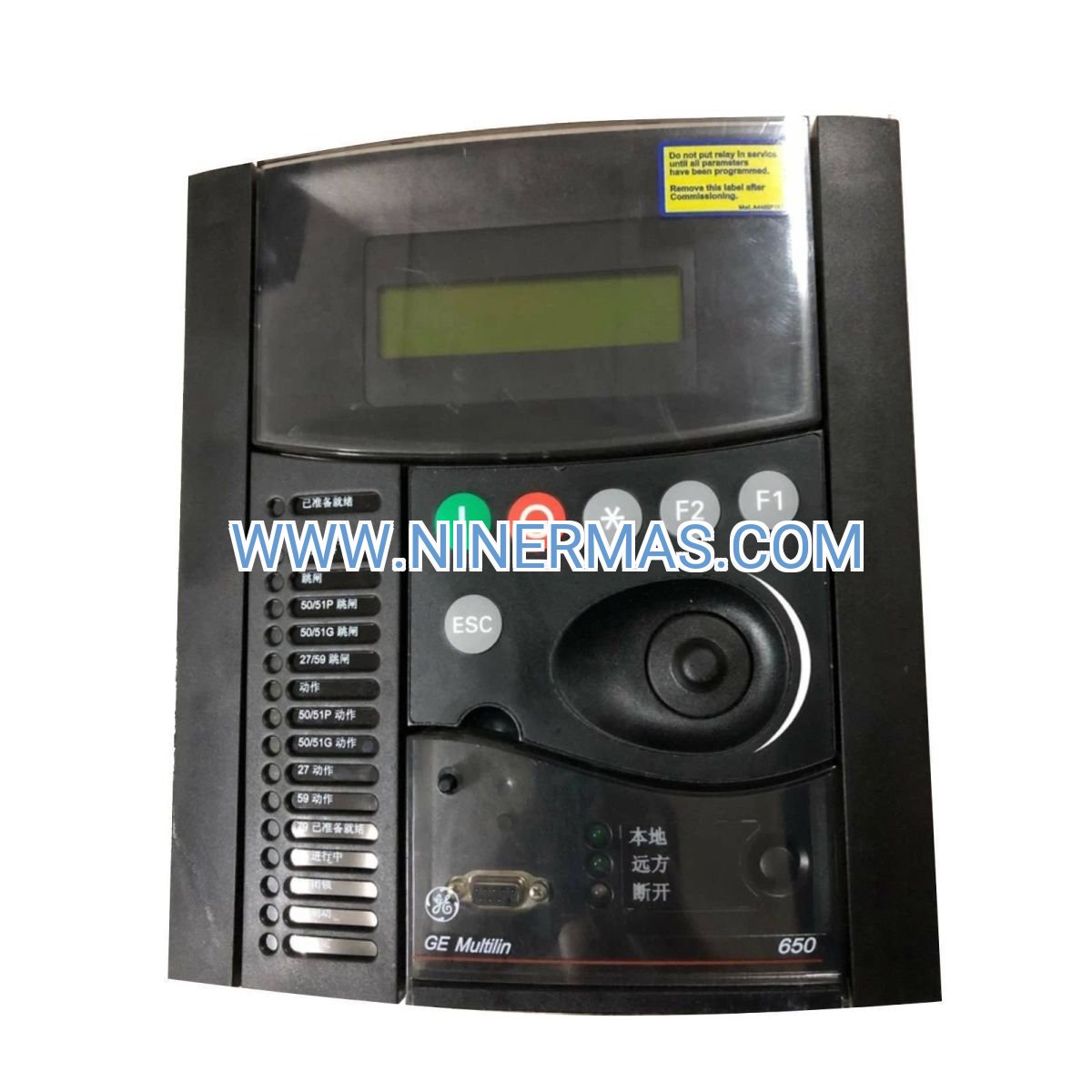

The GE F650BFJF1G1HIF6E is an advanced digital bay controller engineered for comprehensive feeder protection, substation automation, and real-time power system monitoring. Leveraging multi-function protection algorithms, integrated control logic, and IEC 61850 communication protocols, this relay delivers precise fault detection, rapid circuit isolation, and seamless integration into modern SCADA and substation control networks.

Designed for utility substations, industrial power distribution facilities, renewable energy plants, and critical infrastructure applications, the F650 addresses challenges such as unpredictable fault conditions, communication protocol incompatibility, limited diagnostic visibility, and costly unplanned downtime. It provides reliable protection for medium-voltage feeders, transformers, motors, and capacitor banks in demanding operational environments.

Through field-proven design and flexible configuration options, this controller offers overcurrent protection, directional earth fault detection, voltage/frequency monitoring, breaker failure protection, and comprehensive event recording capabilities. Ideal for consulting engineers, EPC contractors, system integrators, and facility operators seeking a scalable, standards-compliant solution. Contact our application engineers for customized protection schemes, settings files, and technical consultation.

Core Functions & Advantages

• Multi-Function Protection Suite
  Integrates overcurrent (ANSI 50/51), earth fault (50N/51N), directional (67/67N), undervoltage (27), overvoltage (59), frequency (81), and breaker failure (50BF) protection elements. Reduces panel space and wiring complexity compared to discrete relay installations.
• IEC 61850 Native Communication
  Supports GOOSE messaging and MMS client/server architecture for high-speed peer-to-peer interlocking and centralized SCADA integration. Eliminates hardwired control circuits and accelerates commissioning timelines in digital substations.
• Advanced Diagnostics & Event Analysis
  Captures high-resolution fault waveforms, sequence-of-events records, and disturbance data with precise time-stamping (IRIG-B synchronization). Enables root-cause analysis, reduces troubleshooting time, and supports predictive maintenance strategies.
• Flexible I/O & Control Logic
  Configurable digital inputs, output contacts, and programmable logic equations allow custom interlocking schemes, automatic transfer switching, load shedding, and demand response functions without external PLCs.
• Rugged Industrial Design
  Operates reliably across -40°C to +85°C ambient temperature range, withstands high electromagnetic interference (EMI/RFI), and meets IEC 60255 environmental and seismic standards. Suitable for harsh outdoor switchyards and industrial plant environments.
• Intuitive HMI & Remote Access
  Front-panel LCD with multi-language support (English/Chinese/Spanish) displays real-time measurements, alarm status, and protection settings. Ethernet connectivity enables secure remote monitoring, firmware updates, and settings management via web browser or engineering software.

Typical Application Scenarios

This digital bay controller is engineered for applications demanding high protection reliability, communication interoperability, and operational flexibility, including:

• Utility Substation Feeder Protection
  Protects medium-voltage distribution feeders (6.6kV–35kV) in transmission and distribution substations. Coordinates with upstream/downstream devices to minimize outage scope and restore service rapidly during fault conditions.
• Industrial Power Distribution Systems
  Safeguards critical loads in manufacturing plants, petrochemical facilities, mining operations, and data centers. Integrates with plant DCS/SCADA for centralized monitoring and automated load management during abnormal grid conditions.
• Renewable Energy Generation Plants
  Provides feeder and transformer protection for solar farms, wind parks, and battery energy storage systems. Ensures compliance with grid codes (IEEE 1547, IEC 61850-90-7) and supports islanding detection, anti-islanding protection, and voltage ride-through functions.
• Infrastructure & Transportation Networks
  Deployed in railway traction substations, airport electrical systems, and municipal water/wastewater treatment plants where continuous power availability is mission-critical. Supports redundant communication paths and hot-standby configurations.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide standardized configuration options and support project-specific customization:

Selection Recommendations: When specifying the F650 controller, consider system voltage level, CT/VT ratios, required protection functions, communication architecture (hardwired vs. IEC 61850), available panel space, and environmental conditions. For complex applications involving generator protection, motor protection, or transformer differential schemes, consult our protection engineers with single-line diagrams, load profiles, and fault study reports for optimized relay settings and coordination analysis.

Extended Capabilities

• Cybersecurity Features: Role-based access control (RBAC), encrypted communication (TLS/SSL), audit logging, and compliance with IEC 62351 security standards for critical infrastructure protection.
• Redundancy & Availability: Dual Ethernet ports for network redundancy (PRP/HSR), hot-swappable modules (where applicable), and self-diagnostics with watchdog monitoring ensure maximum uptime.
• Integration with Asset Management: Exports condition monitoring data (breaker operations count, contact wear estimation, thermal stress accumulation) to enterprise asset management (EAM) platforms for lifecycle optimization.
• Firmware Upgradability: Field-upgradable firmware via Ethernet interface allows feature enhancements, bug fixes, and protocol updates without hardware replacement, protecting long-term investment.

Delivery, Service & Quality Assurance

Lead Time: Standard configurations ship within 3–5 business days from stock. Custom-configured units (specific I/O, communication cards, or firmware versions) require 10–15 business days for factory programming and testing.

Warranty: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and service contracts available upon request.

Technical Support: Comprehensive support includes pre-sales application engineering, commissioning assistance (remote or on-site, region-dependent), relay settings calculation, and post-sales troubleshooting. Access to technical documentation library (user manuals, wiring diagrams, settings templates, IEC 61850 ICD files) provided with each unit.

Quality Certifications: Manufactured under ISO 9001 quality management system. Each relay undergoes factory acceptance testing (FAT) including protection function verification, communication protocol testing, and environmental stress screening prior to shipment.

Frequently Asked Questions (FAQ)

Q: How does the GE F650 digital bay controller integrate with existing substation automation systems?
A: The F650 supports multiple communication protocols including IEC 61850 (GOOSE/MMS), Modbus TCP/RTU, and DNP3. For legacy systems, it can interface via hardwired contacts or serial protocols. For modern digital substations, native IEC 61850 integration enables seamless data exchange with station HMI, gateway RTUs, and peer relays. Configuration files (ICD/CID) are provided for engineering tools like IET600 or third-party configurators.

Q: What is the maximum number of protection zones this relay can handle simultaneously?
A: The F650 is designed as a single-bay controller, typically protecting one feeder, transformer, or motor. However, through flexible logic programming and multiple setting groups (up to 6), it can adapt protection characteristics for different operating modes (e.g., normal/emergency, import/export) or coordinate with multiple upstream/downstream devices within a single protection zone.

Q: What level of energy savings or operational efficiency improvement can be expected?
A: While the relay itself is a protection device (not a direct energy-saving component), it enhances system efficiency by minimizing fault duration (faster trip times reduce equipment damage), enabling condition-based maintenance (reducing unnecessary inspections), and supporting demand response/load management strategies through programmable logic. Indirect savings from reduced downtime and extended asset life can be significant in critical applications.

Q: What are the environmental and installation requirements for the F650 controller?
A: The relay operates across -40°C to +85°C ambient temperature and is rated IP54 (front) / IP20 (rear) for panel-mount installation. It requires a clean, dry control room or outdoor kiosk with adequate ventilation. Avoid direct exposure to corrosive gases, excessive dust, or condensation. Mounting orientation is flexible (vertical panel preferred). Ensure proper grounding and surge protection on CT/VT circuits and communication lines.

Q: Can the F650 support remote monitoring, firmware updates, and cybersecurity compliance?
A: Yes. The relay features dual Ethernet ports for network connectivity, supporting secure remote access via HTTPS, SSH, or VPN tunnels. Firmware can be upgraded remotely using GE's enerVista software suite. Cybersecurity features include user authentication, role-based permissions, encrypted communication (TLS), event logging, and compliance with NERC CIP and IEC 62351 standards for critical infrastructure protection.

Q: Is technical training or commissioning support available for first-time users?
A: Absolutely. We offer remote technical guidance, online training modules, and on-site commissioning services (subject to location and project scope). Detailed user manuals, quick-start guides, settings calculation spreadsheets, and video tutorials are included. For large projects, customized training sessions and relay settings workshops can be arranged with our protection engineering team.

Request a Customized Solution

To receive a tailored protection scheme, relay settings file, technical proposal, or quotation, please provide the following project details: application type (feeder/transformer/motor/generator), system voltage and fault levels, CT/VT ratios, required communication protocols, environmental conditions, and any specific protection or automation requirements. Our application engineers will respond within 24 hours with a comprehensive selection guide and commercial offer.
