GE F650BABF1GOHI Digital Bay Controller | Feeder Protection Relay for Substation Automation

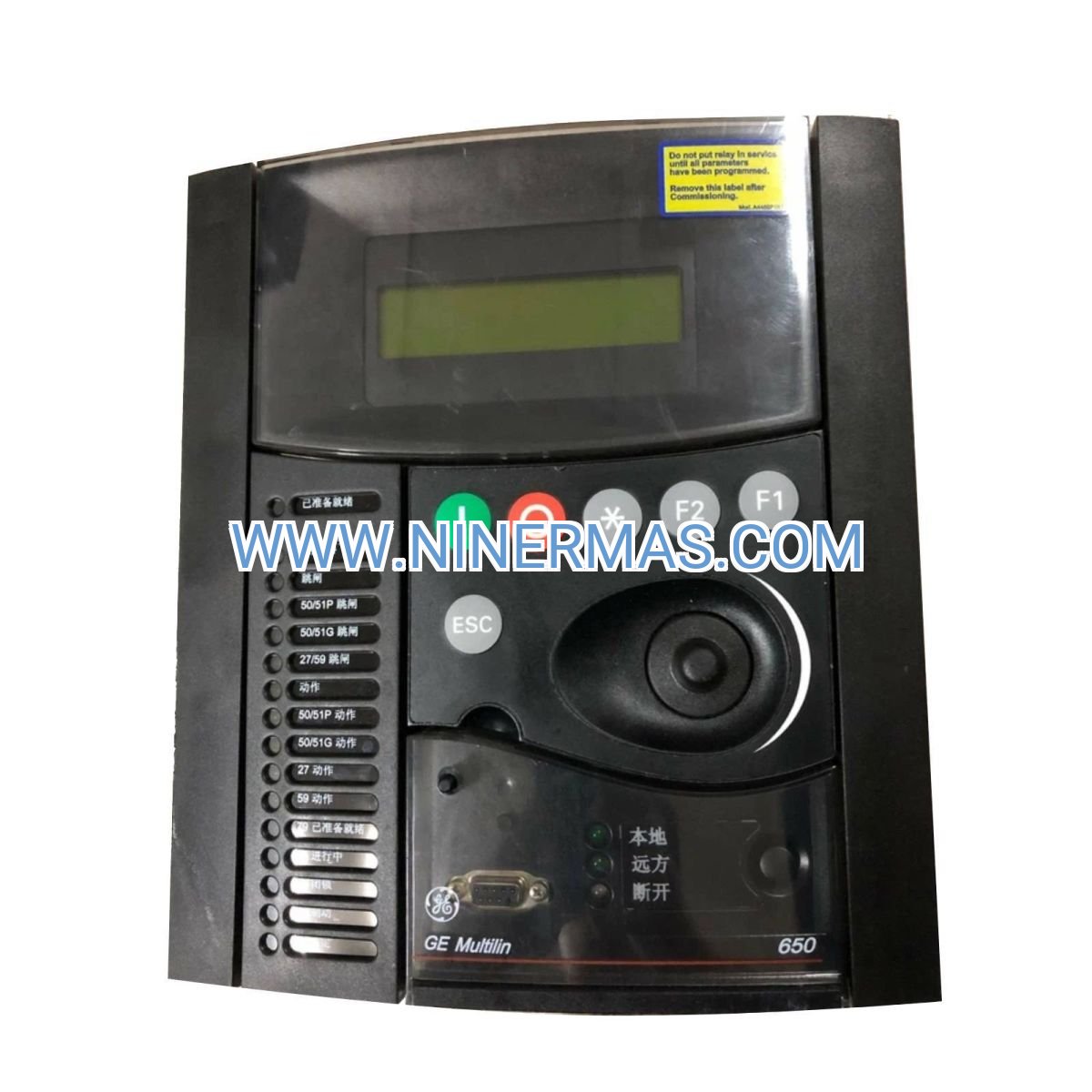

GE F650BABF1GOHI Digital Bay Controller (Industrial-Grade Feeder Protection & Control System)

The GE F650BABF1GOHI Digital Bay Controller is an advanced multi-function protection and control relay designed for medium-voltage feeder applications in substations, industrial power distribution systems, and utility networks. Through integrated microprocessor-based protection algorithms, SCADA communication protocols, and real-time event recording, it delivers comprehensive feeder protection, bay control, and system monitoring capabilities in a single compact unit.

Ideal for electrical utilities, industrial facilities, renewable energy plants, and commercial building substations, this relay addresses critical challenges including fault detection delays, inadequate protection coordination, limited remote monitoring visibility, and complex integration with legacy SCADA systems. It ensures rapid fault isolation, minimizes downtime, and enhances grid reliability.

Leveraging standardized design with flexible configuration options, the F650BABF1GOHI offers overcurrent protection, directional elements, auto-reclosing logic, breaker failure protection, and comprehensive metering functions. Suitable for consulting engineers, EPC contractors, system integrators, and end-user facility managers, this solution integrates seamlessly into modern and legacy substation architectures. Contact our application engineers for customized protection schemes, settings files, and technical quotations.

Core Functions & Advantages

• Comprehensive Feeder Protection
  Equipped with phase and ground overcurrent (50/51, 50N/51N), directional overcurrent (67/67N), and sensitive earth fault (SEF) protection elements. Provides fast and reliable fault detection with user-configurable time-current curves to coordinate with upstream and downstream devices, reducing nuisance trips and improving selectivity.
• Integrated Bay Control & Automation
  Supports breaker control, disconnect switch interlocking, auto-reclosing sequences (79), and breaker failure protection (50BF). Reduces manual intervention, accelerates service restoration, and enhances operational safety in unmanned or remotely operated substations.
• Advanced SCADA & Communication Capabilities
  Features multiple communication ports supporting DNP3, Modbus, IEC 60870-5-103, and IEC 61850 protocols. Enables seamless integration with existing SCADA/EMS platforms, facilitating real-time data acquisition, remote control, and centralized monitoring across distributed substations.
• High-Precision Metering & Power Quality Monitoring
  Provides accurate measurement of voltage, current, active/reactive power, power factor, frequency, and energy consumption. Built-in harmonics analysis and demand metering support energy management, billing verification, and power quality diagnostics.
• Comprehensive Event & Fault Recording
  Captures sequence-of-events (SOE), fault waveforms, and disturbance records with precise time-stamping. Facilitates post-fault analysis, root cause investigation, and protection scheme validation, reducing troubleshooting time and improving system reliability.
• Robust Protection & Self-Diagnostics
  Incorporates built-in self-test routines, watchdog timers, and redundant power supply options. Continuous monitoring of internal circuits, CT/VT inputs, and communication links ensures high availability and early detection of hardware anomalies, minimizing unplanned outages.
• User-Friendly Interface & Configuration Tools
  Equipped with a front-panel LCD display and keypad for local access to settings, metering values, and alarm logs. Compatible with GE's EnerVista software suite for offline configuration, online monitoring, and firmware updates, streamlining commissioning and maintenance workflows.

Typical Application Scenarios

The GE F650BABF1GOHI is engineered for demanding environments where feeder protection reliability, control flexibility, and communication interoperability are paramount, including:

• Utility Distribution Substations
  Protects medium-voltage feeders (typically 4.16 kV to 34.5 kV) in primary and secondary distribution networks. Coordinates with reclosers, sectionalizers, and fuses to isolate faults rapidly, maintain service continuity, and support grid automation initiatives.
• Industrial Power Distribution Systems
  Deployed in manufacturing plants, petrochemical facilities, mining operations, and data centers to safeguard critical feeders supplying process equipment, motor control centers, and auxiliary loads. Ensures production uptime and protects high-value assets from electrical faults.
• Renewable Energy & Distributed Generation
  Integrates into solar farms, wind parks, and cogeneration plants to provide feeder protection, synchronization control, and anti-islanding detection. Supports compliance with grid codes and facilitates safe interconnection with utility networks.
• Commercial & Institutional Facilities
  Suitable for hospitals, universities, airports, and large commercial complexes requiring reliable power distribution, remote monitoring, and compliance with electrical safety standards. Enhances facility resilience and reduces operational risks.
• Infrastructure & Transportation Systems
  Applied in railway traction substations, metro systems, and port facilities where feeder protection, load management, and communication with central control systems are essential for safe and efficient operations.

Technical Parameters & Selection Guide

To facilitate engineering design and product selection, we provide key technical specifications for the GE F650BABF1GOHI. Custom configurations are available to meet specific project requirements.

Selection Recommendations: When selecting the F650BABF1GOHI, consider the following factors: system voltage and current levels, required protection functions and logic schemes, communication protocol compatibility with existing SCADA infrastructure, available panel space and mounting arrangements, auxiliary power supply availability, and environmental conditions (temperature, humidity, altitude). For assistance, please provide project details including single-line diagrams, CT/VT ratios, breaker specifications, and SCADA requirements. Our application engineers will recommend the optimal model configuration and provide settings calculation support.

Extended Features & Customization Options

• Flexible I/O Expansion: Additional digital input/output modules can be integrated to accommodate complex control logic, remote trip/close commands, and auxiliary device monitoring.
• Cybersecurity Enhancements: Optional cybersecurity features including role-based access control, encrypted communication, and audit logging to comply with NERC CIP and IEC 62351 standards.
• Synchrophasor Measurement (PMU): Advanced models support phasor measurement unit (PMU) functionality for wide-area monitoring and grid stability analysis.
• Custom Protection Schemes: Programmable logic allows implementation of application-specific protection and control schemes, including load shedding, bus transfer, and generator protection coordination.
• Multi-Language HMI: Front-panel interface and software tools support multiple languages for global deployment and localized operator training.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog models are typically available from stock or with short lead times (2-4 weeks). Custom-configured units with specific I/O, communication, or firmware requirements may require 6-8 weeks for factory configuration and testing.

Warranty: All GE F650BABF1GOHI relays are backed by a minimum 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and service agreements are available upon request.

Commissioning Support: We provide remote technical assistance and on-site commissioning services (subject to location and project scope) to ensure proper installation, settings verification, and functional testing. Services include CT/VT polarity checks, protection coordination validation, and SCADA communication testing.

Technical Documentation: Each unit is supplied with comprehensive documentation including product manual, settings guide, wiring diagrams, communication protocol implementation guides, and EnerVista software installation package. CAD drawings and 3D models are available for panel design integration.

Compliance & Certifications: Products are manufactured in accordance with ISO 9001 quality management systems and comply with relevant international standards (IEC, IEEE, ANSI). Type test reports and compliance certificates are available upon request for project documentation and regulatory approval.

Frequently Asked Questions (FAQ)

Q: How does the GE F650BABF1GOHI digital bay controller integrate with existing substation SCADA systems?
A: The F650 supports multiple industry-standard communication protocols including DNP3, Modbus, IEC 60870-5-103, and IEC 61850. Integration typically involves configuring the relay's communication port settings, mapping data points (analog measurements, status indications, control commands) to the SCADA master, and verifying communication through protocol testing tools. Our engineers can provide protocol implementation guides and assist with SCADA point mapping.

Q: What is the maximum number of protection functions and control logic that can be configured in a single F650 relay?
A: The F650BABF1GOHI supports a comprehensive suite of protection elements (overcurrent, directional, voltage, frequency, etc.) and control functions (auto-reclosing, breaker failure, interlocking). The exact number of active functions depends on the specific model variant and firmware version. Typically, all standard feeder protection and control functions can be enabled simultaneously. For complex custom logic, programmable logic equations and function blocks are available.

Q: Can the relay achieve energy savings or efficiency improvements in the power distribution system?
A: While the relay itself is a protection and control device (not a power-saving device like a VFD), it contributes to system efficiency by enabling faster fault isolation, reducing outage duration, and supporting load management strategies. Accurate metering and power quality monitoring help identify inefficiencies, optimize power factor, and support demand response programs, indirectly contributing to energy cost reduction.

Q: What are the environmental and installation requirements for the F650BABF1GOHI relay?
A: The relay is designed for indoor substation panel mounting with an operating temperature range of -40°C to +70°C. It requires a stable auxiliary power supply (DC or AC, depending on model) and proper grounding. CT and VT connections must be made according to wiring diagrams to ensure correct polarity and burden compatibility. Adequate ventilation and protection from moisture, dust, and corrosive gases are recommended. For outdoor or harsh environments, additional enclosure protection (higher IP rating) may be required.

Q: Does the F650 support remote monitoring, firmware updates, and cybersecurity features?
A: Yes, the F650 supports remote access via Ethernet or serial communication for real-time monitoring, event retrieval, and settings changes using GE's EnerVista software. Firmware updates can be performed remotely or locally to add features, improve performance, or address security vulnerabilities. Cybersecurity features such as password protection, user access levels, and encrypted communication (depending on model and firmware) help protect against unauthorized access and cyber threats in compliance with industry standards.

Q: What technical information is needed to obtain a detailed selection recommendation and quotation?
A: Please provide the following project details: system voltage and frequency, CT and VT ratios, breaker type and ratings, required protection functions and coordination study results, SCADA communication protocol and network architecture, auxiliary power supply specifications (voltage, DC/AC), environmental conditions (temperature, altitude, enclosure requirements), and any special requirements (cybersecurity, PMU, custom I/O). Our application engineers will review your requirements and provide a tailored solution with technical specifications and pricing.

Request Technical Support & Quotation

To obtain a detailed selection guide, customized protection settings, technical documentation, or pricing information, please send us the following details: project name and location, application scenario (utility/industrial/renewable), system single-line diagram, voltage and current levels, CT/VT ratios, breaker specifications, required protection and control functions, SCADA protocol requirements, and auxiliary power supply conditions. Our engineering team will provide one-on-one consultation and recommend the optimal configuration for your application.
