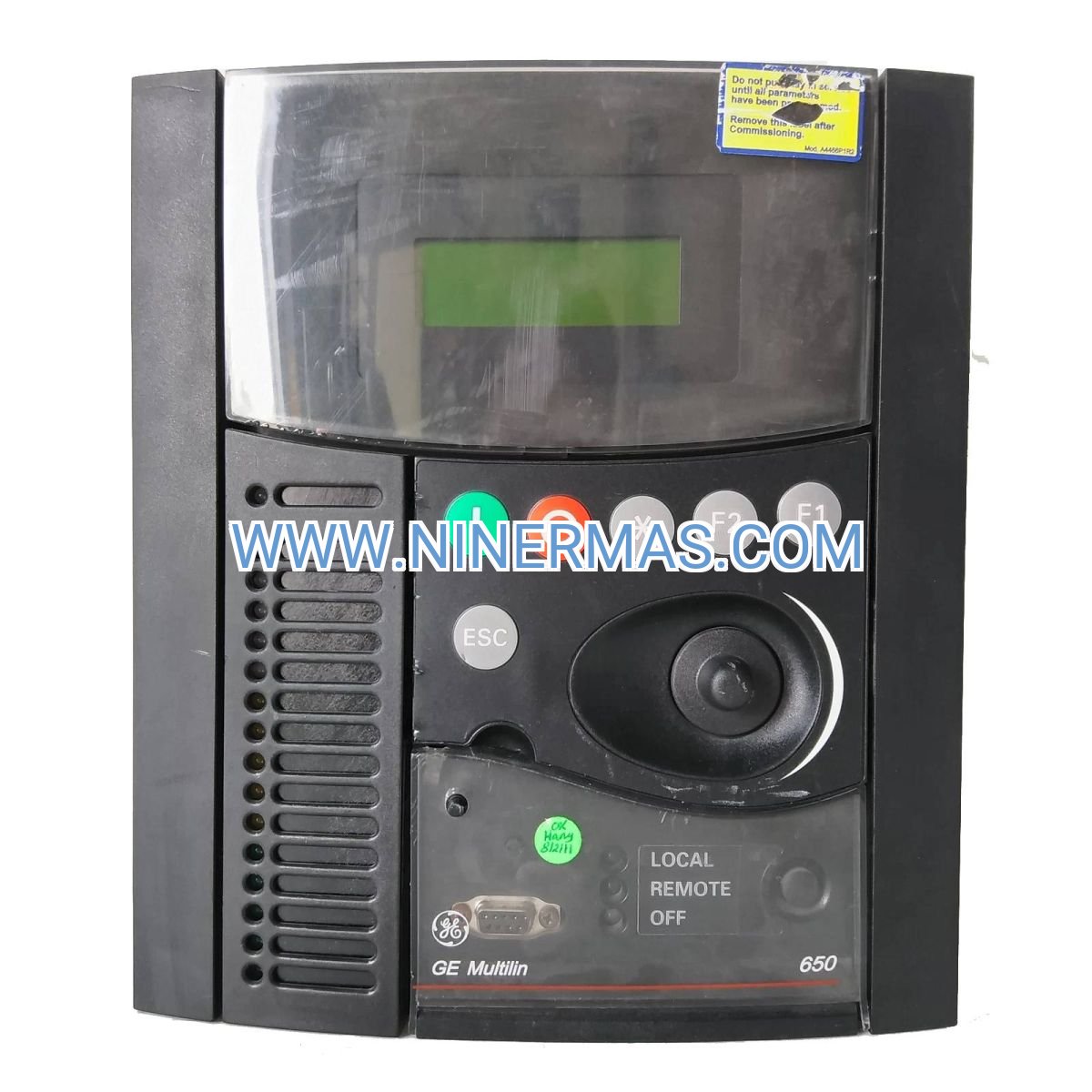

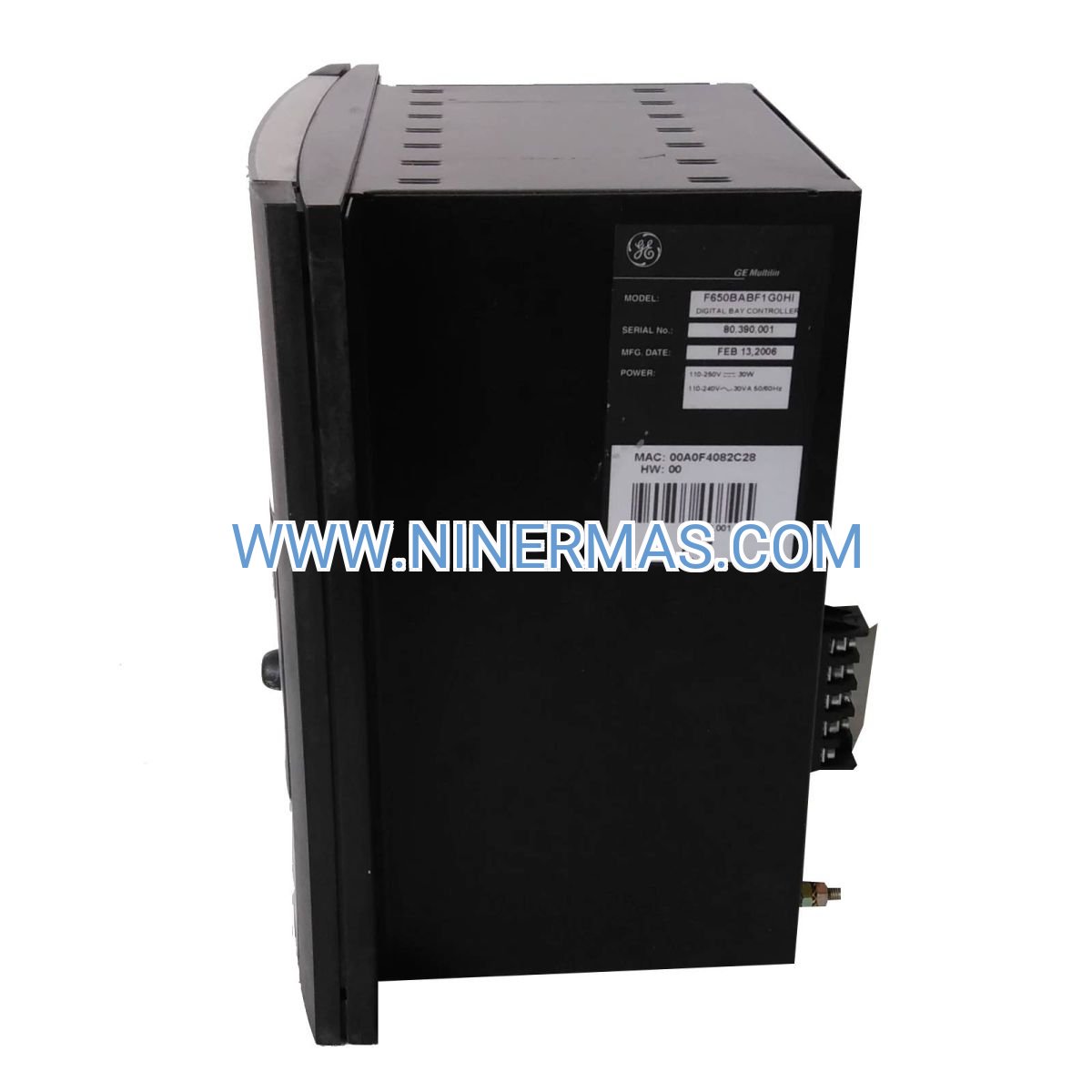

GE F650 Digital Bay Controller (Industrial-Grade Feeder Protection System)

The GE F650BABF1G0HI Digital Bay Controller is an advanced multi-function protection relay designed for feeder circuit protection, control, monitoring, and metering in electrical substations and industrial power distribution systems. Through integrated microprocessor-based technology and IEC 61850 communication protocol, it delivers comprehensive protection schemes, real-time diagnostics, and seamless integration with SCADA and substation automation platforms.

Ideal for utility substations, industrial plants, renewable energy facilities, and critical infrastructure applications, the F650 addresses challenges such as fault detection delays, inadequate event recording, communication protocol incompatibility, and limited remote monitoring capabilities. It provides reliable protection against overcurrent, earth faults, voltage anomalies, and frequency disturbances while maintaining operational continuity.

With standardized configuration templates and customizable logic programming, this relay is suitable for consulting engineers, EPC contractors, system integrators, and facility maintenance teams. Contact our application engineers for tailored protection schemes, settings files, and technical quotations.

Core Functions & Advantages

• Comprehensive Feeder Protection
  Provides multi-stage overcurrent (ANSI 50/51), directional overcurrent (67), earth fault (50N/51N), and voltage protection (27/59) with programmable time-current curves, ensuring fast and selective fault isolation while minimizing downtime.
• IEC 61850 Native Communication
  Supports IEC 61850 Edition 1 & 2 with GOOSE messaging and MMS services, enabling interoperability with modern substation automation systems, reducing engineering time by up to 40% compared to legacy protocols.
• Advanced Metering & Power Quality Monitoring
  Integrated revenue-class metering (IEC 62053) captures voltage, current, power, energy, harmonics (up to 31st order), and power factor with 0.2% accuracy, supporting predictive maintenance and energy management initiatives.
• Flexible Control & Automation Logic
  Equipped with programmable logic (FlexLogic™) and virtual inputs/outputs, allowing customized interlocking, auto-reclosing (79), load shedding, and breaker failure protection (50BF) without external PLCs.
• Robust Event & Fault Recording
  High-resolution oscillography (up to 256 samples/cycle) and sequence-of-events (SOE) recording with 1 ms resolution provide detailed forensic analysis for post-fault investigations and compliance reporting.
• Intuitive HMI & Cybersecurity Features
  Front-panel LCD with multi-language support (English/Chinese/Spanish) and role-based access control (RBAC) compliant with IEC 62351, ensuring secure configuration and operation in critical environments.

Typical Application Scenarios

The GE F650 Digital Bay Controller is engineered for demanding applications requiring high reliability, precise protection coordination, and extensive communication capabilities, including:

• Utility Substations & Distribution Networks
  Protects medium-voltage feeders (up to 72.5 kV) in transmission and distribution substations, coordinating with upstream relays and downstream reclosers to maintain grid stability and service continuity.
• Industrial Power Distribution & On-Site Generation
  Safeguards critical loads in manufacturing plants, petrochemical facilities, mining operations, and data centers, with anti-islanding protection (ANSI 25) for co-generation and renewable integration.
• Renewable Energy & Microgrid Systems
  Manages protection and control for solar farms, wind parks, and battery energy storage systems (BESS), supporting grid-forming and grid-following modes with dynamic voltage and frequency ride-through capabilities.
• Infrastructure & Transportation Electrification
  Deployed in railway traction substations, metro systems, airport ground power, and EV charging infrastructure, ensuring compliance with EN 50155 and IEEE 1547 standards.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide standardized configurations based on voltage class, CT/VT ratios, communication requirements, and environmental conditions. Custom firmware and I/O expansion modules are available for project-specific needs.

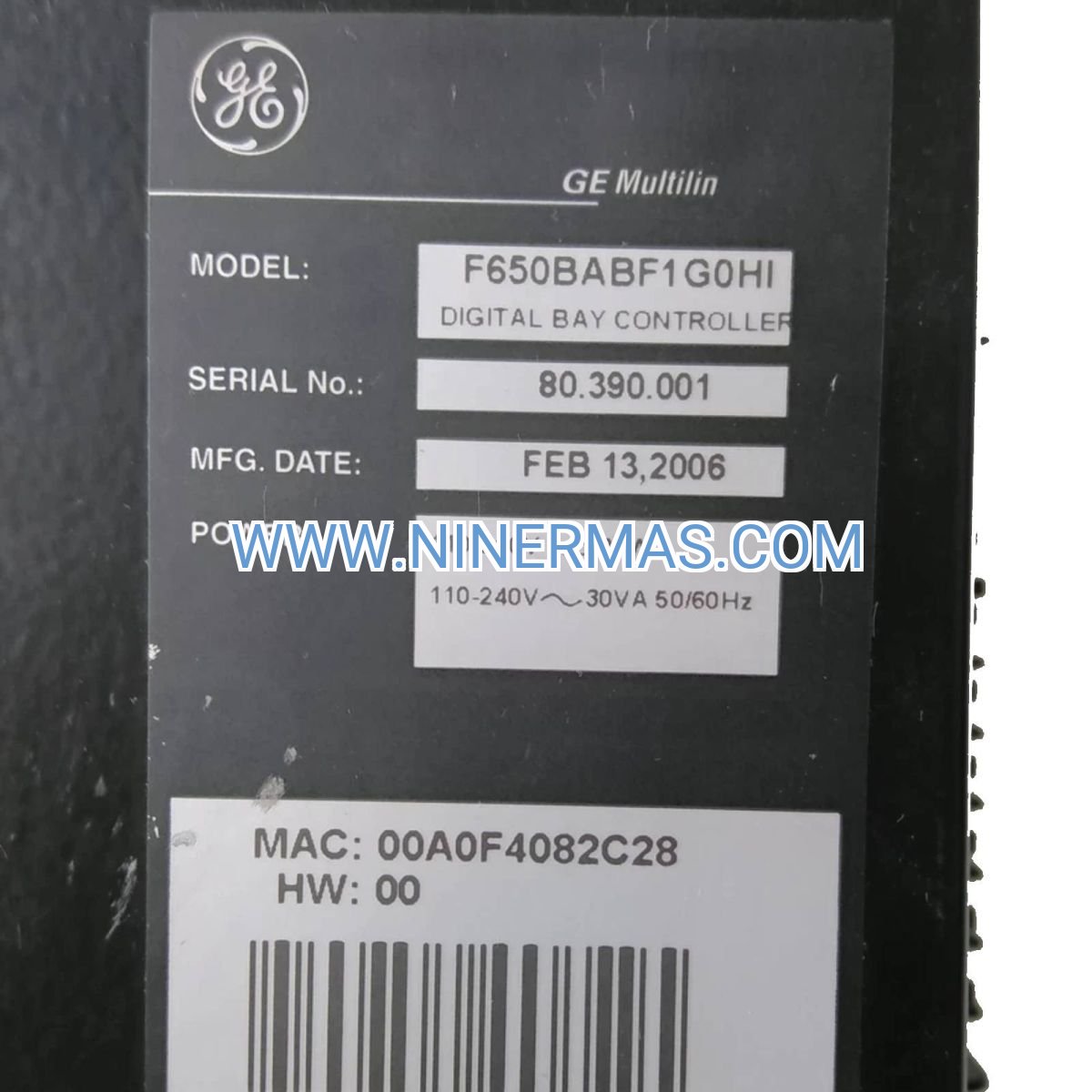

Key Specifications (Model F650BABF1G0HI):

• Voltage Rating: Up to 72.5 kV (phase-phase)
• Current Inputs: 4 CT inputs (1 A or 5 A nominal), programmable ratios
• Voltage Inputs: 4 VT inputs (phase & auxiliary), 50/60 Hz auto-sensing
• Digital I/O: 16 configurable inputs, 12 relay outputs (Form-A/C)
• Communication Ports: Dual Ethernet (IEC 61850), RS485 (Modbus RTU/DNP3), rear USB
• Power Supply: 88–300 VDC / 100–240 VAC, redundant input option
• Operating Temperature: -40°C to +70°C (-40°F to +158°F)
• Enclosure Rating: IP54 front, IP20 rear (panel-mounted)
• Compliance: IEC 60255, IEEE C37.90, UL/cUL, CE, RoHS

Selection Recommendations:
When specifying the F650, consider maximum fault current levels, CT/VT accuracy class, required protection functions (per single-line diagram), communication architecture (star/ring topology), and cybersecurity policies. Provide system voltage, short-circuit capacity, breaker ratings, and existing SCADA protocol for engineering review. Our specialists will recommend optimal settings and configuration files.

Extended Capabilities

• Synchrophasor Measurement (PMU): Optional IEEE C37.118 module for wide-area monitoring and situational awareness
• Arc Flash Detection: Integration with optical sensors for ultra-fast tripping (< 2 ms)
• Condition Monitoring: Breaker wear analysis, contact erosion tracking, and thermal overload trending
• Remote Firmware Updates: Secure over-the-air updates via encrypted FTP or IEC 61850 file transfer

Delivery, Service & Quality Assurance

Lead Time: Standard configurations ship within 4–6 weeks; custom-engineered units require 8–12 weeks from order confirmation.
Warranty: 12-month manufacturer warranty covering defects in materials and workmanship; extended service contracts available.
Commissioning Support: Remote configuration assistance and on-site commissioning services (region-dependent) included with bulk orders.
Technical Documentation: Complete package includes CAD drawings (DWG/DXF), protection settings spreadsheet, IEC 61850 ICD/CID files, Modbus register map, and multilingual operation manual for seamless installation and maintenance.

Frequently Asked Questions (FAQ)

Q: How does the GE F650 Digital Bay Controller integrate with existing substation SCADA systems?
A: The F650 supports multiple protocols including IEC 61850 (GOOSE/MMS), Modbus RTU/TCP, and DNP3.0 over serial or Ethernet. It can simultaneously communicate with legacy RTUs and modern IEC 61850 gateways, allowing phased migration without system downtime.

Q: What is the maximum number of protection elements this relay can handle?
A: The F650 supports over 40 ANSI protection functions including 50/51, 50N/51N, 67, 27/59, 81O/U, 25, 79, 50BF, and custom FlexLogic™ equations, making it suitable for complex feeder and transformer protection schemes.

Q: Can the F650 be used for generator or motor protection applications?
A: While primarily designed for feeder protection, the F650 can protect small generators and motors with appropriate settings. For dedicated generator protection, consider the GE G60 or G650 series with specialized functions like loss-of-field (40) and reverse power (32).

Q: What are the environmental and installation requirements for this relay?
A: The F650 is rated for -40°C to +70°C operation with IP54 front-panel protection (dust and splash-resistant). It requires panel cutout dimensions of 1/4 DIN (96 mm × 96 mm) and adequate ventilation. Avoid installation near high-vibration equipment or strong electromagnetic fields.

Q: Does the relay support cybersecurity features for critical infrastructure deployment?
A: Yes, the F650 includes role-based access control (RBAC), encrypted communication (TLS 1.2), event logging, and compliance with NERC CIP and IEC 62351 standards. Firmware is digitally signed to prevent unauthorized modifications.

Q: How much energy savings or efficiency improvement can be expected?
A: While the F650 itself is a protection device (not an energy-saving controller), its advanced metering and power quality monitoring enable identification of inefficiencies such as harmonic distortion, unbalanced loads, and poor power factor, supporting corrective actions that can reduce losses by 5–15% in industrial systems.

Request Technical Support & Quotation

For detailed application engineering, protection coordination studies, settings files, or commercial quotations, please provide the following information: project name, application type (utility/industrial/renewable), system voltage and fault level, CT/VT ratios, number of feeders, communication protocol requirements, and environmental conditions. Our certified protection engineers will deliver customized solutions with one-on-one technical consultation.
