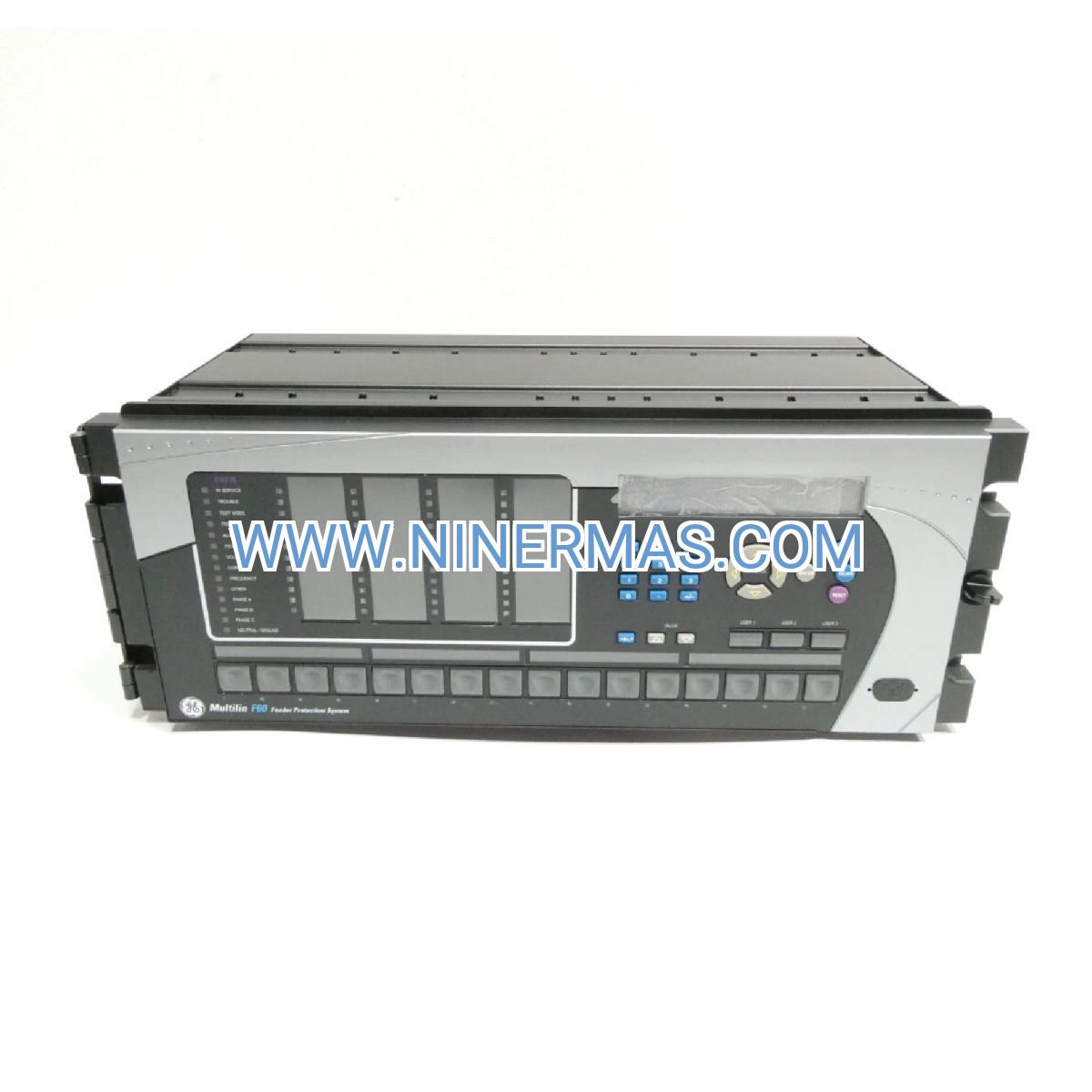

GE F60 Feeder Protection Relay (Industrial-Grade Distribution Control System)

The GE F60 Feeder Protection Relay is an industrial-grade intelligent electronic device (IED) designed for comprehensive feeder circuit protection in distribution networks. Through advanced microprocessor-based control, multi-function protection algorithms, and real-time monitoring capabilities, it delivers reliable overcurrent protection, directional fault detection, voltage supervision, and automated fault isolation for critical electrical infrastructure.

Ideal for utility substations, industrial power distribution systems, renewable energy interconnections, and smart grid modernization projects, the F60 addresses common challenges including uncoordinated protection schemes, prolonged fault clearing times, inadequate fault diagnostics, limited communication integration, and excessive energy losses from inefficient feeder management.

Built on GE's proven Universal Relay (UR) platform with standardized hardware architecture and field-customizable protection logic, this relay offers exceptional reliability (MTBF >250 years), comprehensive self-diagnostics, seamless SCADA integration, and flexible deployment options. Suitable for protection engineers, utility operators, industrial facility managers, EPC contractors, and system integrators requiring robust feeder protection solutions. Contact our application engineers for customized protection scheme design and technical specifications.

Core Functions & Advantages

Multi-Element Protection Architecture
Integrates phase overcurrent (ANSI 50/51), ground fault (50N/51N), directional overcurrent (67/67N), under/overvoltage (27/59), and frequency protection (81) in a single device, eliminating the need for multiple discrete relays and reducing panel space requirements by up to 60%.

Proven Reliability & Self-Monitoring
Continuous internal diagnostics verify measurement circuits, contact integrity, power supply health, and memory functions every 50ms, automatically generating alarms for any anomaly. Hardware watchdog timers and redundant processing ensure fail-safe operation even during component degradation.

Adaptive Protection Coordination
Programmable time-current curves with voltage-controlled and voltage-restrained elements automatically adjust protection sensitivity based on system conditions, maintaining selectivity during fault events while preventing nuisance trips during motor starting or transformer energization.

Enhanced Energy Efficiency
Integrated power quality metering identifies harmonic distortion, unbalanced loading, and power factor issues that contribute to distribution losses. Real-time load profiling enables demand-side management strategies, potentially reducing feeder energy consumption by 15-25% through optimized switching and load balancing.

Comprehensive Fault Diagnostics
High-resolution oscillography (64 samples/cycle) captures voltage and current waveforms during disturbances, while sequence-of-events recording with 1ms timestamps enables precise fault location calculation and post-event analysis, reducing troubleshooting time by 70%.

Intuitive Operation Interface
Front-panel 40-character backlit LCD with multi-language support (English/Chinese/Spanish) displays real-time metering, alarm status, and protection element status. Programmable function keys provide quick access to frequently used commands without navigating complex menu structures.

Typical Application Scenarios

The GE F60 Feeder Protection Relay excels in applications demanding high reliability, selective fault isolation, and comprehensive monitoring capabilities, particularly in:

Utility Distribution Substations
Serves as primary protection for radial, looped, or meshed distribution feeders rated 4.16kV to 34.5kV. Directional elements enable selective tripping in ring-bus configurations, while auto-reclosing functions restore service after transient faults, improving SAIDI/SAIFI reliability indices by 30-40%.

Industrial Power Distribution Centers
Protects critical feeders supplying process equipment in manufacturing plants, refineries, mining operations, and data centers. Integrates with motor control centers, variable frequency drives, and emergency generator systems to maintain production continuity during grid disturbances.

Renewable Energy Grid Interconnection
Manages bidirectional power flow from solar photovoltaic arrays, wind turbine generators, and battery energy storage systems. Synchrocheck and voltage monitoring functions ensure safe paralleling with utility grid, while anti-islanding protection meets IEEE 1547 interconnection standards.

Smart Grid & Substation Automation
Native IEC 61850 communication enables peer-to-peer GOOSE messaging for high-speed interlocking (2-4ms response), centralized monitoring via MMS protocol, and time synchronization through SNTP/IRIG-B for wide-area protection schemes and disturbance analysis.

Technical Parameters & Selection Guide

To facilitate engineering design and equipment selection, we offer standardized configurations with customization options for project-specific requirements:

Selection Recommendations: When specifying the F60 relay, consider the following project parameters: maximum fault current magnitude (for CT ratio selection), feeder voltage class and grounding method (wye/delta configuration), required protection speed (instantaneous vs time-delayed elements), communication protocol requirements (legacy vs IEC 61850), and environmental conditions (temperature extremes, humidity, vibration). For complex applications involving multiple feeders, bus-tie schemes, or generator interconnection, our protection engineers can perform coordination studies and provide optimized relay settings. Submit your single-line diagram, fault study results, and operational requirements for customized recommendations.

Advanced Integration Capabilities

Substation Automation Integration
Full IEC 61850 Edition 2 compliance with certified logical nodes (XCBR, CSWI, MMXU, PDIF) enables plug-and-play integration with multi-vendor substation automation systems. GOOSE messaging provides hardwired-speed interlocking without physical wiring, while MMS protocol supports centralized configuration management and remote firmware updates.

SCADA & HMI Connectivity
Simultaneous support for Modbus RTU/TCP and DNP3 Level 2 protocols ensures compatibility with existing supervisory control systems. Configurable data mapping allows transmission of real-time measurements, protection status, and alarm conditions to control room operators. Embedded web server enables browser-based monitoring without proprietary software installation.

Programmable Logic & Control
FlexLogic™ engine with 512 logic gates and 256 timers enables creation of custom control sequences, interlocking schemes, and automated switching procedures. Virtual inputs/outputs facilitate remote control commands and status feedback, reducing the need for external programmable logic controllers in many applications.

Cybersecurity Features
Role-based access control with password authentication, encrypted communication channels (TLS/SSL), audit logging of configuration changes, and DNP3 Secure Authentication (SAv5) meet NERC CIP compliance requirements for critical infrastructure protection. Digitally signed firmware prevents unauthorized code execution.

Delivery, Service & Quality Assurance

Lead Time & Availability: Standard F60 configurations with common voltage/current ratings typically ship within 3-5 business days from our regional distribution centers. Custom-configured relays with specific I/O arrangements, communication modules, or factory settings require 2-3 weeks for assembly and testing. Expedited processing available for emergency replacement applications.

Warranty Coverage: Every GE F60 relay includes a comprehensive 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs (up to 5 years) available for critical applications requiring maximum uptime assurance.

Technical Support Services: Our certified protection engineers provide pre-sales application consulting, protection coordination studies, relay settings calculation, commissioning assistance (remote or on-site), and post-installation troubleshooting support. Factory-authorized training courses available for customer personnel.

Documentation Package: Each relay shipment includes complete technical documentation: installation manual with panel cutout dimensions and wiring diagrams, settings and configuration guide with protection function descriptions, communication protocol implementation guides (IEC 61850 ICD file, Modbus register map, DNP3 point list), and quick-start commissioning checklist. EnerVista UR Setup software and IEC 61850 configuration tools provided at no additional charge.

Frequently Asked Questions (FAQ)

Q: How does the GE F60 feeder protection relay integrate with existing substation control systems?
A: The F60 supports multiple communication protocols simultaneously—IEC 61850 for modern substation automation, Modbus RTU/TCP for legacy SCADA systems, and DNP3 for utility applications. Dual Ethernet ports enable redundant network connections (IEC 62439 PRP/HSR), while the RS485 serial port provides backup communication. Configuration files can be exported/imported via front USB port or network interface for rapid deployment across multiple installations.

Q: What is the maximum number of protection zones the F60 can manage in a single feeder application?
A: The F60 provides four independent overcurrent protection stages (two instantaneous, two time-delayed) for both phase and ground faults, plus directional supervision for each stage. This allows implementation of complex protection schemes including main/backup protection, load-side/source-side directional blocking, and zone-selective interlocking with adjacent relays. Custom protection logic can be created using FlexLogic for specialized applications.

Q: Can the F60 relay be retrofitted to replace older electromechanical or static relays?
A: Yes, the F60's compact 1/4 DIN panel cutout (96×96mm) fits most existing relay panel openings. Flexible current/voltage input ranges accommodate legacy CT/VT ratios without replacement. Settings migration tools assist in converting time-current curves from electromechanical relays to digital equivalents. Removable terminal blocks simplify wiring transitions during retrofit projects.

Q: What cybersecurity measures does the F60 implement for critical infrastructure protection?
A: The relay features multi-level password protection (view/control/configuration access), encrypted communication protocols (TLS 1.2 for web/FTP, SSH for Telnet), comprehensive audit logging of all configuration changes and control actions, DNP3 Secure Authentication Version 5, and digitally signed firmware to prevent malware injection. Network access can be restricted by IP address filtering and MAC address binding.

Q: How does the F60 handle CT saturation during high-magnitude fault conditions?
A: Advanced digital signal processing algorithms detect CT saturation characteristics by analyzing waveform distortion patterns and secondary current decay rates. Adaptive overcurrent elements automatically compensate for saturation effects, maintaining protection accuracy for faults up to 100× rated current. Saturation detection triggers diagnostic alarms to alert maintenance personnel of potential CT degradation requiring investigation.

Q: What is the typical commissioning time for a GE F60 feeder protection relay?
A: For standard applications with pre-calculated settings, commissioning typically requires 4-6 hours including physical installation, wiring verification, settings upload, primary/secondary injection testing, and communication interface validation. The relay's auto-configuration feature detects connected CT/VT ratios and suggests optimal settings, reducing configuration time. Simulation mode allows complete functional testing without energizing primary equipment, minimizing substation outage duration.

Request Technical Consultation & Quotation

To receive a detailed protection scheme design, customized relay settings, and competitive pricing for your feeder protection project, please provide the following information to our application engineering team:

• Project name and location (for environmental considerations)
• Feeder voltage class and system grounding method (solidly grounded, resistance grounded, ungrounded)
• Maximum three-phase and ground fault current levels (from short-circuit study)
• Current transformer ratios and accuracy class (existing or proposed)
• Voltage transformer ratios and connection (wye/delta)
• Required protection functions and coordination requirements
• Communication protocol preferences (IEC 61850, Modbus, DNP3)
• Control power supply availability (DC/AC voltage)
• Quantity required and delivery timeline

Our protection engineers will analyze your requirements and provide a comprehensive proposal including relay configuration recommendations, protection coordination time-current curves, estimated energy savings from optimized feeder management, and total project cost. Expedited quotation service available for urgent replacement applications.
