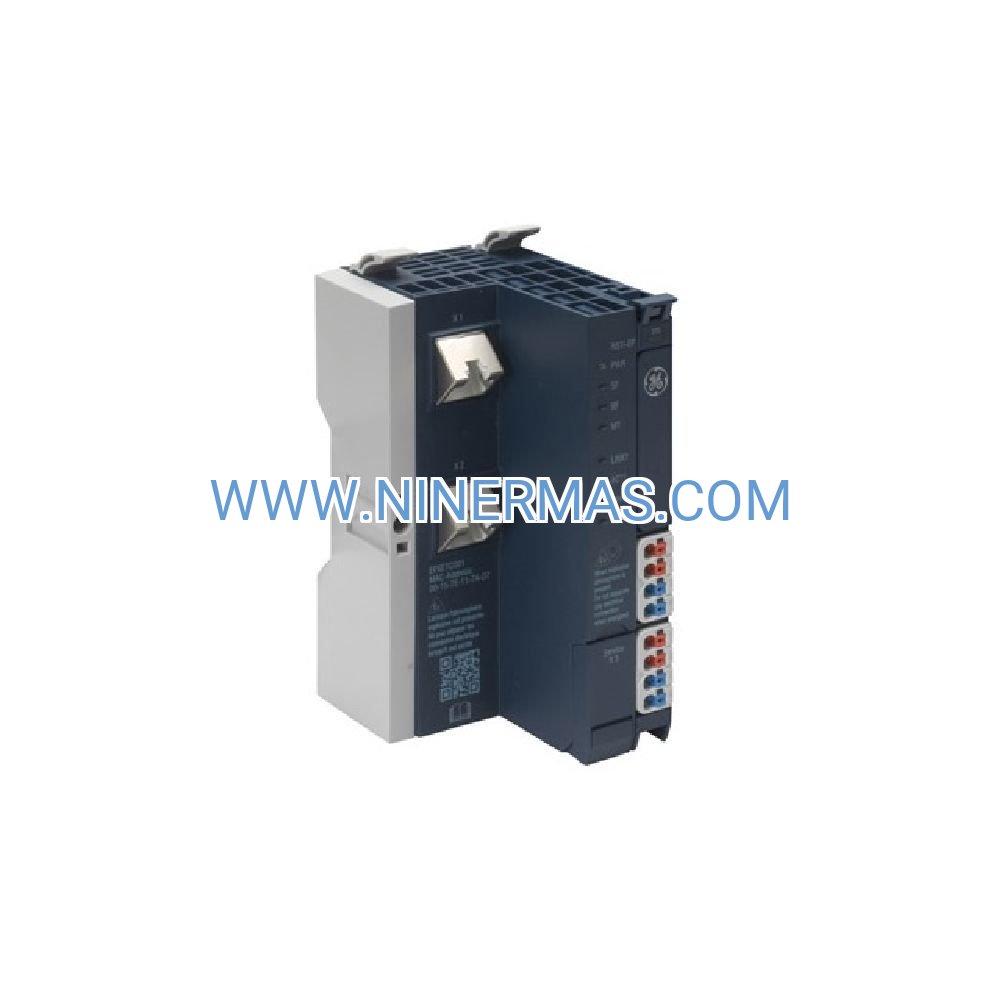

EPXPNS001 PROFINET IRT Network Adapter (Industrial-Grade Distributed I/O Gateway)

The EPXPNS001 is a high-performance PROFINET IRT network adapter engineered for seamless integration of RSTi-EP slice I/O modules into industrial automation networks. This compact DIN-rail gateway delivers deterministic communication with sub-millisecond cycle times, enabling precise synchronization across distributed control systems in manufacturing, process control, and infrastructure applications.

Designed for system integrators and automation engineers, the EPXPNS001 bridges PROFINET controllers with modular I/O architectures, eliminating complex wiring while maintaining real-time performance. Its integrated 2-port Ethernet switch supports daisy-chain topologies, reducing installation costs and simplifying network expansion. Whether you're upgrading legacy systems or deploying greenfield automation projects, this adapter provides the reliability and flexibility demanded by mission-critical industrial environments.

With certifications spanning UL, CE, ATEX, and Class I Division 2 hazardous locations, the EPXPNS001 meets global safety standards for deployment in chemical processing, oil & gas, automotive manufacturing, and water treatment facilities. Hot-swappable design minimizes downtime during maintenance, while diagnostic LEDs accelerate fault identification and resolution.

Core Capabilities & Technical Advantages

→ Deterministic PROFINET IRT Protocol
Achieves cycle times as low as 250 microseconds for motion control, synchronized drives, and time-sensitive automation tasks. Conformance Class C certification ensures compatibility with Siemens, Phoenix Contact, and other leading PROFINET ecosystems.

✓ Dual-Port Ethernet Switch Architecture
Built-in 2-port 100Mbps full-duplex switch enables linear or ring network topologies without external infrastructure. Supports Media Redundancy Protocol (MRP) for automatic failover in critical applications.

✓ Modular Scalability for Complex Systems
Connect up to 64 RSTi-EP I/O modules per adapter, supporting thousands of I/O points across distributed installations. Backplane power distribution eliminates individual module power supplies.

✓ Hot-Swap Capability Without System Shutdown
Replace or add I/O modules during operation without halting production. Automatic device recognition and configuration reduce commissioning time by up to 40%.

✓ Industrial-Hardened Environmental Protection
Operates reliably from -20°C to +60°C with 5-95% humidity tolerance. Optional conformal coating provides enhanced resistance to corrosive atmospheres, moisture ingress, and particulate contamination.

✓ Comprehensive Diagnostic Feedback
Multi-color LEDs indicate power status, network activity, communication errors, and module faults. LLDP support enables automated topology discovery and network documentation.

Industry-Specific Deployment Scenarios

Automotive Assembly & Robotics
Synchronize multi-axis robotic welding cells with conveyor systems and quality inspection stations. The EPXPNS001's IRT capability ensures precise timing coordination between vision systems, servo drives, and safety PLCs. Typical installations reduce wiring costs by 35% compared to traditional parallel I/O architectures.

Chemical & Petrochemical Processing
Distribute I/O across hazardous area zones while maintaining centralized control room monitoring. Class I Division 2 certification permits installation in Zone 2/Division 2 locations. Pair with analog input modules for temperature, pressure, and flow measurement in reactor control loops.

Water & Wastewater Infrastructure
Connect remote lift stations, filtration systems, and chemical dosing equipment to SCADA networks via PROFINET. The adapter's extended temperature range supports outdoor enclosure installations without climate control. Typical applications monitor 50-200 I/O points per site.

Food & Beverage Production
Integrate high-speed packaging lines with recipe management systems and batch control. Hot-swap functionality enables module replacement during scheduled sanitation cycles without production line shutdown. Conformal coating option protects against washdown environments.

Material Handling & Logistics
Coordinate automated storage/retrieval systems (AS/RS) with warehouse management software. The 2-port switch simplifies cabling in conveyor networks spanning hundreds of meters. Supports up to 64 I/O modules for large-scale sortation systems.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the EPXPNS001 when your application requires PROFINET IRT determinism with cycle times below 1ms. For standard PROFINET RT applications (1-10ms cycles), consider cost-optimized alternatives. If HART device integration or advanced diagnostics are required, specify the EPXPNS001-ADAH variant with extended protocol support.

Advanced Integration & IoT Connectivity

The EPXPNS001 supports modern Industry 4.0 architectures through PROFINET's built-in OPC UA mapping capabilities. When paired with edge gateways or industrial IoT platforms, the adapter enables cloud-based analytics, predictive maintenance, and remote diagnostics without compromising real-time control performance.

Cybersecurity Features: Network segmentation via VLAN tagging, MAC address filtering, and encrypted configuration files protect against unauthorized access. Firmware updates are digitally signed and can be deployed remotely through PROFINET engineering tools.

Customization Options: Factory-configured variants are available with pre-loaded device descriptions, custom IP addressing, and application-specific I/O mapping. Consult our engineering team for high-volume OEM projects requiring tailored configurations.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for stock items; 2-3 weeks for factory-configured variants
Warranty Coverage: 12 months from shipment date, covering manufacturing defects and component failures
Technical Support: Lifetime access to application engineers for configuration assistance, GSDML file support, and network troubleshooting
Documentation Package: User manual, quick-start guide, GSDML device description file, CAD drawings (STEP/DXF), and sample TIA Portal project

All shipments include anti-static packaging, installation hardware (DIN rail clips, terminal block labels), and a certificate of conformity. Expedited shipping options are available for urgent project requirements.

Common Application Questions

How does PROFINET IRT differ from standard PROFINET RT?
PROFINET IRT (Isochronous Real-Time) reserves dedicated bandwidth for time-critical data, achieving deterministic cycle times below 1ms with jitter under 1μs. Standard PROFINET RT uses shared bandwidth with typical cycle times of 1-10ms. IRT is essential for motion control, synchronized drives, and high-speed packaging applications.

Can I mix different I/O module types on a single adapter?
Yes, the EPXPNS001 supports heterogeneous I/O configurations including digital inputs/outputs, analog inputs/outputs, temperature modules, and specialty function blocks. The backplane automatically distributes power and data to all connected modules.

What engineering software is required for configuration?
The adapter is configured through your PROFINET controller's engineering environment (Siemens TIA Portal, STEP 7, or third-party tools). Import the provided GSDML file to access all device parameters, diagnostic data, and I/O mapping functions.

Does the adapter support redundant controller configurations?
Yes, when used with redundant PROFINET controllers (e.g., Siemens S7-1500R), the EPXPNS001 supports seamless failover through System Redundancy (S2) or Media Redundancy Protocol (MRP). Switchover times are typically under 200ms.

What cable specifications are recommended for industrial installations?
Use Cat5e or Cat6 industrial Ethernet cables with shielded twisted pair (STP) construction and AWG 22-26 conductors. For outdoor or high-EMI environments, specify ruggedized cables with UV-resistant jackets and IP67-rated M12 or RJ45 connectors. Maximum cable length between devices is 100 meters per segment.

How do I calculate total system power requirements?
The EPXPNS001 consumes 2.5W and supplies power to connected I/O modules via the backplane. Each module's power consumption is listed in its datasheet (typically 1-3W per module). Ensure your 24V DC power supply can deliver the sum of adapter + all module power draws with 20% safety margin.

Request Technical Consultation

Optimize your distributed I/O architecture with proven PROFINET technology. Our automation specialists provide complimentary system design reviews, network topology planning, and I/O point calculations for projects of any scale. Contact us today to discuss your application requirements and receive a detailed quotation within 24 hours.
