GE DS200XDSAG1A Excitation Discharge Board | EX2100 Crowbar Protection for Mark V Turbine Control

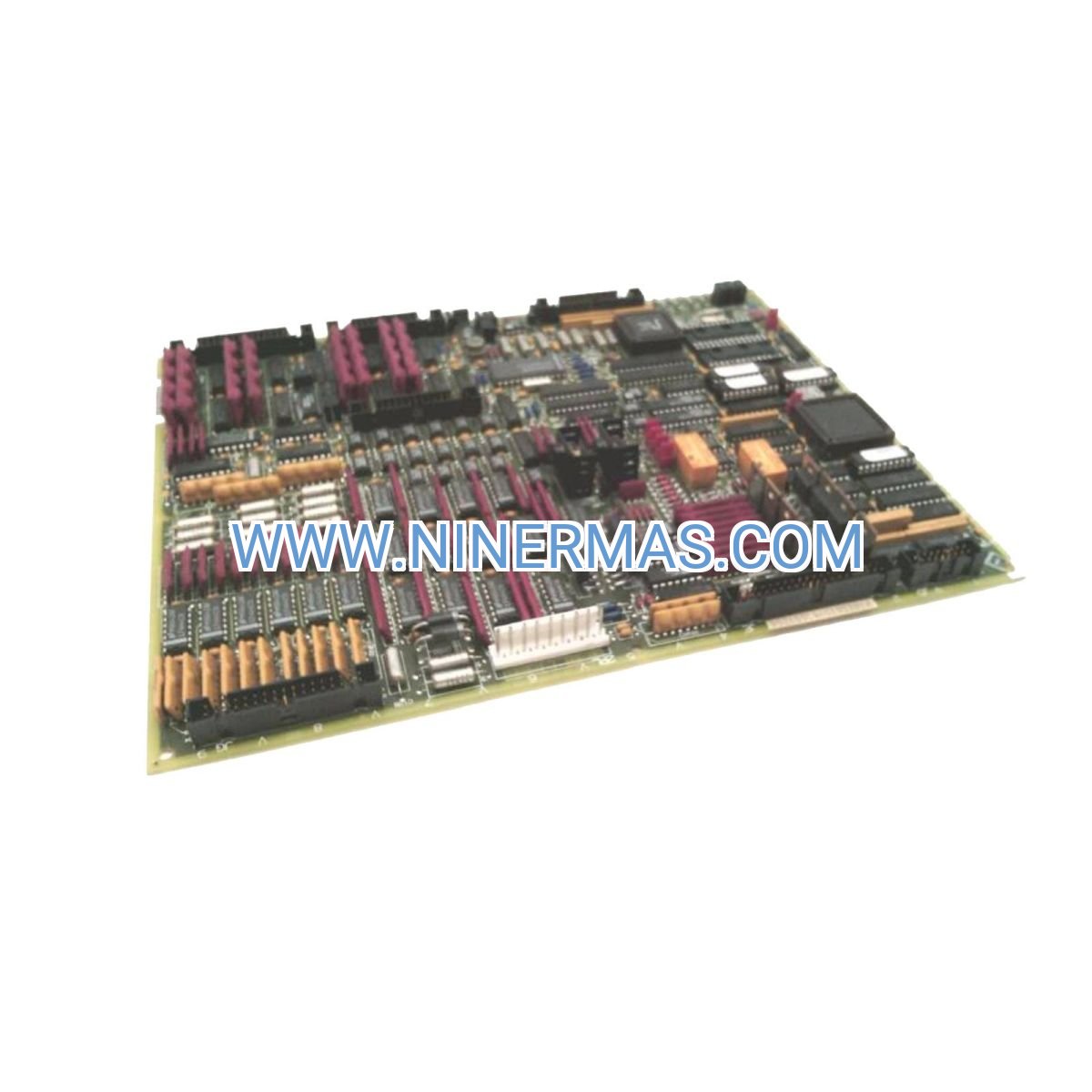

GE DS200XDSAG1A Excitation Discharge Board (Industrial-Grade Crowbar Protection System)

The GE DS200XDSAG1A Excitation Discharge Board is a critical protection module designed for EX2100 excitation systems and Mark V Speedtronic turbine control platforms. Through advanced crowbar circuit technology and field discharge control, it delivers rapid overvoltage suppression and safe energy dissipation during generator fault conditions, ensuring equipment integrity and operational continuity.

Engineered for power generation facilities, industrial cogeneration plants, and turbine-generator OEM integrators, this board addresses critical challenges including: field winding overvoltage during load rejection, excitation system faults, uncontrolled voltage spikes, and inadequate fault response time. It is essential for facilities requiring high-reliability generator protection and compliance with IEEE standards.

Built to OEM specifications with rigorous quality control, the DS200XDSAG1A features proven circuit topology, industrial-grade components rated for harsh environments, and seamless integration with existing GE control architectures. Suitable for consulting engineers, EPC contractors, plant maintenance teams, and aftermarket service providers. Contact our application engineers for system compatibility verification and technical documentation.

Core Functions & Technical Advantages

• Rapid Crowbar Protection
  Activates high-speed thyristor crowbar circuits to short-circuit the generator field winding within milliseconds of detecting overvoltage conditions, preventing insulation breakdown and catastrophic equipment damage.
• Controlled Field Discharge
  Manages safe dissipation of stored magnetic energy in the rotor field through precision-controlled discharge resistors, minimizing voltage transients and mechanical stress on the generator shaft during emergency shutdowns.
• Overvoltage Sensing & Triggering
  Integrates voltage monitoring circuits with adjustable trip thresholds, ensuring reliable detection of abnormal excitation conditions across varying load profiles and system configurations.
• Seamless EX2100 Integration
  Designed for plug-and-play compatibility with GE EX2100 excitation systems, featuring standardized signal interfaces, mounting dimensions, and diagnostic protocols that reduce commissioning time and integration risk.
• Comprehensive Fault Diagnostics
  Provides discrete fault outputs and status indicators for crowbar activation, discharge circuit continuity, and board health monitoring, enabling rapid troubleshooting and predictive maintenance strategies.
• Industrial Environmental Ratings
  Constructed with conformal-coated PCBs, industrial-grade capacitors, and thermal management features to withstand temperature extremes, humidity, vibration, and electromagnetic interference typical of power plant environments.

Typical Application Scenarios

The DS200XDSAG1A excitation discharge board is engineered for mission-critical generator protection applications, particularly in:

• Steam & Gas Turbine Generator Sets
  Protects synchronous generators in combined-cycle plants, simple-cycle peaking units, and industrial cogeneration facilities during load rejection events, ensuring safe field de-energization and preventing voltage runaway conditions.
• Hydroelectric Generator Systems
  Provides essential overvoltage protection for hydro turbine-generators during sudden load changes, grid disturbances, or governor malfunctions, safeguarding high-value rotating equipment and extending service life.
• Mark V Turbine Control Retrofits
  Serves as a direct replacement or upgrade component in aging Mark V Speedtronic systems, restoring original protection functionality and maintaining compliance with OEM performance specifications without full system replacement.
• Excitation System Modernization Projects
  Integrates into EX2100 excitation upgrades for legacy generators, enabling enhanced protection capabilities while preserving existing field winding and power electronics infrastructure, reducing capital expenditure.
• Independent Power Producer (IPP) Facilities
  Supports reliability requirements for merchant power plants and distributed generation assets where unplanned outages directly impact revenue, providing bankable protection performance for financing and insurance purposes.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide verified specifications for the DS200XDSAG1A module. Custom configurations and application-specific adaptations are available upon request.

Selection Considerations: When specifying the DS200XDSAG1A, verify compatibility with your existing EX2100 excitation system firmware revision, field winding voltage rating, and crowbar resistor configuration. Confirm control voltage availability (24 VDC or 125 VDC) and ensure adequate ventilation in the excitation cubicle. For retrofit applications, review interface signal compatibility with legacy Mark V I/O modules. Our application engineers can assist with system audits, compatibility verification, and integration planning—provide your generator nameplate data, excitation system model, and control architecture details for tailored recommendations.

Extended Capabilities & Integration Options

• Redundant Protection Schemes: Can be configured in dual-channel architectures with independent crowbar circuits for critical applications requiring N+1 protection redundancy.
• Remote Monitoring Integration: Supports integration with plant DCS, SCADA systems, and condition monitoring platforms via discrete I/O and protocol gateways for real-time status visibility.
• Customized Trip Settings: Field-adjustable overvoltage trip thresholds and time delays available to match specific generator characteristics and grid code requirements.
• Spare Parts Kits: Companion component kits including thyristors, gate drive circuits, and diagnostic LEDs available for in-house maintenance and rapid fault recovery.

Delivery, Service & Quality Assurance

Lead Time: Standard DS200XDSAG1A modules typically ship within 3–5 business days from stock. Custom-configured or tested units require 7–14 days. Expedited processing available for critical outage support.

Warranty: All units include a comprehensive 12-month warranty covering materials and workmanship. Extended warranty and advance replacement programs available for long-term service agreements.

Technical Support: Pre-sales application engineering assistance, installation guidance, and commissioning support provided at no charge. On-site startup services and training available (region-dependent, quoted separately).

Documentation Package: Each board ships with installation instructions, terminal connection diagrams, functional block diagrams, and troubleshooting flowcharts. Complete EX2100 system integration manuals and Mark V interface specifications available upon request.

Quality Certifications: Manufactured to ISO 9001 quality standards with full traceability. Functional testing and burn-in procedures performed prior to shipment. Test reports and certificates of conformance available for critical applications.

Frequently Asked Questions (FAQ)

Q: How does the DS200XDSAG1A excitation discharge board integrate with existing Mark V turbine control systems?
A: The DS200XDSAG1A is designed for direct plug-in installation into EX2100 excitation system card racks. It interfaces via standardized signal connections for crowbar trigger inputs, discharge status outputs, and diagnostic feedback. Verify your EX2100 firmware revision and I/O module configuration to ensure signal compatibility—our engineers can cross-reference your system documentation.

Q: What is the typical response time for crowbar activation during an overvoltage event?
A: The board's crowbar protection circuit activates within 5 milliseconds (typical) of detecting an overvoltage condition exceeding the preset trip threshold. This rapid response is critical for preventing field winding insulation damage and ensuring generator safety during fault conditions.

Q: Can this board be used as a direct replacement for obsolete or failed excitation discharge modules?
A: Yes, the DS200XDSAG1A is a form-fit-function replacement for original GE excitation discharge boards in EX2100 systems. Confirm your existing part number, system configuration, and control voltage requirements. We provide pre-shipment configuration verification and installation support to minimize downtime.

Q: What environmental conditions can the DS200XDSAG1A withstand in power plant installations?
A: The board is rated for 0°C to +60°C operating temperature, 5–95% relative humidity (non-condensing), and features conformal coating for protection against dust, moisture, and chemical contaminants. It meets industrial vibration and EMI standards typical of turbine control environments. Ensure adequate ventilation and avoid direct exposure to condensation or corrosive atmospheres.

Q: Does the board support remote monitoring and integration with plant SCADA or DCS systems?
A: The DS200XDSAG1A provides discrete status outputs for crowbar activation, fault indication, and board health that can be wired to plant control systems. For advanced protocol integration (Modbus, OPC, etc.), interface through the EX2100 excitation system controller or add a protocol gateway. Contact us for integration architecture recommendations.

Q: What documentation and technical support are provided with the DS200XDSAG1A board?
A: Each unit includes installation instructions, terminal wiring diagrams, functional descriptions, and troubleshooting guides. Complete EX2100 system manuals, Mark V interface specifications, and application notes are available. We provide pre-sales engineering support, installation guidance, and post-delivery technical assistance at no additional charge.

Request Engineering Support & Quotation

To receive a detailed application review, system compatibility verification, or formal quotation, please provide the following information:

• Project name and facility location
• Generator nameplate data (kVA rating, voltage, manufacturer, model)
• Excitation system type and model (EX2100 revision, Mark V version)
• Control voltage available (24 VDC / 125 VDC)
• Existing crowbar resistor configuration (if known)
• Quantity required and delivery timeline
• Any specific compliance or testing requirements

Our application engineers will provide one-on-one consultation, system integration recommendations, and competitive pricing within 24 hours.
