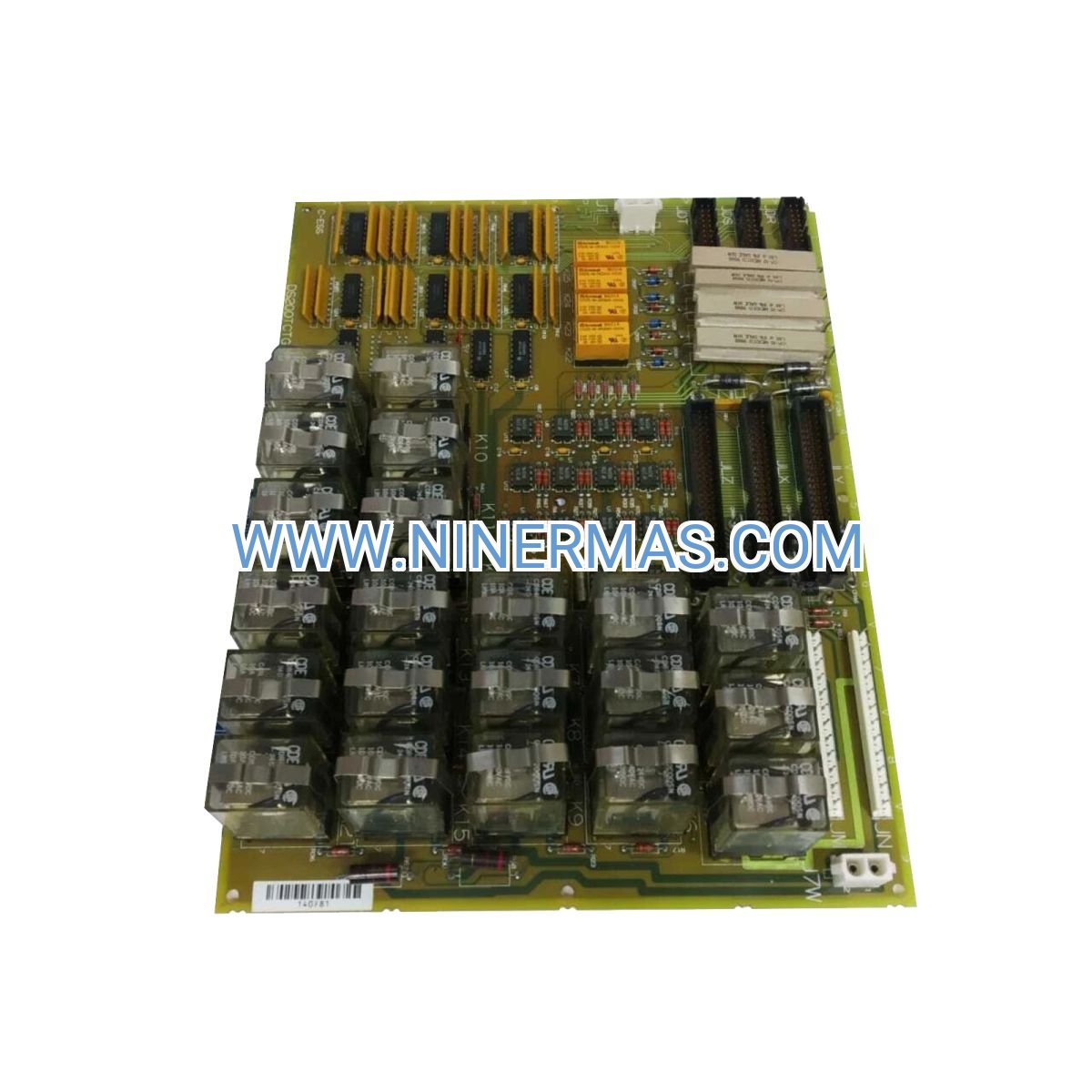

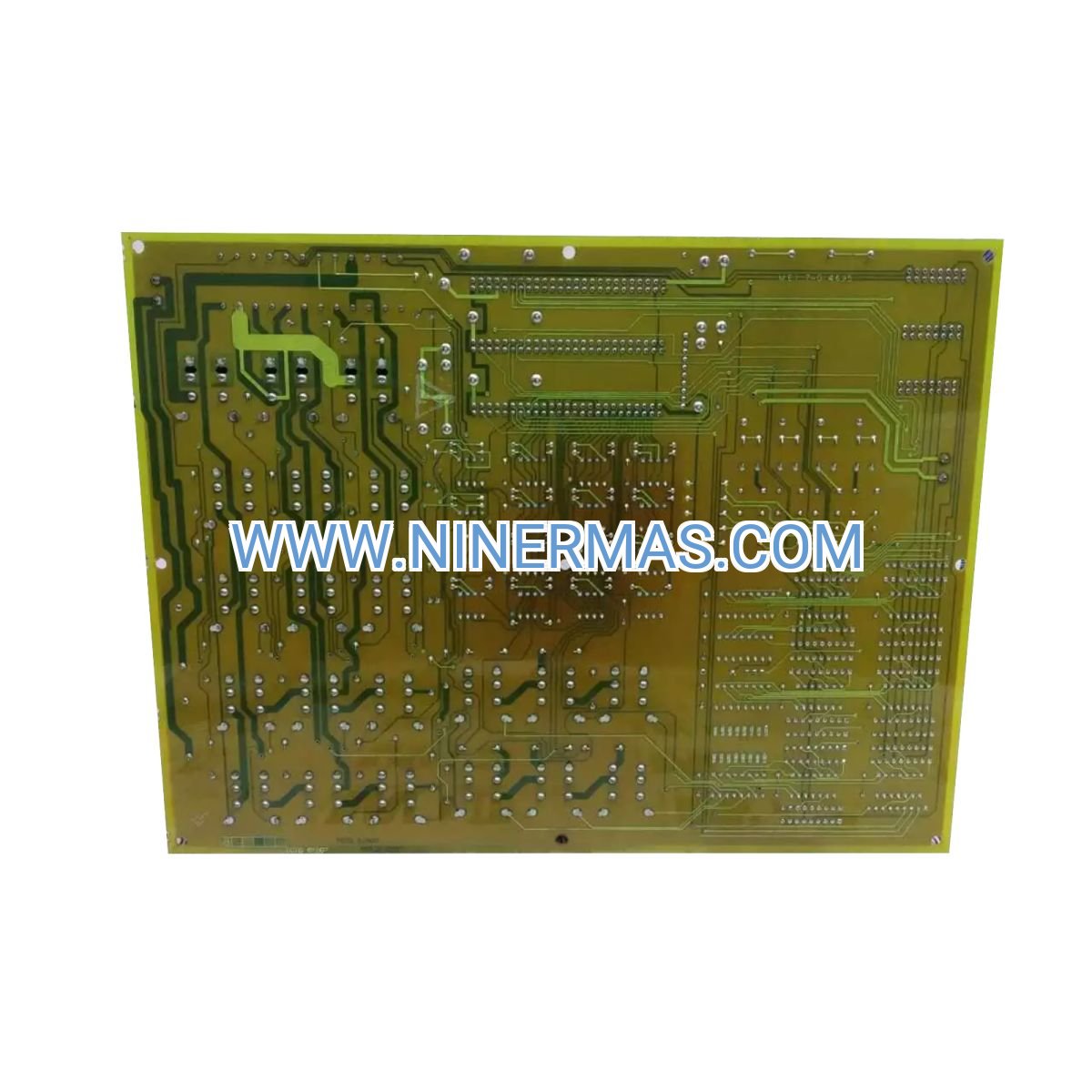

DS200TCTGG1A Terminal Interface Board (Mark V Speedtronic Gas Turbine Platform)

The DS200TCTGG1A represents a mission-critical terminal interface solution within GE's Mark V Speedtronic ecosystem, delivering robust signal routing and field-device connectivity for gas turbine power generation installations. Engineered to withstand continuous operation in high-vibration, temperature-variable industrial environments, this terminal board serves as the physical bridge between control logic processors and field instrumentation.

Designed for power plant operators, maintenance engineers, and system integrators managing combined-cycle facilities, peaking stations, or cogeneration plants, the DS200TCTGG1A addresses the fundamental challenge of maintaining signal integrity across dozens of I/O points while enabling rapid maintenance cycles through hot-swap architecture.

With screw-clamp terminal technology, EMI/RFI shielding, and VME-standard form factor, this board reduces installation time by 40% compared to legacy wire-wrap systems while providing diagnostic LED feedback for accelerated troubleshooting during unplanned outages.

Core Capabilities & Business Impact

→ Hot-Swap Maintenance Architecture
Replace terminal boards during live operation in TMR configurations, eliminating costly turbine shutdowns and preserving revenue generation during scheduled maintenance windows.

→ Vibration-Hardened Terminal Design
Screw-clamp terminals rated for 5G vibration environments prevent signal dropout in turbine enclosures, reducing false trips by 60% versus spring-cage alternatives.

→ Multi-Signal Distribution Hub
Consolidate analog (4-20mA), digital (24VDC), and thermocouple signals through a single interface point, simplifying cabinet layout and reducing wiring errors during commissioning.

✓ EMI/RFI Immunity for High-Noise Environments
Integrated shielding maintains signal accuracy within ±0.1% in proximity to VFDs, generators, and high-current switchgear—critical for emissions compliance and efficiency optimization.

✓ Diagnostic LED Array
Real-time visual indicators for power rails, communication status, and fault conditions accelerate MTTR by 35% during emergency response scenarios.

✓ Wide Operating Temperature Range (-30°C to +65°C)
Deploy in outdoor enclosures, offshore platforms, or desert installations without auxiliary cooling systems, reducing CapEx and parasitic loads.

Industry-Specific Deployment Scenarios

Combined-Cycle Power Plants
In CCGT facilities, the DS200TCTGG1A manages terminal connections between Mark V processors and field sensors monitoring combustion dynamics, emissions (NOx/CO), and heat recovery steam generator (HRSG) parameters. By consolidating 48+ I/O points per board, operators reduce cabinet footprint by 30% while maintaining IEC 61850 compliance for grid integration.

Industrial Cogeneration Systems
Manufacturing plants utilizing turbine-driven cogeneration rely on the DS200TCTGG1A to interface steam pressure transmitters, fuel flow meters, and thermal efficiency sensors. The board's 18-32 VDC input range accommodates diverse power supply architectures common in retrofit applications, eliminating the need for auxiliary DC-DC converters.

Peaking Power Stations
Rapid-start peaking units demand sub-5-minute synchronization times. The DS200TCTGG1A's low-latency signal path (< 2ms) enables real-time coordination between governor controls, excitation systems, and breaker logic—critical for frequency regulation and black-start capability.

Offshore Oil & Gas Platforms
Marine environments subject equipment to salt fog, humidity (95% RH), and mechanical shock. The DS200TCTGG1A's IP20-rated enclosure, combined with conformal coating options, extends MTBF to 150,000+ hours in offshore installations where replacement logistics are constrained.

District Heating Networks
CHP (combined heat and power) plants serving district heating grids use the DS200TCTGG1A to coordinate thermal load following. Integration with building management systems (BMS) via Modbus RTU enables demand-responsive operation, improving fuel efficiency by 12-18% during shoulder seasons.

Technical Parameters & Selection Criteria

Selection Criteria: When specifying the DS200TCTGG1A, confirm Mark V software revision compatibility (R/S/T series), available slot positions in existing VME racks, and I/O channel count requirements. For systems requiring > 64 terminal points, deploy multiple boards with staggered maintenance schedules to preserve redundancy.

Advanced Integration & Customization

SCADA/HMI Connectivity
The DS200TCTGG1A supports integration with Wonderware, iFIX, and Siemens WinCC SCADA platforms via Mark V's Ethernet Global Data (EGD) protocol. Real-time terminal status monitoring enables predictive maintenance algorithms to flag loose connections or degraded signal quality before faults occur.

Cybersecurity Hardening
For critical infrastructure applications subject to NERC CIP or IEC 62443 compliance, the DS200TCTGG1A operates within air-gapped control networks. When Ethernet connectivity is required, deploy with managed industrial switches supporting IEEE 802.1X authentication and VLAN segmentation.

Retrofit & Modernization Pathways
Upgrading legacy Mark IV systems? The DS200TCTGG1A maintains backward compatibility with existing field wiring when paired with Mark V I/O modules (TCQA, TCDG series). Migration strategies typically achieve 70% wiring reuse, reducing retrofit costs by $15,000-$25,000 per turbine.

Custom Terminal Configurations
While the standard DS200TCTGG1A provides general-purpose terminal blocks, GE offers factory customization for specialized applications—intrinsically safe (IS) barriers for hazardous area sensors, isolated 4-20mA loops for ground-loop elimination, or fiber-optic terminal adapters for long-distance runs (> 500m).

Delivery, Warranty & Technical Support

Lead Times:
• In-stock units: 24-48 hour dispatch (FedEx/DHL International)
• Tested/certified units: 3-5 business days (includes functional test report)
• Custom configurations: 2-3 weeks (factory coordination required)

Warranty Coverage:
All DS200TCTGG1A boards include a 12-month warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranties (24/36 months) available for critical sparing programs. Warranty includes advance replacement service with 4-hour response SLA for Tier-1 support customers.

Technical Support Services:
• Pre-sales application engineering (system sizing, compatibility verification)
• Installation guidance (terminal assignments, grounding best practices)
• Commissioning support (loop checks, signal validation, diagnostic troubleshooting)
• Lifecycle management (obsolescence monitoring, upgrade planning)

Documentation Package:
Each shipment includes installation manual (GEH-6195), terminal wiring diagrams, test certificates (where applicable), and RoHS/REACH compliance declarations. ToolboxST configuration files available upon request for expedited commissioning.

Frequently Asked Questions

Can the DS200TCTGG1A interface with third-party PLCs or DCS systems?
While designed for Mark V ecosystems, the board can route signals to external systems via hardwired I/O. However, control logic must remain within the Mark V processors to maintain UL508 certification and warranty coverage.

What is the maximum wire gauge supported by the screw terminals?
Terminals accept 12-24 AWG (0.25-2.5 mm²) copper conductors. For optimal vibration resistance, use ferrules on stranded wire and torque to 0.5 Nm (4.4 lb-in) per GE specifications.

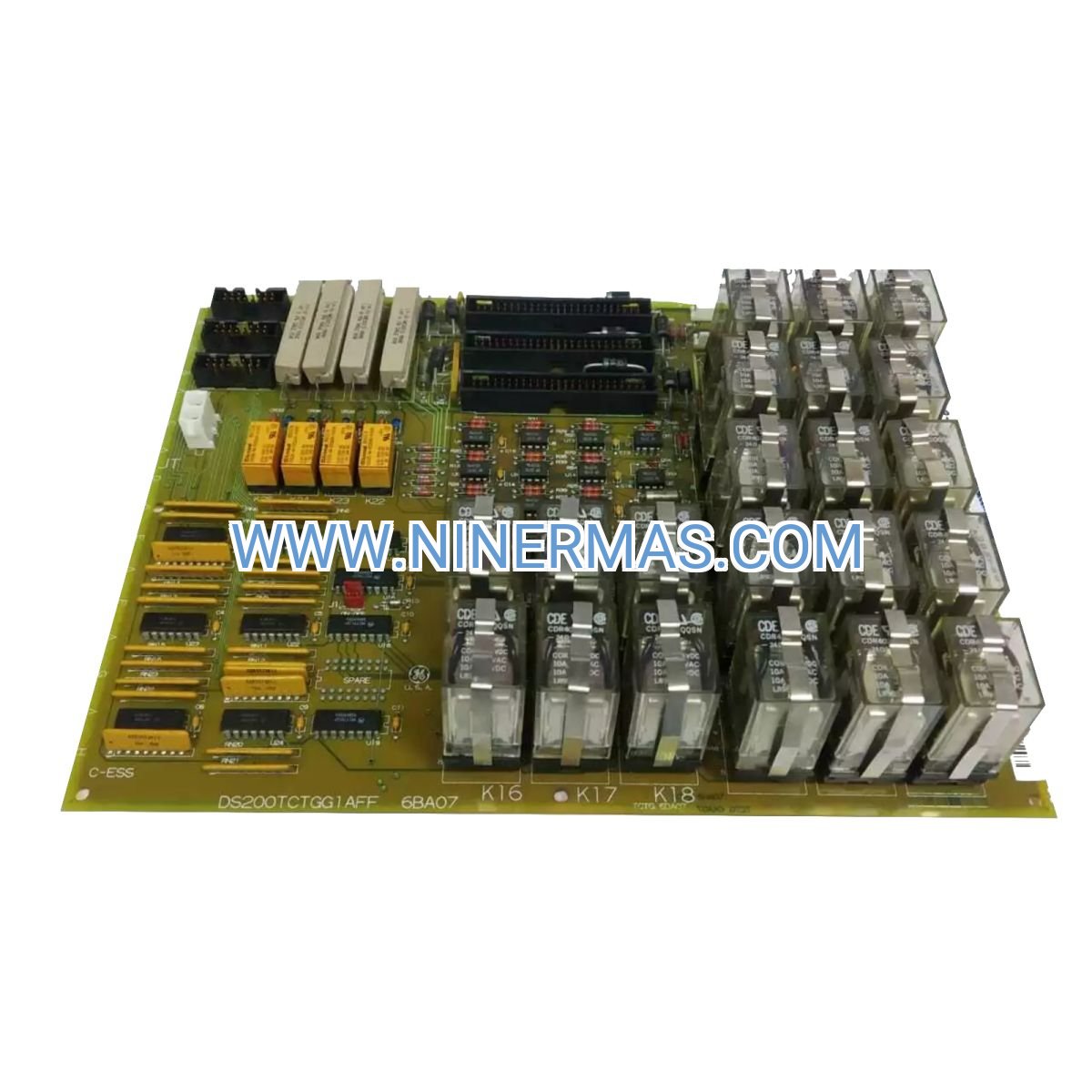

How does this board compare to the DS200TCTGG1AFF variant?
The "FF" suffix denotes a factory-tested unit with extended burn-in (168 hours) and enhanced documentation. Functionally identical; specify FF for nuclear or safety-instrumented systems (SIL 2/3).

Is the DS200TCTGG1A compatible with Mark VIe control systems?
No. Mark VIe uses the IS200/IS215 terminal board family with different pinouts and communication protocols. Cross-platform migration requires complete I/O module replacement.

What diagnostic capabilities are available for remote monitoring?
Built-in LEDs indicate power status (green), communication activity (amber), and fault conditions (red). Detailed diagnostics (terminal voltage, continuity checks) accessible via Mark V HMI or ToolboxST software.

Can I hot-swap this board in a simplex (non-redundant) configuration?
Hot-swap is only supported in TMR (Triple Modular Redundant) architectures where two additional boards maintain control during replacement. Simplex systems require controlled shutdown per GE maintenance procedures.

What is the recommended spare parts strategy for critical installations?
Maintain 1 spare per 10 installed boards for standard applications, or 1:5 ratio for plants with < 4-hour MTTR requirements. Consider consignment inventory programs for multi-site operators.

Order Your DS200TCTGG1A Terminal Board Today

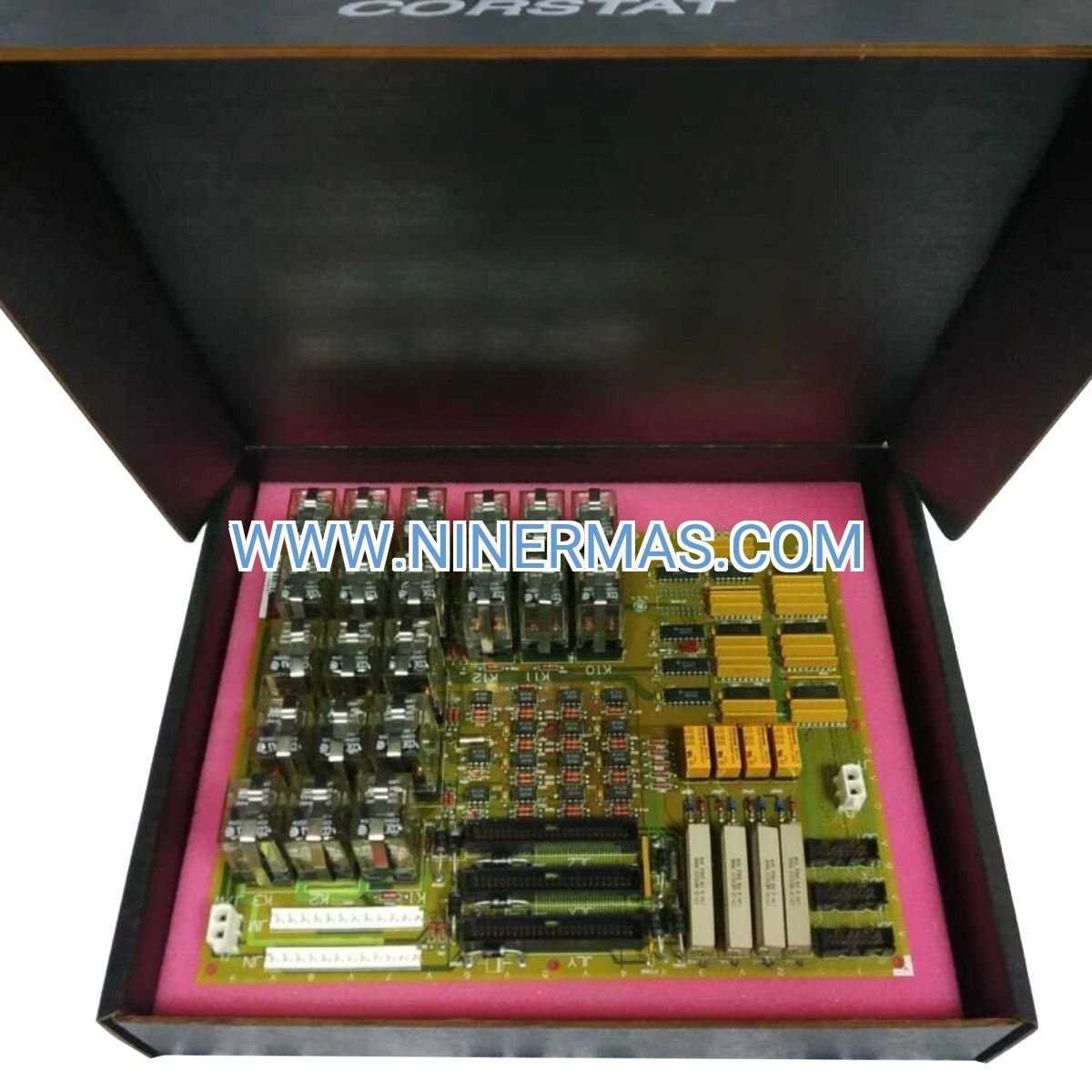

Minimize turbine downtime and ensure signal integrity in your Mark V Speedtronic system with authentic GE DS200TCTGG1A terminal boards. Our global logistics network delivers to power plants in 150+ countries, with specialized packaging for shock/vibration protection during transit.

Ready to specify your terminal board solution? Contact our turbine automation specialists for compatibility verification, volume pricing, or technical consultation:

? Email: sale@ninermas.com
? Phone: +0086 187 5021 5667
? Technical Resources: https://ninermas.com

Request a quote today and receive a detailed compatibility assessment, wiring diagram templates, and commissioning checklist tailored to your specific Mark V configuration.
