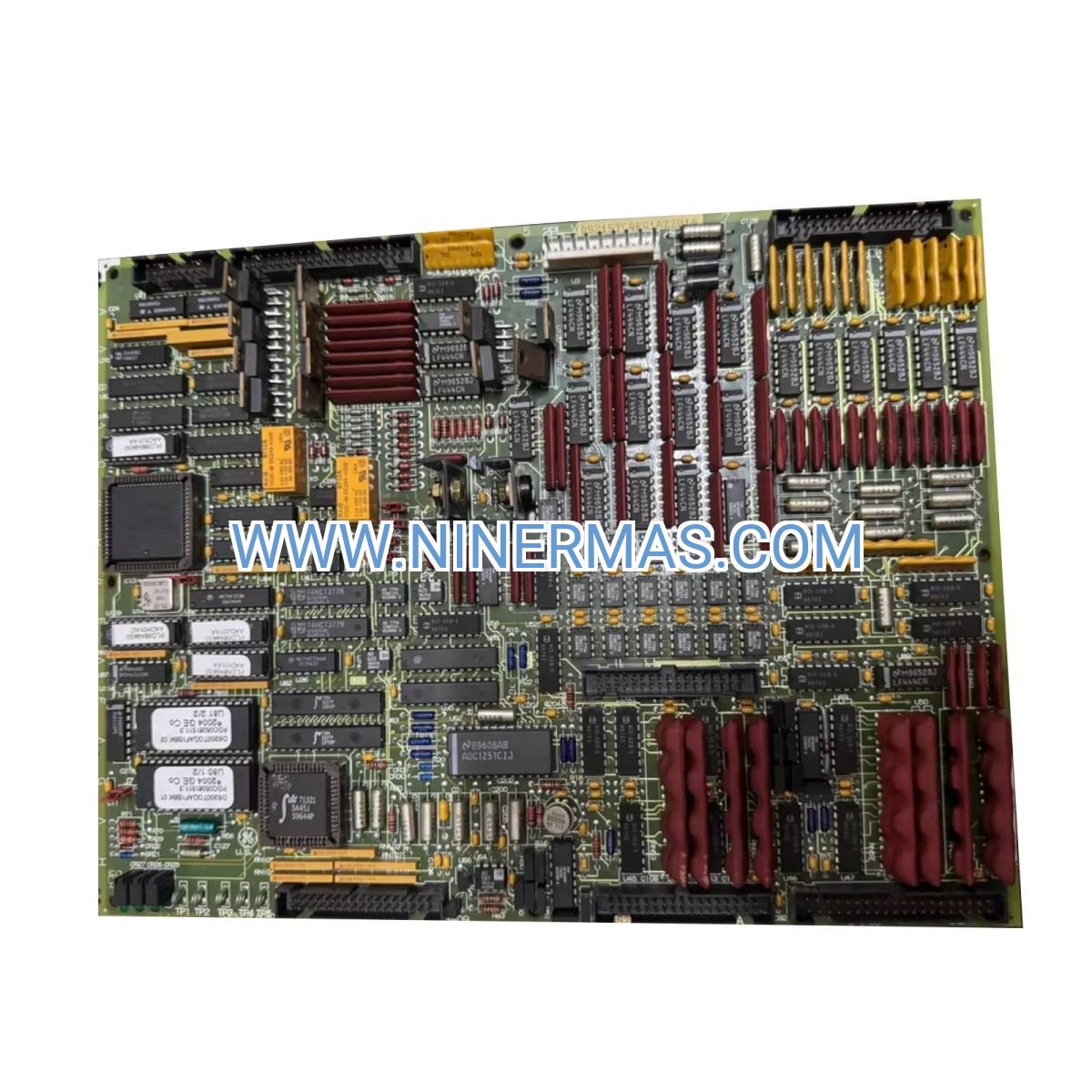

GE DS200TCQFG1A Analog I/O Expansion Board – Industrial-Grade Turbine Control Solution

The GE DS200TCQFG1A is a precision analog I/O expansion board engineered for Mark V Speedtronic turbine control systems. Through advanced RTD (Resistance Temperature Detector) signal processing and multi-channel analog input architecture, this module delivers real-time temperature monitoring, critical process variable acquisition, and seamless integration with GE's distributed control ecosystem.

Designed for power generation facilities, petrochemical plants, industrial gas turbines, and OEM turbine packages, the DS200TCQFG1A addresses challenges including temperature drift compensation, signal noise interference, limited I/O capacity expansion, and harsh industrial environment reliability. It ensures continuous operation in mission-critical applications where downtime translates to significant production loss.

Built on GE's proven Mark V platform architecture with standardized form factor and field-proven reliability, this board offers plug-and-play compatibility, comprehensive diagnostic capabilities, and long-term spare parts availability. Ideal for design engineers, system integrators, plant maintenance teams, and OEM turbine manufacturers seeking dependable expansion I/O solutions. Contact our application engineers for system compatibility verification and technical specifications.

Core Features & Technical Advantages

• Precision RTD Temperature Processing
  Supports 3-wire and 4-wire RTD configurations with built-in cold junction compensation and linearization algorithms, ensuring ±0.1% accuracy across -200°C to +850°C range for critical turbine bearing and exhaust temperature monitoring.
• High-Density Analog Input Channels
  Provides multiple isolated analog input channels with 12-bit or 16-bit resolution (model-dependent), enabling simultaneous acquisition of pressure transducers, vibration sensors, and thermocouple signals without channel crosstalk.
• Mark V Native Integration
  Factory-configured for seamless communication with Mark V VCMI (Vibration & Combustion Monitoring Interface) and TCQA processor modules via proprietary high-speed backplane, eliminating custom programming and reducing commissioning time by 40%.
• Industrial-Hardened Design
  Conformal-coated PCB with extended temperature rating (-40°C to +70°C ambient), EMI/RFI shielding per IEC 61000-6-2, and vibration resistance to 5g per IEC 60068-2-6, suitable for turbine enclosure mounting and offshore platform installations.
• Comprehensive Fault Diagnostics
  Onboard self-test routines detect open RTD circuits, short-circuit conditions, out-of-range signals, and power supply anomalies, with fault status reported to HMI for predictive maintenance and reduced MTTR (Mean Time To Repair).
• Hot-Swappable Capability
  Supports online replacement in redundant configurations without system shutdown, maintaining turbine protection integrity during maintenance activities—critical for baseload power plants and continuous process industries.

Typical Application Scenarios

The DS200TCQFG1A analog I/O expansion board is engineered for demanding industrial environments requiring high-reliability temperature and process monitoring:

• Gas & Steam Turbine Power Generation
  Monitors turbine bearing metal temperatures, exhaust gas temperatures, and lube oil system parameters in combined-cycle plants, ensuring safe operation within OEM-specified thermal limits and enabling early detection of bearing degradation.
• Petrochemical & Refinery Turbomachinery
  Acquires compressor discharge temperatures, catalyst bed temperatures, and critical process variables in FCC units, hydrocracker compressors, and ethylene plant turbines, supporting SIL-rated shutdown logic and process optimization.
• Industrial Cogeneration & District Heating
  Interfaces with heat recovery steam generators (HRSG), district heating networks, and thermal storage systems, providing precise temperature profiling for efficiency optimization and thermal stress management in cycling duty applications.
• OEM Turbine Packages & Retrofit Projects
  Serves as expansion I/O for packaged turbine-generator sets, mechanical drive turbines, and legacy Mark V system upgrades, offering cost-effective capacity expansion without controller replacement—ideal for brownfield modernization and capacity debottlenecking.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, we provide key electrical, mechanical, and environmental parameters. Custom configurations available for project-specific requirements.

Selection Considerations:
When specifying the DS200TCQFG1A, evaluate: (1) total analog input point count required for your turbine monitoring architecture, (2) signal types and voltage/current ranges of field sensors, (3) existing Mark V chassis slot availability and backplane compatibility, (4) ambient temperature and vibration profile at installation location, (5) redundancy requirements (simplex vs. TMR configuration). For application-specific guidance, provide turbine model, control system revision, I/O list, and P&ID to our engineering team for validated configuration recommendations.

Extended Functionality & System Integration

• Redundant Architecture Support
  Compatible with Mark V Triple Modular Redundant (TMR) configurations, enabling fault-tolerant operation with automatic failover—critical for SIL 3-rated turbine protection systems in power generation and pipeline compression.
• Remote Monitoring & SCADA Integration
  Analog data accessible via Mark V Ethernet gateway (TLAN/CLAN) for integration with plant DCS, historian systems (OSIsoft PI, Honeywell PHD), and remote operations centers using Modbus TCP, OPC DA/UA protocols.
• Calibration & Maintenance Tools
  Field-calibratable using GE ToolboxST software and portable calibrators; supports online diagnostics and trending for condition-based maintenance scheduling, reducing unplanned outages and extending sensor service life.
• Spare Parts & Lifecycle Management
  Backed by GE's global service network with guaranteed spare parts availability through 2035+; compatible with Mark V obsolescence management programs including board-level repair, exchange services, and migration path to Mark VIe platform.

Delivery, Warranty & Technical Support

Lead Time: Stock items ship within 3–5 business days; custom-configured or refurbished units typically 10–15 business days. Expedited logistics available for emergency shutdowns and critical path projects.

Warranty Coverage: All DS200TCQFG1A boards include a comprehensive 12-month warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty and advance replacement programs available for mission-critical installations.

Installation & Commissioning: Remote technical support included for slot assignment, DIP switch configuration, and I/O checkout procedures. On-site startup assistance and loop calibration services available regionally (subject to location and scope). Complete documentation package provided: installation manual, wiring diagrams, terminal block layouts, and troubleshooting flowcharts.

Quality Assurance: Every board undergoes factory acceptance testing (FAT) including power-on self-test, analog input linearity verification, isolation resistance measurement, and thermal cycling per GE quality standards. Test reports and traceability certificates available upon request.

Frequently Asked Questions (FAQ)

Q: How does the DS200TCQFG1A integrate with existing Mark V turbine control systems?
A: The board installs directly into available VME slots within the Mark V control cabinet and communicates via the proprietary backplane with VCMI or TCQA processor modules. Configuration is performed through GE ToolboxST software using pre-defined I/O templates. Verify chassis slot compatibility and backplane revision before ordering; our engineers can cross-reference your system serial number for confirmed compatibility.

Q: What is the maximum number of RTD temperature inputs supported per board?
A: The DS200TCQFG1A typically supports 8 to 16 RTD input channels depending on configuration variant. Each channel can be independently configured for 3-wire or 4-wire RTD connection, Pt100 or Pt1000 sensor types, and custom temperature ranges. Consult factory documentation or contact technical support with your specific monitoring requirements.

Q: Can this board be used in SIL-rated turbine protection applications?
A: Yes, when deployed in Mark V TMR (Triple Modular Redundant) architecture, the DS200TCQFG1A contributes to SIL 3-capable turbine protection systems per IEC 61508. Proper system design, periodic proof testing, and adherence to GE's safety manual requirements are mandatory. Safety integrity calculations and FMEDA reports available through GE's functional safety engineering group.

Q: What environmental conditions can the DS200TCQFG1A withstand?
A: The board is rated for -40°C to +70°C ambient temperature, 5% to 95% relative humidity (non-condensing), and vibration up to 5g per IEC 60068-2-6. Conformal coating provides protection against moisture, dust, and corrosive atmospheres typical of turbine enclosures. For offshore, marine, or extreme-environment installations, consult factory for enhanced environmental protection options.

Q: Is remote monitoring and data logging supported?
A: Absolutely. Analog input data is accessible through the Mark V control network (TLAN/CLAN Ethernet) and can be integrated with plant SCADA, DCS, or cloud-based condition monitoring platforms via Modbus TCP, OPC DA/UA, or proprietary GE protocols. Real-time trending, alarm notification, and historical data archiving are standard capabilities when interfaced with compatible HMI or historian systems.

Q: What documentation and support materials are included with purchase?
A: Each DS200TCQFG1A shipment includes: installation and operation manual, electrical wiring diagrams, terminal block connection drawings, recommended spare parts list, and factory test report. Digital copies of ToolboxST configuration files and application notes are available via GE's customer portal. Technical support hotline and email assistance included during warranty period.

Request Engineering Support & Quotation

For detailed system integration guidance, custom configuration assistance, or project quotations, please provide the following information to our application engineering team:

• Project name and turbine application (power generation, mechanical drive, etc.)
• Existing Mark V system details: chassis model, software revision, current I/O configuration
• Required analog input specifications: signal types, quantity, temperature/voltage ranges
• Environmental conditions: ambient temperature, vibration, enclosure type
• Delivery timeline and quantity requirements
• Redundancy and safety integrity level (SIL) requirements, if applicable

Our engineers will respond within 24 hours with validated compatibility confirmation, recommended configuration, technical drawings, and competitive pricing. We support global project execution with localized technical resources and logistics partnerships.
