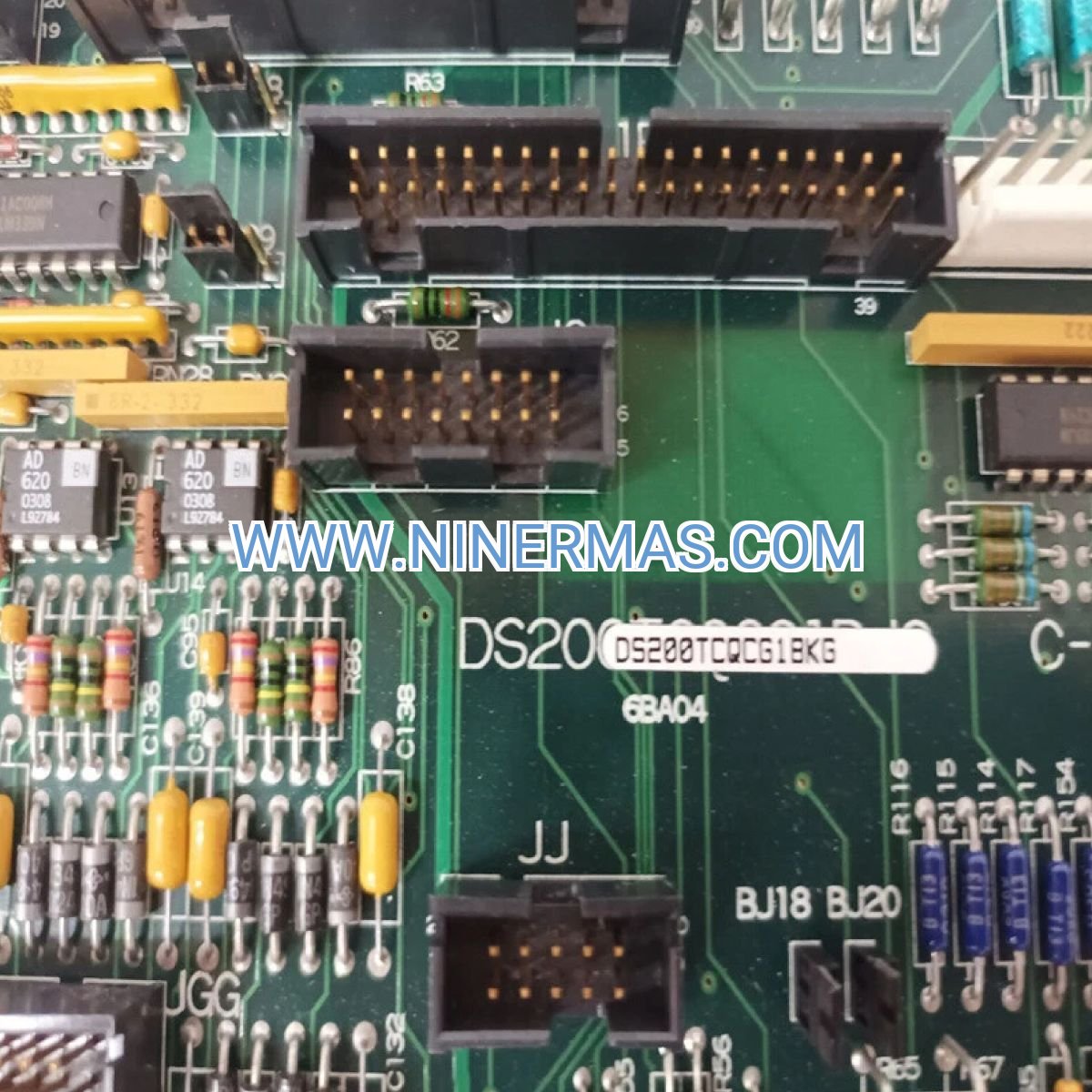

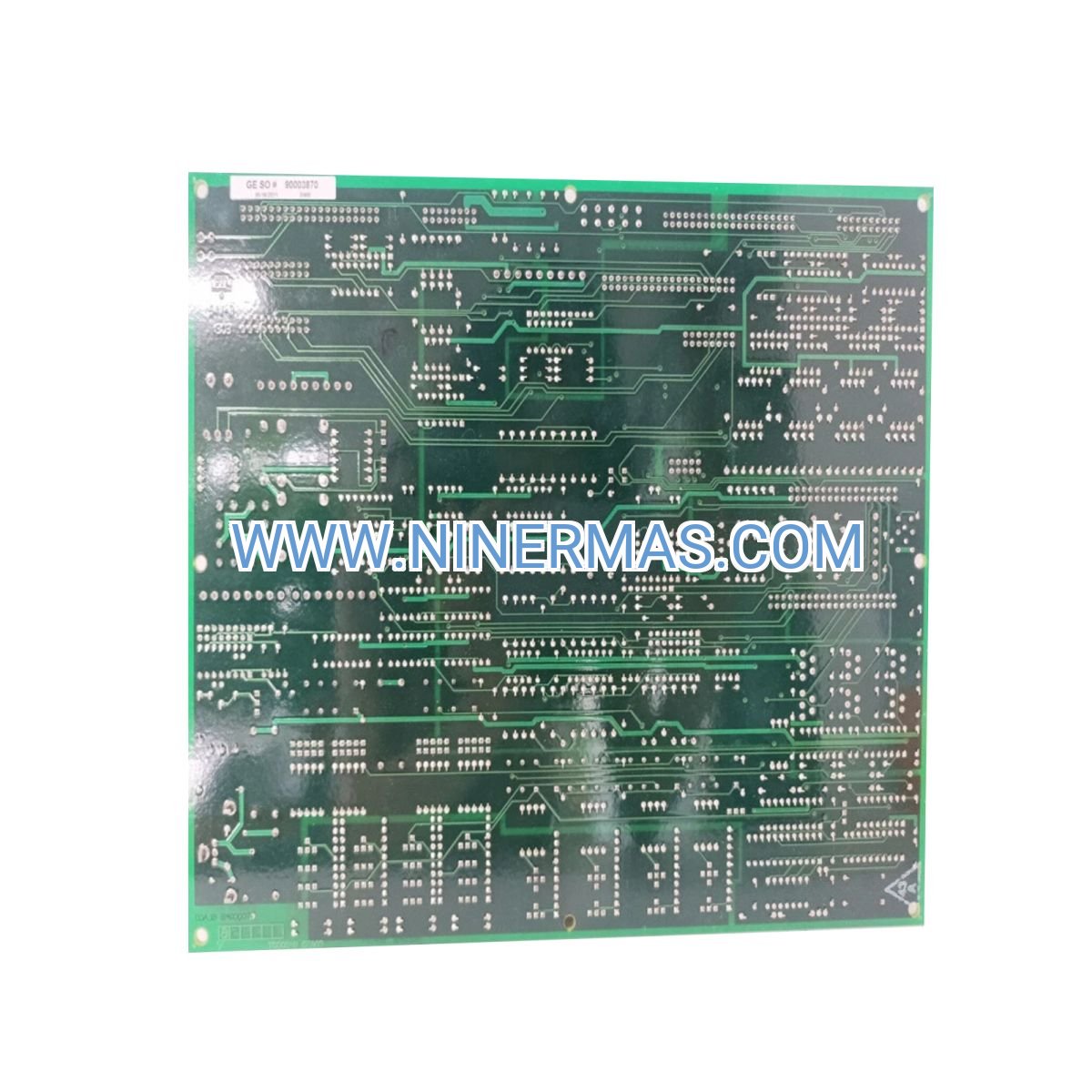

DS200TCQCG1BKG Analog I/O Module (Industrial-Grade Turbine Control Interface)

The DS200TCQCG1BKG represents a mission-critical analog interface module designed exclusively for GE Mark V Speedtronic turbine control architectures. Engineered to bridge field instrumentation with central processing units, this board delivers precision signal conditioning and conversion for gas turbine, steam turbine, and combined-cycle power generation facilities worldwide.

Built to withstand extreme industrial conditions, the DS200TCQCG1BKG serves power plant operators, maintenance engineers, and system integrators who demand uncompromising reliability in turbine monitoring and control applications. Whether managing megawatt-scale generators or critical process turbines, this module ensures accurate data acquisition and responsive control signal delivery.

With proven field performance across thousands of installations, the DS200TCQCG1BKG minimizes unplanned downtime through robust design, comprehensive diagnostics, and seamless integration with existing Mark V infrastructure—making it the preferred choice for operators prioritizing uptime and operational excellence.

Core Capabilities & Technical Advantages

→ Multi-Channel Signal Architecture
16 differential analog input channels paired with 8 precision output channels enable comprehensive monitoring of temperature sensors, pressure transducers, vibration probes, and valve positioners—eliminating the need for multiple boards and reducing system complexity.

→ High-Fidelity Data Conversion
12-bit analog-to-digital conversion delivers 0.024% resolution across the full measurement range, ensuring critical parameters like exhaust gas temperature and bearing vibration are captured with accuracy sufficient for predictive maintenance and performance optimization.

✓ Extended Environmental Tolerance
-40°C to +70°C operational range combined with 1500V channel-to-channel isolation protects against voltage transients, ground loops, and electromagnetic interference common in high-power electrical environments—reducing false trips and measurement errors.

✓ Hot-Swap Serviceability
VME-compliant design with keyed connectors allows board replacement during turbine operation when configured in redundant architectures, cutting maintenance windows from hours to minutes and preserving revenue generation during repairs.

✓ Integrated Diagnostic Intelligence
Onboard LED indicators and self-test routines provide real-time health status for each I/O channel, accelerating fault isolation from system-level symptoms to specific sensor circuits—reducing mean time to repair by up to 60%.

✓ Universal Signal Compatibility
±10V voltage inputs, 4-20mA current loops, and thermocouple support (via companion termination boards) accommodate diverse sensor types without external signal conditioning—simplifying installation and reducing bill-of-materials costs.

Typical Application Scenarios

Combined-Cycle Power Plants
In CCGT facilities, the DS200TCQCG1BKG monitors gas turbine exhaust temperature spreads, steam turbine inlet conditions, and HRSG performance parameters. By processing signals from 50+ field sensors per unit, operators detect combustion anomalies, optimize heat recovery, and prevent costly forced outages. Integration with digital I/O boards enables coordinated control of bypass dampers and attemperators.

Petrochemical Compression Stations
For pipeline compressor drives, this module tracks bearing temperatures, lube oil pressures, and anti-surge valve positions in real time. The board's fast scan rates (sub-100ms) support dynamic load following and surge prevention algorithms, protecting multimillion-dollar turbomachinery from catastrophic failures while maximizing throughput.

Offshore Oil & Gas Platforms
Marine environments demand corrosion-resistant electronics and vibration tolerance. The DS200TCQCG1BKG's conformal-coated circuitry and shock-mounted components withstand salt fog, deck vibration, and temperature cycling, ensuring reliable operation of generator turbines and mechanical drive units in remote locations where maintenance access is limited.

Industrial Cogeneration Systems
Manufacturing facilities using turbine-driven generators for combined heat and power rely on this board to balance electrical output with process steam demands. Analog outputs control fuel valves and inlet guide vanes, while inputs monitor stack emissions and thermal efficiency—enabling compliance with environmental regulations and energy cost optimization.

District Heating Networks
Municipal power stations supplying district heating networks use the DS200TCQCG1BKG to coordinate turbine extraction steam flows with thermal load demands. Precise temperature and flow measurement ensures optimal heat delivery while maintaining turbine efficiency across seasonal load variations.

Technical Parameters & Selection Guide

Selection Criteria: Choose the DS200TCQCG1BKG when your Mark V system requires expansion of analog I/O capacity beyond base configuration, when replacing failed boards (verify firmware compatibility), or when upgrading from earlier TCQC variants. For applications requiring more than 16 inputs, deploy multiple boards in adjacent VME slots. Consult system documentation to confirm backplane slot assignments and avoid address conflicts.

Extended Functions & Integration Options

Redundancy Configuration: Deploy paired DS200TCQCG1BKG boards in TMR (Triple Modular Redundant) or simplex-with-backup configurations for critical measurements. The Mark V control software automatically manages voting logic and seamless failover, ensuring continuous operation even during board replacement.

Remote Monitoring Integration: Analog I/O data streams to SCADA systems via Mark V Ethernet interfaces, enabling centralized monitoring of multi-site turbine fleets. Integration with OSIsoft PI, GE Proficy, or Siemens WinCC historians supports long-term performance trending and predictive analytics.

Custom Calibration Profiles: Field-programmable calibration tables accommodate non-linear sensor characteristics (e.g., thermocouples, RTDs) and site-specific scaling requirements. Store up to 16 unique calibration curves in onboard EEPROM for rapid sensor replacement without reconfiguration.

Advanced Diagnostics: Built-in self-test (BIST) routines verify ADC linearity, DAC accuracy, and isolation integrity during startup and on-demand. Diagnostic results log to Mark V event recorders, supporting condition-based maintenance strategies and regulatory compliance documentation.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 24-48 hours via express courier (DHL, FedEx, UPS). Typical delivery to North America, Europe, and Asia-Pacific regions: 3-7 business days. Expedited same-day shipping available for emergency outage support.

Custom Configuration: Factory-programmed boards with customer-specific firmware or calibration settings ship within 5-10 business days. Provide system serial number and configuration files at order placement.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service—receive replacement board before returning failed unit to minimize downtime.

Technical Support: Lifetime access to application engineers experienced in Mark V systems. Support includes installation guidance, troubleshooting assistance, firmware updates, and integration consulting. Phone, email, and remote desktop support available during business hours (extended hours for critical outages).

Documentation Package: Each board ships with installation manual, wiring diagrams, configuration software, and test certificates. Digital downloads include CAD drawings, spare parts lists, and compatibility matrices.

Frequently Asked Questions

What is the difference between DS200TCQCG1BKG and DS200TCQCG1BGE variants?
The suffix letters indicate manufacturing revision levels and component sourcing changes. Functionally, both variants are interchangeable in Mark V systems running firmware version R or later. The BKG revision incorporates updated capacitors with extended temperature ratings for harsh-environment installations.

Can I use this board in a Mark VI or Mark VIe control system?
No. The DS200TCQCG1BKG is designed exclusively for Mark V Speedtronic platforms. Mark VI systems use the DS200TCQAG1B series, while Mark VIe employs IS200/IS215 I/O packs. Attempting cross-platform installation will result in communication failures and potential equipment damage.

How do I configure input channels for 4-20mA current loop sensors?
Current loop configuration requires installing precision 250-ohm termination resistors on the companion DS200TBQCG1A terminal board and setting software parameters via the Mark V configuration tool. Detailed procedures are provided in GE document GEH-6421 (Mark V I/O Configuration Guide).

What maintenance intervals are recommended for this board?
The DS200TCQCG1BKG requires no scheduled maintenance under normal operating conditions. Perform visual inspection during annual turbine outages, checking for capacitor bulging, connector corrosion, or LED anomalies. Functional testing via Mark V diagnostics should occur quarterly or after any system disturbance.

Is firmware update required when replacing an older TCQC board?
Firmware compatibility depends on your Mark V control software version. Systems running MarkV.04 or later accept DS200TCQCG1BKG boards without modification. Earlier software versions may require controller firmware updates—consult GE service bulletin GES-20145 or contact our technical team for compatibility verification.

What is the maximum cable length between the board and field sensors?
For voltage inputs, maintain cable runs under 100 meters using shielded twisted-pair wire (Belden 9501 or equivalent). Current loop signals tolerate up to 300 meters with 18 AWG wire. Longer distances require signal repeaters or transmitters with local power supplies to prevent voltage drop and noise pickup.

Ready to Optimize Your Turbine Control System?

Secure your DS200TCQCG1BKG Analog I/O Module today and ensure uninterrupted turbine operation. Our team provides expert consultation to verify compatibility, recommend companion components, and expedite delivery for planned outages or emergency replacements.
