GE DS200TCQCG1A Analog I/O Board | Mark V Speedtronic Turbine Control System | Industrial Automation

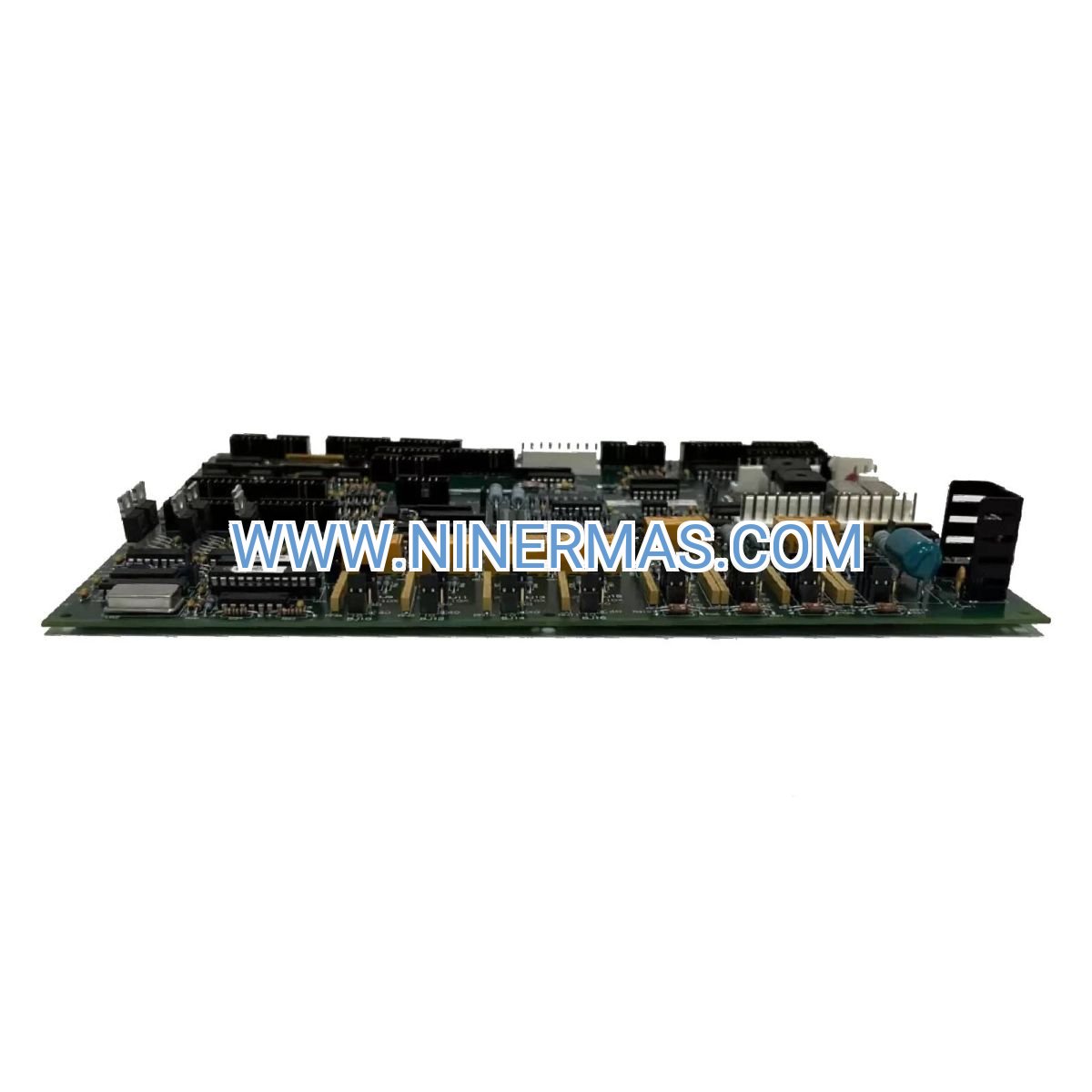

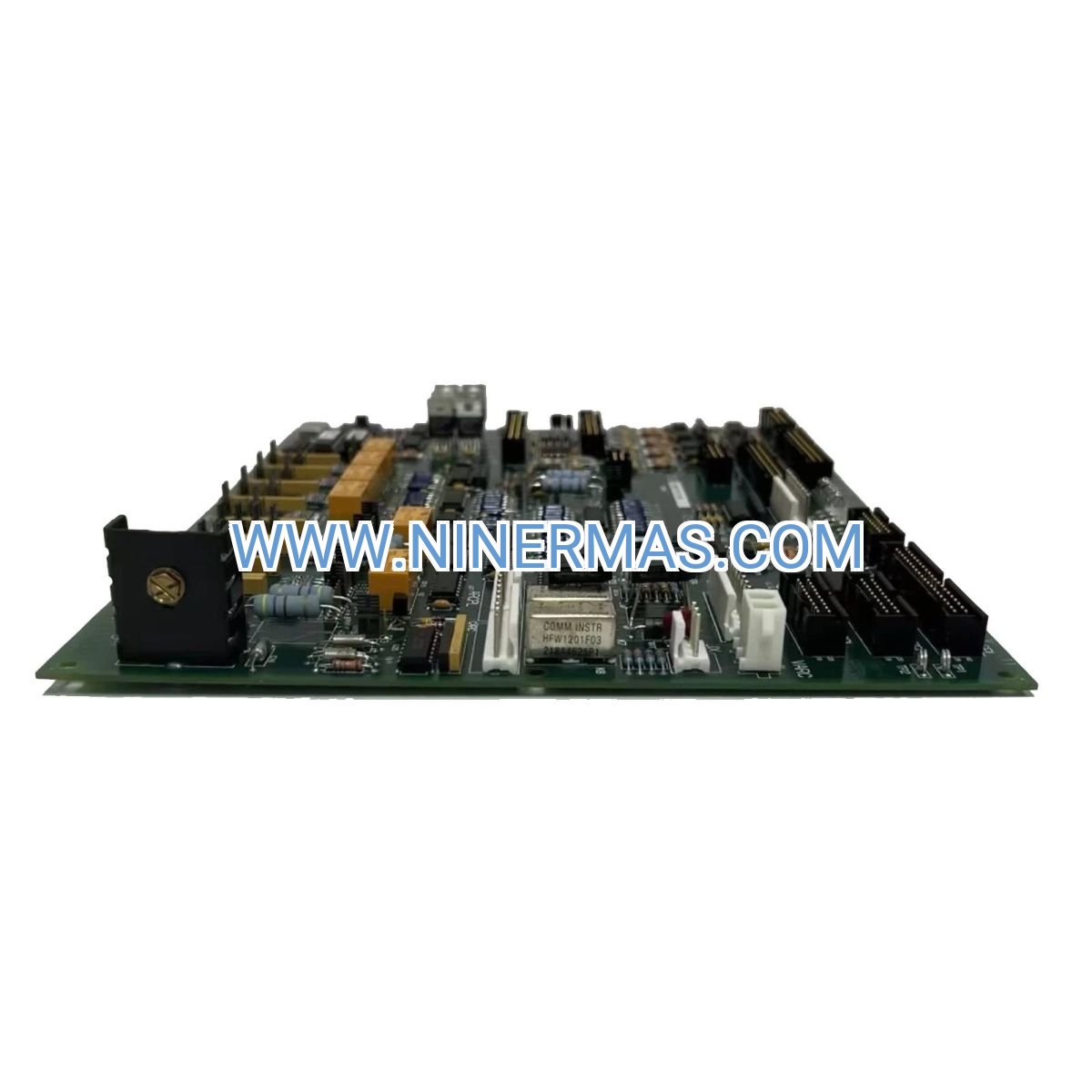

GE DS200TCQCG1A Analog I/O Board (Industrial-Grade Turbine Control Module)

The GE DS200TCQCG1A Analog I/O Board is a precision-engineered control module designed for Mark V Speedtronic turbine control systems. Through advanced analog signal acquisition and processing technology, it delivers real-time monitoring and control of critical turbine parameters including temperature, pressure, vibration, and flow rate, ensuring safe and efficient operation of gas and steam turbines.

Widely deployed in power generation plants, petrochemical facilities, oil & gas processing, and industrial cogeneration systems, this board addresses challenges such as signal drift, environmental interference, calibration complexity, and system integration compatibility. It provides stable, high-precision analog signal conversion essential for mission-critical turbine protection and performance optimization.

Featuring standardized GE design with field-proven reliability, the DS200TCQCG1A offers seamless integration with existing Mark V architectures, comprehensive diagnostic capabilities, and extended operational lifespan. Ideal for plant engineers, OEM integrators, maintenance contractors, and automation system designers requiring dependable turbine control solutions. Contact our engineering team for application-specific configuration guidance and technical documentation.

Core Features & Advantages

• High-Precision Signal Acquisition
  Equipped with 16-bit A/D converters and differential input architecture, the board achieves ±0.1% accuracy across industrial temperature ranges, minimizing measurement error and ensuring reliable turbine parameter monitoring.
• Robust Environmental Protection
  Conformal-coated PCB with industrial-grade components rated for -40°C to +70°C operation, resistant to vibration, humidity, and electromagnetic interference commonly found in turbine enclosures and control rooms.
• Seamless Mark V Integration
  Plug-compatible with GE Mark V TCQA, TCQB, and TCQC racks, supporting hot-swap capability in redundant configurations. Firmware-level compatibility ensures drop-in replacement without system reconfiguration.
• Comprehensive Diagnostic Functions
  Built-in self-test (BIST) routines, channel-level fault detection, and real-time status reporting via Mark V HMI. Reduces troubleshooting time and supports predictive maintenance strategies.
• Extended Service Life & Support
  Manufactured to GE's original specifications with genuine components, backed by 12-month warranty. Technical documentation, calibration certificates, and engineering support available to ensure long-term operational continuity.

Typical Application Scenarios

This analog I/O board is engineered for environments demanding continuous uptime, precise control, and regulatory compliance:

• Power Generation & Cogeneration Plants
  Monitors turbine inlet/exhaust temperatures, bearing vibration, and steam pressure in combined-cycle and simple-cycle gas turbines, supporting load control and emissions compliance.
• Petrochemical & Refining Facilities
  Provides critical signal conditioning for turbine-driven compressors and pumps in ethylene crackers, FCC units, and hydroprocessing trains, where process safety and uptime are paramount.
• Oil & Gas Upstream & Midstream
  Deployed in offshore platforms, pipeline compressor stations, and LNG facilities for turbine control in harsh, remote environments with limited maintenance access.
• Industrial Manufacturing & Process Industries
  Supports turbine-based mechanical drives in steel mills, pulp & paper plants, and chemical production, ensuring stable process conditions and energy efficiency.

Technical Parameters & Selection Guide

To facilitate system design and procurement, we provide key specifications for the GE DS200TCQCG1A:

Selection Recommendations: When specifying this board, confirm the following: Mark V rack type and slot assignment, required input signal types (current vs. voltage), sensor compatibility (RTD, thermocouple, 4–20 mA transmitters), and any redundancy requirements. For retrofit or upgrade projects, provide existing system configuration details. Our engineering team can assist with compatibility verification and configuration planning.

Extended Capabilities

• Redundancy & Fault Tolerance: Supports TMR (Triple Modular Redundant) configurations in critical turbine protection applications, with automatic failover and online replacement.
• Calibration & Commissioning: Factory-calibrated with traceable certificates; field recalibration supported via GE Toolbox software and documented procedures.
• Integration with SCADA/DCS: Analog data accessible via Mark V Ethernet interface (Modbus TCP, OPC) for plant-wide monitoring and historian integration.
• Spare Parts & Lifecycle Management: Available as new surplus, refurbished, or repair-exchange to support legacy systems and optimize total cost of ownership.

Delivery, Service & Quality Assurance

Lead Time: Standard stock items ship within 1–3 business days; refurbished or tested units available within 5–7 days. Custom configurations or bulk orders may require 2–4 weeks.

Warranty: All boards include a minimum 12-month warranty covering material defects and workmanship. Extended warranty and advance-replacement options available.

Technical Support: Comprehensive support includes pre-sale application consulting, installation guidance, configuration assistance, and post-sale troubleshooting. Remote diagnostics and on-site commissioning services available (region-dependent).

Documentation Package: Each shipment includes product datasheet, installation instructions, wiring diagrams, calibration certificates (if applicable), and GE part number cross-reference. Full technical manuals and software tools available upon request.

Frequently Asked Questions (FAQ)

Q: Is the GE DS200TCQCG1A Analog I/O Board compatible with Mark VI or Mark VIe systems?
A: No, the DS200TCQCG1A is specifically designed for Mark V Speedtronic systems. For Mark VI/VIe applications, consult our team for equivalent I/O modules such as the IS200/IS220 series.

Q: Can this board be used as a direct replacement for a failed module without system reconfiguration?
A: Yes, the DS200TCQCG1A is designed for drop-in replacement in Mark V systems. Ensure firmware compatibility and perform standard checkout procedures per GE guidelines. Configuration data is typically stored in the controller, not the I/O board.

Q: What is the typical failure mode, and how can I diagnose a faulty board?
A: Common failure modes include loss of signal, erratic readings, or fault annunciation on the Mark V HMI. Use GE Toolbox diagnostics to isolate the faulty channel or board. Our technical team can assist with remote diagnostics and recommend repair or replacement.

Q: Do you provide calibration services or certificates for this board?
A: Yes, we offer factory-calibrated boards with traceable certificates. Field recalibration services and calibration kits are also available for in-service boards.

Q: What is the environmental rating, and can it be used in hazardous area classifications?
A: The board is rated for industrial control cabinet environments (-40°C to +70°C, conformal-coated). For hazardous area installations, the Mark V control cabinet must meet applicable area classification requirements (e.g., NEMA 4, IP65 enclosures). The board itself is not intrinsically safe; consult local codes and GE documentation.

Q: Can I integrate this board with third-party DCS or SCADA systems?
A: Yes, analog data from the DS200TCQCG1A is accessible via the Mark V controller's Ethernet interface using standard protocols (Modbus TCP, OPC). Integration requires configuration in the Mark V application and your DCS/SCADA platform.

Request a Quote or Technical Consultation

To receive a detailed quotation, application-specific configuration guidance, or technical support, please provide the following information:

• Project name and application (e.g., turbine model, plant type)
• Mark V system configuration (rack type, controller version)
• Required input signal types and sensor specifications
• Quantity, delivery timeline, and any redundancy requirements
• Existing part numbers or system documentation (if available)

Our engineering team will respond with a tailored solution, including part number verification, pricing, lead time, and technical recommendations.
