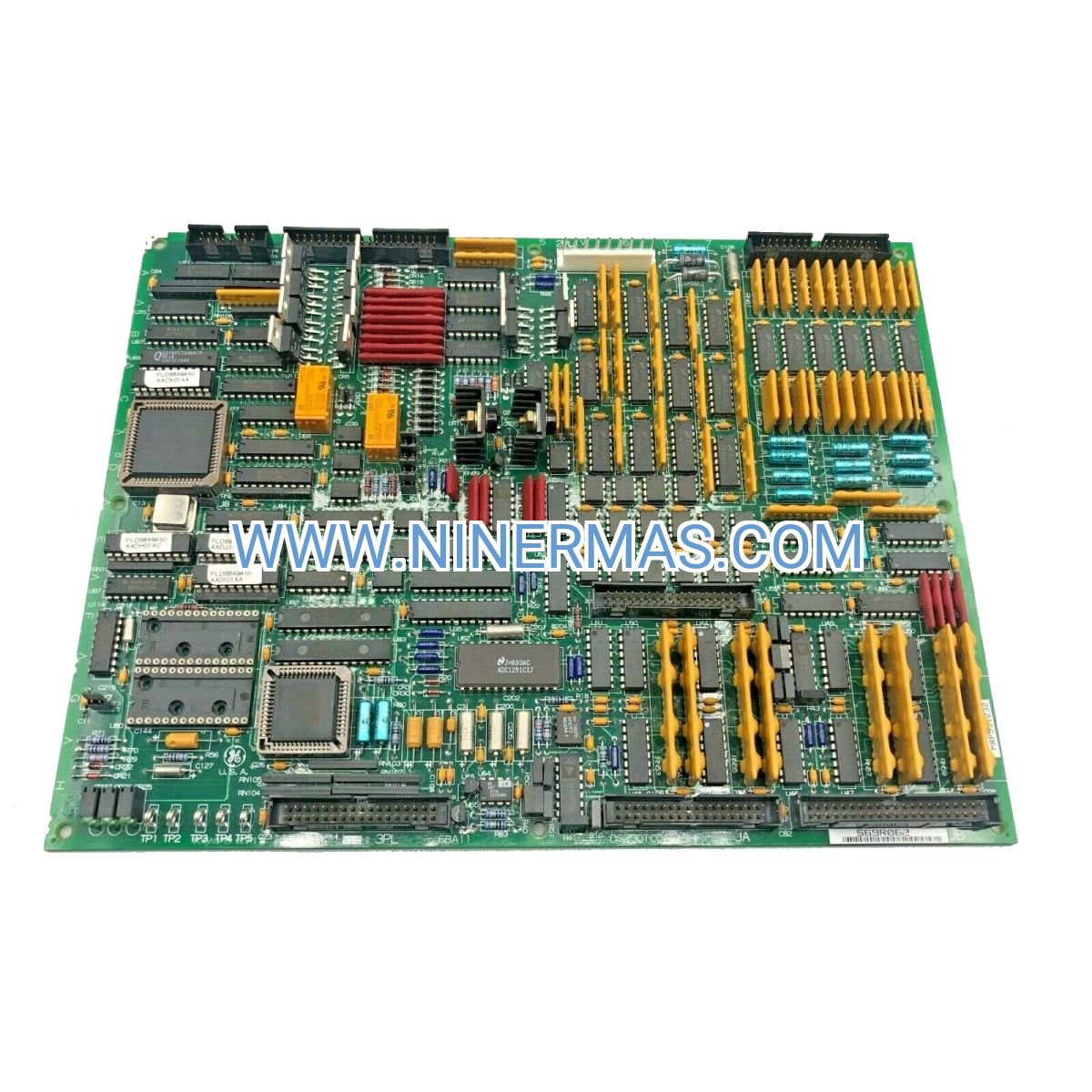

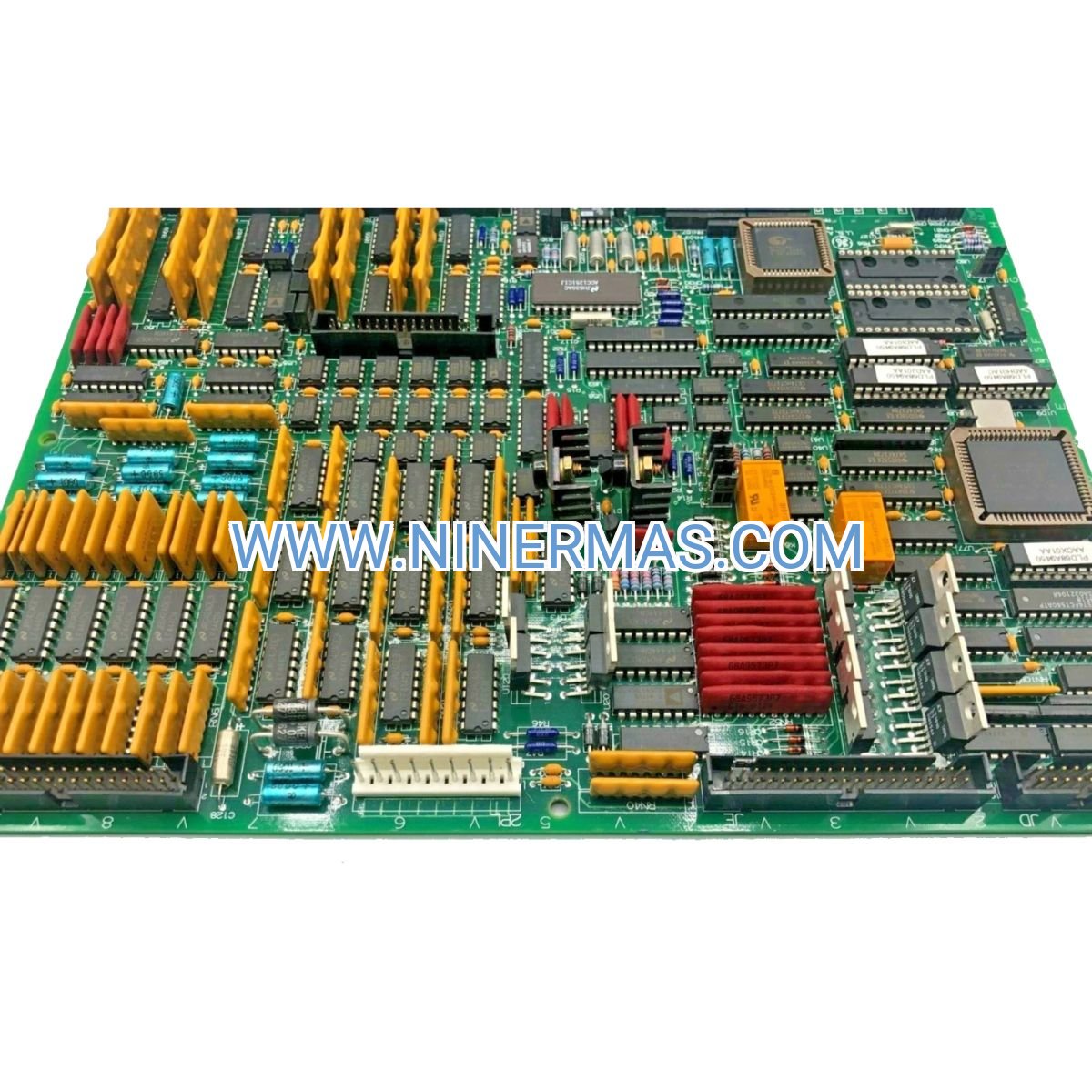

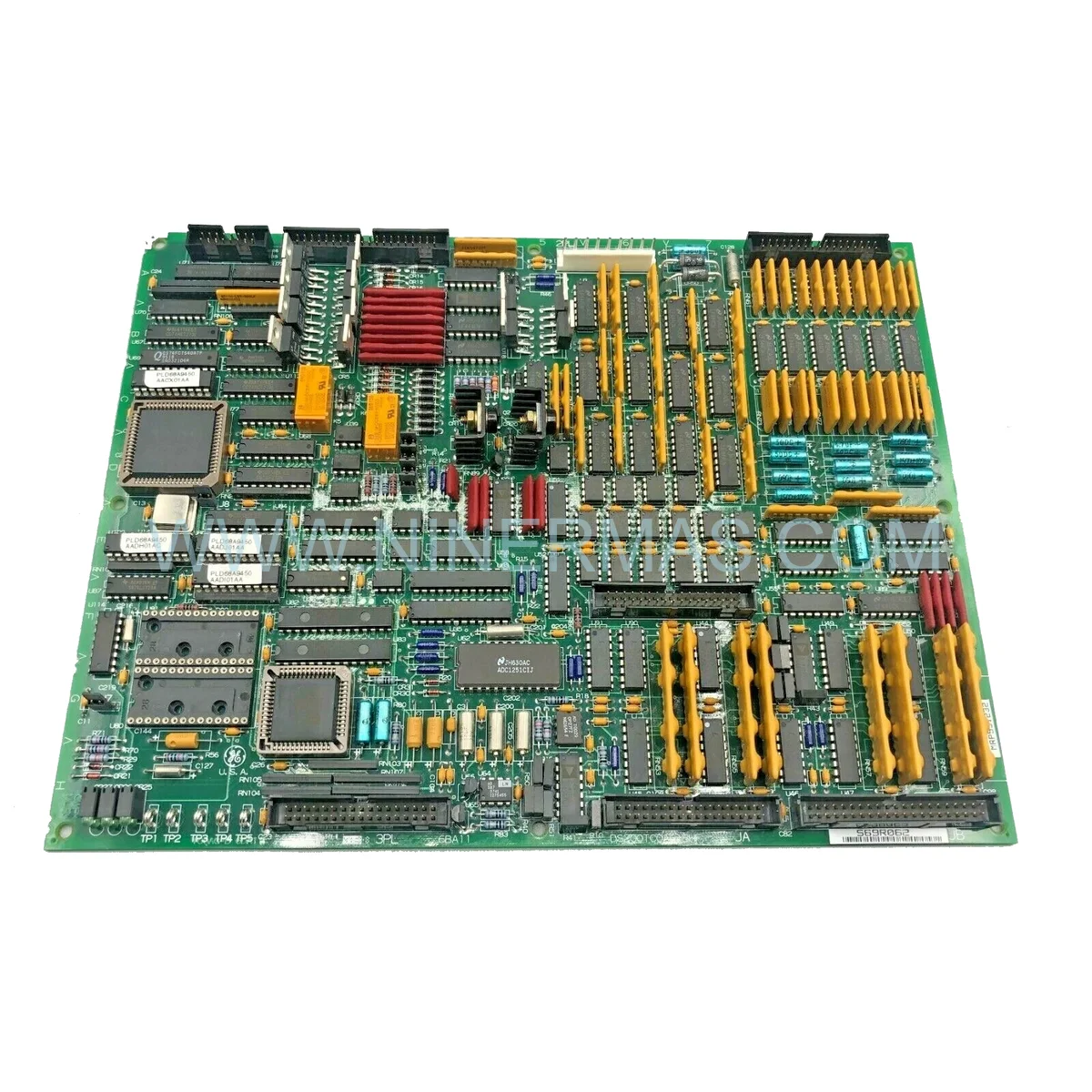

DS200TCQAG1B Analog I/O Board – Industrial-Grade Signal Processing for Mark V Speedtronic Systems

The DS200TCQAG1B Analog I/O Board is a precision-engineered control module designed for GE Mark V Speedtronic turbine control platforms. Through high-resolution analog-to-digital conversion and multi-channel signal acquisition, it enables real-time monitoring and control of critical turbine parameters including temperature, pressure, flow rate, and vibration levels.

Suitable for gas turbine power plants, steam turbine facilities, combined-cycle generation stations, and industrial cogeneration systems, this board addresses challenges such as signal drift, measurement inaccuracy, inadequate channel capacity, and integration complexity with legacy control architectures. It is particularly valuable for plant operators, control system integrators, OEM service providers, and maintenance teams managing aging Mark V installations.

Leveraging standardized Mark V form factor with field-proven reliability, the DS200TCQAG1B delivers precision analog processing, hot-swap capability in redundant configurations, robust EMI/RFI shielding, and seamless backward compatibility with existing Speedtronic infrastructure. Contact our application engineers for system-specific configuration guidance, compatibility verification, and technical quotations.

Core Capabilities & Performance Advantages

High-Fidelity Signal Acquisition
Employs 16-bit A/D converters with ±0.1% linearity across full-scale range, ensuring accurate representation of sensor inputs from thermocouples, RTDs, pressure transducers, and 4-20mA transmitters. Minimizes measurement error and supports predictive maintenance strategies.

Native Mark V Ecosystem Integration
Direct plug-in compatibility with Mark V VCMI (Versatile Control Module Interface) backplane eliminates custom wiring or protocol conversion. Firmware-level recognition by Speedtronic control processors reduces commissioning time by 40-60% compared to third-party alternatives.

Continuous-Duty Industrial Hardening
Qualified for 24/7 operation in ambient temperatures from 0°C to 60°C with conformal coating protection against moisture, dust, and chemical exposure. MTBF exceeds 100,000 hours under rated conditions, reducing unplanned downtime and spare inventory costs.

Scalable Multi-Channel Architecture
Supports up to 12 differential analog input channels per board, with rack expansion capability to 96+ channels for large turbine installations. Simultaneous sampling at 1 kHz per channel enables fast transient capture for combustion dynamics analysis and vibration diagnostics.

Service-Friendly Maintenance Design
Front-accessible terminal blocks and LED diagnostic indicators simplify field troubleshooting. In triple-modular redundant (TMR) configurations, boards can be replaced under power following lockout-tagout procedures, minimizing production interruptions during scheduled maintenance windows.

Comprehensive Operator Interface
Integrates with Mark V HMI (Human-Machine Interface) for real-time trend visualization, alarm annunciation, and historical data logging. Supports Modbus TCP and OPC DA protocols for SCADA integration and remote monitoring via plant DCS networks.

Typical Application Scenarios

This module is engineered for installations demanding high signal integrity, continuous availability, and long-term supportability, including:

Gas Turbine Combined-Cycle Power Plants
Monitors exhaust gas temperature spreads across combustor cans, fuel gas pressure regulation, compressor inlet guide vane positions, and bearing metal temperatures. Enables closed-loop control of emissions (NOx, CO) and heat rate optimization. Typical installations include GE Frame 6, 7, and 9 series turbines in utility-scale generation facilities.

Steam Turbine Cogeneration Systems
Processes signals from steam pressure transmitters, condenser vacuum sensors, feedwater flow meters, and turbine shell expansion probes. Supports automatic load control, overspeed protection coordination, and thermal stress management in industrial CHP (combined heat and power) applications serving refineries, chemical plants, and district heating networks.

Mechanical Drive & Compression Applications
Acquires analog data from pipeline compressor stations, LNG liquefaction trains, and offshore platform gas lift systems. Interfaces with anti-surge control valves, variable inlet guide vanes, and auxiliary lube oil systems to maintain process stability and equipment protection under varying load conditions.

Mark V System Modernization & Life Extension
Serves as direct replacement for obsolete or failed analog I/O boards in Mark V systems approaching end-of-life. Maintains OEM performance specifications while extending operational lifespan by 10-15 years, deferring capital expenditure for complete control system replacement. Compatible with ToolboxST configuration software for seamless integration.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide standardized electrical, mechanical, and environmental specifications. Custom configurations are available for non-standard voltage levels, extended temperature ranges, or hazardous area classifications.

Selection Considerations
When specifying the DS200TCQAG1B, evaluate: (1) total analog point count and signal type distribution, (2) required measurement accuracy and response time, (3) environmental conditions including temperature extremes and vibration exposure, (4) redundancy architecture (simplex, dual, or TMR), (5) existing Mark V software revision and compatibility with ToolboxST version, (6) available rack space and power budget in control cabinet. For application-specific guidance, provide turbine model, control system configuration, and I/O schedule to our engineering team for optimized board selection and quantity recommendation.

Advanced Integration & System Architecture

Redundancy & Fault Tolerance
In critical power generation applications, deploy DS200TCQAG1B boards in triple-modular redundant (TMR) configurations with automatic voting logic. Each of three identical boards processes the same input signals; the Mark V control processor compares outputs and masks faulty channels without process interruption. This architecture achieves SIL 3 (Safety Integrity Level 3) compliance for emergency shutdown systems and overspeed protection circuits.

Signal Conditioning & Termination
Pair with GE DS200TBQCG1A analog termination boards for field wiring interface, providing screw-terminal connections, transient suppression, and loop power distribution for 2-wire transmitters. Termination boards mount in separate enclosures near field devices, reducing noise pickup in long cable runs and simplifying maintenance access.

Distributed Control Integration
The DS200TCQAG1B exchanges data with Mark V control processors via high-speed VME backplane (40 MB/s burst transfer). Processed analog values are available to turbine control algorithms within 10 ms latency, supporting fast-acting control loops for fuel metering, inlet guide vane positioning, and anti-surge valve modulation. Data is simultaneously published to plant DCS via Modbus TCP or OPC servers for enterprise-level monitoring and historian archiving.

Cybersecurity Considerations
As part of critical infrastructure, Mark V systems require defense-in-depth security strategies. The DS200TCQAG1B operates on isolated control networks with no direct internet connectivity. Implement network segmentation, firewall rules, and VPN access for remote diagnostics. Firmware updates are cryptographically signed and require physical key-switch authorization, preventing unauthorized modifications.

Delivery, Service & Quality Assurance

Lead Time & Availability
Standard catalog items ship within 1-3 business days from our regional distribution centers in North America, Europe, and Asia-Pacific. Custom-configured boards (non-standard firmware, extended temperature rating, or special calibration) require 2-4 weeks manufacturing lead time. Expedited shipping options include next-day air freight for emergency outage support.

Warranty & Support Coverage
All DS200TCQAG1B modules include a comprehensive 12-month warranty covering material defects, component failures, and workmanship issues under normal operating conditions as defined in GE specifications. Warranty service includes advance replacement with prepaid return shipping, minimizing turbine downtime. Extended warranty programs (24-36 months) are available for long-term service agreements.

Technical Assistance & Commissioning
Our applications engineering team provides pre-sale consultation for system design review, I/O mapping verification, and compatibility confirmation with existing Mark V revisions. Post-delivery support includes remote configuration assistance via secure VPN, on-site startup supervision (subject to geographic availability and service agreement terms), and loop calibration verification using NIST-traceable test equipment.

Documentation & Certification
Each shipment includes: (1) installation and operation manual with wiring diagrams and terminal assignments, (2) factory acceptance test (FAT) report with calibration data and serial number traceability, (3) material certification documenting RoHS compliance and country of origin, (4) ToolboxST configuration file templates for rapid system integration. CE marking and UL/CSA certifications are available upon request for international projects.

Frequently Asked Questions

Q: How does the DS200TCQAG1B differ from the DS200TCQAG1A revision?
A: The "B" revision incorporates updated capacitor specifications for extended temperature stability and improved EMI filtering on analog input circuits. Functionally, both revisions are interchangeable in Mark V systems running firmware version R07.00 or later. The "B" revision is recommended for new installations and offers better long-term component availability.

Q: Can this board be retrofitted into Mark IV or Mark VI control systems?
A: No. The DS200TCQAG1B is mechanically and electrically compatible only with Mark V Speedtronic platforms. Mark IV systems use different board form factors and communication protocols, while Mark VI employs Ethernet-based I/O modules (e.g., VMIC/VMIVME series). Cross-platform migration requires complete control system replacement.

Q: What is the maximum cable length for analog input signals?
A: For 4-20mA current loop signals, cable runs up to 1000 meters (3280 feet) are supported with 18 AWG shielded twisted-pair wire. Voltage input signals (0-10V) should be limited to 100 meters (328 feet) to minimize noise susceptibility. Thermocouple and RTD inputs require compensated extension wire with maximum lengths of 50 meters and 200 meters respectively, depending on sensor resistance and accuracy requirements.

Q: Does installation require turbine shutdown or can it be performed online?
A: In simplex (non-redundant) configurations, board replacement requires control system shutdown and turbine trip. In dual or TMR redundant architectures, individual boards can be replaced under power following proper isolation procedures: (1) place redundant channel in bypass mode via HMI, (2) verify voting logic has masked the target board, (3) extract board from live rack using insulated tools, (4) install replacement and restore to service. Always consult site-specific safety procedures and qualified technicians before attempting hot-swap operations.

Q: What calibration or configuration is required after installation?
A: The DS200TCQAG1B ships factory-calibrated with NIST-traceable standards and typically requires no field calibration. However, system-level commissioning includes: (1) ToolboxST software configuration to assign I/O points to control algorithms, (2) loop verification using precision signal sources to confirm end-to-end accuracy, (3) alarm setpoint validation and trip testing per plant operating procedures. Initial commissioning typically requires 4-8 hours per board depending on I/O count and complexity.

Q: Are repair services available for failed boards?
A: Yes. We offer board-level repair services with typical turnaround of 5-10 business days. Repair process includes: (1) incoming inspection and failure analysis, (2) component-level troubleshooting and replacement of defective parts, (3) full functional testing against OEM specifications, (4) recalibration and burn-in testing. Repaired boards carry a 6-month warranty. For critical spares management, consider our exchange program providing immediate replacement with core credit upon return of failed unit.

Contact & Ordering Information

For detailed application consultation, system compatibility verification, or technical quotations, please provide the following information to our engineering team:

• Turbine manufacturer, model, and serial number (e.g., GE Frame 7EA, S/N 123456)
• Mark V control system software revision (found in ToolboxST or HMI "About" screen)
• Analog I/O requirements: signal types, channel count, accuracy class
• Redundancy architecture: simplex, dual, or TMR configuration
• Environmental conditions: ambient temperature range, altitude, vibration levels
• Project timeline and delivery location for shipping cost estimation

Our applications engineers will respond within 24 hours with tailored recommendations, compatibility confirmation, and competitive pricing. For urgent outage support, call our 24/7 emergency hotline for expedited processing and same-day shipping options.
