GE DS200TCQAG1A Analog I/O Board for Mark V Speedtronic | Industrial Turbine Control

GE DS200TCQAG1A Analog I/O Board (Mark V Speedtronic Turbine Control System)

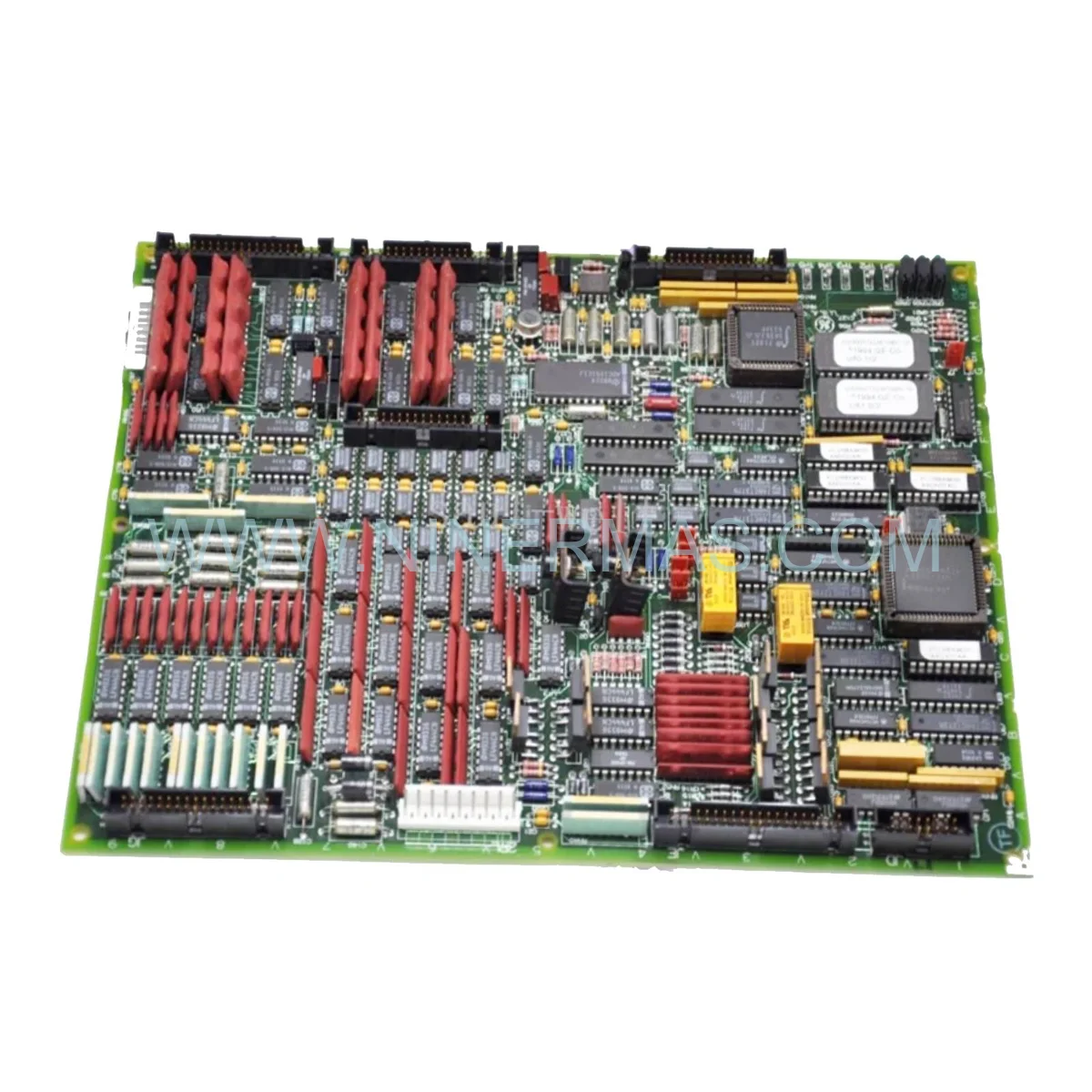

The GE DS200TCQAG1A Analog I/O Board is a precision-engineered interface module designed for Mark V Speedtronic turbine control systems, enabling high-accuracy signal acquisition and output for gas and steam turbine applications. Through multi-channel analog signal processing and 12-bit A/D conversion, it delivers real-time monitoring and control of critical turbine parameters including temperature, pressure, vibration, and flow.

Widely deployed in power generation plants, petrochemical facilities, and industrial cogeneration systems, this board addresses challenges such as signal drift, environmental noise interference, and the need for continuous uptime in mission-critical turbine operations. It is engineered to withstand harsh industrial environments while maintaining signal integrity and system reliability.

Featuring standardized Mark V architecture with field-proven design, the DS200TCQAG1A offers seamless integration with existing GE Speedtronic platforms, compatibility with legacy and modern turbine configurations, and straightforward replacement for aging I/O modules. Ideal for plant engineers, OEM integrators, EPC contractors, and maintenance teams seeking reliable, long-lifecycle control components. Contact our engineering team for application-specific configuration guidance and technical documentation.

Core Functions & Advantages

• High-Precision Analog Signal Processing
  Equipped with 12-bit resolution A/D and D/A converters, the board ensures accurate acquisition of sensor signals (thermocouples, RTDs, 4-20mA transmitters) and precise output to actuators, minimizing control error and improving turbine efficiency.
• Multi-Channel Architecture for Comprehensive Monitoring
  Supports multiple analog input and output channels, allowing simultaneous monitoring of temperature, pressure, vibration, and flow parameters across turbine subsystems, reducing wiring complexity and cabinet footprint.
• Robust EMI/RFI Protection & Industrial-Grade Reliability
  Designed with conformal coating, shielded circuitry, and transient suppression to operate reliably in high-EMI environments typical of power plants and heavy industrial sites, ensuring stable performance and extended MTBF.
• Seamless Mark V Speedtronic Integration
  Fully compatible with GE Mark V control architecture, enabling plug-and-play replacement with minimal downtime. Supports legacy turbine models (Frame 5, Frame 6, Frame 7, Frame 9) and newer configurations, protecting capital investment.
• Comprehensive Diagnostic & Fault Detection
  Built-in self-diagnostics and fault reporting capabilities enable early detection of sensor failures, wiring issues, and signal anomalies, reducing unplanned outages and maintenance costs.
• Field-Proven Design with Long-Term Availability
  Backed by decades of GE engineering heritage and global installed base, with ongoing aftermarket support, technical documentation, and replacement part availability to ensure long-term operational continuity.

Typical Application Scenarios

The DS200TCQAG1A Analog I/O Board is engineered for demanding turbine control applications requiring high reliability and precision, including:

• Power Generation Plants (Gas & Steam Turbines)
  Provides critical signal interface for turbine start-up sequencing, load control, and protective shutdown systems in utility-scale and independent power plants, ensuring grid stability and operational safety.
• Petrochemical & Refinery Cogeneration Systems
  Supports process steam and power generation turbines in refineries and chemical plants, where continuous operation and precise control are essential for production efficiency and safety compliance.
• Industrial Cogeneration & Combined Cycle Plants
  Enables integrated control of gas turbines, HRSGs, and steam turbines in combined cycle configurations, optimizing heat recovery and overall plant efficiency in manufacturing and district energy applications.
• Turbine Retrofit & Modernization Projects
  Facilitates control system upgrades and obsolescence management for aging Mark V installations, allowing phased migration to modern platforms while maintaining operational continuity and leveraging existing infrastructure.
• OEM Turbine Packages & Skid-Mounted Systems
  Integrated into packaged turbine-generator sets and mobile power units by OEMs and system integrators, providing standardized, field-tested control interface for rapid deployment and commissioning.

Technical Parameters & Selection Guide

To support engineering design and procurement, key specifications of the GE DS200TCQAG1A are outlined below. Custom configurations and application-specific variants may be available—consult with our technical team for detailed datasheets and compatibility verification.

Selection Considerations:
When specifying the DS200TCQAG1A, consider the following factors: number and type of analog I/O points required, sensor signal types and ranges, environmental conditions (temperature, humidity, vibration), existing Mark V system configuration and firmware revision, and availability of technical documentation and commissioning support. For retrofit or upgrade projects, verify board revision compatibility with existing control hardware and software. Our application engineers can assist with I/O mapping, wiring diagrams, and integration planning—please provide turbine model, control system details, and project scope for tailored recommendations.

Extended Capabilities & Integration Options

• Redundant Configuration Support: Can be deployed in redundant I/O architectures for critical turbine protection and control loops, enhancing system fault tolerance.
• Remote Monitoring & SCADA Integration: Analog signals processed by the DS200TCQAG1A can be interfaced with plant SCADA, DCS, and historian systems via Mark V communication modules (Modbus, Ethernet/IP, OPC).
• Calibration & Commissioning Services: Factory calibration and on-site commissioning support available to ensure optimal signal accuracy and system performance from day one.
• Spare Parts & Lifecycle Management: Recommended as critical spare for plants with Mark V systems to minimize downtime risk; consult on inventory optimization and obsolescence planning.

Delivery, Service & Quality Assurance

Lead Time: Standard stock items typically ship within 3–5 business days; custom-configured or refurbished units may require 10–15 business days. Expedited shipping available upon request.

Warranty: All DS200TCQAG1A boards are covered by a comprehensive 12-month warranty against manufacturing defects, with optional extended warranty and service agreements available.

Technical Support: Our team provides pre-sale application consulting, installation guidance, wiring diagrams, and post-sale troubleshooting support. Remote diagnostic assistance and on-site commissioning services can be arranged based on project location and scope.

Documentation Package: Each unit ships with product datasheet, installation instructions, wiring diagrams, and compatibility notes. Full technical manuals, CAD drawings, and certification documents available upon request.

Quality & Compliance: Sourced from authorized channels and subject to rigorous incoming inspection and functional testing. Compliance with international standards including CE, UL, and CSA (verify for specific board revisions).

Frequently Asked Questions (FAQ)

Q: How do I verify compatibility of the DS200TCQAG1A with my existing Mark V Speedtronic system?
A: Compatibility depends on your Mark V control system revision, firmware version, and I/O configuration. Please provide your turbine model (e.g., Frame 6B, Frame 9E), Mark V software release, and current I/O board part numbers. Our engineers will cross-reference and confirm fitment, and provide any necessary firmware or configuration notes.

Q: Can this board be used in redundant turbine control configurations?
A: Yes, the DS200TCQAG1A supports redundant I/O architectures commonly used in critical turbine protection and control loops. Redundancy configuration requires proper system design, dual I/O racks, and appropriate Mark V controller setup—consult with your control system integrator or our technical team for implementation guidance.

Q: What is the typical lifespan and MTBF of the DS200TCQAG1A board?
A: GE Mark V boards are designed for long-term industrial use, with typical operational lifespans exceeding 15–20 years under proper environmental conditions and maintenance. MTBF data varies by application and operating environment; contact us for detailed reliability data and lifecycle planning support.

Q: Do you provide installation and commissioning services for this board?
A: Yes, we offer remote technical support for installation and commissioning, including wiring verification, signal calibration, and functional testing. On-site commissioning and integration services can be arranged for complex projects or plant-wide upgrades—please inquire with project details and location.

Q: Is the DS200TCQAG1A available as new, refurbished, or repaired?
A: We supply new surplus, factory-refurbished, and tested-used units depending on availability and customer requirements. All units undergo functional testing and come with warranty. Specify your preference and budget constraints, and we will provide options with lead time and pricing.

Q: Can this board interface with non-GE sensors and actuators?
A: Yes, the DS200TCQAG1A is designed to accept standard industrial analog signals (4-20mA, thermocouples, RTDs, voltage signals) from a wide range of sensor manufacturers. Ensure signal types, ranges, and wiring match board specifications. Our team can assist with signal conditioning and interface design if needed.

Request a Quote or Technical Consultation

To receive a detailed quotation, application-specific configuration recommendations, or technical support, please provide the following information:

• Project name and application (e.g., turbine model, plant type)
• Quantity required and delivery timeline
• Current Mark V system details (software revision, I/O configuration)
• Specific I/O requirements (number of channels, signal types, ranges)
• Environmental conditions and compliance requirements
• Preference for new, refurbished, or repair/exchange options

Our application engineers will respond with tailored recommendations, technical documentation, and competitive pricing to support your project success.
