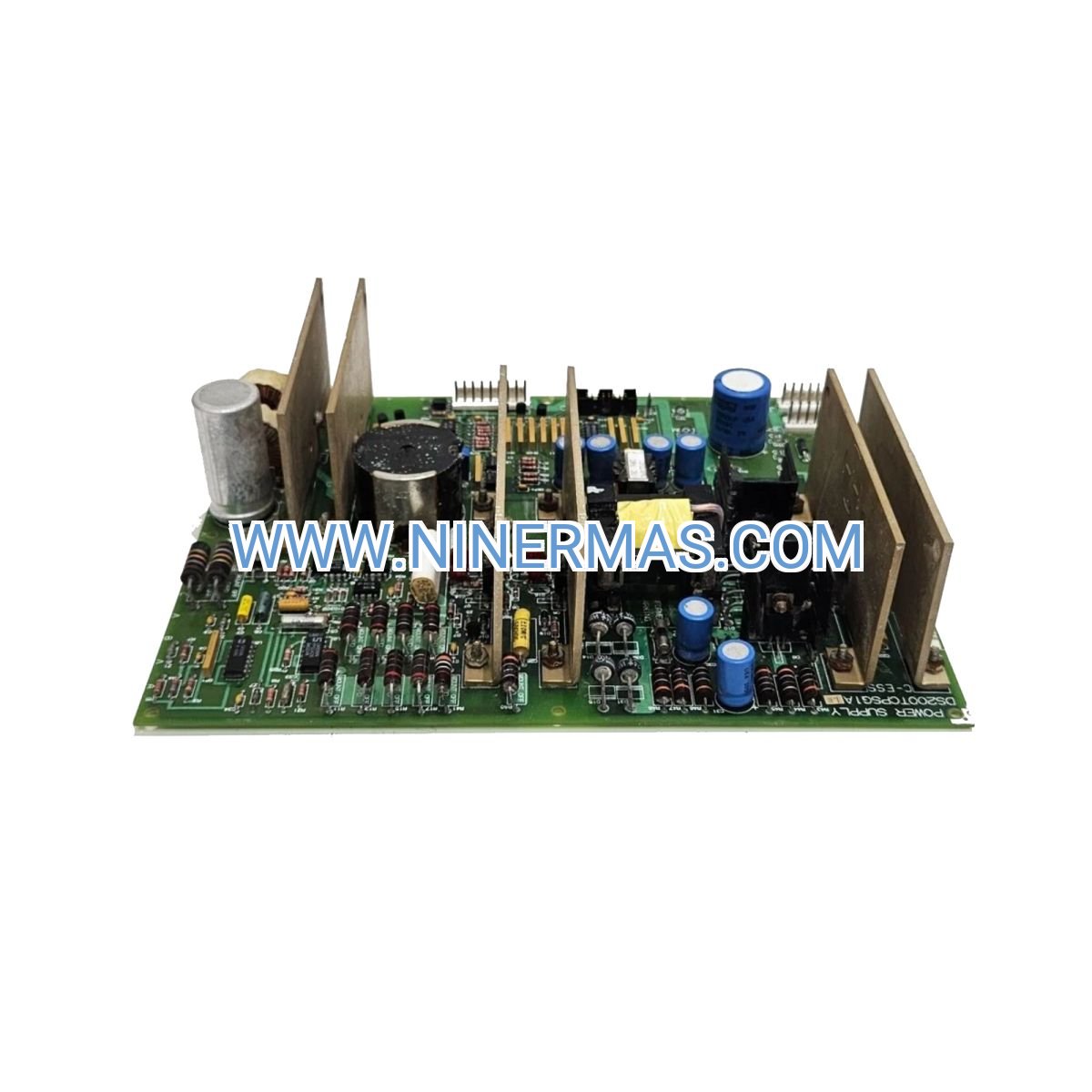

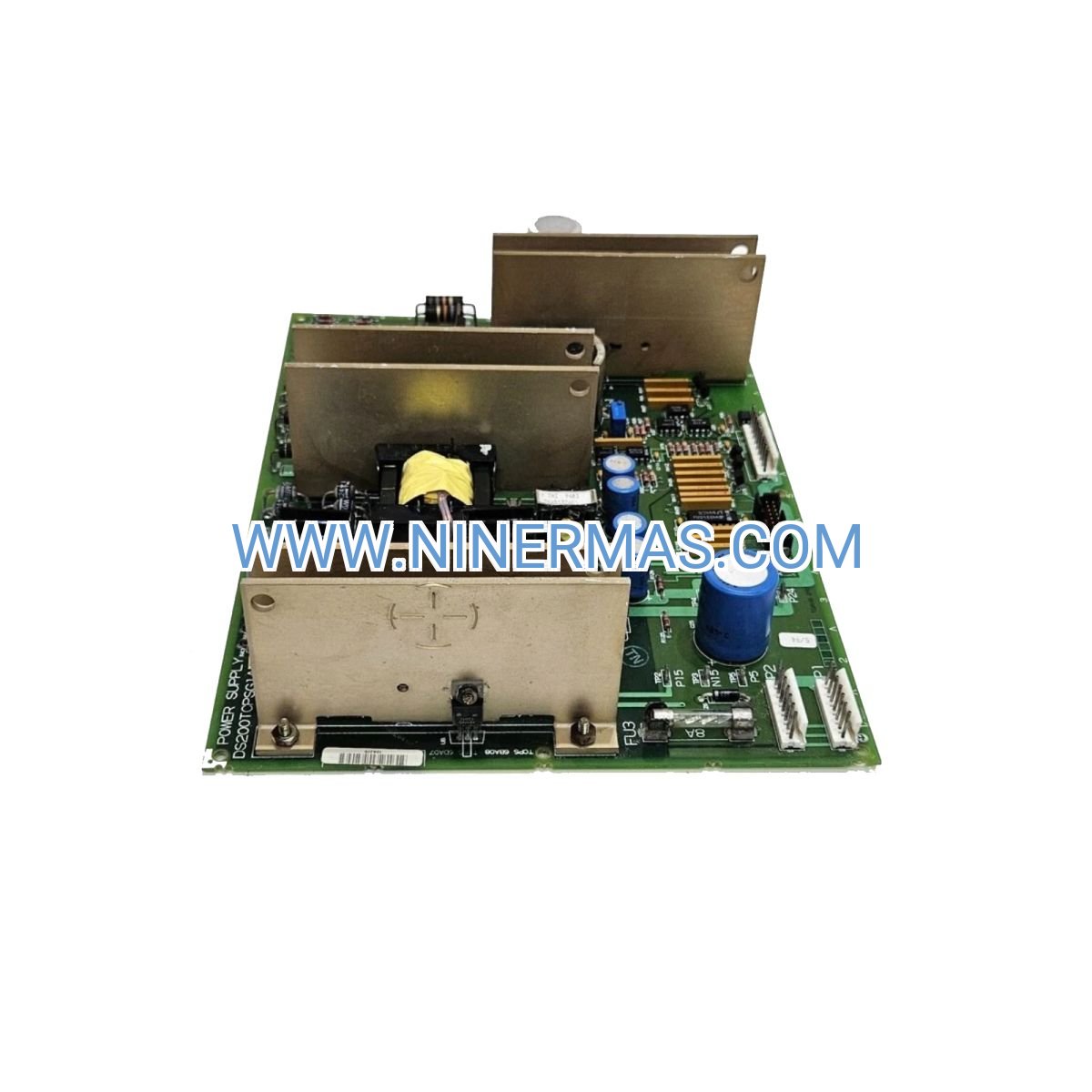

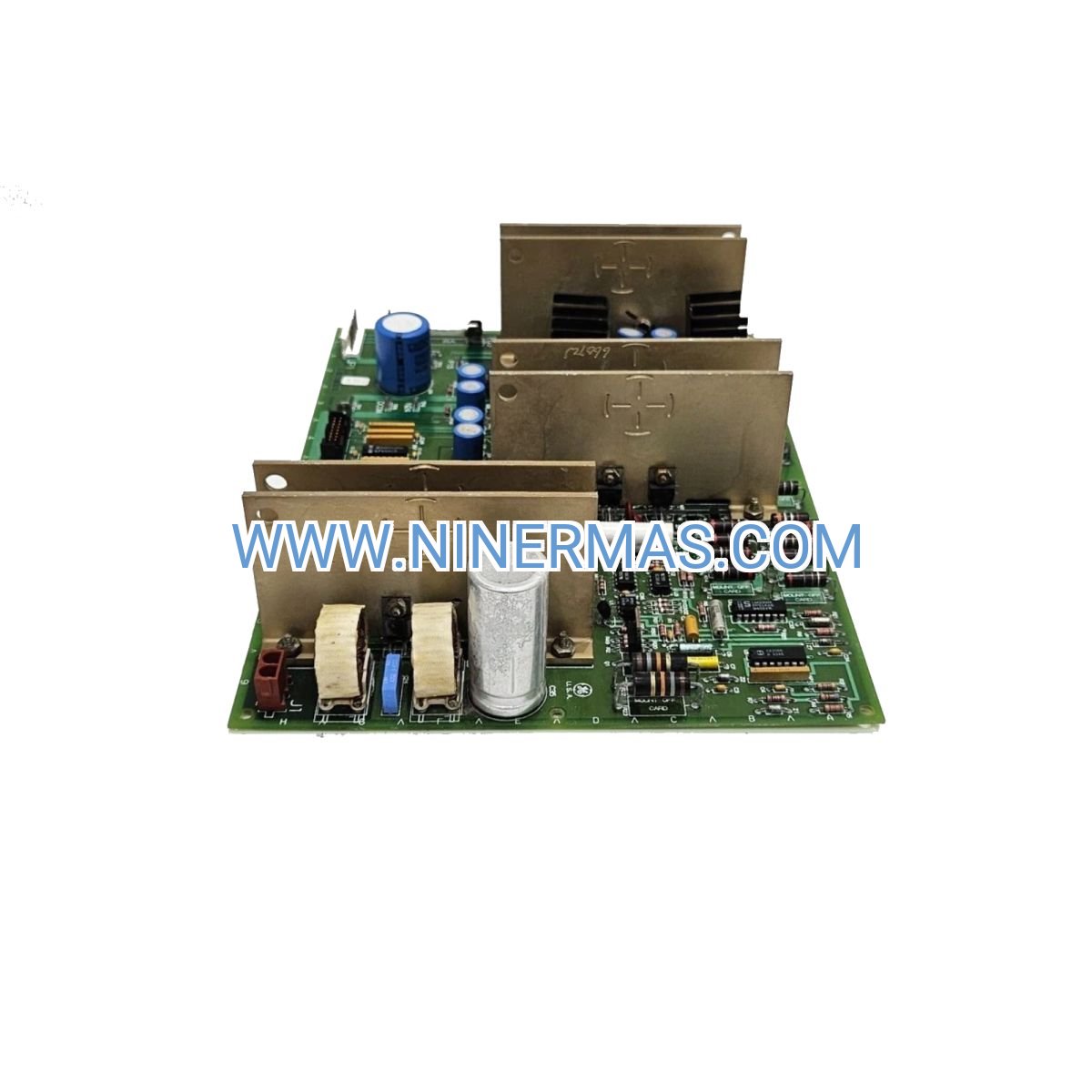

GE DS200TCPSG1A 24V DC Power Supply Board (Industrial-Grade Turbine Control Solution)

The GE DS200TCPSG1A Power Supply Board is a precision-engineered 24V DC power distribution module designed exclusively for Mark V Speedtronic turbine control systems. Through advanced voltage regulation and multi-stage filtering technology, it delivers stable, low-ripple DC power to critical control circuits, ensuring continuous operation in gas turbine generators, steam turbine plants, and combined-cycle power facilities.

Ideal for power generation stations, petrochemical complexes, offshore oil & gas platforms, and industrial cogeneration systems, this board addresses common challenges including voltage fluctuations, power supply redundancy failures, unplanned downtime due to component aging, and inadequate protection against electrical transients. It serves design institutes, EPC contractors, turbine OEMs, plant maintenance teams, and automation system integrators seeking reliable, field-proven power solutions.

Featuring standardized form factor with customizable input voltage configurations, the DS200TCPSG1A offers wide AC input range (85-265V), robust EMI/EMC compliance, comprehensive fault diagnostics, and hot-swappable capability in redundant architectures. Contact our application engineers with your system voltage, load current requirements, and environmental specifications for tailored selection support and competitive quotations.

Core Functions & Advantages

Precision Voltage Regulation
Employs closed-loop feedback control with ±1% output tolerance, maintaining stable 24V DC supply despite input voltage swings from 85V to 265V AC, eliminating logic errors and sensor drift caused by power instability.

Enhanced System Reliability
Supports N+1 redundant power architecture when paired with additional DS200TCPSG1A units, enabling automatic load sharing and seamless failover without interrupting turbine control operations, reducing MTTR by up to 40%.

Comprehensive Protection Suite
Integrated overvoltage, undervoltage, overcurrent, short-circuit, and thermal shutdown protection safeguards downstream control boards, minimizing collateral damage during fault conditions and extending mean time between failures (MTBF) beyond 100,000 hours.

Wide Environmental Operating Range
Qualified for -30°C to +65°C ambient operation with conformal coating options for high-humidity and corrosive atmospheres, suitable for desert, offshore, and tropical installation environments without derating.

Diagnostic & Monitoring Capabilities
Provides real-time status indication via LED indicators and discrete alarm outputs, enabling integration with SCADA systems for predictive maintenance scheduling and remote health monitoring of power subsystems.

Plug-Compatible Replacement
Direct form-fit-function replacement for legacy Mark V power supplies, supporting in-service upgrades without control cabinet modifications, reducing retrofit engineering costs and commissioning time by 60%.

Typical Application Scenarios

This power supply board is engineered for mission-critical applications demanding uninterrupted power delivery, continuous process uptime, and stringent safety compliance, particularly in:

Power Generation & Cogeneration Plants
Supplies control power for gas turbine generator sets (50-500MW class), steam turbine control systems in coal-fired and biomass plants, and combined-cycle facilities requiring coordinated turbine-generator control with sub-millisecond response times.

Oil, Gas & Petrochemical Facilities
Powers turbine control systems in offshore production platforms, LNG liquefaction trains, refinery process gas compressors, and pipeline booster stations where SIL-rated power integrity is mandated for emergency shutdown systems.

Industrial Process & Manufacturing
Ensures stable operation of turbine-driven air compressors in steel mills, mechanical drive turbines in chemical plants, and waste heat recovery turbines in cement kilns, maintaining production continuity in 24/7 process environments.

District Heating & Utility Systems
Supports municipal cogeneration turbines, district heating steam turbines, and waste-to-energy plant control systems, meeting utility-grade reliability standards for public infrastructure applications.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide comprehensive electrical, mechanical, and environmental specifications. Custom configurations are available for non-standard input voltages, extended temperature ranges, and specialized mounting requirements.

Selection Recommendations:
When specifying the DS200TCPSG1A, consider the following system parameters: total DC load current of all connected control boards, available AC input voltage and phase configuration, ambient temperature extremes at installation location, required redundancy level (simplex vs. N+1), and existing Mark V cabinet backplane compatibility. For systems exceeding 10A total load, parallel operation of multiple units is recommended. Our engineering team can review your one-line diagrams and load schedules to recommend optimal power supply quantity and configuration. Please provide project name, turbine model/rating, control system revision, and site environmental conditions for customized selection assistance.

Advanced Integration Features

Redundant Power Architecture Support
The DS200TCPSG1A incorporates ORing diode circuitry enabling parallel operation with identical units for N+1 redundancy. In dual-supply configurations, each module automatically shares load current, and upon failure of one unit, the remaining supply seamlessly assumes full load without voltage droop or system reset.

Hot-Swap Capability
When installed in Mark V cabinets with redundant power backplanes, the board supports hot-insertion and removal during live operation, facilitating preventive maintenance and emergency replacement without turbine shutdown or control system interruption.

EMI/EMC Hardening
Designed to meet IEC 61000-6-2 (industrial immunity) and IEC 61000-6-4 (industrial emissions) standards, the board features multi-stage input filtering, shielded transformer construction, and optimized PCB layout to minimize conducted and radiated interference in electrically noisy power plant environments.

Diagnostic Interface
Provides discrete fault alarm outputs (normally open/closed relay contacts) for integration with plant DCS or SCADA systems, enabling centralized monitoring of power supply health, predictive maintenance alerts, and automated alarm annunciation.

Delivery, Service & Quality Assurance

Lead Time & Availability
Standard DS200TCPSG1A units ship from stock within 1-3 business days for urgent turbine maintenance requirements. Custom-configured variants (special input voltages, extended temperature screening, or conformal coating) typically require 2-3 weeks manufacturing lead time. Expedited processing and air freight options are available for critical outage support.

Warranty & Support
All units include a comprehensive 12-month warranty covering material defects and workmanship failures under normal operating conditions per GE specifications. Warranty service includes advance replacement for qualified failures, return freight coverage, and root cause analysis reports. Extended warranty programs up to 36 months are available for long-term service agreements.

Technical Assistance
Our application engineering team provides remote technical support for installation troubleshooting, system integration guidance, and performance optimization. On-site commissioning assistance and training services are available for major projects (minimum order quantities apply). We supply complete technical documentation including installation manuals, electrical schematics, terminal wiring diagrams, and maintenance procedures with every order.

Quality & Testing
Every DS200TCPSG1A board undergoes 100% functional testing including input voltage sweep, output load regulation verification, protection circuit validation, and 24-hour burn-in at elevated temperature. Units are supplied with individual test reports documenting output voltage accuracy, ripple/noise measurements, and protection trip thresholds. Traceability documentation and material certifications are available upon request.

Frequently Asked Questions (FAQ)

Q: Can the DS200TCPSG1A power supply board operate with single-phase or three-phase AC input?
A: The DS200TCPSG1A accepts universal single-phase AC input from 85-265V. It does not require three-phase power. The wide input range accommodates both 120V and 240V nominal systems with tolerance for voltage variations, making it suitable for global deployment without voltage-specific variants.

Q: What is the maximum number of control boards one DS200TCPSG1A can power in a Mark V system?
A: With 10A continuous output capacity, a single DS200TCPSG1A typically supports 8-12 standard Mark V control boards depending on board types and I/O loading. High-power boards such as servo drivers or communication modules may reduce this count. For systems with more than 8A total load, we recommend N+1 redundant configuration using two or more power supplies for enhanced reliability.

Q: How much energy savings can be achieved compared to older linear power supplies?
A: The DS200TCPSG1A switching power supply achieves ≥85% efficiency versus 40-50% typical for legacy linear supplies. In a 200W load scenario, this translates to approximately 90W reduction in heat dissipation and AC power consumption, lowering cooling requirements and operating costs by 15-20% annually in continuous-duty applications.

Q: What are the environmental requirements for installing this power supply board?
A: The board operates reliably in -30°C to +65°C ambient temperature with 5-95% relative humidity (non-condensing). Standard units have IP20 rating suitable for enclosed control cabinets. For harsh environments (coastal, chemical, or high-humidity locations), conformal-coated versions are available providing enhanced corrosion resistance and moisture protection.

Q: Does the DS200TCPSG1A support remote monitoring and diagnostics via network protocols?
A: The board provides discrete alarm outputs (relay contacts) for fault indication that integrate with Mark V control system or external SCADA/DCS via hardwired I/O. It does not include native Ethernet, Modbus, or other digital communication interfaces. For advanced remote monitoring, alarm signals can be interfaced to Mark V I/O modules or third-party protocol converters.

Q: Is this power supply backward compatible with earlier Mark V system revisions?
A: Yes, the DS200TCPSG1A maintains full form-fit-function compatibility with Mark V systems from initial release through current revisions. It serves as a direct plug-in replacement for earlier DS200TCPSG1A variants and functionally equivalent legacy part numbers, requiring no software changes, backplane modifications, or control system reconfiguration.

Request Selection Assistance & Quotation

To receive detailed application engineering support, competitive pricing, and delivery scheduling tailored to your project requirements, please provide the following information to our technical sales team:

• Project Name & Location: Facility name, city/country, and project timeline
• Application Details: Turbine type (gas/steam), rated power, Mark V system revision
• Electrical Requirements: Available AC input voltage, total DC load current, redundancy requirements
• Environmental Conditions: Ambient temperature range, altitude, humidity, corrosive atmosphere presence
• Quantity & Delivery: Required quantity, preferred delivery date, shipping destination
• Documentation Needs: Certifications, test reports, material traceability, or custom documentation requirements

Our application engineers will respond within 24 hours with customized selection recommendations, technical clarifications, and formal quotations. For urgent turbine outage support, contact our emergency hotline for expedited processing and same-day shipping options.
