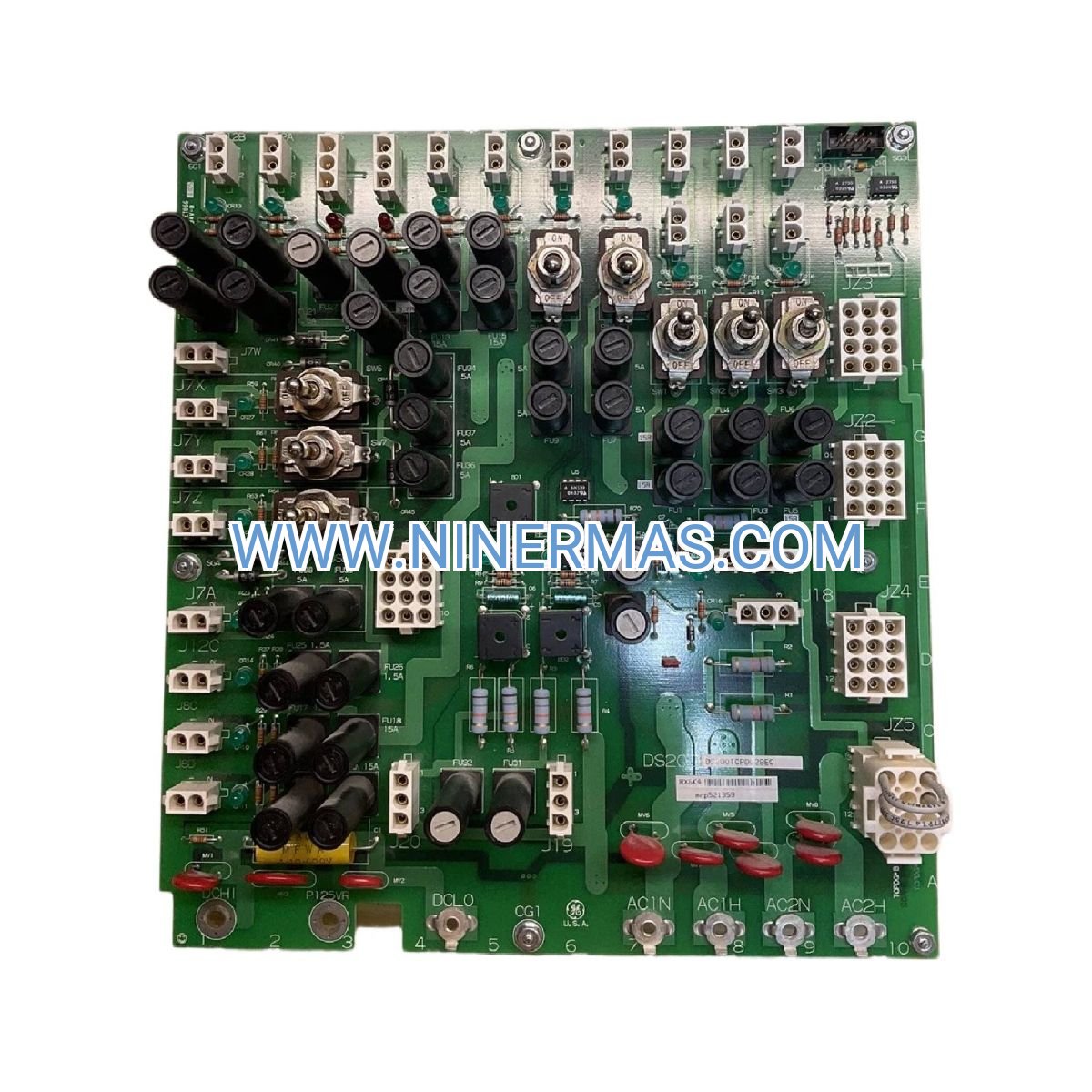

GE DS200TCPDG2BEC Power Distribution Board (Mark V Speedtronic Control System)

The GE DS200TCPDG2BEC is an industrial-grade power distribution board engineered for Mark V Speedtronic turbine control systems. Through precision DC power routing and integrated overcurrent protection circuitry, it ensures stable, uninterrupted power delivery to critical control modules, safeguarding turbine operations in demanding industrial environments.

Designed for gas and steam turbine installations across power generation, oil & gas, and heavy industrial sectors, this board addresses common challenges including voltage fluctuations, power supply instability, thermal stress, and unplanned downtime caused by electrical faults. It is ideal for plant engineers, OEM integrators, and maintenance teams managing legacy Mark V systems.

Built to GE's original specifications with full backward compatibility, the DS200TCPDG2BEC offers reliable performance, straightforward installation, and long-term serviceability. Suitable for retrofit projects, emergency replacements, and planned maintenance programs. Contact our engineering team for application-specific guidance, compatibility verification, and technical documentation.

Core Features & Advantages

• Precision Power Distribution
  Routes regulated DC power to multiple Mark V control modules with low ripple and high stability, minimizing signal noise and ensuring accurate sensor readings and control outputs.
• Integrated Overcurrent Protection
  Built-in fusing and protection circuits prevent cascading failures during fault conditions, isolating affected circuits while maintaining power to unaffected modules, reducing system-wide downtime risk.
• OEM-Certified Compatibility
  Manufactured to GE's original design specifications, ensuring drop-in replacement capability with existing Mark V racks, eliminating the need for custom modifications or re-engineering.
• Robust Industrial Construction
  Conformal-coated PCB with industrial-grade components rated for extended temperature ranges (-30°C to +65°C), high humidity, and vibration environments typical of turbine control cabinets.
• Diagnostic LED Indicators
  Front-panel status LEDs provide real-time visual feedback on power rail health and fault conditions, enabling rapid troubleshooting and reducing mean time to repair (MTTR).
• Long-Term Availability
  Supported by global supply networks and technical documentation archives, ensuring parts availability and engineering support for aging Mark V installations through their operational lifecycle.

Typical Application Scenarios

This power distribution board is engineered for high-reliability applications where continuous turbine operation is mission-critical:

• Power Generation Plants
  Supports gas and steam turbine control systems in utility-scale power stations, ensuring stable power delivery to governor controls, flame detection, and vibration monitoring modules during base-load and peaking operations.
• Oil & Gas Upstream Facilities
  Provides reliable power distribution in offshore platforms, compressor stations, and gas processing plants where environmental extremes and limited maintenance access demand maximum uptime and fault tolerance.
• Industrial Cogeneration Systems
  Enables stable operation of combined heat and power (CHP) turbines in chemical plants, refineries, and manufacturing facilities, where process continuity depends on uninterrupted turbine control.
• Emergency & Standby Power Systems
  Ensures rapid startup and stable operation of backup turbine generators in hospitals, data centers, and critical infrastructure, where power distribution integrity directly impacts emergency response capability.

Technical Parameters & Selection Guide

To ensure proper fit and function, verify the following parameters against your existing Mark V system configuration:

Selection Guidance: When specifying this board, confirm your Mark V system revision, existing power supply ratings, and environmental conditions (temperature, humidity, vibration). For retrofit or upgrade projects, provide turbine model, control cabinet layout, and any custom modifications. Our engineering team can cross-reference legacy part numbers, verify compatibility, and recommend complementary components (power supplies, I/O modules, cables).

Extended Capabilities

• Hot-Swap Capability: Depending on system configuration, certain Mark V racks support live board replacement, minimizing downtime during maintenance windows.
• Remote Monitoring Integration: Status signals can be interfaced with SCADA or DCS systems for centralized alarm management and predictive maintenance analytics.
• Spare Parts Strategy: Recommended as critical spare for plants operating multiple Mark V units, reducing emergency procurement lead times and logistics costs.

Delivery, Service & Quality Assurance

Lead Time: Standard stock items ship within 1–3 business days; custom-tested or refurbished units typically 5–10 business days. Expedited shipping available for emergency outages.

Warranty: 12-month warranty covering material defects and workmanship. Extended warranty and advance replacement programs available for critical applications.

Technical Support: Comprehensive support including pre-sale compatibility verification, installation guidance, wiring diagrams, and post-installation troubleshooting. Remote diagnostic assistance and on-site commissioning services available (region-dependent).

Documentation Package: Each unit ships with installation instructions, electrical schematics, LED diagnostic reference, and recommended spare parts list. Full Mark V system manuals available upon request.

Quality Certifications: All boards undergo functional testing, visual inspection, and electrical parameter verification prior to shipment. Traceability documentation and test reports provided for quality assurance and compliance purposes.

Frequently Asked Questions (FAQ)

Q: How do I verify the DS200TCPDG2BEC is compatible with my Mark V system?
A: Check your existing board's part number and Mark V system revision. The DS200TCPDG2BEC is backward-compatible with all standard Mark V Speedtronic configurations. Provide your turbine model and control cabinet serial number for definitive confirmation.

Q: Can this board be installed without shutting down the turbine?
A: Hot-swap capability depends on your specific Mark V rack configuration and redundancy design. Consult your system documentation or contact our engineers to assess feasibility and safety procedures for live replacement.

Q: What is the typical failure mode, and how can I prevent it?
A: Common failure modes include capacitor aging, connector oxidation, and thermal stress from inadequate cooling. Preventive measures: maintain cabinet ventilation, inspect connectors annually, and monitor LED status indicators for early fault detection.

Q: Do you offer refurbished or exchange units?
A: Yes. Refurbished boards undergo full functional testing and come with the same 12-month warranty. Exchange programs available for time-critical replacements—send your failed board for core credit after receiving the replacement.

Q: Can I integrate this board with modern DCS or SCADA systems?
A: The board itself provides DC power distribution; integration with supervisory systems is typically achieved through Mark V's existing I/O modules and communication interfaces (Modbus, Ethernet/IP). We can recommend compatible interface modules and configuration services.

Q: What environmental conditions can this board withstand?
A: Rated for -30°C to +65°C operating temperature and 5–95% RH non-condensing humidity. Conformal coating provides additional protection against moisture, dust, and chemical contaminants common in industrial turbine enclosures.

Request a Quote or Technical Consultation

To receive a detailed compatibility assessment, pricing, or application-specific recommendations, please provide:

• Turbine model and Mark V system revision
• Current board part number (if replacing)
• Operating environment (temperature, humidity, altitude)
• Quantity required and delivery timeline
• Any custom testing or documentation requirements

Our engineering team will respond within 24 hours with a tailored solution, technical drawings, and delivery options.
