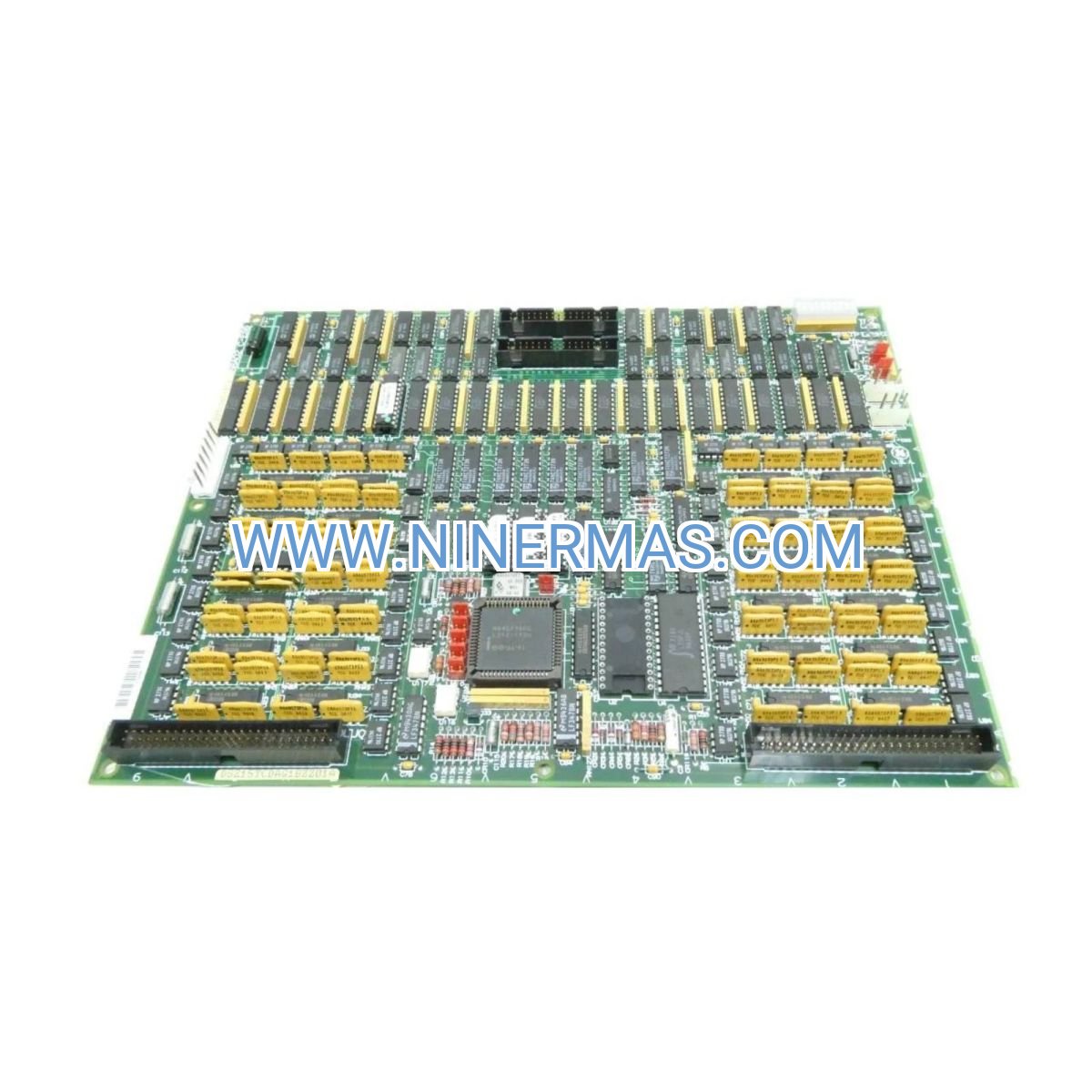

GE DS200TCDAG1BCB Terminal Control Diagnostics Board | Mark V Speedtronic Turbine System

GE DS200TCDAG1BCB Terminal Control and Diagnostics Board (Industrial-Grade Turbine Control Solution)

The GE DS200TCDAG1BCB is a precision-engineered terminal control and diagnostics board designed for Mark V Speedtronic turbine control systems. Through advanced signal processing, real-time diagnostics, and robust I/O interfacing, this board ensures reliable turbine operation, fault detection, and seamless integration with distributed control architectures.

Widely deployed in power generation plants, petrochemical facilities, oil & gas compression stations, and industrial cogeneration systems, the DS200TCDAG1BCB addresses critical challenges including signal integrity degradation, diagnostic latency, unplanned downtime, and compatibility issues during system upgrades or retrofits.

Leveraging standardized design with field-proven reliability, this board delivers superior noise immunity, extended MTBF (Mean Time Between Failures), simplified maintenance workflows, and full backward compatibility with legacy Mark V installations. Ideal for plant engineers, OEM integrators, maintenance contractors, and asset managers seeking to maximize turbine availability and minimize lifecycle costs. Contact our application engineers for system-specific configuration guidance and technical quotations.

Core Features & Technical Advantages

• Real-Time Diagnostics & Fault Isolation
  Integrated diagnostic circuitry continuously monitors signal health, detects anomalies, and provides actionable fault codes, reducing troubleshooting time by up to 40% and preventing cascading failures.
• High Signal Integrity & Noise Immunity
  Employs differential signaling, shielded traces, and industrial-grade filtering to maintain accuracy in high-EMI environments typical of turbine halls and substations, ensuring stable control loop performance.
• Seamless Mark V Ecosystem Integration
  Fully compatible with GE Mark V Speedtronic architecture, supporting plug-and-play replacement with minimal reconfiguration, preserving existing wiring harnesses and control logic.
• Extended Operating Temperature & Vibration Resistance
  Qualified for -40°C to +70°C ambient operation and IEC 60068-2-6 vibration compliance, suitable for harsh industrial and offshore installations where environmental stress is a concern.
• Comprehensive Protection & Self-Diagnostics
  Features overvoltage protection, reverse polarity safeguards, watchdog timers, and built-in self-test (BIST) routines, minimizing risk of board damage and simplifying commissioning validation.
• Modular Design for Rapid Serviceability
  Hot-swappable architecture (where system design permits) and clearly labeled terminal blocks enable fast field replacement, reducing mean time to repair (MTTR) and operational disruption.

Typical Application Scenarios

This board is engineered for mission-critical turbine control applications demanding high reliability, precise diagnostics, and long-term parts availability:

• Power Generation & Utility Turbines
  Ensures stable control and rapid fault response in gas turbines, steam turbines, and combined-cycle plants, supporting grid stability and regulatory compliance with minimal unplanned outages.
• Petrochemical & Refinery Compression
  Maintains process continuity in gas compression trains and mechanical drive turbines, where control board failure can trigger costly production shutdowns and safety incidents.
• Oil & Gas Offshore Platforms
  Provides ruggedized control in offshore turbine-generator sets and compressor packages, withstanding salt fog, vibration, and temperature cycling inherent to marine environments.
• Industrial Cogeneration & District Heating
  Supports reliable operation of CHP (combined heat and power) turbines in manufacturing plants, hospitals, and district energy systems, optimizing fuel efficiency and uptime.
• Legacy System Upgrades & Spare Parts Management
  Serves as a drop-in replacement for aging or obsolete boards in existing Mark V installations, extending asset life and deferring costly full-system migrations.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide key electrical, mechanical, and environmental specifications. Custom configurations and extended testing (e.g., burn-in, environmental stress screening) are available upon request.

Selection Recommendations: When specifying, confirm system voltage compatibility, environmental conditions (temperature extremes, vibration, humidity), existing Mark V software revision, and any site-specific certifications (ATEX, IECEx, UL). For retrofit projects, provide current board revision and serial number to ensure functional equivalence. Our engineering team can assist with compatibility verification and provide certified test reports upon request.

Extended Capabilities & Integration Options

• Remote Monitoring & SCADA Integration: Supports integration with plant DCS/SCADA systems via standard protocols (Modbus, OPC), enabling centralized diagnostics and predictive maintenance analytics.
• Redundancy & Failover Configurations: Can be deployed in redundant pairs (where system architecture supports) to achieve fault-tolerant control, critical for high-availability applications.
• Firmware & Calibration Services: Factory-calibrated and tested; firmware updates and recalibration services available to maintain performance over extended service life.
• Custom Testing & Certification: Extended burn-in (168-hour), environmental stress screening (ESS), and third-party certification (TÜV, DNV) available for mission-critical or offshore projects.

Delivery, Warranty & Technical Support

Lead Time: Standard stock items ship within 2–5 business days; custom-configured or tested units typically 10–15 business days. Expedited processing available for emergency outages.

Warranty: 12-month comprehensive warranty covering material defects and workmanship. Extended warranty and advance replacement programs available for critical spares inventory.

Technical Documentation: Each unit ships with installation guide, terminal wiring diagram, functional block diagram, and compliance certificates. Full technical manuals and CAD drawings available upon request.

Installation & Commissioning Support: Remote technical assistance included; on-site commissioning and integration services available regionally (subject to location and scope). Our engineers provide pre-installation reviews, startup supervision, and post-installation validation testing.

Quality Assurance: All boards undergo multi-stage inspection, functional testing, and traceability documentation. ISO 9001-compliant processes ensure consistent quality and regulatory compliance.

Frequently Asked Questions (FAQ)

Q: How do I verify the GE DS200TCDAG1BCB board is compatible with my existing Mark V Speedtronic system?
A: Compatibility depends on your Mark V software revision, backplane type, and system configuration. Provide your current board part number, system software version, and turbine model to our technical team for verification. We can cross-reference against GE compatibility matrices and provide a formal compatibility statement.

Q: What is the typical failure mode for DS200TCDAG1BCB boards, and how can I prevent it?
A: Common failure modes include electrolytic capacitor aging, connector corrosion, and transient overvoltage damage. Preventive measures: maintain clean, climate-controlled environments; inspect and re-torque terminal connections annually; use surge protection on power feeds; and follow GE-recommended calibration intervals. Predictive monitoring of diagnostic parameters can identify degradation before failure.

Q: Can this board be repaired, or is replacement the only option?
A: Many faults (e.g., failed capacitors, damaged connectors, trace repairs) are repairable by qualified electronics service centers. However, repair turnaround (2–4 weeks) and cost-effectiveness vary. For critical spares, we recommend maintaining a ready replacement and sending failed units for repair as non-critical stock replenishment.

Q: Does the DS200TCDAG1BCB support hot-swapping during turbine operation?
A: Hot-swap capability depends on system design and redundancy configuration. In non-redundant systems, board replacement typically requires a controlled shutdown. In redundant configurations with proper interlocks, hot-swap may be possible—consult your system integrator and GE documentation for safe procedures.

Q: What environmental protection rating does this board have, and can it be used in hazardous areas?
A: The board itself is designed for controlled cabinet environments (IP20 typical when panel-mounted). For hazardous area deployment (Zone 1, Zone 2, Class I Div 2), it must be installed in appropriately rated enclosures (e.g., NEMA 4X, Ex e, Ex d). Consult local regulations and certification requirements; we can provide supporting documentation for enclosure selection.

Q: Are firmware updates or recalibration required after installation?
A: Boards ship with current firmware and factory calibration. Firmware updates are rare and typically issued only for critical bug fixes or feature enhancements—check with GE service bulletins. Recalibration intervals depend on application criticality; annual verification is recommended for high-precision control loops, though many installations operate 3–5 years between calibrations without drift.

Request a Quote or Technical Consultation

To receive a detailed selection proposal, pricing, or technical support, please provide the following information: project name, application type (power generation, compression, etc.), turbine model and Mark V software revision, quantity required, delivery timeline, and any special testing or certification needs. Our application engineers will respond within 24 hours with a tailored recommendation, compliance documentation, and commercial terms.
