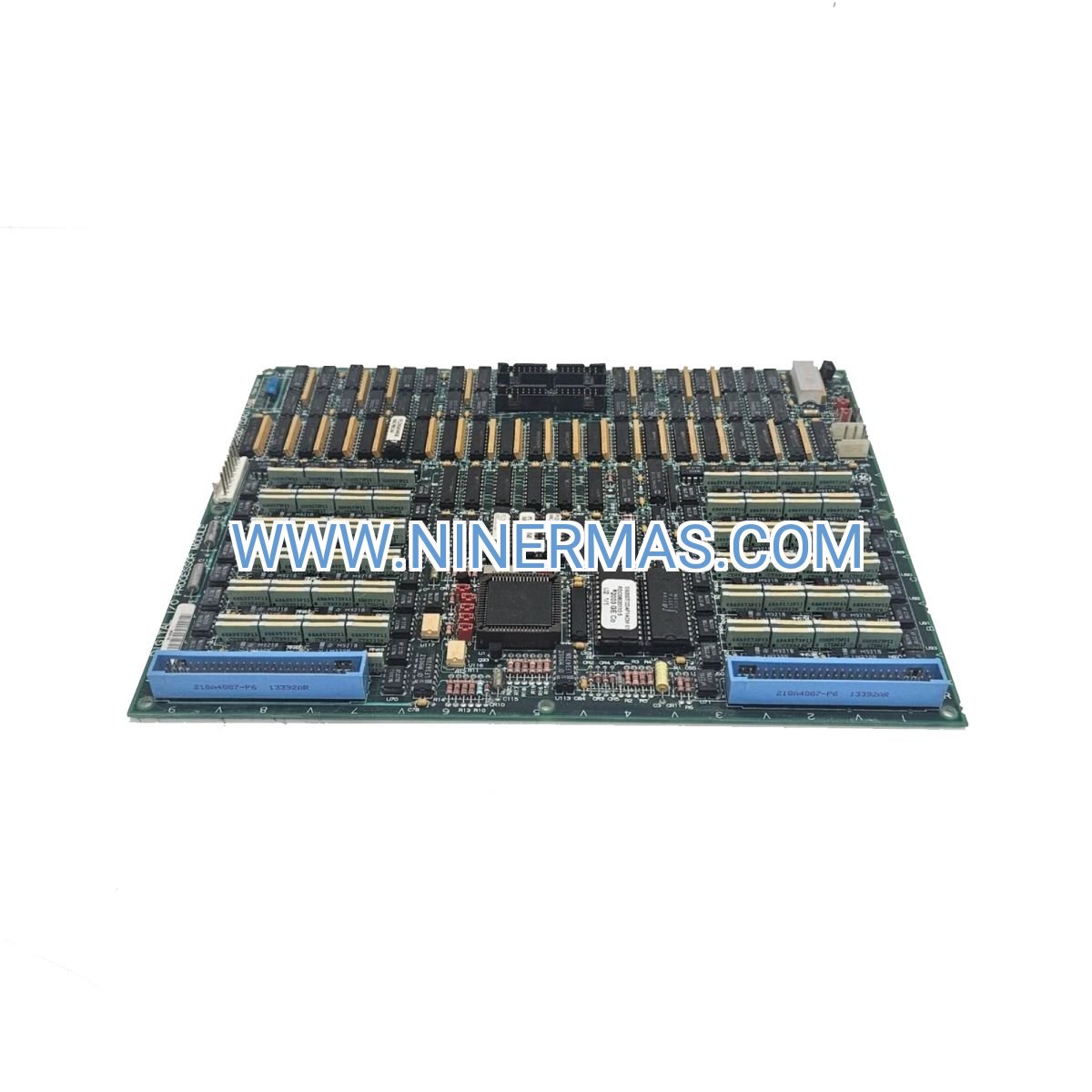

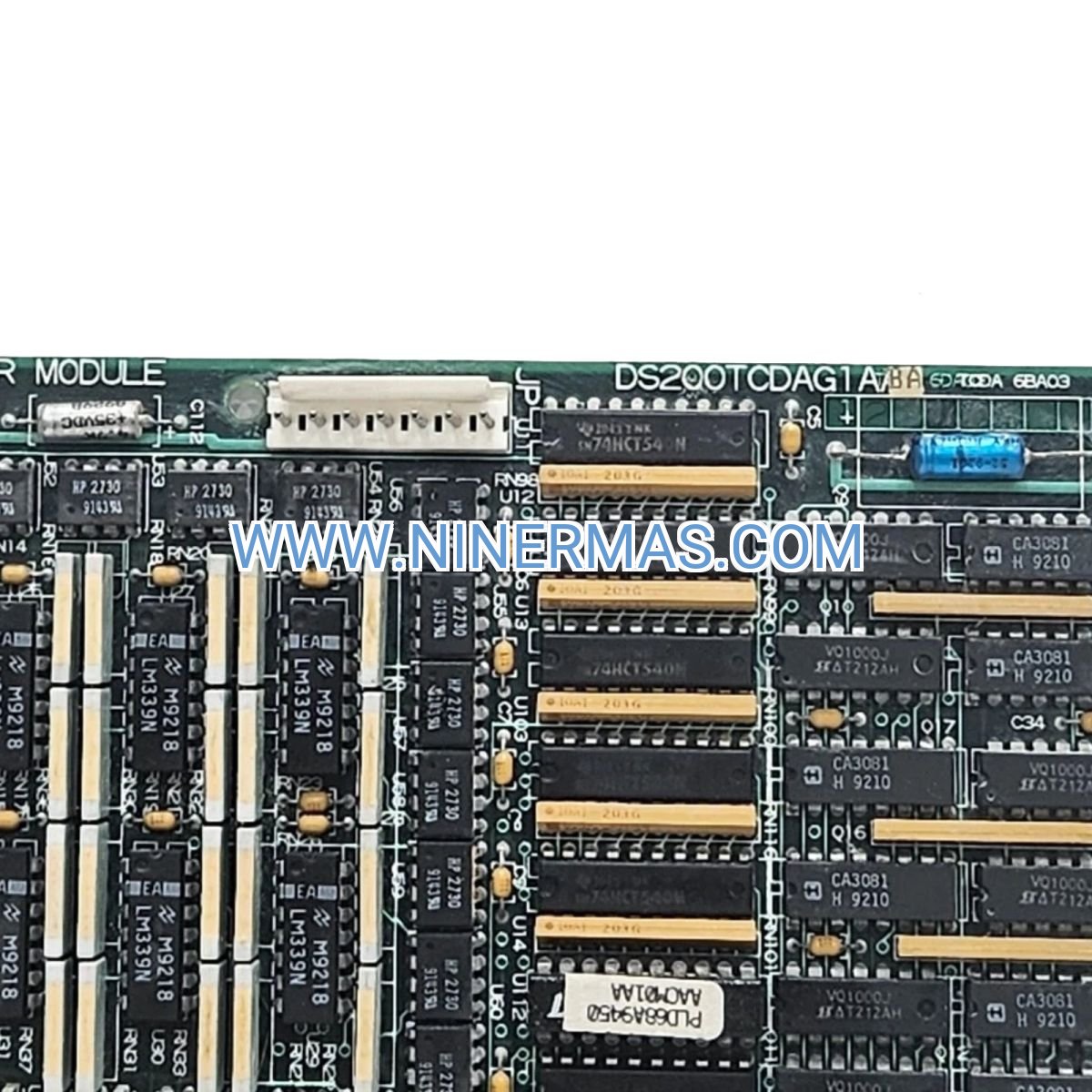

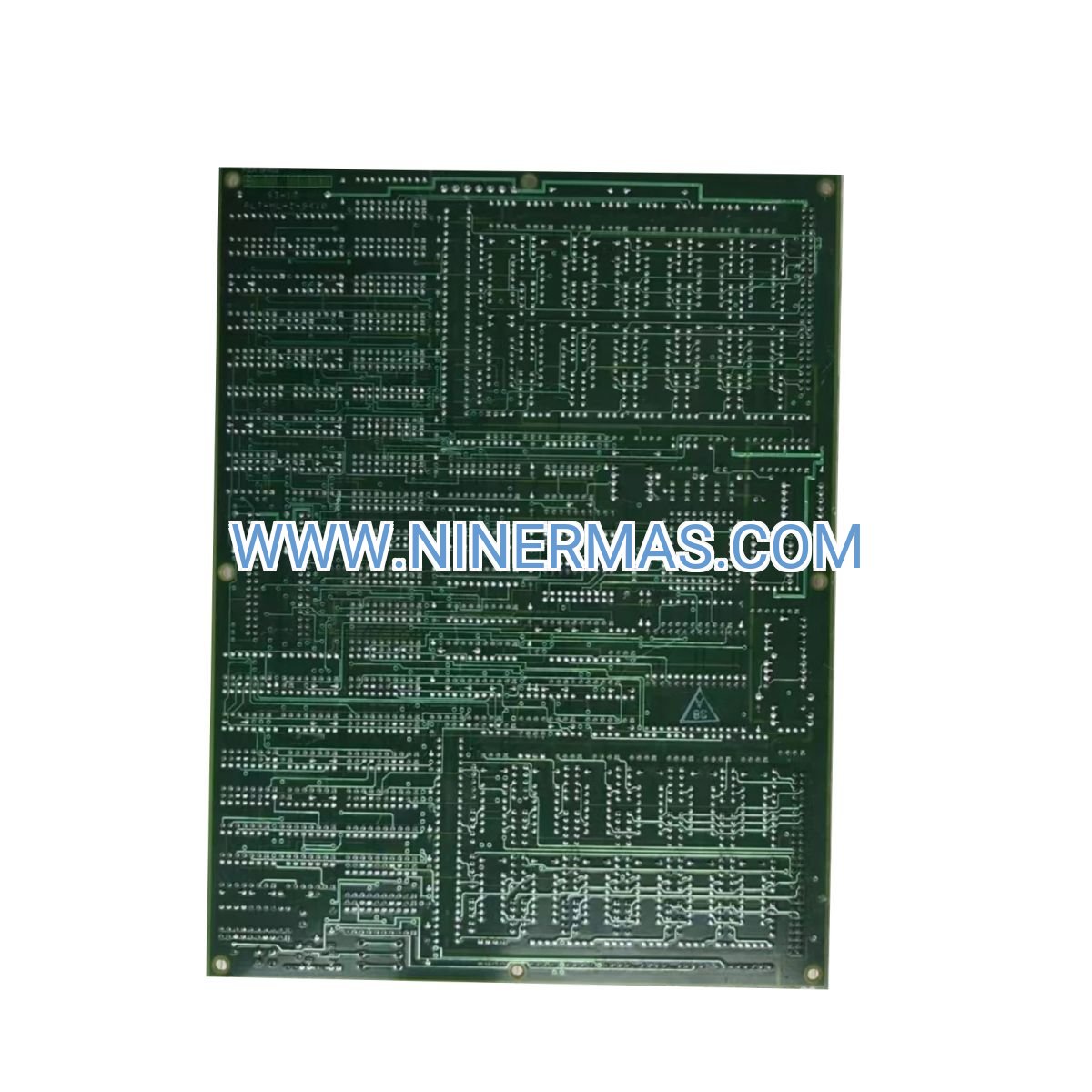

DS200TCDAG1A Digital I/O Board – Industrial-Grade Signal Processing for GE Mark V Turbine Control

The DS200TCDAG1A Digital I/O Board is a precision-engineered control module designed for GE Mark V Speedtronic turbine control platforms, delivering reliable digital signal acquisition and output control for gas turbines, steam turbines, and combined-cycle power generation systems. Through advanced optical isolation technology and robust signal conditioning circuits, this board ensures stable operation in demanding industrial environments including power plants, petrochemical facilities, and offshore platforms.

Ideal for design engineers, system integrators, plant maintenance teams, and OEM equipment manufacturers seeking proven I/O solutions for turbine automation. The DS200TCDAG1A addresses critical challenges such as signal noise interference, ground loop issues, harsh environmental conditions, and the need for long-term system reliability in 24/7 continuous operation scenarios.

Featuring standardized VME rack mounting with customizable I/O configurations, this module offers multi-channel digital input monitoring, relay/solid-state output switching, and comprehensive diagnostic capabilities. Compatible with GE's extensive Mark V ecosystem, it integrates seamlessly with terminal boards, power supplies, and communication networks. Contact our application engineers for tailored system design consultation and competitive quotations.

Core Functions & Technical Advantages

High-Density Multi-Channel I/O Architecture
Provides 16 independent 24V DC digital input channels and 8 configurable digital output channels (relay or solid-state), supporting both sourcing (PNP) and sinking (NPN) sensor configurations through field-selectable jumpers, maximizing compatibility with diverse field devices and control logic requirements.

Industrial-Grade Optical Isolation Protection
Incorporates 1500V optical isolation between field signals and control logic circuits, effectively eliminating ground loops, suppressing electrical noise, and protecting sensitive control electronics from voltage transients and electromagnetic interference common in high-power turbine environments.

Extended Environmental Operating Range
Engineered for -40°C to +70°C ambient temperature operation with conformal coating options available, ensuring reliable performance in extreme climates, high-humidity coastal installations, desert power plants, and arctic drilling platforms without thermal derating or auxiliary cooling.

Real-Time Diagnostic & Status Monitoring
Integrated LED indicators and built-in self-test (BIST) functions provide instant visual feedback on channel status, power supply health, and communication integrity, reducing troubleshooting time and enabling predictive maintenance strategies to minimize unplanned downtime.

Plug-and-Play System Integration
Standardized VME form factor with keyed connectors ensures correct installation, while pre-configured compatibility with GE Mark V controller firmware eliminates complex programming requirements—simply install, connect terminal boards, and configure through existing HMI software for rapid commissioning.

Low Power Consumption & Heat Dissipation
Maximum 12W power draw reduces cabinet cooling requirements and energy costs, particularly beneficial in multi-module control systems where cumulative heat generation impacts HVAC sizing and operational expenses over the system's 15+ year service life.

Typical Application Scenarios

The DS200TCDAG1A digital I/O board serves mission-critical roles across diverse turbine control applications, particularly in systems demanding high signal integrity, environmental resilience, and long-term availability:

Combined-Cycle Power Plant Turbine Control
Manages valve position feedback, flame scanner signals, vibration sensor inputs, and emergency shutdown relay outputs in gas turbine generators and heat recovery steam generators (HRSG), coordinating with distributed control systems (DCS) to optimize thermal efficiency and emissions compliance during load-following operations.

Petrochemical Compressor & Pump Automation
Processes digital signals from pressure switches, flow transmitters, motor contactors, and safety interlocks in centrifugal compressor trains and pipeline booster stations, enabling automated start/stop sequences, anti-surge control, and fault-tolerant operation in hazardous area classifications (Class I Div 2 with appropriate enclosures).

Offshore Oil & Gas Platform Safety Systems
Provides redundant digital I/O for emergency shutdown (ESD) valves, fire and gas detection panels, blowout preventer (BOP) controls, and platform evacuation alarms, meeting SIL-rated safety integrity requirements when configured in dual-redundant Mark V architectures with voting logic.

Industrial Cogeneration & District Heating Plants
Interfaces with steam pressure regulators, condensate return pumps, deaerator level controls, and thermal energy storage systems, supporting combined heat and power (CHP) optimization algorithms that balance electrical generation with process steam demands in manufacturing facilities and university campuses.

Renewable Energy Hybrid Power Systems
Coordinates digital control signals between gas turbine peaking units and solar/wind farm inverters in microgrid applications, managing grid synchronization, black-start capabilities, and load-shedding priorities during islanded operation or utility interconnection events.

Technical Parameters & Selection Guide

To facilitate accurate system design and procurement, the following specifications define the DS200TCDAG1A's electrical, mechanical, and environmental characteristics. Custom configurations are available for specialized applications—consult our engineering team with your project requirements.

Selection Considerations for System Designers:

When specifying the DS200TCDAG1A for your turbine control project, evaluate the following criteria to ensure optimal performance and compatibility:

• I/O Channel Requirements: Verify total digital input/output point count across all control loops, including normal operation, startup/shutdown sequences, and emergency scenarios. Account for 20% spare capacity for future expansion.
• Signal Voltage Levels: Confirm field device compatibility with 24V DC logic levels. For 48V or 125V DC systems, specify appropriate signal conditioning modules or terminal board variants.
• Environmental Conditions: Assess ambient temperature extremes, humidity levels, vibration profiles (per IEC 60068-2-6), and potential exposure to corrosive atmospheres. Request conformal coating for coastal or chemical plant installations.
• Redundancy Architecture: For SIL 2/3 safety applications, implement dual-redundant I/O modules with independent power supplies and 2oo3 (two-out-of-three) voting logic in the Mark V controller configuration.
• Terminal Board Pairing: Select compatible DS200 series terminal boards (e.g., DS200DTBBG1AAA, DS200DTBCG1AAA) based on field wiring termination preferences—screw terminals for maintenance accessibility or spring-clamp for vibration resistance.
• Cabinet Space Allocation: Plan VME rack slot assignments considering heat dissipation patterns, cable routing clearances, and accessibility for online module replacement during scheduled maintenance windows.

For application-specific guidance, provide our engineering team with: turbine model and capacity, control system architecture diagram, I/O point list with signal types, environmental classification, and any special regulatory requirements (ATEX, IECEx, API standards). We will recommend optimized module configurations and provide detailed quotations within 24-48 hours.

Extended Functionality & System Integration

Modbus RTU/TCP Communication Gateway Integration
When paired with GE's communication interface modules, the DS200TCDAG1A enables remote SCADA monitoring and data historian integration via Modbus RTU (RS-485) or Modbus TCP/IP protocols, supporting predictive analytics platforms and enterprise asset management (EAM) systems for condition-based maintenance strategies.

Redundant Power Supply Failover
Supports automatic switchover between primary and backup +24V DC power rails without signal interruption, critical for uninterruptible power supply (UPS)-backed control systems in hospitals, data centers, and mission-critical industrial processes where even millisecond outages are unacceptable.

Hot-Swap Capability (With Appropriate Backplane)
Certain Mark V rack configurations allow online module replacement without system shutdown, enabling proactive component replacement during scheduled inspections or rapid fault recovery in redundant architectures, minimizing production losses and maintenance windows.

Cybersecurity Hardening Options
For networked control systems subject to NERC CIP, IEC 62443, or NIST 800-82 compliance, the DS200TCDAG1A operates within air-gapped control networks or behind industrial firewalls, with firmware integrity verification and access control mechanisms managed at the Mark V controller level.

Delivery, Service & Quality Assurance

Lead Time & Inventory Availability:
Standard DS200TCDAG1A modules typically ship within 3-5 business days from our certified distribution centers. Custom-configured units with specialized testing or conformal coating require 10-15 business days. Expedited shipping options (DHL Express, FedEx International Priority) available for urgent project deadlines or emergency replacement scenarios.

Comprehensive Warranty & Support:
All modules include a 12-month manufacturer-backed warranty covering material defects and workmanship failures under normal operating conditions. Extended warranty plans (24/36 months) available for critical infrastructure applications. Technical support includes remote diagnostics assistance, configuration file review, and troubleshooting guidance via phone, email, or video consultation.

Installation & Commissioning Services:
Field service engineers available for on-site installation supervision, system integration testing, and operator training (subject to geographic availability and project scope). Remote commissioning support provided via secure VPN connections for routine installations following our detailed quick-start guides and wiring diagrams.

Technical Documentation Package:
Each shipment includes: product datasheet with electrical specifications, VME rack installation instructions, terminal board wiring diagrams, I/O configuration worksheets, and Mark V controller programming examples. CAD drawings (DXF/PDF) and 3D STEP models available upon request for panel design integration.

Quality Verification & Testing:
Prior to shipment, every DS200TCDAG1A undergoes: visual inspection for physical damage, continuity testing of all I/O channels, isolation voltage verification (hipot test), power consumption measurement, and functional validation in a simulated Mark V environment. Test reports and certificates of conformance (C of C) provided with each order.

Compliance & Traceability:
Full material traceability maintained per ISO 9001:2015 quality management standards. RoHS compliance documentation, conflict minerals declarations, and country-of-origin certificates available for customs clearance and corporate procurement requirements.

Frequently Asked Questions (FAQ)

Q: What distinguishes the DS200TCDAG1A from the DS200TCDAG1BCB variant?
A: The DS200TCDAG1A represents the standard production revision suitable for most industrial environments. The DS200TCDAG1BCB incorporates enhanced diagnostic firmware, conformal coating for corrosive atmosphere protection, and extended temperature screening (-40°C to +85°C storage). Both maintain full backward compatibility with existing Mark V installations, though the BCB variant is recommended for offshore, marine, or chemical processing applications.

Q: Can this I/O board interface with third-party PLCs or DCS systems outside the GE ecosystem?
A: The DS200TCDAG1A is specifically engineered for GE Mark V Speedtronic controllers and communicates via proprietary VME backplane protocols. Direct integration with Siemens, Allen-Bradley, or Honeywell systems is not supported. For multi-vendor control architectures, implement protocol gateways (Modbus, OPC UA) at the Mark V controller level rather than at individual I/O modules.

Q: What is the maximum cable length between the DS200TCDAG1A and field-mounted sensors?
A: For 24V DC digital inputs, recommended maximum cable length is 100 meters (328 feet) using shielded twisted-pair wire (18-22 AWG) to maintain signal integrity and noise immunity. Longer distances require signal repeaters or 4-20mA current loop conversion. Output circuits support similar distances for relay contacts; solid-state outputs may require local pull-up resistors beyond 50 meters.

Q: Does the module require firmware updates or configuration programming after installation?
A: No. The DS200TCDAG1A functions as a hardware I/O interface without user-accessible firmware. All configuration (input/output assignments, alarm setpoints, logic functions) is managed through the Mark V controller's programming environment (ToolboxST software). Simply install the module in the VME rack, connect the appropriate terminal board, and configure I/O mappings in your existing control logic.

Q: What is the typical service life expectancy for this digital I/O board?
A: Under normal industrial operating conditions (controlled temperature, filtered air, stable power supply), the DS200TCDAG1A demonstrates a mean time between failures (MTBF) exceeding 150,000 hours (approximately 17 years of continuous operation). Actual service life often extends beyond 20 years, with replacement typically driven by system-wide technology upgrades (e.g., migration to Mark VIe platforms) rather than component failure. Relay output contacts may require earlier replacement in high-cycle applications (>1 million operations).

Q: Are there any known obsolescence concerns or recommended migration paths?
A: While GE continues to support Mark V systems with spare parts and service, newer installations favor the Mark VIe platform with enhanced cybersecurity and diagnostics. For existing Mark V systems, the DS200TCDAG1A remains fully supported with no announced end-of-life date. Long-term asset management strategies should consider stocking critical spares or evaluating Mark VIe upgrade paths during major plant overhauls (typically 15-20 year intervals).

Q: Can I mix different revision codes (e.g., DS200TCDAG1A and DS200TCDAG1ADB) in the same VME rack?
A: Yes, different hardware revisions of the same base part number are generally interchangeable within a Mark V system, provided they share the same functional specifications (I/O count, voltage ratings). However, consult GE's technical advisory notes for your specific controller firmware version, as certain legacy systems may require matched revision sets for redundant configurations. Always update system documentation to reflect actual installed hardware revisions.

Request Technical Consultation & Quotation

Our application engineering team specializes in Mark V turbine control system design, retrofit projects, and spare parts optimization. To receive a customized solution proposal and competitive pricing, please provide the following project information:

• Project Overview: Facility type (power plant, refinery, offshore platform), turbine manufacturer and model, control system upgrade scope
• Application Requirements: Total digital I/O point count, signal voltage levels, environmental classification (temperature range, hazardous area rating)
• System Architecture: Existing Mark V controller model, VME rack configuration, redundancy requirements (simplex, dual-redundant, TMR)
• Delivery Constraints: Project timeline, shipping destination, import/export documentation needs
• Support Services: Installation assistance, commissioning support, operator training, extended warranty preferences

Submit inquiries via email with technical drawings or I/O lists attached, and our team will respond within 24 hours with preliminary recommendations. For urgent requirements or complex integration challenges, schedule a consultation call with our senior control systems engineers.
