GE DS200TCCBG1BZZ I/O Terminal Board – Industrial-Grade Signal Interface for Mark V Speedtronic Systems

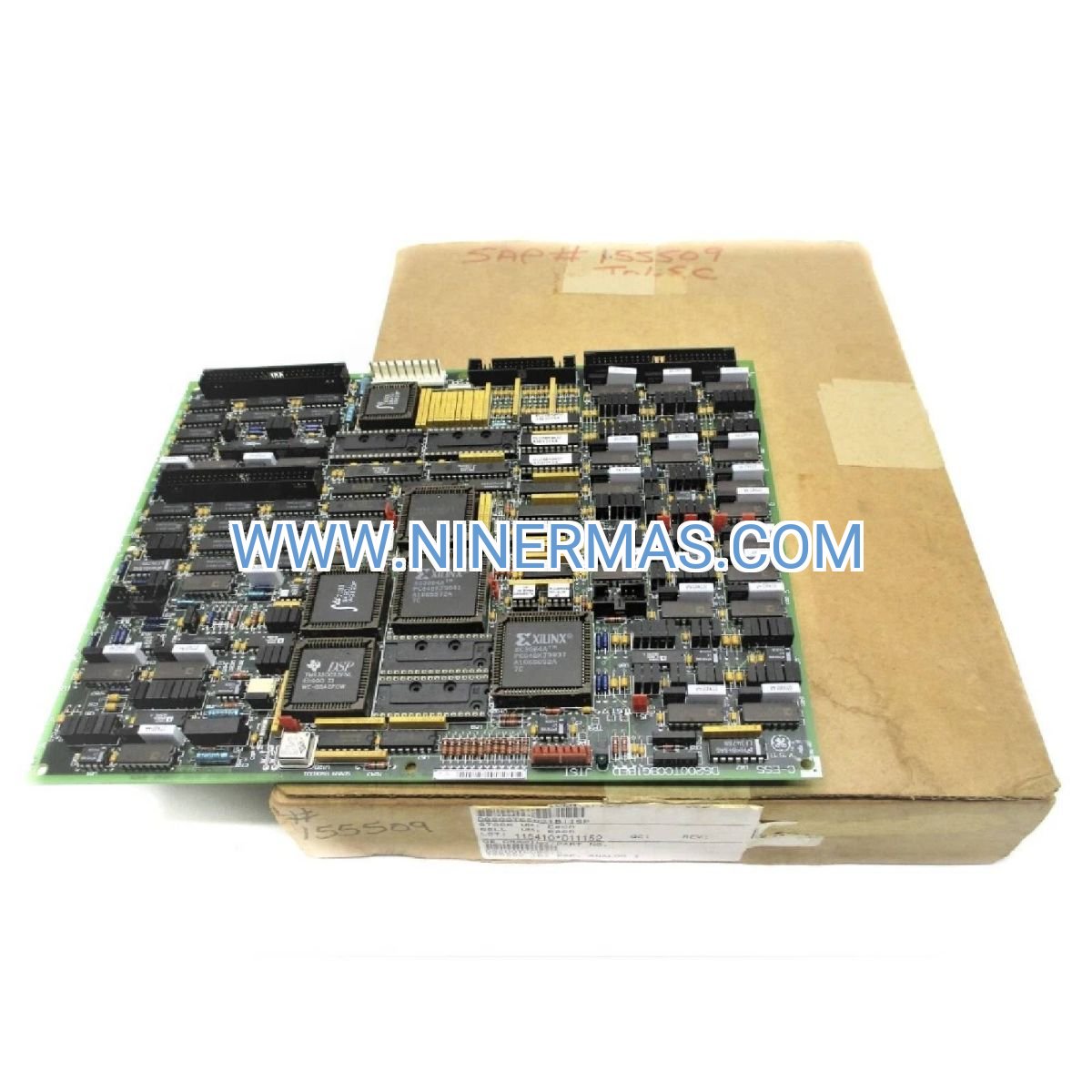

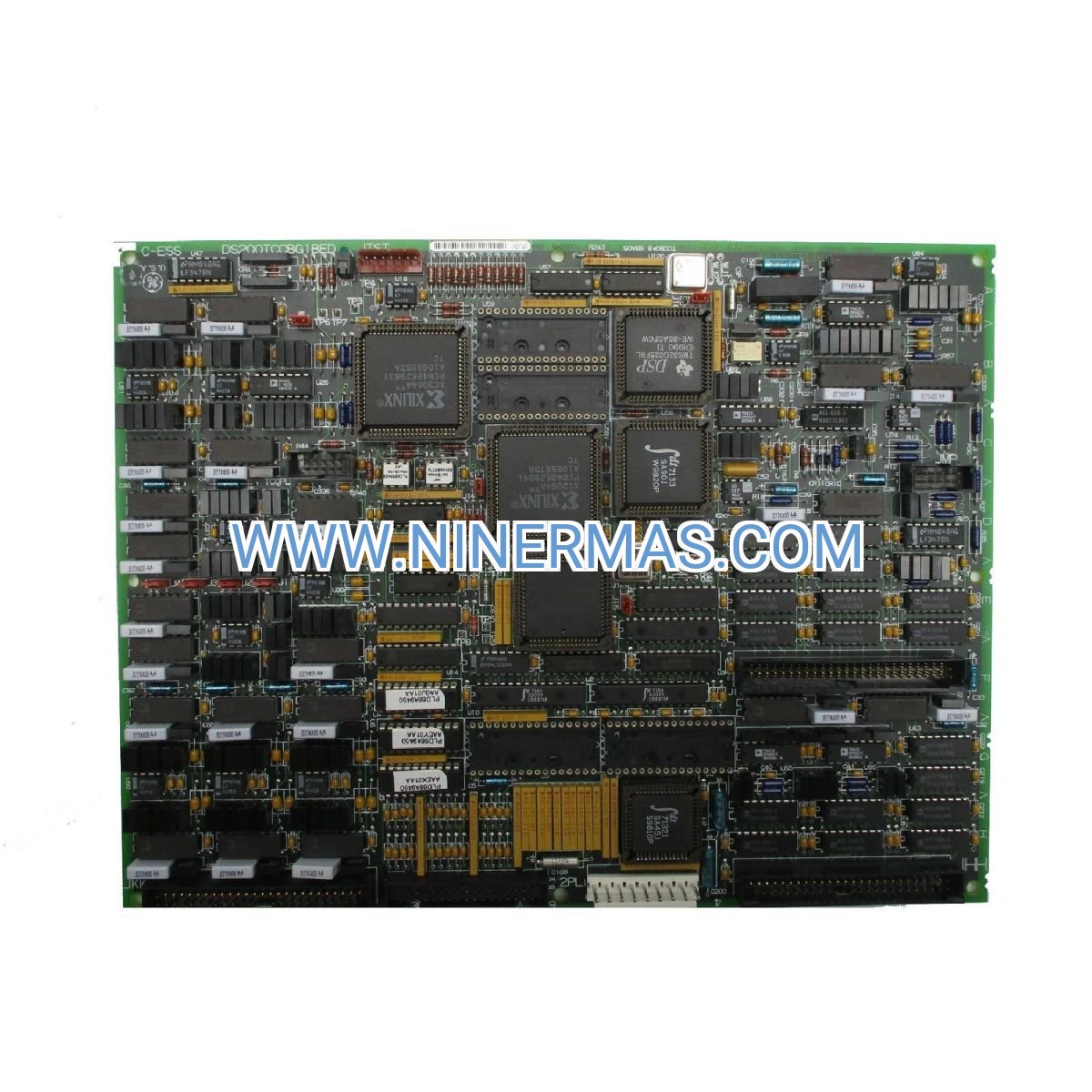

The GE DS200TCCBG1BZZ I/O Terminal Board is a precision-engineered interface module designed for Mark V Speedtronic turbine control systems. Through robust terminal block architecture and industrial-grade signal conditioning, it enables reliable analog and digital I/O connectivity between field instruments and the central control processor, ensuring accurate data acquisition and command execution in mission-critical power generation and industrial turbine applications.

This terminal board is specifically engineered for gas turbine control systems, steam turbine monitoring, combined-cycle power plants, and industrial co-generation facilities, addressing challenges such as signal noise interference, wiring complexity, harsh environmental conditions, and the need for rapid fault diagnosis. It provides dependable signal routing with built-in surge protection and EMI shielding to maintain system integrity.

Leveraging standardized GE design with field-proven reliability, the DS200TCCBG1BZZ offers plug-and-play compatibility with Mark V architecture, comprehensive diagnostic LED indicators, and modular replacement capability—making it ideal for OEMs, system integrators, plant maintenance teams, and control system retrofitters. Contact our engineering team for application-specific configuration guidance and technical documentation.

Core Functions & Advantages

• Multi-Channel Signal Interface
  Provides dedicated terminal connections for analog inputs (4-20mA, 0-10V), digital I/O, and thermocouple signals, enabling comprehensive monitoring of turbine parameters including temperature, pressure, vibration, and speed with minimal signal degradation.
• Industrial-Grade Reliability
  Constructed with conformal-coated PCB, industrial-spec connectors, and wide operating temperature range (-40°C to +70°C), ensuring stable performance in power plant environments with high vibration, electromagnetic interference, and thermal cycling.
• Rapid Fault Diagnosis
  Equipped with channel-specific LED indicators and built-in self-test functionality, allowing maintenance personnel to quickly identify wiring faults, open circuits, or signal anomalies—reducing mean time to repair (MTTR) by up to 40%.
• Seamless Mark V Integration
  Factory-configured for direct compatibility with GE Mark V control architecture, supporting hot-swappable installation without system reconfiguration, minimizing downtime during maintenance or emergency replacement scenarios.
• Comprehensive Protection Features
  Incorporates transient voltage suppression, reverse polarity protection, and isolated ground design to safeguard sensitive control electronics from field-induced surges, ground loops, and electrical noise—extending system lifespan and reducing unplanned outages.
• Flexible Wiring Architecture
  Features removable terminal blocks with clear labeling and color-coded zones, simplifying installation, troubleshooting, and future system expansion while maintaining compliance with industrial wiring standards (IEC 61131, NFPA 70).

Typical Application Scenarios

The DS200TCCBG1BZZ I/O Terminal Board is engineered for environments demanding high signal integrity, continuous operation, and rapid serviceability, particularly in:

• Gas & Steam Turbine Power Generation
  Serves as the critical signal interface layer in utility-scale power plants (50-500MW), connecting field sensors (vibration probes, RTDs, pressure transmitters) to Mark V controllers, ensuring real-time turbine protection and performance optimization with sub-millisecond response times.
• Combined-Cycle & Co-Generation Plants
  Facilitates integrated control of gas turbine, HRSG, and steam turbine systems by routing multi-source signals through a unified terminal architecture, supporting complex sequencing logic and load-following operations while maintaining regulatory compliance (NERC, IEEE).
• Industrial Process Control & Mechanical Drive
  Provides reliable I/O connectivity for turbine-driven compressors, pumps, and generators in petrochemical, oil & gas, and manufacturing facilities, where process uptime directly impacts production throughput and safety performance.
• Retrofit & Modernization Projects
  Enables phased control system upgrades by maintaining backward compatibility with legacy Mark V installations while supporting integration with modern DCS/SCADA platforms via standard communication protocols (Modbus, Ethernet/IP).

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide standardized specifications for the DS200TCCBG1BZZ terminal board. Custom configurations are available for specialized applications requiring extended I/O counts or environmental hardening.

Selection Recommendations: When specifying the DS200TCCBG1BZZ, consider: (1) total I/O point count required for your turbine monitoring scheme, (2) signal type distribution (analog vs. digital), (3) environmental conditions at installation location (temperature extremes, vibration levels), (4) existing Mark V controller model and firmware version, and (5) spare parts strategy (individual board vs. complete rack assembly). For application engineering support, please provide: turbine model/rating, control system configuration, I/O list with signal types, and site environmental data. Our technical team will recommend the optimal configuration and provide integration documentation.

Extended Capabilities

• Remote Diagnostics Integration: Compatible with GE ToolboxST software for remote monitoring, trending, and predictive maintenance analytics via Ethernet connectivity.
• Redundancy Support: Can be configured in dual-redundant architecture (TMR - Triple Modular Redundant) for SIL-rated safety applications in critical turbine protection systems.
• Protocol Bridging: Supports integration with third-party DCS platforms (Honeywell, Emerson, Siemens) through standard industrial protocols, enabling hybrid control architectures.
• Calibration & Testing: Factory-calibrated with traceable certification; field recalibration supported using standard test equipment per GE service procedures.

Delivery, Service & Quality Assurance

Lead Time: Standard DS200TCCBG1BZZ units typically ship within 3-5 business days from stock; custom-configured or refurbished units require 7-14 days. Expedited shipping available for emergency outage support.

Warranty: All boards include a comprehensive 12-month warranty covering manufacturing defects and component failures under normal operating conditions. Extended warranty and advance replacement programs available for critical installations.

Technical Support: Our engineering team provides pre-sales application consulting, installation guidance, commissioning assistance, and post-sales troubleshooting support. Remote diagnostic services available via secure VPN connection. On-site field service can be arranged for complex integrations or system-wide retrofits (subject to location and scope).

Documentation Package: Each unit ships with: (1) detailed installation manual with wiring diagrams, (2) terminal block layout and signal assignment drawings, (3) functional test procedures, (4) recommended spare parts list, and (5) compliance certificates (CE, UL, RoHS). CAD drawings and 3D models available upon request for panel design integration.

Quality Certifications: Manufactured under ISO 9001:2015 quality management system; all units undergo 100% functional testing including signal accuracy verification, insulation resistance testing, and burn-in cycling before shipment.

Frequently Asked Questions (FAQ)

Q: How does the DS200TCCBG1BZZ I/O Terminal Board integrate with existing Mark V Speedtronic systems?
A: The DS200TCCBG1BZZ is designed for plug-and-play compatibility with Mark V control racks. Integration requires: (1) verifying your Mark V controller model and firmware version, (2) confirming available slot positions in the I/O rack, (3) mapping field signals to terminal block positions per GE wiring standards, and (4) configuring I/O tags in the ToolboxST software. Our team provides pre-configured terminal assignments and integration checklists to streamline commissioning.

Q: What is the maximum number of I/O points this terminal board can handle?
A: The DS200TCCBG1BZZ typically supports 16-32 analog input channels and 8-16 digital I/O points, depending on the specific board revision and configuration. For applications requiring higher I/O density, multiple boards can be installed in parallel within the Mark V rack architecture. Contact us with your I/O list for exact capacity confirmation.

Q: Can this board be used in safety-instrumented systems (SIS) or SIL-rated applications?
A: Yes, when configured in Triple Modular Redundant (TMR) architecture with appropriate Mark V safety controllers, the DS200TCCBG1BZZ can support SIL 2/3 applications per IEC 61508 standards. This requires specific firmware versions, redundant power supplies, and certified installation procedures. We provide SIL configuration documentation and compliance support for safety-critical projects.

Q: What environmental conditions can the DS200TCCBG1BZZ withstand?
A: The board is rated for industrial environments with operating temperatures from -40°C to +70°C, humidity up to 95% RH (non-condensing), and vibration levels typical of turbine control rooms (per IEC 60068-2-6). It features conformal coating for moisture/contaminant protection and is designed for IP20 enclosure installation. For extreme environments (offshore, desert, arctic), consult our engineering team for environmental hardening options.

Q: Does the board support remote monitoring and predictive maintenance capabilities?
A: Yes, when connected to GE ToolboxST or compatible SCADA systems, the DS200TCCBG1BZZ provides real-time diagnostic data including channel health status, signal quality metrics, and fault history logging. This enables condition-based maintenance strategies and integration with Asset Performance Management (APM) platforms. Modbus TCP/IP and OPC UA protocols are supported for third-party system integration.

Q: What is the typical lifespan and recommended spare parts strategy for this terminal board?
A: Under normal operating conditions, the DS200TCCBG1BZZ has a mean time between failures (MTBF) exceeding 100,000 hours. We recommend maintaining one spare board per 10 installed units for critical applications, along with spare terminal blocks and connector kits. Boards can be refurbished/recalibrated by authorized service centers to extend operational life beyond 15-20 years.

Request Technical Support & Quotation

To receive a detailed application engineering proposal, pricing quotation, or technical consultation, please provide the following information: project name, application type (power generation/industrial process), turbine model and rating, required I/O point count and signal types, existing Mark V controller model, site environmental conditions, and delivery timeline. Our engineering team will respond within 24 hours with a customized solution including configuration recommendations, integration documentation, and commercial terms.
