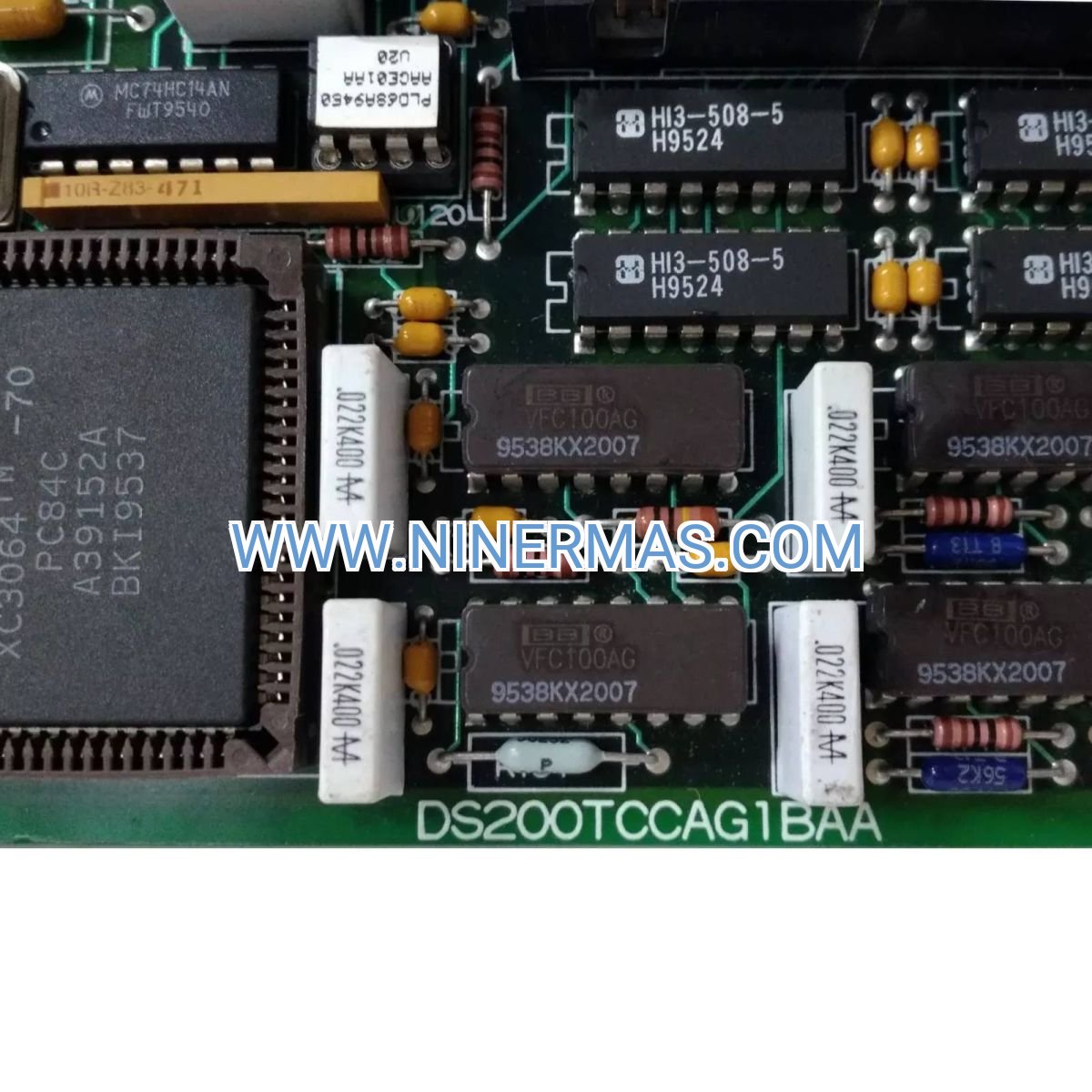

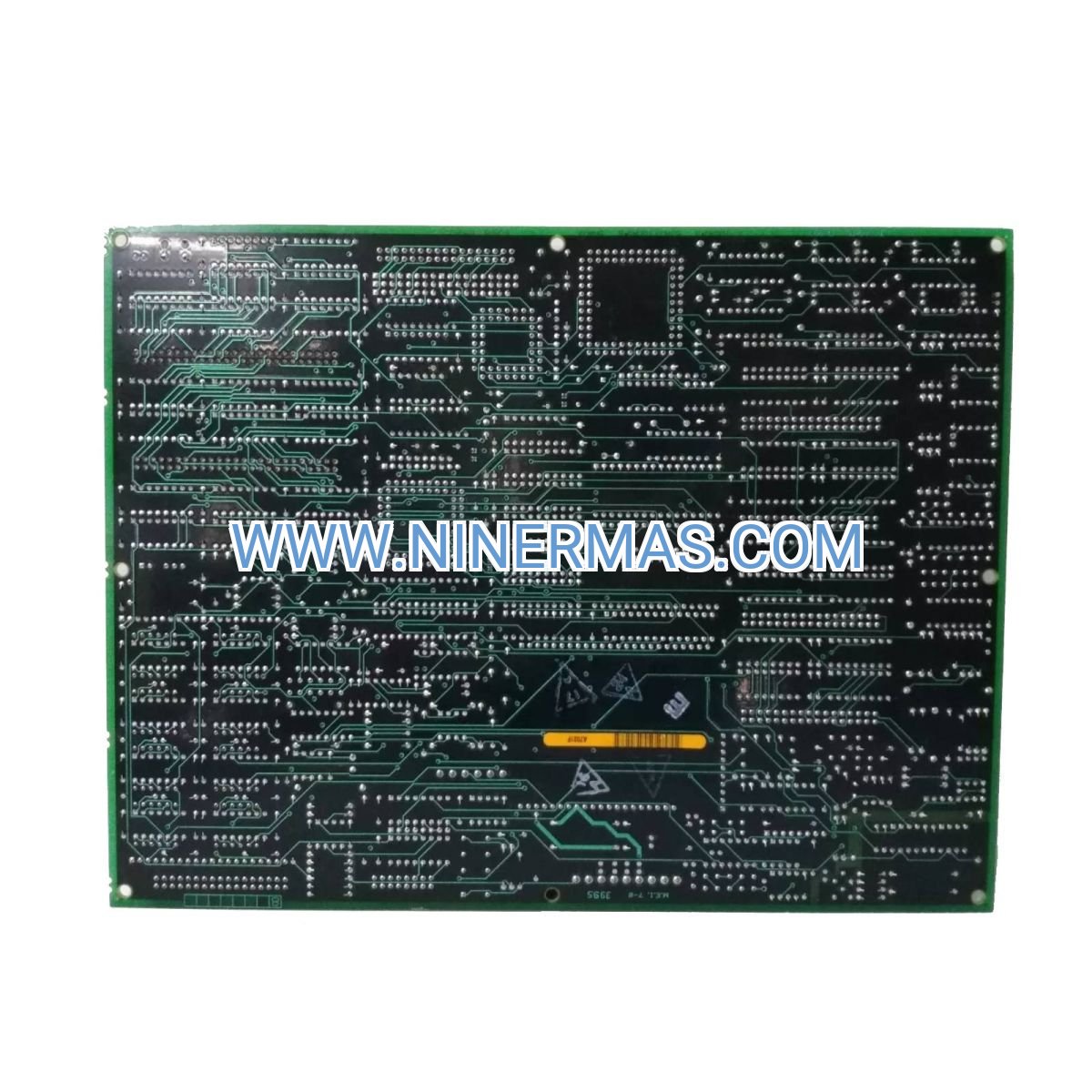

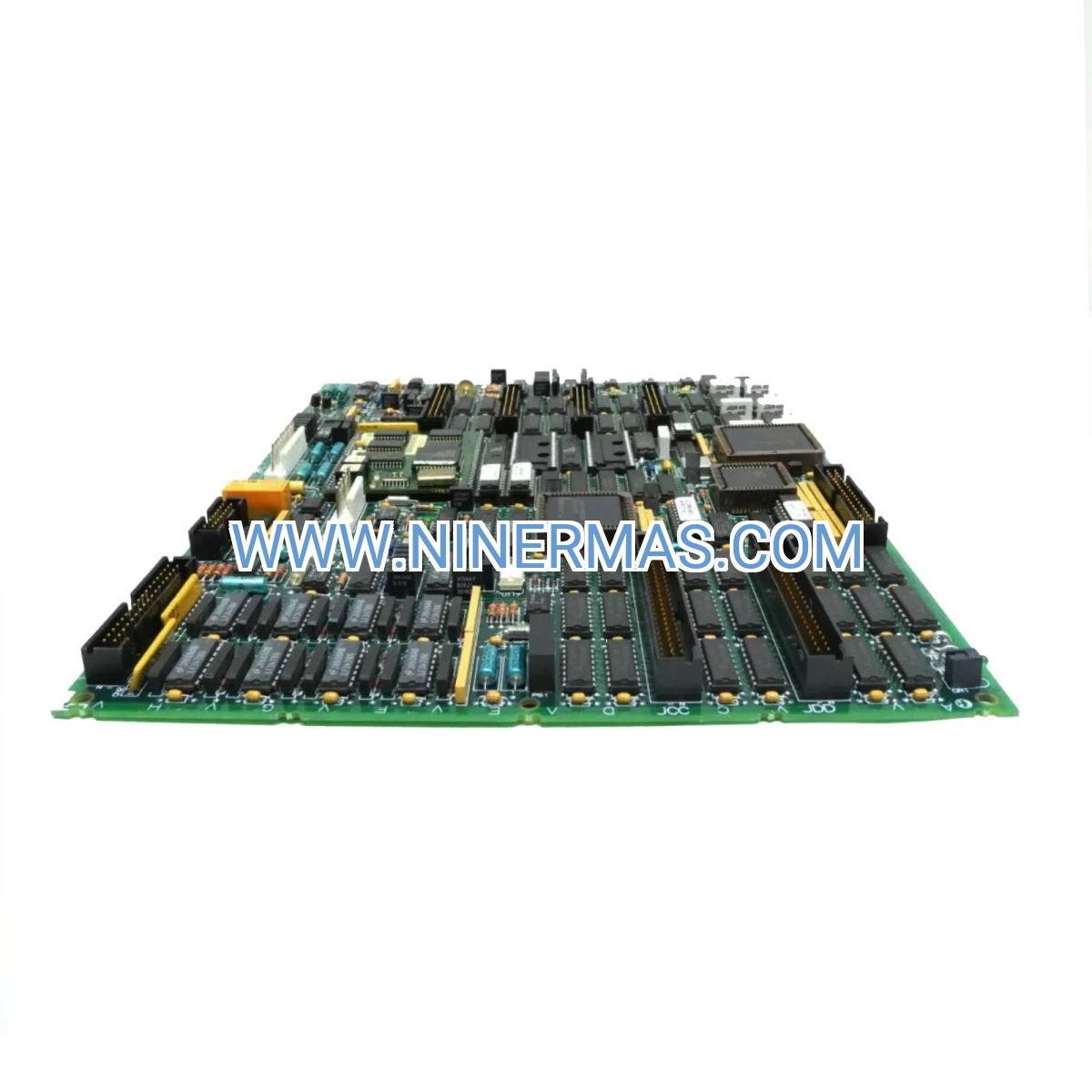

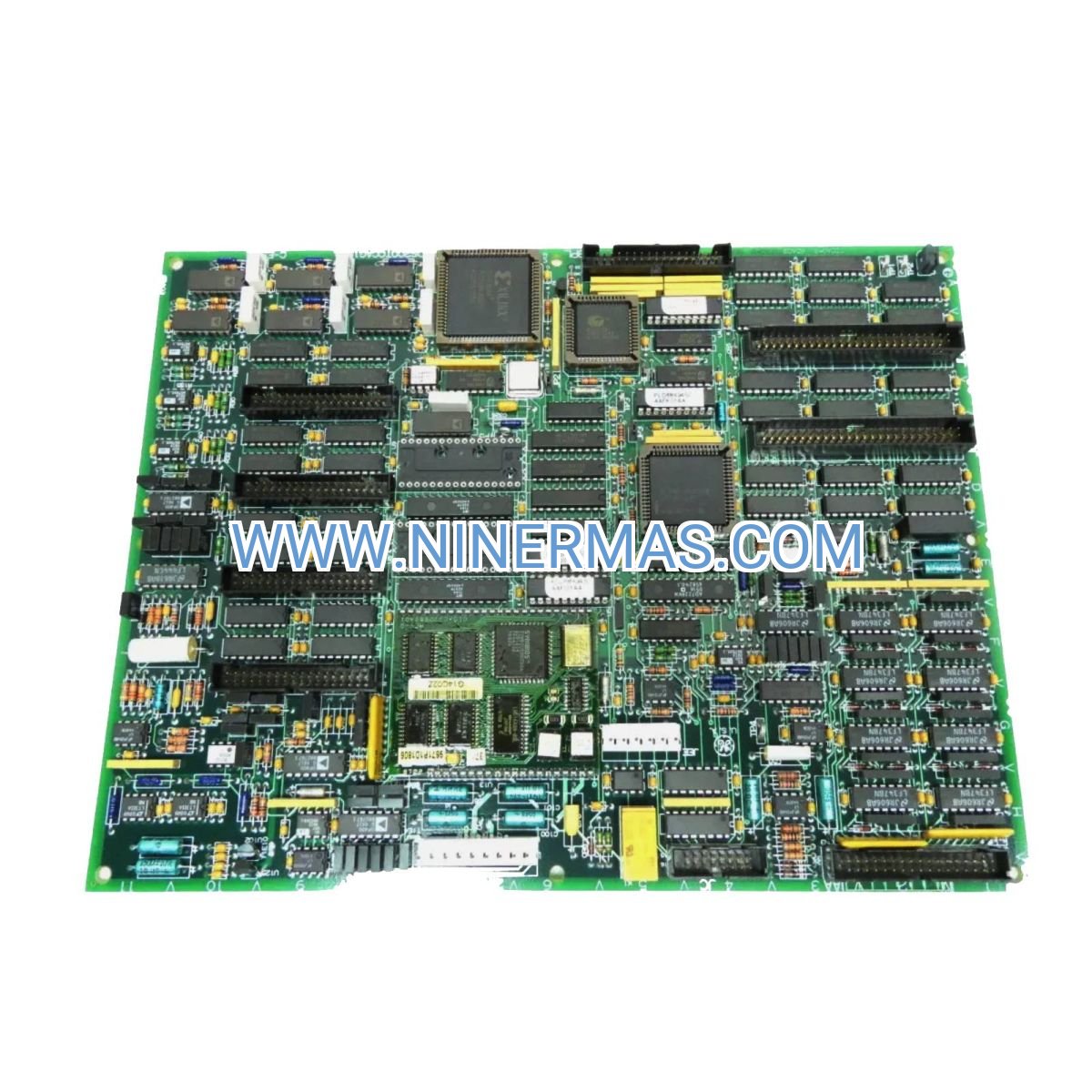

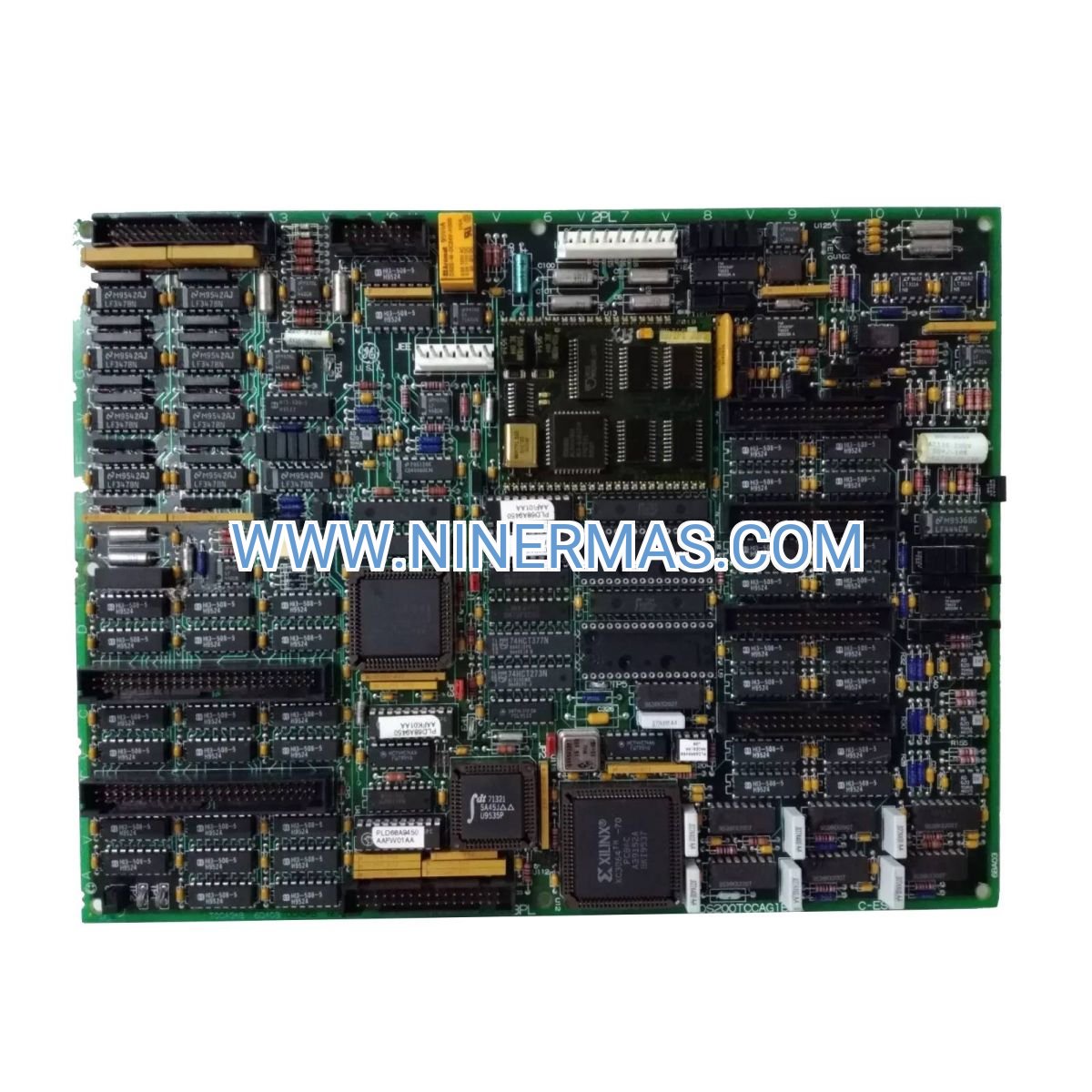

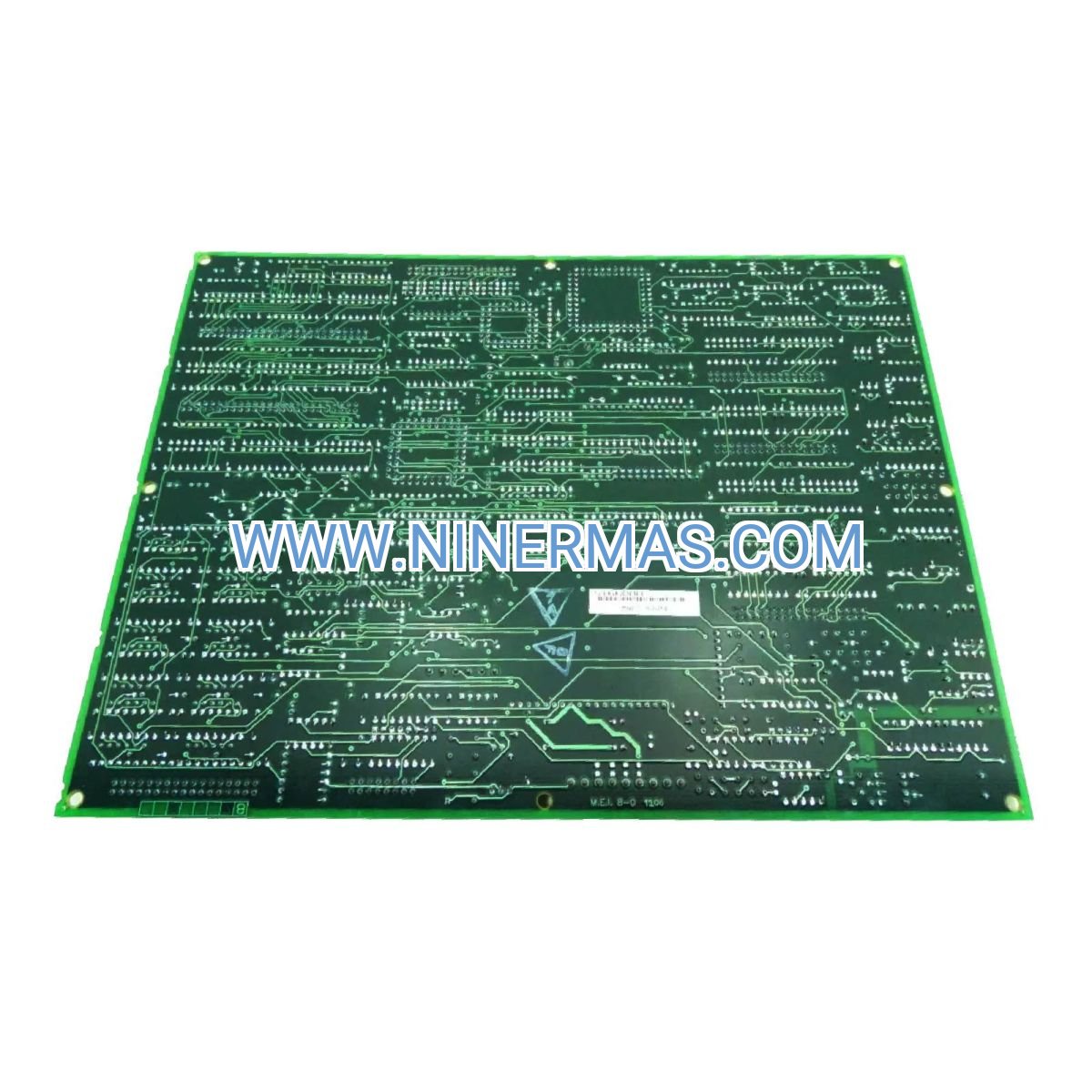

DS200TCCAG1BAA Mark V Analog I/O Module (Industrial-Grade Signal Processing)

The DS200TCCAG1BAA represents GE's proven solution for high-precision analog signal management in Mark V Speedtronic turbine control environments. This industrial-grade I/O module delivers bidirectional signal conversion—analog-to-digital and digital-to-analog—engineered specifically for power generation facilities, petrochemical plants, and heavy industrial operations where measurement accuracy directly impacts operational safety and efficiency.

Designed to withstand extreme industrial conditions, this board operates reliably across temperature ranges from -40°C to +70°C while maintaining 12-bit resolution accuracy. Whether you're managing gas turbine speed regulation, monitoring critical temperature parameters, or controlling pressure loops in offshore platforms, the DS200TCCAG1BAA provides the signal integrity your process demands.

As a direct-mount PCB module within the Mark V architecture, this component integrates seamlessly with existing Speedtronic control cabinets, reducing installation complexity and minimizing system downtime during retrofits or expansions. With proven field reliability across thousands of installations worldwide, the DS200TCCAG1BAA stands as a cornerstone component for mission-critical turbine control applications.

Core Features & Benefits

→ Dual-Direction Signal Conversion: Handles both A/D and D/A conversion within a single module, eliminating the need for separate boards and reducing cabinet space requirements by up to 40% compared to legacy multi-board configurations.

→ Extended Temperature Performance: Operates continuously from -40°C to +70°C without derating, ensuring consistent performance in uncontrolled environments such as offshore platforms, desert installations, and arctic facilities where HVAC systems may be limited.

→ High-Resolution Accuracy: 12-bit conversion resolution delivers 0.024% precision across the ±10V DC range, meeting stringent control requirements for vibration monitoring, fuel flow regulation, and emissions compliance systems.

→ Differential Input Architecture: Built-in differential input configuration provides superior common-mode noise rejection (>80dB), critical for installations near high-voltage switchgear, VFD systems, and RF transmission equipment.

→ Hot-Swap Capability: Supports online replacement during scheduled maintenance windows without full system shutdown, reducing planned outage duration by 60-75% compared to systems requiring complete controller restart.

→ Proven Mark V Compatibility: Factory-tested for seamless integration with all Mark V Speedtronic firmware revisions, ensuring plug-and-play installation with existing control logic and HMI interfaces.

Application Scenarios

✓ Gas Turbine Speed & Load Control
In combined-cycle power plants, the DS200TCCAG1BAA processes critical speed feedback signals from magnetic pickups and tachometers, enabling precise governor control during load ramping, frequency regulation, and black-start sequences. The board's fast conversion rate (sub-millisecond) ensures stable control even during rapid load transients, preventing overspeed trips that cost facilities $50,000-$150,000 per event in lost generation revenue.

✓ Vibration Monitoring & Protection
Petrochemical compressor stations deploy this module to interface with proximity probes and accelerometers, continuously monitoring bearing vibration, shaft displacement, and casing resonance. When integrated with Mark V protection logic, the board enables predictive maintenance strategies that reduce unplanned shutdowns by 35-45% while extending bearing life by 20-30%.

✓ Temperature & Pressure Regulation
Refinery hydrogen plants utilize the DS200TCCAG1BAA for precise control of reformer temperatures (±2°C accuracy) and reactor pressures (±0.5% setpoint deviation), directly impacting catalyst efficiency and product yield. Facilities report 2-4% throughput improvements after upgrading from legacy 8-bit I/O systems to this 12-bit platform.

✓ Emissions Compliance Systems
Natural gas-fired peaking units leverage this board's accuracy for NOx control valve positioning and fuel-air ratio optimization, maintaining emissions within permit limits during rapid start-stop cycles. The differential input design rejects electrical noise from ignition systems that previously caused false readings and compliance violations.

✓ Offshore Platform Automation
FPSO and drilling platform operators depend on the DS200TCCAG1BAA's extended temperature rating and corrosion-resistant PCB coating for reliable operation in salt-fog environments where conventional electronics fail within 18-24 months. The board's proven MTBF exceeds 150,000 hours in marine applications.

Technical Parameters & Selection Guide

Selection Criteria: Choose the DS200TCCAG1BAA when your application requires ±10V signal ranges with 12-bit resolution. For applications needing 4-20mA current loop interfaces, consider pairing with appropriate signal conditioning modules. Systems requiring higher channel density should evaluate the DS200TCQCG1BJG expansion board for additional I/O capacity.

Extended Functions

Redundancy & Fault Tolerance: The DS200TCCAG1BAA supports TMR (Triple Modular Redundant) configurations when deployed in critical protection systems. Three boards operate in parallel with voting logic, ensuring continued operation even if one module fails—essential for SIL-3 rated safety instrumented systems.

Remote Diagnostics Integration: Built-in self-test circuitry continuously monitors conversion accuracy, power supply integrity, and communication bus health. Diagnostic data streams to Mark V HMI systems and can be forwarded to SCADA platforms via Modbus TCP or OPC UA gateways for predictive maintenance analytics.

Calibration Flexibility: Field-adjustable gain and offset parameters allow technicians to compensate for sensor drift without replacing the board. Calibration coefficients store in non-volatile memory, surviving power cycles and firmware updates. GE-certified calibration procedures typically require 45-60 minutes per board using standard test equipment.

Custom Signal Conditioning: For specialized applications, the board accepts plug-in signal conditioning modules that provide galvanic isolation, frequency-to-voltage conversion, or thermocouple linearization. This modularity reduces spare parts inventory by 30-40% compared to application-specific I/O boards.

Delivery & Service Assurance

Lead Time: In-stock units ship same-day for orders confirmed before 14:00 CST. Standard delivery to North American facilities: 2-3 business days. International shipments via DHL Express: 4-7 business days to major industrial centers. Expedited overnight service available for emergency outage support.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and workmanship issues under normal operating conditions. Warranty includes advance replacement service—we ship your replacement before receiving the failed unit, minimizing downtime to <24 hours.

Technical Support: Our applications engineering team provides pre-sales consultation for system design, integration planning, and compatibility verification. Post-installation support includes troubleshooting assistance, calibration guidance, and firmware update recommendations. Support available via email, phone, and remote desktop sessions.

Documentation Package: Each board ships with installation manual, wiring diagrams, calibration procedures, and dimensional drawings. Digital documentation includes AutoCAD DWG files for panel layout, STEP models for 3D cabinet design, and PDF schematics for maintenance reference.

Frequently Asked Questions

Q: Can the DS200TCCAG1BAA interface with 4-20mA transmitters directly?
A: The board accepts ±10V signals natively. For 4-20mA loop-powered transmitters, install a 250Ω precision resistor across the input terminals to convert current to voltage (1-5V span). Alternatively, use the DS200TBQBG1A termination board which includes factory-installed conversion resistors and surge protection.

Q: What's the recommended calibration interval for this module?
A: GE recommends annual calibration verification for general industrial applications. For critical safety systems or regulatory compliance applications (EPA emissions monitoring, pipeline safety), quarterly verification may be required. Facilities with stable environmental conditions often extend intervals to 18-24 months based on drift trend analysis.

Q: Is this board compatible with Mark VI control systems?
A: While designed for Mark V platforms, the DS200TCCAG1BAA can interface with Mark VI controllers when used with the appropriate backplane adapter kit (consult GE for part numbers). However, Mark VI systems typically use the newer DS200TCQAG series for native compatibility and enhanced diagnostics.

Q: How do I identify if my existing board needs replacement?
A: Common failure indicators include erratic analog readings (>5% deviation from calibrated values), intermittent communication faults logged in the Mark V event history, or visible component damage (bulging capacitors, burn marks). The board's self-diagnostic LED will flash error codes—refer to GE manual GEH-6421 for code interpretation.

Q: What's included in your technical support service?
A: Pre-sales support covers application suitability, wiring design review, and integration planning. Post-purchase support includes installation guidance, calibration assistance, and troubleshooting for 90 days. Extended support contracts available for facilities requiring 24/7 emergency response and on-site commissioning services.

Q: Do you stock replacement components for board-level repair?
A: We supply complete tested assemblies rather than individual components. Board-level repair requires specialized equipment and GE-certified procedures. For facilities with in-house repair capabilities, we can source specific ICs and connectors—contact our technical team with your component requirements and we'll verify availability.

Order Your DS200TCCAG1BAA Today

Ensure your Mark V Speedtronic system maintains peak performance with genuine GE DS200TCCAG1BAA analog I/O modules. Our inventory management system guarantees product authenticity, proper storage conditions, and full traceability documentation for quality assurance audits.

Contact our industrial automation specialists for volume pricing, system integration consultation, or emergency replacement coordination. We support maintenance teams worldwide with technical expertise and logistics capabilities that minimize your operational risk.

Request a quote now: Email your system configuration and delivery requirements, or call our technical sales team for immediate assistance with compatibility verification and lead time confirmation.
