GE DS200TBQDG1AFF Retrofit-Compatible RST Terminal Board

GE DS200TBQDG1AFF Retrofit-Compatible RST Terminal Board for Legacy Mark V Systems

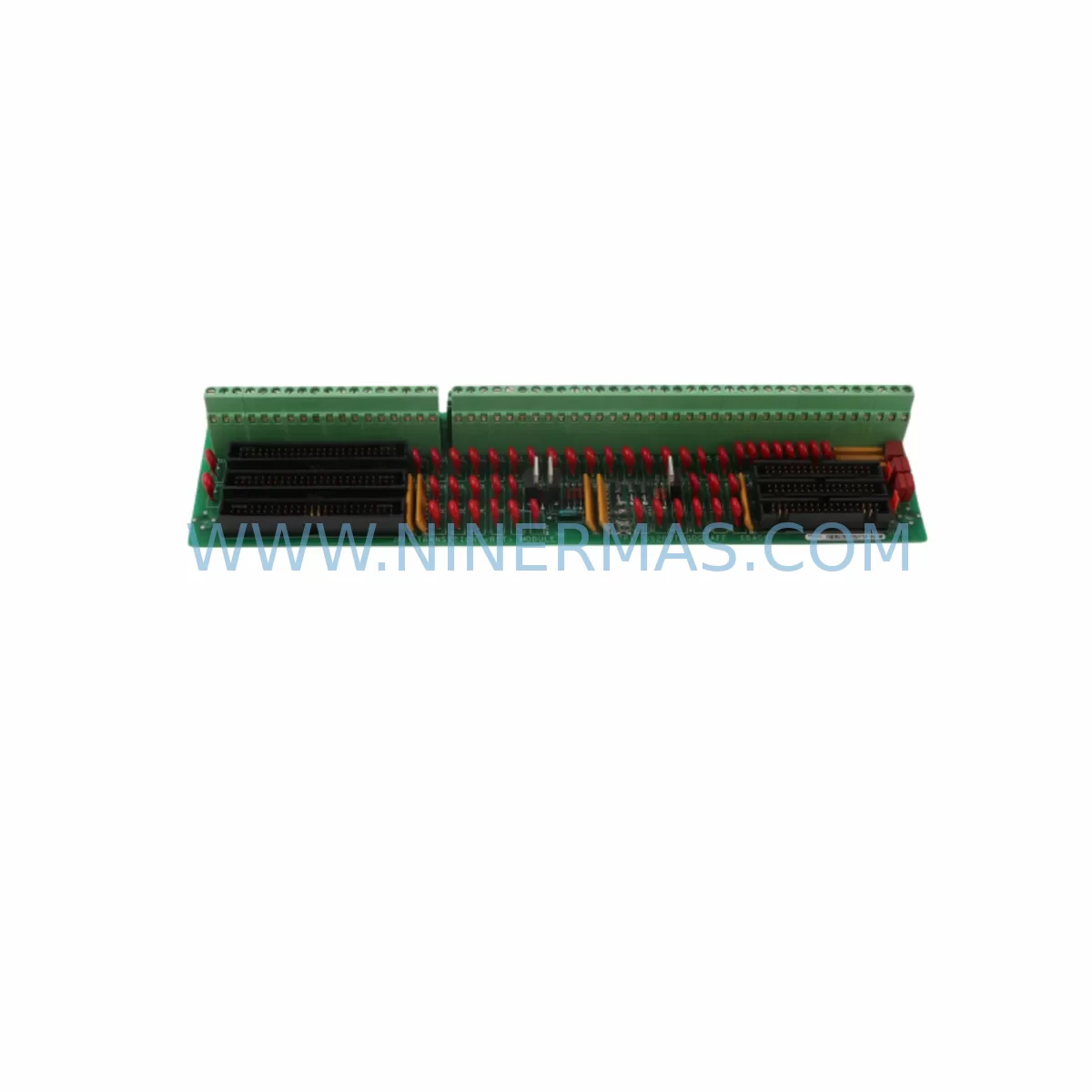

The GE DS200TBQDG1AFF is a retrofit-compatible RST (Relay and Signal Terminal) Board designed for the GE Mark V Turbine Control System — one of the most widely deployed legacy control platforms in gas turbine, steam turbine, and combined-cycle power generation facilities worldwide. As original GE Mark V hardware reaches end-of-life and spare parts become increasingly scarce, the DS200TBQDG1AFF plays a critical role in sustaining operational continuity for aging control cabinets without requiring a full system overhaul.

NINERMAS supplies the DS200TBQDG1AFF as a tested, retrofit-ready replacement module backed by a 12-month warranty. Each unit undergoes pre-shipment functional verification to confirm relay output integrity, terminal block continuity, and board-level signal routing — ensuring that your replacement module arrives ready for installation with minimal commissioning time.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the DS200TBQDG1AFF within an operational Mark V control system requires careful pre-planning to avoid unintended relay actuation or loss of turbine protection signals. Before removing the existing board, maintenance engineers should document all field wiring terminations using the original Mark V wiring diagrams and cross-reference against the I/O assignment tables stored in the TCQA, TCQB, and TCQC processor boards. These three processor cards form the triple-redundant voting core of the Mark V TMR architecture and must remain powered and synchronized during any terminal board swap to preserve system integrity.

The DS200TBQDG1AFF connects to the Mark V backplane via multi-pin ribbon cables. Before disconnecting, label each cable with its corresponding slot and connector designation. The DS200TBCBG1AAA I/O terminal board and DS200TCCBG1AAA contact input terminal board are commonly installed in adjacent slots within the same control cabinet and share the same field wiring marshalling zone — their wiring must not be disturbed during the RST board replacement.

Power supply integrity is a prerequisite for any Mark V board replacement. Verify that the DS200VPBLG1AFF or equivalent Mark V power supply module is delivering stable +5 VDC and ±15 VDC rails before installing the replacement DS200TBQDG1AFF. Voltage deviations outside tolerance can cause relay output latching errors or processor fault alarms immediately after board insertion. If the power supply module shows signs of aging — such as output ripple or thermal discoloration — it is advisable to replace it concurrently with the terminal board to avoid repeat outages.

For facilities running the Mark V with a CIMPLICITY HMI workstation, confirm that all relay output tags mapped to the DS200TBQDG1AFF are placed in manual override or inhibited in the HMI configuration before the swap. This prevents spurious alarm generation or automatic turbine trip sequences during the board exchange. After installation, restore each relay output tag individually and verify response against the expected field device — including solenoid valves, motor starters, and annunciator panels — before releasing the unit back to automatic control.

In systems where the Mark V communicates upstream to a DCS or SCADA platform via Modbus RTU or the GE proprietary ARCNET communication link, the communication interface boards — such as the DS200SIOBG1ABA serial I/O board — should be monitored for fault flags during the replacement window. Any interruption in the ARCNET ring caused by backplane disturbance will generate a communication loss alarm at the DCS level and should be acknowledged and cleared after the board is reseated and the system returns to normal scan.

Where the Mark V cabinet also houses DS200SDCCG1AFF speed detector cards or DS200DSPXG1AFF digital signal processor boards, ensure that these modules are not disturbed during the terminal board replacement, as they carry critical turbine speed and flame detection signals that feed directly into the protection logic. Any inadvertent disconnection of these boards during the RST swap can trigger a turbine trip or protective shutdown sequence.

For sites planning a broader migration from Mark V to Mark VIe or a third-party DCS platform, the DS200TBQDG1AFF replacement can serve as an interim measure to extend the operational life of the existing Mark V installation while the migration project is engineered and scheduled. NINERMAS maintains stock of a wide range of Mark V spare parts to support multi-year lifecycle extension programs, including processor boards, I/O terminal boards, power supply modules, and communication interface cards.

Downtime Control During System Migration

Minimizing turbine or process downtime during a Mark V terminal board replacement requires a structured hot-swap or planned outage strategy. For TMR (Triple Modular Redundant) Mark V configurations, it is possible to replace the DS200TBQDG1AFF during a scheduled maintenance window without a full turbine shutdown, provided that the remaining two redundant channels maintain voting integrity throughout the procedure. However, this approach requires close coordination with the control system engineer and should only be attempted by personnel familiar with Mark V TMR architecture and GE’s recommended maintenance procedures.

Prior to the replacement, back up the current Mark V application program using the Mark V Toolbox software. This preserves all relay output assignments, setpoint configurations, and I/O mapping tables in the event that a board fault causes unexpected program corruption. Store the backup on an isolated engineering workstation — not on the HMI server — to ensure it remains accessible even if the HMI experiences a fault during the replacement window.

After installing the DS200TBQDG1AFF, perform a systematic I/O checkout before returning the turbine to service. Test each relay output by commanding it from the Mark V Toolbox or CIMPLICITY HMI and confirming field device response. Verify that all discrete input signals — including limit switches, pressure switches, and temperature contacts — are reading correctly at the terminal board. Document the checkout results and retain them as part of the maintenance record for the unit.

For simplex Mark V configurations where no redundancy is available, plan the replacement during a scheduled process shutdown or turbine outage to eliminate the risk of an uncontrolled trip. Coordinate with operations to ensure that all upstream and downstream process equipment is in a safe state before de-energizing the Mark V cabinet. Allow adequate time for the replacement, I/O checkout, and system restart — typically two to four hours for an experienced maintenance team — and have a spare DS200TBQDG1AFF on hand before beginning the procedure to avoid extended downtime if the first replacement unit is found to be incompatible or damaged in transit.

Retrofit Support FAQ

Q1: Is the DS200TBQDG1AFF a direct replacement for all Mark V RST terminal board variants?
The DS200TBQDG1AFF is the primary RST terminal board variant used in GE Mark V TMR and Simplex configurations. Before ordering, confirm the exact part number from the existing board’s label or the Mark V Bill of Materials, as minor hardware revisions (suffix changes) may affect relay output count or connector pinout. NINERMAS can assist with cross-referencing your existing part number to confirm compatibility.

Q2: What wiring documentation is required before replacing the DS200TBQDG1AFF?
You will need the original Mark V wiring diagrams for your specific turbine unit, including the relay output assignment table and field terminal strip drawings. If original documentation is unavailable, NINERMAS can provide generic DS200TBQDG1AFF terminal wiring references based on standard Mark V configurations to assist your engineering team in reconstructing the wiring schedule.

Q3: Does NINERMAS perform pre-shipment testing on the DS200TBQDG1AFF?
Yes. Every DS200TBQDG1AFF unit shipped by NINERMAS undergoes functional relay output testing, terminal block continuity verification, and visual PCB inspection before dispatch. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment, with technical support available throughout the warranty period.

Q4: What is the typical lead time and stock availability for the DS200TBQDG1AFF?
NINERMAS maintains stock of the DS200TBQDG1AFF to support urgent replacement requirements. Standard orders are dispatched within 3–5 business days. For critical plant situations requiring expedited delivery, contact our sales team directly to confirm current stock levels and arrange priority shipment. Long-term spare parts programs and blanket orders are available for facilities managing multi-unit Mark V fleets.
