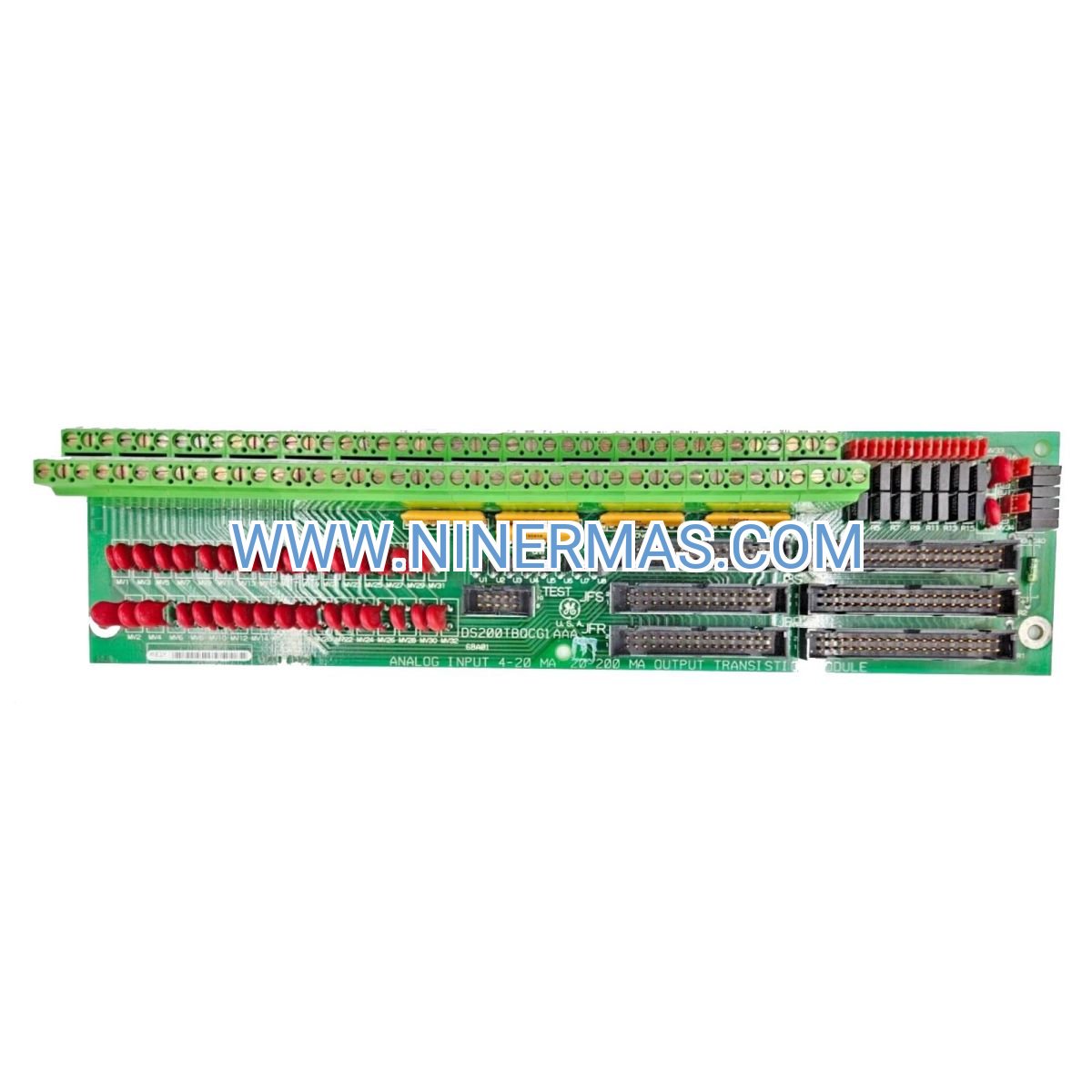

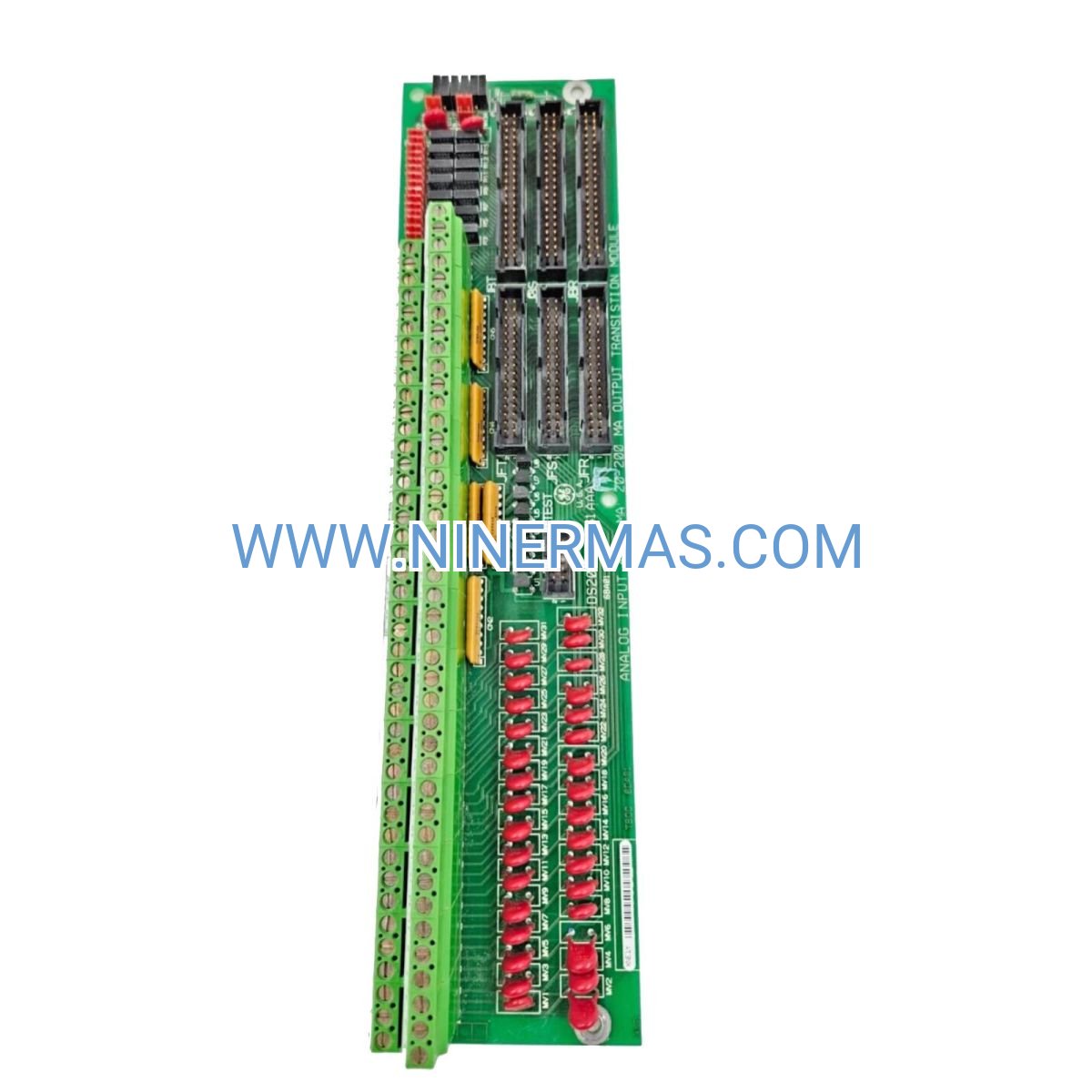

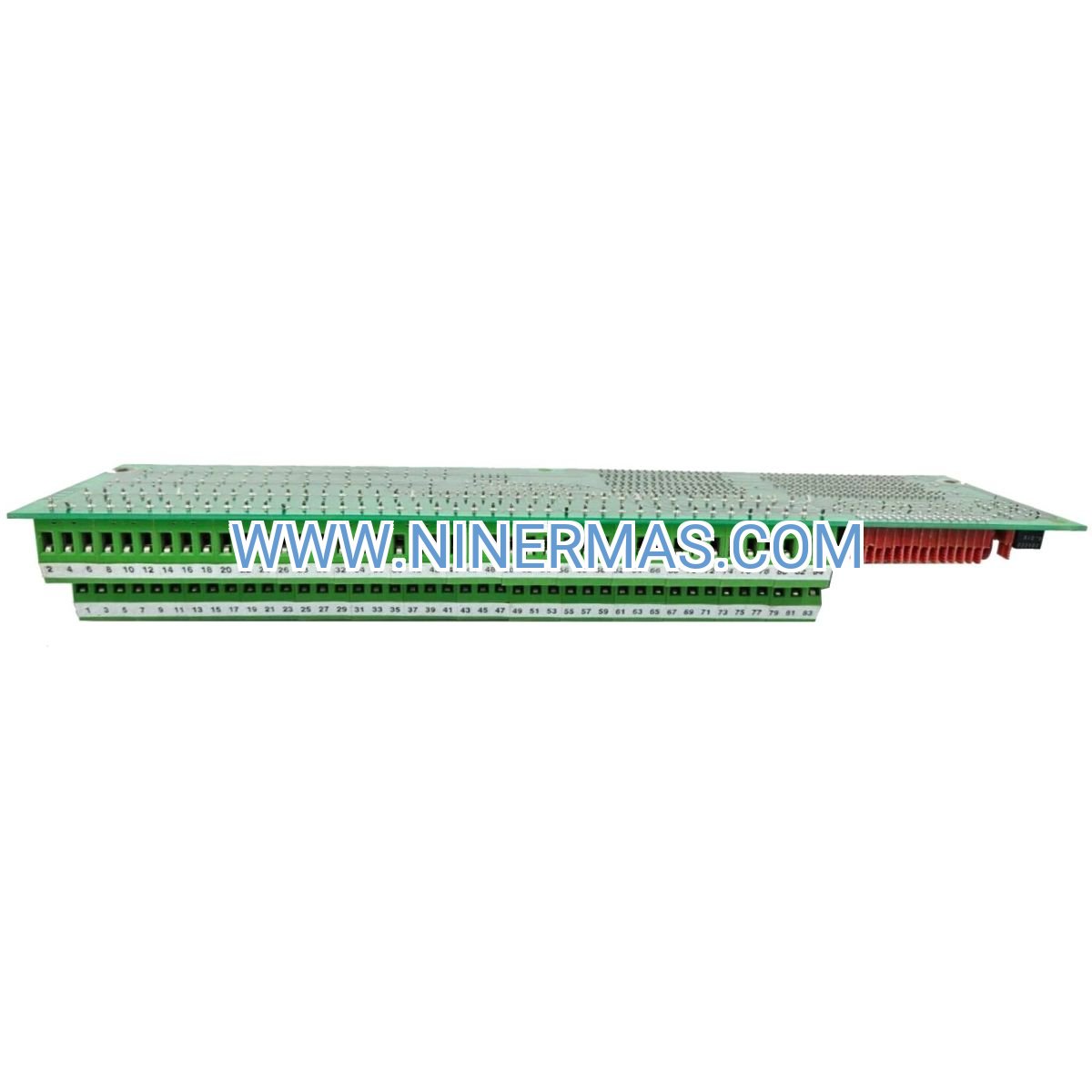

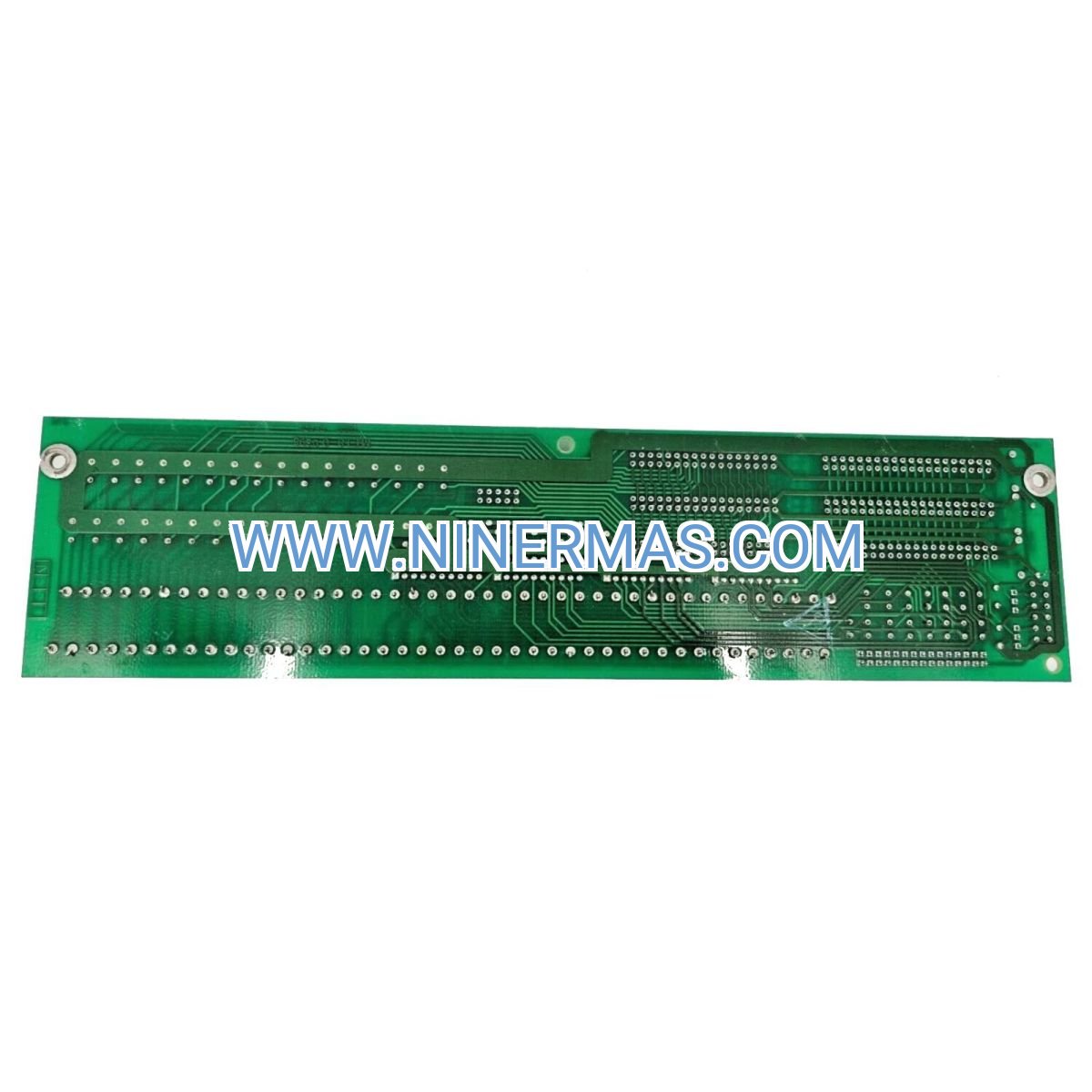

DS200TBQCG1AAA Analog Terminal Board (Industrial-Grade Signal Interface)

The DS200TBQCG1AAA represents a mission-critical analog terminal board engineered for GE Mark V Speedtronic turbine control platforms. Designed to deliver precision signal termination and conditioning, this board serves as the essential interface between field instrumentation and central control processors in power generation facilities worldwide.

Built for operators managing gas turbines, steam turbines, and combined-cycle plants, the DS200TBQCG1AAA addresses the fundamental challenge of maintaining signal integrity in electrically noisy industrial environments. Its robust architecture ensures continuous operation under demanding thermal and electromagnetic conditions, making it indispensable for facilities where unplanned downtime translates to significant revenue loss.

With proven deployment across thousands of installations globally, this analog terminal board combines GE's decades of turbine control expertise with field-hardened components that withstand the rigors of 24/7 operation. Whether you're maintaining existing Mark V systems or executing control system upgrades, the DS200TBQCG1AAA delivers the reliability your operation demands.

Core Features & Benefits

→ Precision Signal Conditioning
Advanced analog circuitry maintains signal accuracy within ±0.1% across the full operating range, ensuring critical process variables like temperature, pressure, and vibration are measured with laboratory-grade precision. This translates to tighter control loops and optimized turbine performance.

→ Industrial-Hardened Construction
Conformal-coated PCB assembly with military-spec connectors resists moisture, dust, and chemical exposure common in power plant environments. Operating temperature range of 0°C to 60°C accommodates installation in non-climate-controlled equipment rooms.

→ Plug-and-Play Mark V Integration
Direct compatibility with standard Mark V I/O racks eliminates custom wiring or adapter requirements. Pre-configured terminal assignments match GE's reference designs, reducing commissioning time by up to 40% compared to third-party alternatives.

→ Diagnostic LED Array
Front-panel status indicators provide instant visibility into power supply health, communication status, and individual channel faults. Maintenance teams can identify and isolate issues without specialized test equipment, minimizing mean-time-to-repair.

→ Hot-Swappable Architecture
Modular design permits board replacement during operation without system shutdown. Redundant power input paths ensure continuous signal processing even during maintenance activities, supporting your plant's availability targets.

✓ Extended MTBF Performance
Mean-time-between-failure exceeding 150,000 hours under typical operating conditions reduces spare parts inventory requirements and lowers total cost of ownership over the system lifecycle.

Typical Application Scenarios

Combined-Cycle Power Plants
In CCGT facilities, the DS200TBQCG1AAA processes analog signals from combustion dynamics sensors, exhaust temperature thermocouples, and steam pressure transmitters. Plant operators rely on this board to maintain emissions compliance while maximizing heat rate efficiency. The board's noise immunity prevents false trips caused by VFD interference from auxiliary equipment.

Peaking Gas Turbine Stations
For units experiencing frequent start-stop cycles, the DS200TBQCG1AAA's thermal cycling tolerance ensures consistent performance across thousands of startups. Vibration monitoring channels detect bearing degradation early, enabling condition-based maintenance that prevents catastrophic failures during peak demand periods.

Industrial Cogeneration Systems
Manufacturing facilities using turbine-driven cogeneration depend on the DS200TBQCG1AAA to interface process control systems with turbine protection logic. The board's isolated analog inputs prevent ground loop issues when integrating with plant DCS networks, ensuring both power generation and process steam delivery remain stable.

Steam Turbine Governor Control
In steam turbine applications, this terminal board conditions signals from hydraulic actuator position sensors and speed pickups. Precise signal processing enables tight governor response, critical for maintaining grid frequency during load transients or islanding events.

Mark V System Modernization
Plants extending the service life of Mark V control systems use the DS200TBQCG1AAA as a direct replacement for aging boards exhibiting drift or intermittent faults. The board's backward compatibility preserves existing wiring and configuration databases, avoiding costly re-engineering.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the DS200TBQCG1AAA, verify compatibility with your existing Mark V I/O rack revision level. Consult the board's revision code (suffix letters) to ensure firmware compatibility with your control processor version. For systems operating in high-vibration environments (near reciprocating compressors), consider additional shock mounting for the entire I/O rack assembly.

Extended Functions

Remote Diagnostics Integration: The DS200TBQCG1AAA supports GE's ToolboxST diagnostic software, enabling remote monitoring of board health parameters via Ethernet-connected HMI workstations. Predictive maintenance algorithms analyze signal drift trends to forecast component end-of-life before failures occur.

Calibration Data Storage: Onboard EEPROM retains channel-specific calibration coefficients, eliminating manual re-calibration after board replacement. This feature reduces commissioning errors and ensures consistent measurement accuracy across spare board inventory.

Customization Options: For applications requiring non-standard signal ranges or specialized filtering, factory customization services can modify input conditioning circuits. Contact our engineering team to discuss custom configurations for unique sensor interfaces or legacy equipment integration.

Delivery & Service Assurance

Lead Time: Stock units ship within 1-2 business days via express courier. Custom-configured boards require 2-3 weeks for factory programming and testing. Expedited processing available for emergency outage support.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service to minimize downtime during failure events.

Technical Support: Unlimited access to our turbine control specialists for installation guidance, troubleshooting assistance, and configuration optimization. Support available via phone, email, and remote desktop sessions during your maintenance windows.

Documentation Package: Each board ships with installation manual, terminal wiring diagrams, and calibration certificates. Digital access to GE's original technical documentation and service bulletins included with purchase.

Frequently Asked Questions

What is the recommended spare parts strategy for the DS200TBQCG1AAA analog terminal board?
For critical single-unit installations, maintain one spare board in climate-controlled storage. Multi-unit plants should stock spares at a ratio of 1:10 installed boards. Boards stored properly retain full functionality for 10+ years.

Can the DS200TBQCG1AAA interface with third-party DCS systems?
While designed for Mark V architecture, the board's standard analog outputs can interface with external systems via isolation barriers. Consult our integration team for Modbus or OPC gateway solutions when connecting to non-GE control platforms.

How does this board improve turbine efficiency compared to older terminal boards?
Enhanced signal resolution (16-bit vs. 12-bit on legacy boards) enables tighter control of combustion air-fuel ratios and steam admission valves. Customers report 0.5-1.2% heat rate improvements after upgrading from first-generation Mark V I/O boards.

What environmental conditions void the warranty on this analog terminal board?
Operation outside the specified temperature range, exposure to corrosive gases (H2S, chlorine), or installation in unventilated enclosures exceeding 70°C ambient will void warranty coverage. Ensure adequate rack ventilation per GE's installation guidelines.

Is firmware updating required when installing the DS200TBQCG1AAA in existing Mark V systems?
The board uses hardware-based signal processing without user-updateable firmware. Compatibility depends on physical connector pinout and control processor software version. Verify your system's software release level before ordering.

What diagnostic capabilities help identify failing analog input channels?
Built-in self-test routines detect open circuits, short circuits, and out-of-range signals on each channel. The HMI displays real-time channel status, and the board's LED array provides at-a-glance health indication during troubleshooting.

Secure Your Turbine Control Reliability

Don't let aging analog terminal boards compromise your plant's availability. The DS200TBQCG1AAA delivers the signal integrity and rugged dependability your Mark V turbine control system demands. Our automation specialists are ready to verify compatibility with your specific configuration and provide technical guidance for seamless integration.

Request a quote today or contact our team to discuss volume pricing for planned outage inventory. Fast global shipping ensures your critical components arrive when you need them.
