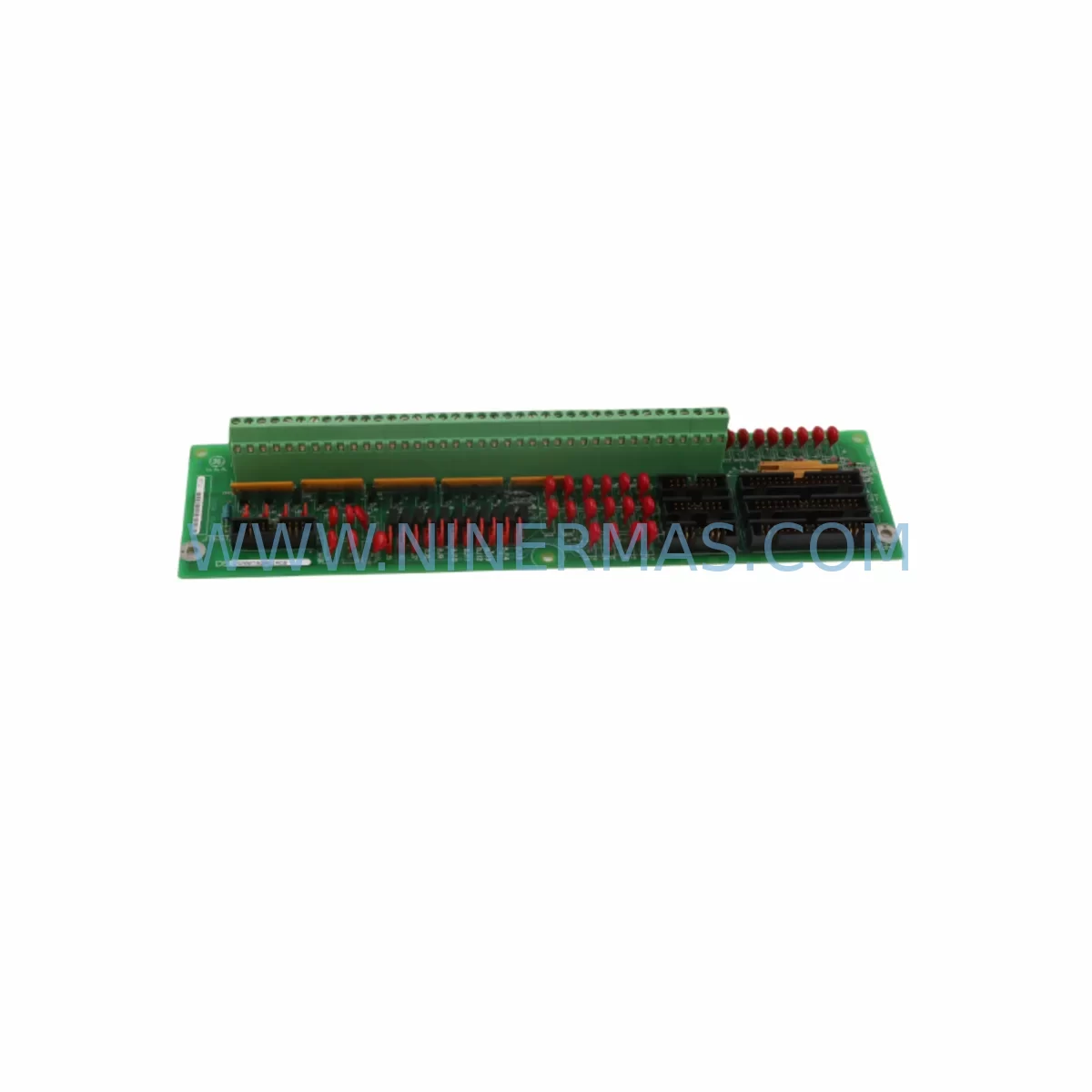

The GE DS200TBQBG1ACB is a turbine control PC board originally designed for the GE Mark V control system — one of the most widely deployed gas turbine automation platforms in power generation, oil & gas, and heavy industrial environments. As the Mark V platform approaches end-of-life and OEM support becomes increasingly limited, the DS200TBQBG1ACB remains a critical component for facilities that must maintain operational continuity without committing to a full Mark VIe or Mark VIeS migration. NINERMAS maintains verified stock of this board to support planned retrofits, emergency replacements, and long-term spare parts programs.

Whether your facility is executing a phased upgrade, responding to an unplanned board failure, or building a strategic inventory buffer, the DS200TBQBG1ACB can be sourced, tested, and shipped with full documentation to minimize your exposure to unplanned downtime.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the DS200TBQBG1ACB within an operating Mark V environment requires careful pre-work to avoid configuration drift and extended outages. Before the board is physically swapped, engineers should document the existing I/O channel assignments, verify the current EEPROM or flash firmware version on the outgoing SDCC, and confirm that the replacement unit carries a matching or compatible revision. In many retrofit scenarios, the DS200TBQBG1ACB is replaced alongside related boards such as the DS200SDCCG1A (an alternate SDCC variant), the DS200TCQAG1BHF terminal board, or the DS200IOCAG1B I/O controller board — all of which share the same Mark V backplane and must be addressed sequentially during a controlled outage window.

Power integrity is a frequent failure point in aging Mark V cabinets. Before installing the DS200TBQBG1ACB, technicians should measure the DC rail outputs from the DS200DPBAG1A power supply board and confirm that ripple and voltage tolerance are within GE specification. A degraded power supply can damage a new SDCC board within hours of commissioning. If the cabinet also houses a DS200TCDAG1A diagnostic card or a DS200EXPSG1A expansion board, these should be inspected and cleaned at the same time to prevent cross-contamination of faults.

For facilities that are simultaneously migrating their HMI from a legacy Cimplicity or WorkstationST environment to a modern SCADA platform, the DS200TBQBG1ACB swap provides a natural checkpoint to audit the communication link between the Mark V controller and the operator interface. The IONET or ARCNET segment connecting the controller to the HMI node should be tested for packet loss and latency before the new board is brought online. If the facility is planning a longer-term migration to the Mark VIe platform, the DS200TBQBG1ACB replacement buys additional operational life while the Mark VIe I/O pack wiring, IS200 series terminal boards, and EX2100e excitation system are being engineered and procured.

Terminal wiring should be photographed and labeled before any board removal. The DS200TBQBG1ACB connects through the Mark V terminal board layer, and any miswiring of thermocouple inputs, RTD channels, or discrete I/O signals will produce immediate diagnostic alarms upon restart. A wiring audit cross-referenced against the original GE application drawing set is strongly recommended, particularly in installations where field modifications have been made over the years without formal as-built updates.

Downtime Control During System Migration

Minimizing turbine or process downtime during a DS200TBQBG1ACB replacement depends on three factors: pre-staging, program backup, and a structured commissioning sequence. Before the outage window opens, the replacement board should be on-site, tested, and confirmed compatible. The existing application program — including sequence logic, alarm setpoints, and calibration constants — should be backed up from the , , and controllers using GE Toolbox software and stored on an isolated engineering workstation.

During the swap, the Mark V should be placed in the appropriate maintenance mode to prevent spurious trips or actuator commands. After the DS200TBQBG1ACB is seated and the cabinet is powered, the first verification step is to confirm that the SDCC board passes its internal self-test and that the status LEDs indicate normal operation. The communication link to the redundant and controllers should be verified before the unit is returned to automatic control. If the turbine uses a DS200TCCBG1A communications board or a DS200TCQCG1B terminal board in the same cabinet, these should be confirmed as healthy before the outage window is closed.

A structured pre-outage checklist, a tested spare on the shelf, and a clear commissioning procedure are the most effective tools for keeping replacement time under four hours for a straightforward SDCC board swap. NINERMAS supports customers with pre-shipment functional testing, detailed installation notes, and post-sale technical assistance to help keep your outage window as short as possible.

Retrofit Support FAQ

Q: Is the DS200TBQBG1ACB a direct replacement for all SDCC variants in the Mark V system?
A: The DS200TBQBG1ACB is compatible with the Mark V SDCC slot, but firmware revision and hardware dash number must be verified against the unit being replaced. NINERMAS can assist with cross-referencing your existing board’s label data to confirm compatibility before shipment.

Q: What pre-shipment testing does NINERMAS perform on this board?
A: Each DS200TBQBG1ACB unit undergoes a functional bench test prior to shipment, including power-on self-test verification and visual inspection for component damage, corrosion, or capacitor degradation. A test report is available upon request.

Q: How long does it typically take to commission the DS200TBQBG1ACB after installation?
A: For a like-for-like replacement in a well-documented Mark V system, commissioning typically takes two to four hours, including board seating, communication link verification, I/O channel confirmation, and return-to-service testing. More complex scenarios involving firmware updates or wiring corrections may require additional time.

Q: What warranty and after-sales support does NINERMAS provide?
A: All DS200TBQBG1ACB units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Our technical team is available to support installation questions, compatibility verification, and troubleshooting throughout the warranty period.
