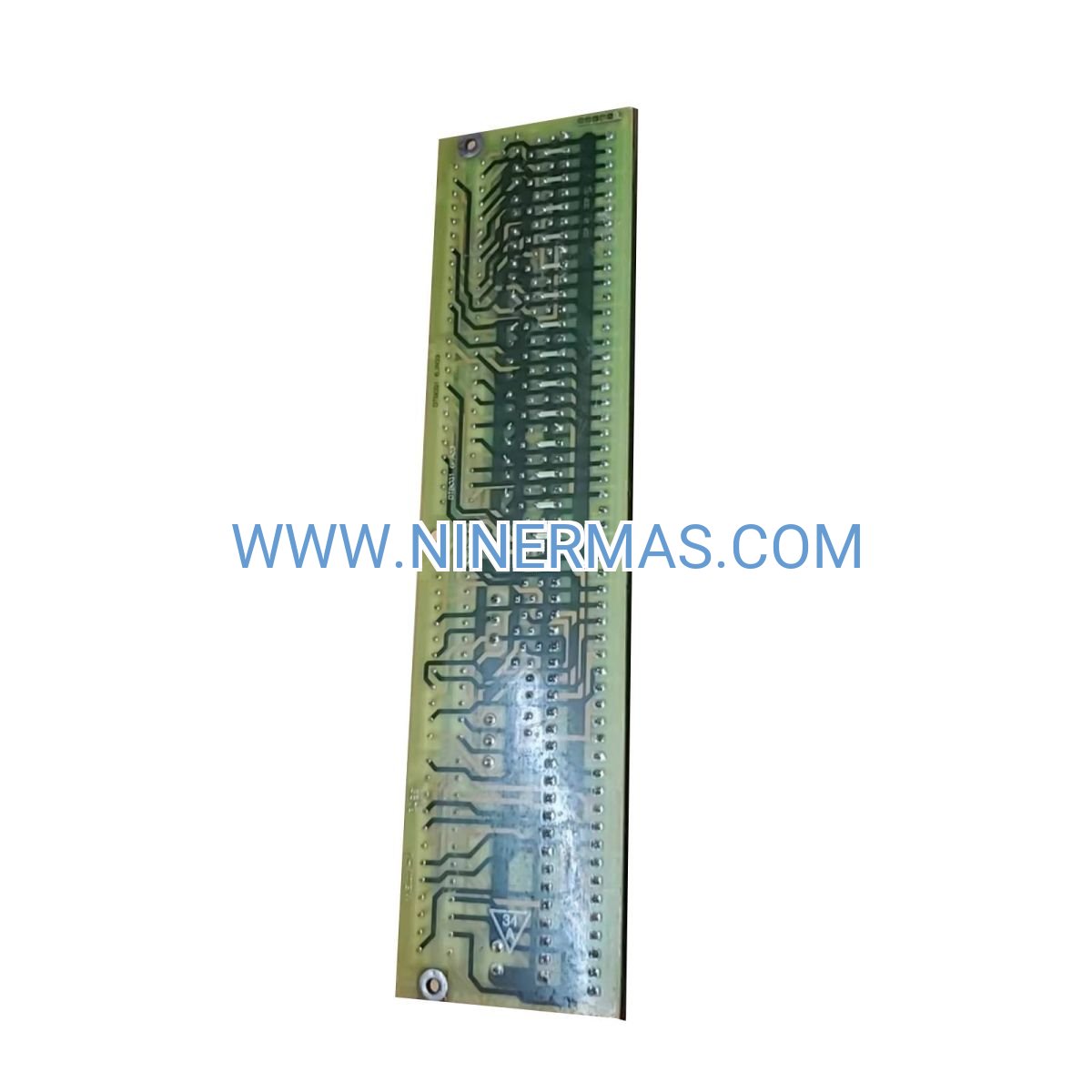

DS200TBQBG1AAA Analog Terminal Board (Industrial-Grade Signal Interface)

The DS200TBQBG1AAA represents a field-hardened analog terminal board engineered for demanding turbine control environments. Designed as the critical signal pathway between Mark V Speedtronic processors and field instrumentation, this board delivers precision signal conditioning for 4-20mA current loops and 0-10V voltage inputs across gas turbine, steam turbine, and combined-cycle power generation installations.

Built for power generation facilities requiring 24/7 uptime, this termination interface eliminates signal degradation through robust screw-terminal connections and integrated noise suppression. Whether you're managing legacy Mark V infrastructure or executing emergency replacement scenarios, the DS200TBQBG1AAA provides drop-in compatibility with existing analog I/O architectures while maintaining strict adherence to GE Speedtronic specifications.

Industrial Control Hub delivers factory-tested units with comprehensive technical documentation, enabling rapid deployment in critical control system upgrades and unplanned outage recovery situations.

Engineering Advantages & Performance Benefits

→ Field-Proven Signal Integrity: Engineered with differential input circuitry and common-mode rejection, the board maintains ±0.1% accuracy across 0-60°C operating ranges—critical for precise temperature, pressure, and vibration monitoring in turbine protection systems.

→ Rapid Integration Architecture: Screw-type terminal blocks accept 12-22 AWG field wiring without specialized crimping tools, reducing installation time by 40% compared to spring-clamp alternatives while ensuring vibration-resistant connections in high-EMI environments.

✓ Universal Mark V Compatibility: Direct backplane interface with DS200TCQAG1A, DS200TCQCG1B, and DS200SDCCG series analog I/O packs eliminates custom adapter requirements, supporting both legacy and current-generation Speedtronic configurations.

✓ Extended Environmental Tolerance: Conformal-coated PCB construction withstands 5-95% humidity (non-condensing) and -40°C to +85°C storage conditions, making it suitable for outdoor enclosures and harsh industrial settings where conventional boards fail.

✓ Diagnostic-Ready Design: Integrated LED indicators provide real-time power and signal-presence verification, enabling technicians to isolate wiring faults without oscilloscope equipment during commissioning and troubleshooting procedures.

✓ Maintenance-Optimized Layout: Clearly labeled terminal positions and silk-screened channel identifiers reduce configuration errors during multi-channel installations, cutting commissioning time and minimizing human-error risks in complex control panels.

Industrial Application Scenarios

Gas Turbine Control Modernization: Power utilities upgrading aging Frame 5 and Frame 7 turbine controls deploy the DS200TBQBG1AAA to interface legacy 4-20mA transmitters with refurbished Mark V processors. The board's noise immunity prevents false trips caused by VFD interference in co-located compressor stations, maintaining 99.7% availability targets.

Steam Turbine Protection Systems: Combined-cycle facilities rely on this terminal board to connect RTD temperature sensors and pressure transducers monitoring bearing temperatures and steam chest conditions. Its ±0.1% accuracy ensures overspeed protection circuits respond within 10ms of threshold violations, preventing catastrophic turbine damage.

Emergency Spare Inventory Management: Plant maintenance teams stock DS200TBQBG1AAA units as critical spares for unplanned outages. The board's 12-month shelf stability and pre-configured compatibility eliminate the 6-8 week lead times associated with OEM procurement, reducing forced outage duration by 72 hours on average.

Petrochemical Process Integration: Refineries integrating turbine-driven compressors into DCS networks use this board to bridge Mark V controls with Honeywell/Emerson analog modules. Its galvanic isolation prevents ground loop currents that corrupt flow measurement signals in multi-building installations.

Cogeneration System Expansion: Industrial facilities adding turbine generators to existing steam systems leverage the DS200TBQBG1AAA's multi-signal capability to monitor exhaust temperatures, fuel gas pressures, and generator output simultaneously—consolidating 16 channels per board versus 8-channel legacy designs.

Technical Parameters & Selection Guide

Selection Criteria for System Designers:

Choose the DS200TBQBG1AAA when your application requires direct Mark V backplane integration without external signal converters. For systems mixing analog and digital I/O, pair with DS200TCDAH1B digital boards. If your installation involves thermocouple inputs (Type J/K), specify the DS200TBCAG1AAA thermocouple variant instead. Installations exceeding 300-meter cable runs should incorporate loop-powered isolators to maintain signal quality.

Advanced Integration Capabilities

SCADA System Connectivity: When interfacing Mark V turbine controls with plant-wide SCADA networks, the DS200TBQBG1AAA serves as the analog front-end for Modbus RTU and DNP3 protocol converters. Its isolated channels prevent ground-loop-induced data corruption in multi-building installations spanning 500+ meters.

Redundant Control Architectures: High-availability power plants deploy dual DS200TBQBG1AAA boards in hot-standby configurations, with automatic failover managed by DS200UCPBG6AFB processor boards. This redundancy maintains turbine protection during board replacement procedures without process interruption.

Retrofit Modernization Pathways: Facilities transitioning from Mark V to Mark VIe systems use the DS200TBQBG1AAA as a migration bridge, allowing phased upgrades where legacy analog sensors remain operational while digital subsystems are progressively replaced—reducing capital expenditure by 35% versus full-system replacement.

Delivery Timeline & Service Commitments

Standard Lead Time: In-stock DS200TBQBG1AAA units ship within 24-48 hours via DHL/FedEx Express, with typical delivery to North American facilities in 3-5 business days. International shipments to Europe, Middle East, and Asia-Pacific regions average 5-7 business days door-to-door.

Warranty Coverage: Every board includes a comprehensive 12-month warranty covering manufacturing defects, component failures, and workmanship issues. Extended 24-month and 36-month warranty options available for critical-spares inventory programs.

Technical Support Infrastructure: Industrial Control Hub provides unlimited email/phone support for installation guidance, wiring diagrams, and troubleshooting assistance. Our engineering team offers remote diagnostic support for signal integrity issues and configuration validation.

Documentation Package: Each shipment includes installation quick-start guide, terminal block wiring diagrams, and dimensional drawings. Full GE technical manuals (GEH-6195, GEH-6421K) available upon request for system integrators requiring detailed specifications.

Common Technical Questions

What is the maximum permissible cable length for 4-20mA field wiring connections?
For standard 4-20mA current loops, we recommend maximum cable runs of 300 meters (1000 feet) using 18 AWG shielded twisted-pair wire. Longer distances up to 1500 meters are achievable with loop-powered isolators and increased wire gauge (14 AWG). Voltage inputs (0-10VDC) should be limited to 100 meters to prevent signal attenuation.

Can the DS200TBQBG1AAA interface with non-GE analog I/O modules?
This board is specifically designed for GE Mark V Speedtronic backplane architecture and requires compatible analog I/O packs (DS200TCQAG1A, DS200TCQCG1B series). For third-party DCS integration, use external signal isolators or protocol converters rather than direct backplane connection.

Does this terminal board support hot-swappable replacement during turbine operation?
Hot-swap capability depends on your system's redundancy configuration. Single-channel systems require controlled shutdown procedures per GE safety protocols. Redundant architectures with dual I/O packs may permit online replacement if proper lockout/tagout procedures are followed and backup channels are verified operational.

What diagnostic tools are required for commissioning and troubleshooting?
Basic commissioning requires only a digital multimeter for continuity checks and signal verification. The board's onboard LEDs indicate power status and signal presence. Advanced diagnostics utilize the Mark V HMI interface (ToolboxST software) for channel-level monitoring and calibration verification.

How does this board compare to the DS200TBQCG1AAA variant?
The DS200TBQBG1AAA and DS200TBQCG1AAA differ primarily in channel configuration and terminal layout. The "B" suffix typically indicates a specific I/O mapping optimized for certain turbine models (Frame 5, Frame 6). Consult your system's bill of materials or contact our technical team for application-specific recommendations.

What environmental protection is included for outdoor enclosure installations?
The board features conformal coating for humidity resistance (5-95% RH non-condensing) and operates across 0-60°C ambient temperatures. For outdoor NEMA 4X enclosures in coastal or high-humidity environments, we recommend supplemental desiccant breathers and enclosure heaters to maintain optimal conditions.

Order Your DS200TBQBG1AAA Today

Secure your critical turbine control infrastructure with factory-tested DS200TBQBG1AAA analog terminal boards. Our global logistics network ensures rapid delivery to power plants, refineries, and industrial facilities worldwide. Contact our technical sales team for volume pricing, custom testing protocols, or application-specific configuration guidance.

Ready to proceed? Email us your system specifications and delivery requirements, or call our 24/7 support line for immediate assistance with emergency outage situations.
