GE DS200TBCAG1AAB Thermocouple Terminal Board | Mark V/VI Speedtronic | 16-Channel TC Input

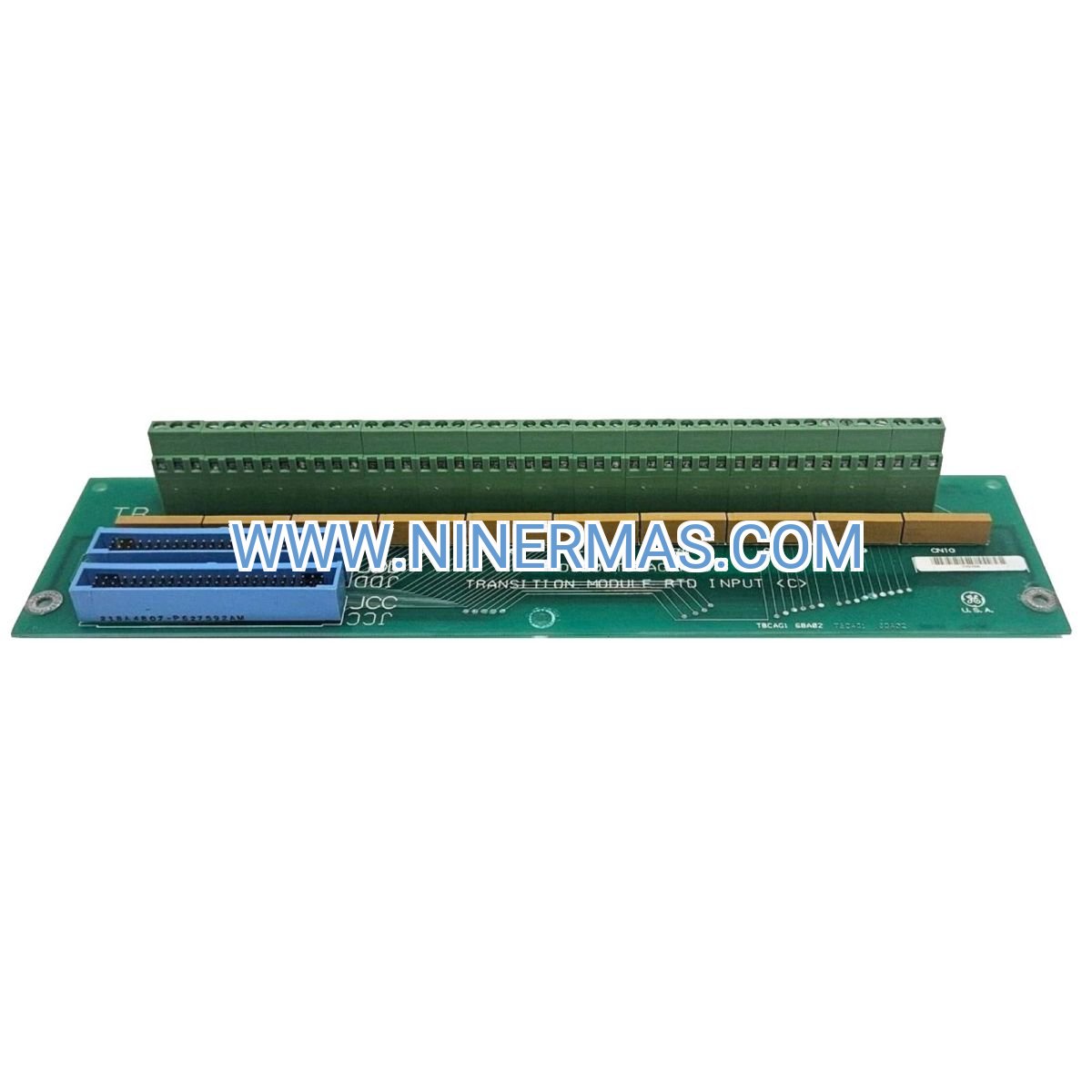

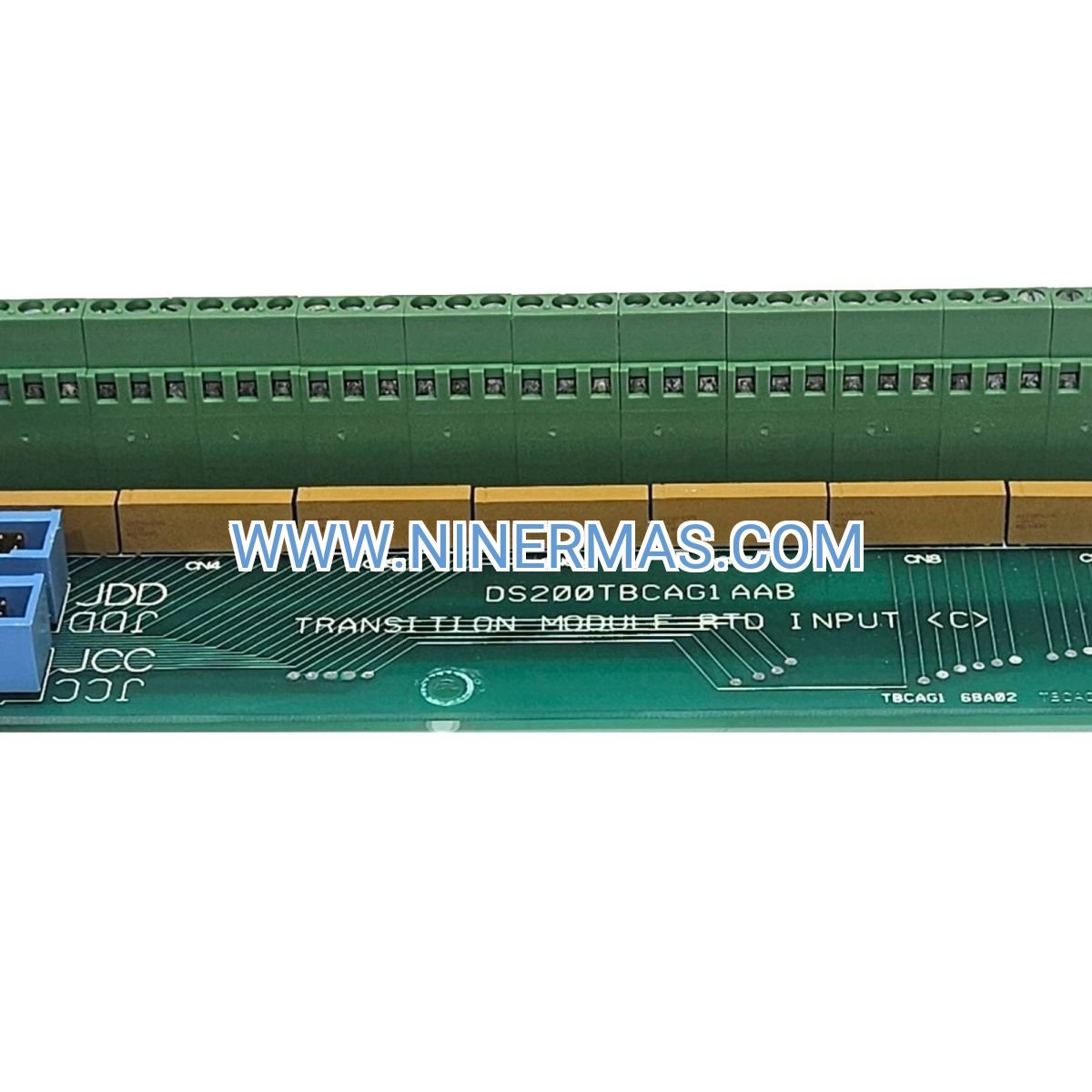

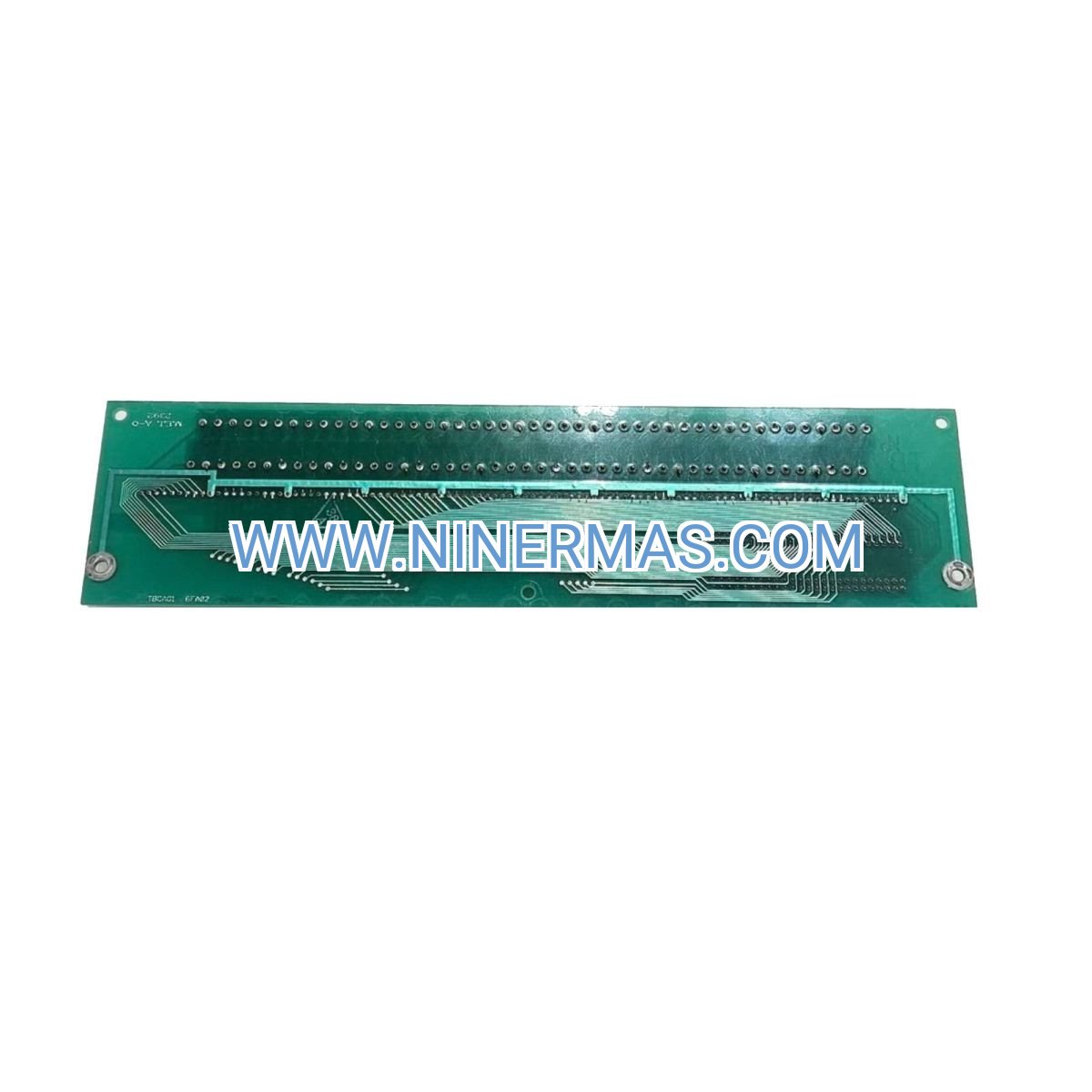

GE DS200TBCAG1AAB Thermocouple Terminal Board (Industrial-Grade Temperature Monitoring Solution)

The GE DS200TBCAG1AAB Thermocouple Terminal Board is a precision-engineered I/O module designed for Mark V and Mark VI Speedtronic turbine control systems. Through advanced cold junction compensation and multi-channel signal conditioning, it delivers accurate, real-time temperature acquisition for critical rotating machinery, power generation units, and industrial process control applications.

Widely deployed in gas turbine monitoring, steam turbine protection, and combined-cycle power plants, this board addresses challenges such as thermal drift, signal noise, and sensor compatibility issues. It ensures stable temperature readings across harsh industrial environments, reducing unplanned downtime and improving operational safety.

With OEM-certified design, proven field reliability, and comprehensive technical documentation, the DS200TBCAG1AAB is the preferred choice for plant engineers, system integrators, and maintenance teams managing GE Speedtronic ecosystems. Contact our application engineers for compatibility verification, retrofit guidance, and expedited delivery options.

Core Features & Technical Advantages

• 16-Channel Thermocouple Input
  Supports simultaneous monitoring of up to 16 thermocouple sensors (Type J, K, T, E, R, S, B), enabling comprehensive thermal profiling of turbine bearings, exhaust paths, and combustion zones.
• Integrated Cold Junction Compensation
  On-board reference junction circuitry eliminates external compensation requirements, ensuring measurement accuracy within ±0.5°C across -40°C to +85°C ambient conditions.
• High Signal Integrity & Noise Immunity
  Differential input architecture with common-mode rejection ratio (CMRR) >80dB minimizes electromagnetic interference from VFDs, switchgear, and high-voltage equipment in industrial substations.
• Hot-Swappable Design (System-Dependent)
  Enables board replacement without system shutdown on compatible Mark VI configurations, reducing maintenance windows and production losses.
• Diagnostic LED Indicators
  Real-time status LEDs for power, communication, and channel faults accelerate troubleshooting and reduce mean time to repair (MTTR).
• Conformal Coating & Industrial-Grade Construction
  Meets IEC 61010 and UL 508 standards for vibration, humidity, and temperature cycling, suitable for Class I Div 2 hazardous locations (when properly enclosed).

Typical Application Scenarios

This thermocouple terminal board is engineered for demanding industrial environments requiring continuous, high-reliability temperature monitoring:

• Gas & Steam Turbine Control Systems
  Monitors bearing metal temperatures, exhaust gas temperatures (EGT), and compressor discharge temperatures in GE Frame 5, Frame 6, Frame 7, and Frame 9 turbines, providing critical inputs for turbine protection logic and performance optimization.
• Combined-Cycle Power Plants (CCPP)
  Integrates with heat recovery steam generators (HRSG) and balance-of-plant systems to track steam temperatures, feedwater heater performance, and condenser vacuum conditions, supporting plant efficiency and emissions compliance.
• Petrochemical & Refining Process Control
  Deployed in distillation columns, reactors, and furnace monitoring systems where multi-point temperature profiling is essential for process safety and product quality control.
• Industrial Cogeneration & District Heating
  Enables thermal efficiency monitoring in CHP (combined heat and power) installations, biomass boilers, and waste-to-energy facilities, helping operators maximize fuel utilization and meet regulatory reporting requirements.
• Retrofit & Obsolescence Management
  Serves as a direct replacement for aging DS200TBCAG1A** variants in legacy Mark V systems, extending asset life and maintaining OEM-level performance without full control system migration.

Technical Specifications & Selection Guide

Selection Considerations:
When specifying the DS200TBCAG1AAB, confirm the following project parameters: thermocouple type and quantity, ambient temperature range, required measurement accuracy, control system firmware version, and available rack slot configuration. For systems requiring >16 TC inputs, multiple boards can be installed in adjacent slots. Our engineering team can provide rack layout drawings, wiring diagrams, and configuration file templates upon request.

Extended Capabilities & System Integration

• Redundant Configuration Support
  Dual-board setups enable TMR (Triple Modular Redundant) or simplex-to-redundant upgrades for SIL 2/3 safety-instrumented systems.
• SCADA & HMI Integration
  Seamless data exchange with GE ToolboxST, Proficy, Wonderware, and third-party DCS platforms via Modbus TCP, OPC UA, or proprietary GE protocols.
• Predictive Maintenance Readiness
  High-resolution temperature trending supports condition-based monitoring (CBM) and machine learning models for bearing failure prediction and thermal anomaly detection.
• Field Calibration & Validation
  Supports NIST-traceable calibration procedures and includes test points for in-situ verification using precision RTD simulators or thermocouple calibrators.

Delivery, Warranty & Technical Support

Standard units ship within 3–5 business days from our certified distribution centers in North America, Europe, and Asia-Pacific. Custom configurations (e.g., extended temperature screening, conformal coating upgrades) typically require 10–15 business days.

All DS200TBCAG1AAB boards include a 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and advance replacement programs are available for critical infrastructure applications.

Each shipment includes: factory-sealed board, installation quick-start guide, dimensional drawings, and certificate of conformance. Detailed technical manuals, AutoCAD DWG files, and configuration examples are accessible via our online technical library or upon request.

Technical Support Services:
Our application engineers provide remote commissioning assistance, firmware compatibility verification, and troubleshooting support (email/phone). On-site installation supervision and system integration services are available in select regions—contact us for a project-specific quotation.

Frequently Asked Questions (FAQ)

Q: Is the DS200TBCAG1AAB compatible with Mark VIe control systems?
A: Yes, but compatibility depends on the specific Mark VIe firmware version and I/O pack configuration. We recommend verifying part number cross-references with GE's official documentation or consulting our engineering team with your system's bill of materials (BOM).

Q: Can this board be used with RTD (resistance temperature detector) sensors?
A: No, the DS200TBCAG1AAB is designed exclusively for thermocouple inputs. For RTD applications, consider the DS200RTBAG series or equivalent RTD terminal boards within the Speedtronic I/O family.

Q: What is the difference between Revision A (DS200TBCAG1AAA) and Revision B (DS200TBCAG1AAB)?
A: Revision B incorporates improved EMI filtering, updated firmware compatibility, and enhanced conformal coating for extended environmental durability. Both revisions are functionally interchangeable in most Mark V/VI systems, but Revision B is recommended for new installations and harsh-environment deployments.

Q: How do I configure thermocouple types for each channel?
A: Thermocouple type assignment is performed via GE ToolboxST software during system configuration. Each of the 16 channels can be independently configured for J, K, T, E, R, S, or B types. Refer to the system programming manual (GEH-6421) for step-by-step instructions.

Q: Does the board require external cold junction compensation hardware?
A: No, the DS200TBCAG1AAB features integrated on-board cold junction compensation, eliminating the need for external ice-point references or compensation modules.

Q: What is the typical lead time for custom screening or testing (e.g., extended temperature burn-in)?
A: Custom screening services typically add 7–10 business days to standard lead times. For mission-critical applications requiring HALT/HASS testing or MIL-STD qualification, contact our sales engineering team for a detailed project timeline.

Q: Can I purchase a pre-configured board with specific thermocouple types already programmed?
A: Configuration is typically performed during system commissioning via ToolboxST software. However, for large OEM orders or turnkey projects, we can coordinate factory pre-configuration—minimum order quantities and lead times apply.

Request a Quote or Technical Consultation

To receive a detailed selection guide, pricing quotation, or application-specific technical support, please provide the following information:

• Project name and application (e.g., turbine retrofit, new power plant construction)
• GE Speedtronic system model and firmware version
• Number of thermocouple inputs required and sensor types (J, K, T, etc.)
• Operating environment conditions (temperature, humidity, vibration)
• Delivery timeline and destination
• Any special requirements (certifications, extended warranty, calibration services)

Our engineering team will respond within 24 hours with a tailored solution, compatibility confirmation, and commercial proposal.
