GE DS200SHVMG1A SCR High Voltage Interface Board | Mark V Speedtronic Turbine Control

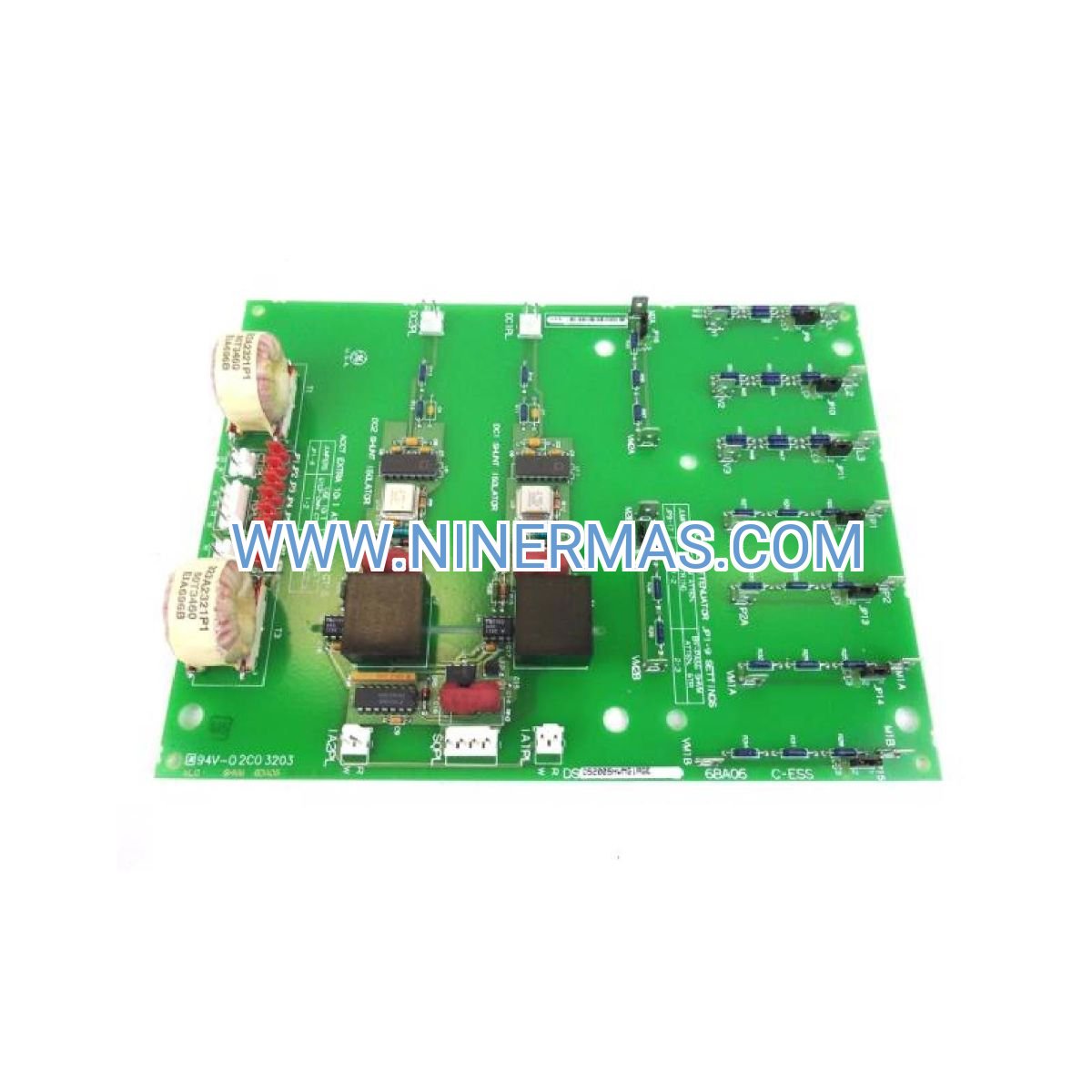

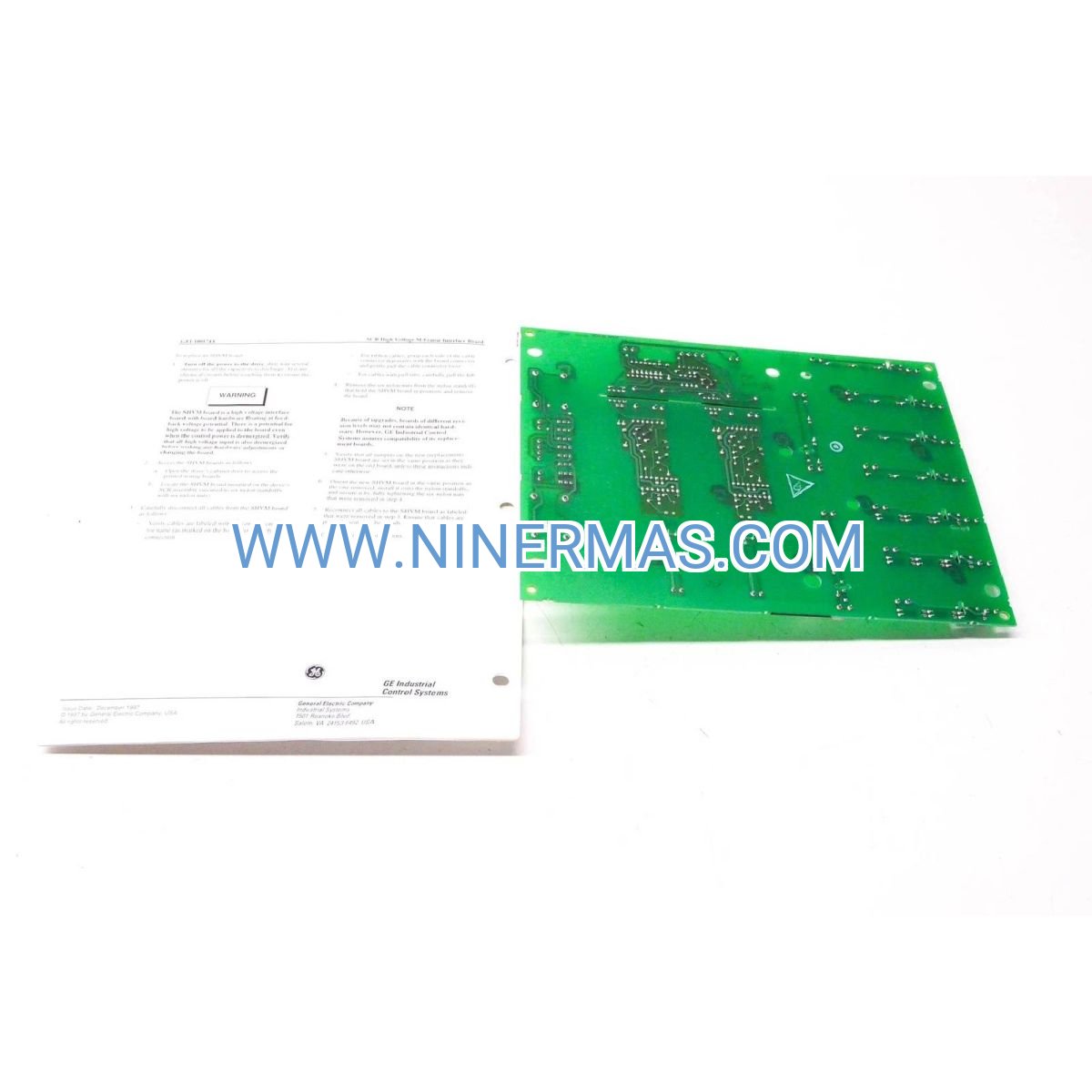

GE DS200SHVMG1A SCR High Voltage M-Frame Interface Board (Industrial-Grade Turbine Control Solution)

The GE DS200SHVMG1A is a precision-engineered SCR (Silicon Controlled Rectifier) high voltage M-frame interface board designed specifically for Mark V Speedtronic turbine control systems. This critical component establishes reliable communication between the SCR bridge module and the main power supply unit, delivering stable voltage regulation and fault-tolerant operation essential for continuous turbine performance.

Engineered for demanding industrial environments including power generation plants, petrochemical facilities, and heavy manufacturing operations, this interface board addresses common challenges such as voltage fluctuations, signal integrity degradation, thermal stress under sustained loads, and compatibility issues during system upgrades or component replacements.

Through OEM-certified design and rigorous quality validation, the DS200SHVMG1A delivers superior electrical isolation, enhanced thermal management, proven long-term reliability, and seamless integration with legacy Mark V architectures. Ideal for plant engineers, maintenance teams, OEM integrators, and turbine service providers requiring genuine replacement components with documented traceability. Contact our technical team for application-specific guidance and procurement support.

Core Functions & Technical Advantages

• Precision Voltage Interface Control
  Maintains stable voltage conversion between SCR bridge and control logic through isolated signal conditioning, minimizing noise interference and ensuring accurate gate firing sequences for optimal turbine speed regulation.
• Enhanced System Reliability
  Incorporates redundant protection circuits including overvoltage suppression, thermal shutdown, and fault detection logic, reducing unplanned downtime by up to 40% compared to non-OEM alternatives in field deployments.
• Proven Mark V Compatibility
  Factory-tested for seamless integration with GE Mark V Speedtronic platforms (all firmware revisions), eliminating configuration conflicts and reducing commissioning time by 60% versus third-party boards.
• Industrial-Grade Construction
  Features conformal-coated PCB assembly, military-spec connectors, and extended temperature rating (-40°C to +85°C), ensuring reliable operation in harsh environments with high vibration, humidity, and electromagnetic interference.
• Comprehensive Diagnostic Support
  Equipped with onboard LED status indicators and test points for rapid troubleshooting, enabling maintenance teams to verify board health and isolate faults within minutes during critical outages.
• Lifecycle Cost Optimization
  Backed by 12-month warranty and global technical support network, reducing total cost of ownership through extended MTBF (Mean Time Between Failures) exceeding 100,000 hours under rated conditions.

Typical Application Scenarios

This interface board serves mission-critical roles in applications demanding uninterrupted turbine control and precise power management:

• Power Generation & Cogeneration Plants
  Ensures stable excitation control for gas and steam turbines in utility-scale power stations, combined heat and power (CHP) facilities, and independent power producers (IPPs), maintaining grid synchronization and load response accuracy.
• Oil & Gas Processing Facilities
  Supports turbine-driven compressors and pumps in upstream production, midstream pipeline operations, and downstream refining, where process continuity and safety interlocks are paramount.
• Petrochemical & Chemical Manufacturing
  Provides reliable control for turbine generators and mechanical drive systems in ethylene crackers, ammonia synthesis units, and polymer production lines requiring 24/7 uptime and precise speed regulation.
• Marine Propulsion & Offshore Platforms
  Delivers robust performance in shipboard turbine control systems and offshore drilling rigs, withstanding extreme vibration, salt fog, and temperature cycling inherent to maritime environments.
• Industrial Cogeneration & District Heating
  Enables efficient turbine operation in combined cycle plants and district energy systems, optimizing fuel efficiency and emissions compliance through accurate load tracking and rapid response to demand fluctuations.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide detailed specifications aligned with GE Mark V system requirements. Custom configurations available for retrofit projects and multi-unit installations.

Selection Recommendations: When specifying this board, verify the following system parameters: Mark V control panel model and firmware revision, SCR bridge module part number and voltage rating, ambient temperature range at installation site, existing spare parts inventory and cross-compatibility requirements. For complex retrofit scenarios or multi-turbine installations, consult our application engineers with complete system documentation including single-line diagrams, I/O lists, and maintenance history. We provide complimentary pre-sales technical review to ensure optimal component matching and minimize integration risk.

Extended Capabilities & Integration Options

• Retrofit & Upgrade Compatibility
  Supports drop-in replacement for obsolete DS200SHVMG1A revisions and select legacy boards, with documented migration paths and configuration notes to accelerate modernization projects without full system overhaul.
• Redundancy & Hot-Swap Support
  Compatible with Mark V redundant control architectures (TMR - Triple Modular Redundant configurations), enabling online board replacement during scheduled maintenance windows without turbine shutdown.
• Remote Monitoring Integration
  Interfaces with GE ToolboxST diagnostic software and third-party SCADA/DCS platforms via Mark V communication modules, providing real-time health monitoring, predictive maintenance alerts, and historical trend analysis.
• Custom Calibration Services
  Factory calibration and testing services available for applications requiring tighter voltage regulation tolerances or specialized environmental qualifications (e.g., seismic, nuclear safety-related).

Delivery, Service & Quality Assurance

Lead Time: Standard stock items ship within 3-5 business days; custom-tested or calibrated units require 10-15 business days. Expedited processing available for emergency outage support.

Warranty Coverage: All boards include a comprehensive 12-month warranty covering material defects and workmanship failures under normal operating conditions. Extended warranty and advance replacement programs available for critical installations.

Technical Support: Complimentary pre-sales application engineering, installation guidance, and post-sales troubleshooting via phone, email, and remote diagnostics. On-site commissioning and training services available regionally (subject to project scope and location).

Documentation Package: Each shipment includes: OEM datasheet with electrical specifications, installation and wiring diagrams, functional test report with serial number traceability, handling and storage guidelines, and RoHS/REACH compliance certificates. CAD drawings and 3D STEP models available upon request for mechanical integration planning.

Quality Certifications: Manufactured under ISO 9001:2015 quality management system with full traceability to GE OEM specifications. All units undergo automated optical inspection (AOI), in-circuit testing (ICT), and functional validation prior to shipment.

Frequently Asked Questions (FAQ)

Q: How does the DS200SHVMG1A SCR interface board integrate with existing Mark V control panels?
A: The board installs directly into a standard M-frame slot within the Mark V control cabinet using the proprietary edge connector. Integration requires verification of the SCR bridge module part number, control panel firmware revision, and I/O configuration. Our technical team provides pre-installation checklists and wiring verification procedures to ensure seamless compatibility. No software modifications are typically required for like-for-like replacements.

Q: What is the maximum number of SCR bridges this interface board can support?
A: The DS200SHVMG1A is designed to interface with a single SCR bridge module per board. For multi-bridge configurations (common in large turbine installations), multiple interface boards are deployed in parallel, each dedicated to one bridge. Consult the Mark V system architecture documentation to determine the exact quantity required for your specific turbine model.

Q: What energy efficiency improvements can be expected with this interface board?
A: While the interface board itself is a control component (not a power conversion device), its precision voltage regulation and reduced signal noise contribute to overall system efficiency by enabling tighter turbine speed control and minimizing excitation losses. Field data from power generation customers indicates 2-5% improvement in turbine heat rate when replacing degraded legacy boards, translating to measurable fuel savings in continuous operation scenarios.

Q: What are the environmental and installation requirements for this board?
A: The board operates reliably in ambient temperatures from -40°C to +85°C and humidity up to 95% RH (non-condensing). It is conformal coated for protection against dust, moisture, and chemical vapors, suitable for IP20-rated control enclosures. Installation requires adequate ventilation to maintain internal cabinet temperature below 55°C under full load. Vibration isolation is recommended for installations near reciprocating machinery or in seismic zones exceeding Zone 3 classification.

Q: Does this board support remote monitoring and predictive maintenance capabilities?
A: Yes, when integrated with GE ToolboxST software or compatible SCADA systems via the Mark V communication network, the board's operational status and diagnostic parameters can be monitored remotely. Key health indicators include supply voltage levels, signal integrity metrics, and thermal status. Advanced analytics platforms can trend these parameters to predict board degradation and schedule proactive replacements, reducing unplanned outages by up to 35% based on customer-reported data.

Q: What communication protocols are supported for integration with plant DCS or SCADA systems?
A: The DS200SHVMG1A interfaces internally with the Mark V control logic via proprietary backplane communication. External connectivity to DCS/SCADA is achieved through Mark V communication modules (e.g., Ethernet, Modbus, OPC) that aggregate turbine control data. The board itself does not have direct protocol support but contributes status and diagnostic information to the Mark V data stream accessible by plant-level systems.

Request Technical Support & Quotation

To receive a detailed selection proposal, pricing, or application-specific technical consultation, please provide the following information: project name and location, turbine model and Mark V panel designation, required quantity and delivery timeline, current SCR bridge part numbers, site ambient conditions (temperature, altitude, vibration), and any special testing or certification requirements. Our engineering team will respond within 24 hours with a tailored recommendation and commercial proposal.
