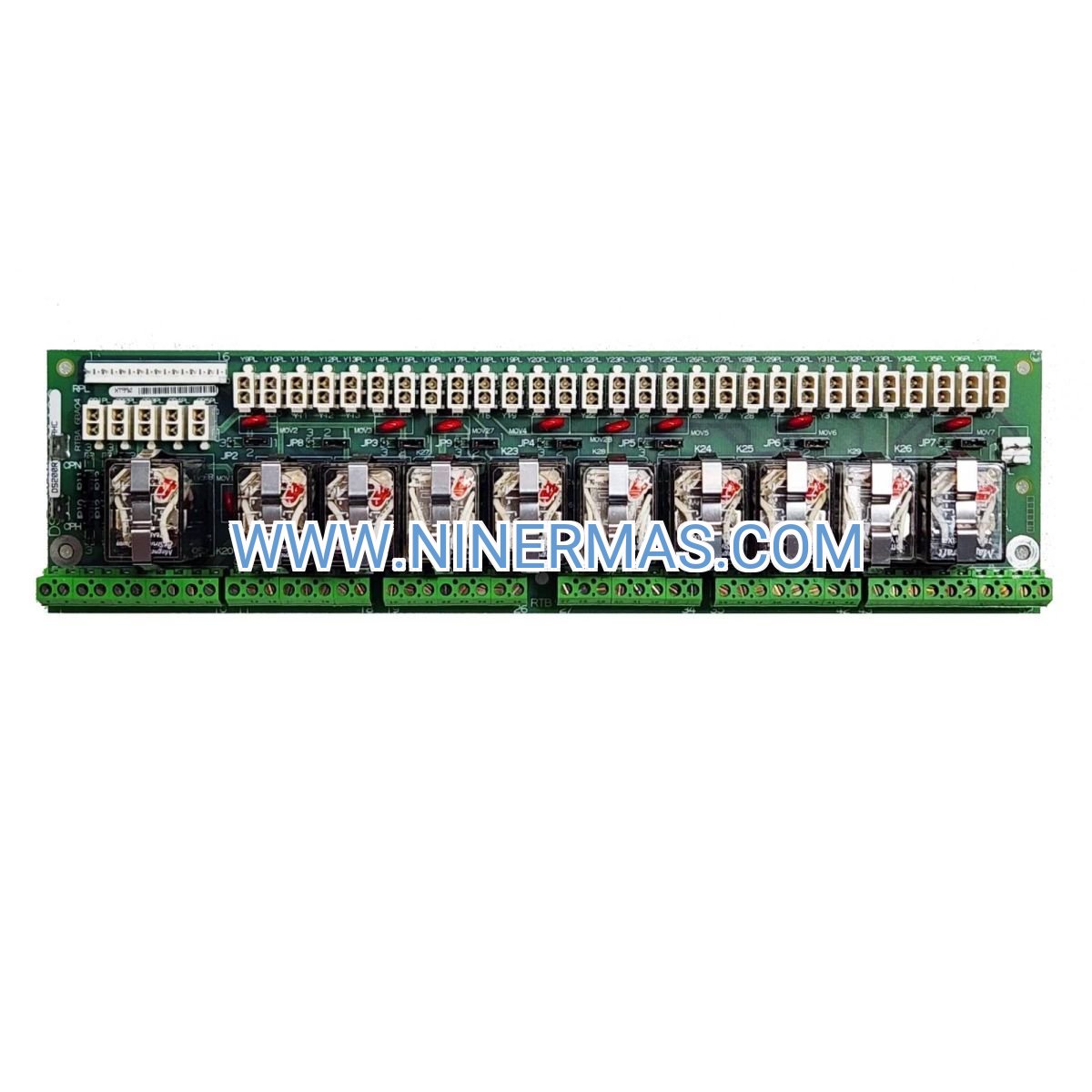

DS200RTBAG3AHC Industrial Relay Terminal Board (Mark V Speedtronic Compatible)

The DS200RTBAG3AHC represents a mission-critical relay interface solution engineered specifically for GE Mark V Speedtronic turbine control architectures. This industrial-grade terminal board delivers dependable relay switching, field wiring termination, and signal distribution capabilities essential for power generation, petrochemical processing, and heavy industrial automation environments where system uptime directly impacts operational profitability.

Designed to withstand the rigorous demands of turbine control applications, this relay terminal board combines high-density relay configuration with robust construction standards that ensure consistent performance across temperature extremes, vibration exposure, and electrically hostile industrial settings. The DS200RTBAG3AHC serves as the vital link between control logic processors and field-mounted actuators, valves, and safety devices.

Whether you're maintaining legacy Mark V installations, executing emergency repairs, or upgrading existing control infrastructure, the DS200RTBAG3AHC provides the reliability and compatibility required for uninterrupted turbine operation. Contact our automation specialists for immediate availability and technical consultation.

Core Capabilities & Technical Advantages

→ Twelve Independent SPDT Relay Channels – Maximize control point density within compact cabinet footprints while maintaining electrical isolation between circuits
→ 5A Contact Rating @ 250VAC/30VDC – Handle demanding switching loads including solenoid valves, motor starters, and auxiliary contactors
→ 24V DC Nominal Coil Voltage – Direct compatibility with standard industrial control power supplies and logic output modules
→ Conformal-Coated PCB Assembly – Enhanced protection against moisture, dust, and corrosive atmospheric contaminants extends operational lifespan
→ Individual Channel LED Indicators – Accelerate troubleshooting and system diagnostics with real-time visual relay status confirmation
→ Heavy-Duty Screw Terminals (14-22 AWG) – Secure field wiring connections resist vibration-induced loosening and maintain low contact resistance

Industry Applications & Use Cases

Combined-Cycle Power Plants:
In CCGT facilities, the DS200RTBAG3AHC coordinates critical relay logic for turbine start sequences, load ramping, and emergency trip functions. When deployed alongside the GE DS200TCRAG1A Relay Output Board, it enables comprehensive control over auxiliary systems including lube oil pumps, cooling water valves, and generator breaker coordination. This integration reduces mean time to repair during unplanned outages and simplifies maintenance procedures.

Gas Compression Stations:
Pipeline operators rely on the DS200RTBAG3AHC for fail-safe relay switching in compressor control systems. The board interfaces with emergency shutdown devices, anti-surge valves, and vibration monitoring systems to prevent catastrophic equipment failures. Pair with the GE DS200TCEAG1A Emergency Overspeed Board for multi-layered protection schemes that meet API 670 and API 618 safety standards.

Industrial Cogeneration Facilities:
CHP systems benefit from the board's ability to manage multiple control loops simultaneously – from fuel gas valve sequencing to steam bypass control. Integration with the GE DS200TCTGG1AFF Turbine Control Terminal Board creates a complete signal distribution architecture that simplifies cabinet wiring and reduces installation labor costs.

Refinery Process Units:
In hydrocracker and FCC applications, the DS200RTBAG3AHC provides reliable relay switching for critical safety instrumented systems (SIS). The board's EMI/RFI shielding prevents false trips caused by VFD noise and high-voltage switchgear transients common in refinery electrical environments.

Technical Specifications & Selection Data

Selection Guidance: Verify relay coil voltage compatibility with your control system power supply. For applications requiring higher contact ratings or AC coil operation, consult our technical team for alternative board configurations. The DS200RTBAG3AHC is optimized for resistive and inductive loads; use external contact protection for highly inductive loads exceeding 2A.

System Integration & Compatible Mark V Components

Maximize your Mark V Speedtronic system performance by pairing the DS200RTBAG3AHC with these complementary control modules:

✓ GE DS200RTBAG2AHC Relay Terminal Board – Expand relay I/O capacity for complex control schemes
✓ GE DS200RTBAG1AHC Relay Terminal Board – Alternative relay configuration for specific architectures
✓ GE DS200DTBAG1A Digital Terminal Board – Digital I/O termination and distribution
✓ GE DS200TBQCG1A Analog Termination Board – Analog signal conditioning and field wiring interface
✓ GE DS200TCQCG1B Analog I/O Board – Process variable monitoring and control output
✓ GE DS200TCPSG1APE Turbine Control Power Supply – Regulated DC power for control modules
✓ GE DS200UCPBG6AFB Turbine Control Processor Board – Central processing and control logic execution

Installation Best Practices & Wiring Standards

The DS200RTBAG3AHC features standardized mounting provisions compatible with Mark V control cabinet backplanes. Proper installation requires:

Mechanical Installation: Secure the board to DIN rail or mounting panel using provided hardware. Ensure adequate clearance (minimum 50mm) above and below the board for thermal management and service access. Verify proper seating of all edge connectors before energizing the system.

Electrical Connections: Terminate field wiring using ferrules or tinned wire ends to prevent strand breakage. Apply specified torque (7-9 in-lbs) to all terminal screws using a calibrated torque screwdriver. Maintain proper polarity on relay coil connections – reversed polarity will prevent relay operation.

Grounding Requirements: Connect the board's chassis ground terminal to cabinet ground using 14 AWG minimum wire. Proper grounding is essential for EMI immunity and personnel safety. For hazardous area installations, follow NEC Article 501 or IEC 60079 guidelines.

Cable Routing: Separate relay output wiring from analog signal cables by minimum 150mm to prevent electrical noise coupling. Use shielded cable for signal connections in electrically noisy environments. Route power and control circuits in separate cable trays when possible.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 24-48 hours via expedited carrier with full tracking and insurance coverage. Typical transit time to major industrial centers: 3-5 business days (North America), 5-7 business days (Europe/Asia).

Warranty Coverage: Every DS200RTBAG3AHC includes a comprehensive 12-month warranty covering manufacturing defects, component failures, and workmanship issues. Warranty service includes advance replacement options to minimize operational downtime.

Technical Support: Our application engineers provide pre-sales consultation, installation guidance, and troubleshooting assistance throughout the product lifecycle. Support services include wiring diagram review, compatibility verification, and system integration recommendations.

Documentation Package: Each board ships with installation instructions, dimensional drawings, and terminal assignment diagrams. Complete technical manuals and CAD files available upon request.

Frequently Asked Questions

How does the DS200RTBAG3AHC differ from the DS200RTBAG2AHC variant?
The "3A" revision incorporates enhanced relay contact materials for improved cycle life and features upgraded LED driver circuits for better visibility in high-ambient-light conditions. Both variants maintain identical mounting footprints and electrical compatibility with Mark V systems.

What is the expected relay contact lifespan under typical turbine control loads?
With resistive loads at rated current, contacts are specified for 100,000 mechanical cycles minimum. Inductive loads (solenoid valves, contactors) may reduce cycle life to 50,000-75,000 operations. Implement RC snubber networks across inductive loads to maximize contact longevity.

Can this terminal board operate in Class I Division 2 hazardous locations?
When installed in NEMA 4X or explosion-proof enclosures meeting area classification requirements, the DS200RTBAG3AHC is suitable for Division 2 applications. Consult local electrical codes (NEC, IEC) and obtain approval from your facility's electrical authority before deployment in hazardous areas.

Is the board compatible with GE Mark VI or Mark VIe control systems?
The DS200RTBAG3AHC is engineered exclusively for Mark V Speedtronic platforms. For Mark VI applications, specify the GE IS200SRTDH2ACB Relay Terminal Board which provides equivalent functionality with Mark VI system compatibility.

What diagnostic capabilities are available for troubleshooting relay failures?
Each relay channel features an independent LED indicator that illuminates when the relay coil is energized. For advanced diagnostics, measure coil resistance (should be 400-600Ω at 25°C) and verify contact continuity using a multimeter. Consult the technical manual for detailed troubleshooting flowcharts.

How quickly can emergency replacement units be delivered to remote facility locations?
Industrial Control Hub maintains strategic inventory positions for critical Mark V components. Emergency orders can be expedited via overnight/express courier services to most global locations. Contact our 24/7 emergency hotline for urgent replacement requirements.

Quality Assurance & Factory Testing

Every DS200RTBAG3AHC undergoes rigorous factory acceptance testing including:

• Relay coil resistance verification across all channels
• Contact resistance measurement (typically <50mΩ)
• Insulation resistance testing (>100MΩ @ 500VDC)
• Functional relay operation testing under load
• Visual inspection for solder quality and component placement
• Conformal coating integrity verification

All test results are documented and available upon request for quality traceability and compliance verification.

Why Partner with Industrial Control Hub?

Authentic GE Components: Factory-certified automation products with complete traceability documentation and manufacturer warranties
Comprehensive Inventory: Extensive stock of Mark V, Mark VI, and legacy Speedtronic system components for immediate availability
Global Logistics Network: Expedited shipping to power generation facilities, refineries, and industrial plants worldwide
Application Engineering Support: Technical consultation for system design, retrofit planning, and obsolescence management
Competitive Value Pricing: Direct sourcing relationships ensure optimal pricing without compromising component authenticity
Lifecycle Support: Ongoing technical assistance, spare parts planning, and emergency replacement services

Secure your turbine control system reliability with genuine GE DS200RTBAG3AHC relay terminal boards. Contact our automation specialists today for technical consultation, pricing information, and delivery scheduling tailored to your operational requirements.
