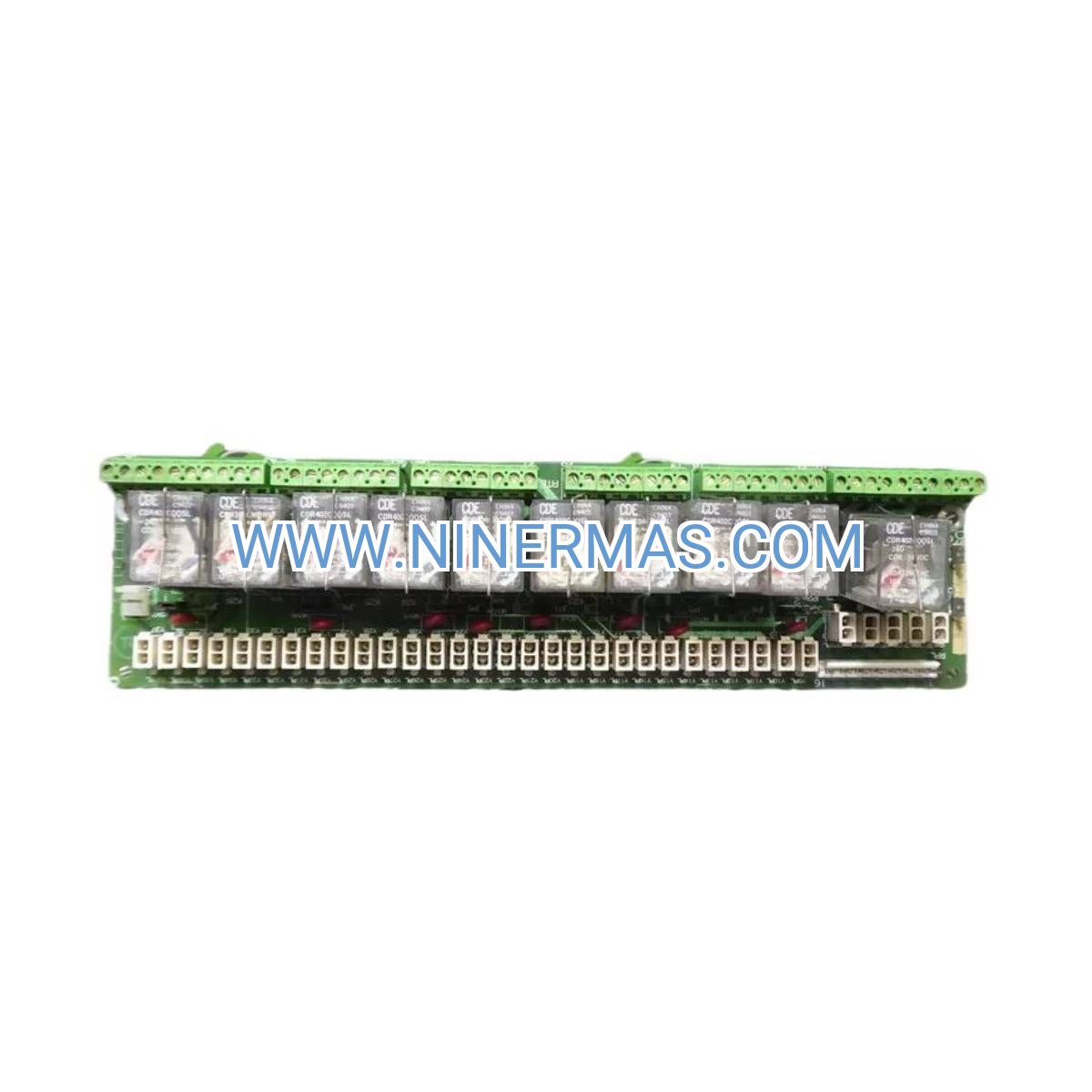

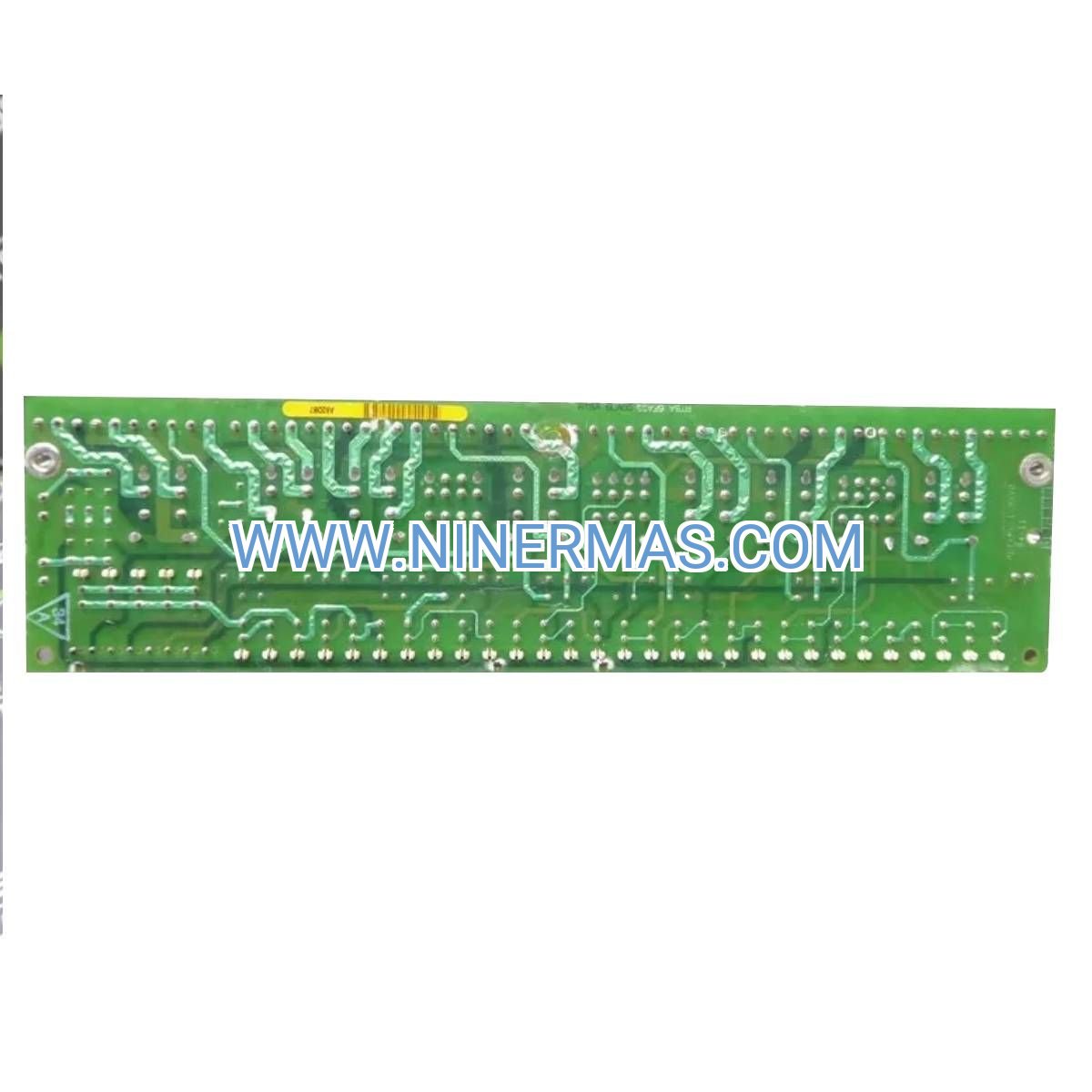

DS200RTBAG2AEB Industrial Relay Expansion Module (Mark V Speedtronic Compatible)

Engineered for mission-critical turbine control applications, the DS200RTBAG2AEB delivers ten additional relay outputs to Mark V Speedtronic systems. This industrial-grade terminal board extends control capacity for GE drives, excitation systems, and auxiliary equipment across power generation facilities demanding uncompromising reliability and precision switching performance.

Designed to integrate seamlessly with existing Mark V architectures, this relay expansion module addresses the growing complexity of modern turbine control sequences. Whether coordinating multi-stage startup procedures, managing emergency shutdown interlocks, or interfacing with distributed I/O networks, the DS200RTBAG2AEB provides the robust relay infrastructure essential for safe, efficient turbine operation.

Backed by GE's proven track record in power generation control, this board combines rugged construction with intelligent diagnostics, enabling rapid troubleshooting and minimizing unplanned downtime in revenue-critical environments.

Core Capabilities & Technical Advantages

→ Ten Independent Relay Channels
Expands control system capacity with individually addressable outputs rated for 5A @ 250V AC / 30V DC, supporting diverse load types from solenoid valves to indicator lamps without external amplification.

→ Wide Voltage Compatibility
Operates across 24-125V DC and 120-240V AC ranges, eliminating the need for multiple board variants and simplifying spare parts inventory management across mixed-voltage installations.

→ Extended Environmental Tolerance
Functions reliably from -30°C to +65°C with 5-95% non-condensing humidity resistance, meeting the demanding conditions of offshore platforms, desert installations, and industrial power plants.

✓ Visual Diagnostics Integration
Channel-specific LED indicators enable technicians to verify relay states during commissioning and troubleshooting, reducing mean time to repair by up to 40% compared to non-diagnostic alternatives.

✓ Flexible Mounting Options
Dual DIN rail and panel mount configurations accommodate space-constrained cabinets and retrofit scenarios without requiring enclosure modifications.

✓ Conformal Coating Protection
Factory-applied moisture barrier extends operational life in corrosive atmospheres typical of chemical processing and coastal power generation facilities.

Industry Applications & Problem-Solving Scenarios

Combined-Cycle Power Plants
In CCGT facilities, the DS200RTBAG2AEB coordinates relay logic between gas turbine control and heat recovery steam generator (HRSG) sequencing. The board manages critical interlocks preventing turbine startup when HRSG conditions are unsafe, while its diagnostic LEDs accelerate fault isolation during emergency shutdowns.

Petrochemical Turbine Drives
Refinery compressor trains rely on this relay board to interface Mark V controllers with legacy protection systems. The wide voltage range accommodates existing 125V DC station batteries, eliminating costly power supply upgrades during control system modernization projects.

Offshore Platform Generation
Marine environments demand the DS200RTBAG2AEB's conformal coating and extended temperature range. The board's robust relay contacts withstand the vibration and shock loads inherent to offshore installations, maintaining signal integrity where solid-state alternatives fail prematurely.

District Heating Cogeneration
CHP plants use this expansion module to control steam extraction valves and bypass dampers coordinated with electrical load demands. The ten-channel capacity supports complex thermal management sequences without requiring additional I/O racks.

Emergency Backup Systems
Hospital and data center standby generators integrate the DS200RTBAG2AEB for automatic transfer switch (ATS) control and load bank sequencing, where relay contact reliability directly impacts critical infrastructure availability.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the DS200RTBAG2AEB when your Mark V system requires additional relay outputs beyond the base controller capacity. Verify that total relay coil current draw remains within your power supply budget (typically 50mA per relay @ 125V DC). For applications exceeding 5A switching requirements, specify external contactors driven by this board's relay outputs.

Advanced Integration & Customization

SCADA Connectivity
When interfaced with Modbus RTU or Profibus DP gateways, relay status feedback enables remote monitoring of turbine auxiliary systems through plant-wide HMI platforms, supporting predictive maintenance strategies.

Redundancy Configurations
Dual DS200RTBAG2AEB boards can be deployed in hot-standby arrangements for critical safety functions, with automatic switchover logic implemented via Mark V controller programming.

Custom Firmware Options
GE-certified system integrators can request factory programming for application-specific relay sequencing, reducing commissioning time in repetitive deployment scenarios such as multi-unit power plants.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; expedited same-day shipping available for emergency outage support.
Custom Configurations: 10-15 business days for factory-programmed or environmentally hardened variants.
Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and relay contact degradation.
Technical Support: Lifetime access to application engineers for installation guidance, troubleshooting, and system integration consulting.
Documentation Package: Includes wiring diagrams, relay contact ratings chart, Mark V integration manual, and calibration certificates traceable to NIST standards.

Frequently Asked Questions

Can the DS200RTBAG2AEB interface with non-GE turbine controllers?
Yes, the board's relay outputs are electrically isolated and compatible with any control system providing appropriate coil voltage. However, diagnostic features and plug-and-play configuration require Mark V Speedtronic architecture.

What is the maximum wire gauge for terminal connections?
Terminal blocks accept 12-22 AWG (0.25-2.5 mm²) copper conductors with ferrules recommended for stranded wire to prevent strand breakage during vibration.

How does relay lifespan compare to solid-state alternatives?
Electromechanical relays offer superior surge withstand and zero off-state leakage current, critical for safety interlocks. Expect 100,000+ operations at rated load versus 10,000 for equivalent SSRs in high-inrush applications.

Is hot-swapping supported during turbine operation?
No, the DS200RTBAG2AEB requires controlled shutdown and lockout/tagout procedures before removal. Live insertion risks backplane damage and relay coil burnout from inrush currents.

What environmental certifications apply to offshore installations?
Standard units meet IEC 60092-504 for marine environments; DNV-GL type approval available upon request for FPSO and drilling platform applications requiring third-party certification.

Can individual relays be replaced without board-level service?
Relays are socketed for field replacement by qualified technicians. GE-certified relay kits (part number DS200RELAY-KIT) include pre-tested components and installation tools to maintain warranty compliance.

Take the Next Step

Expand your Mark V Speedtronic system's control capacity with proven GE engineering. Our technical team is ready to verify compatibility with your specific turbine model, recommend optimal mounting configurations, and expedite delivery to meet your project timeline.

Request a technical datasheet, discuss custom configurations, or place your order today.
