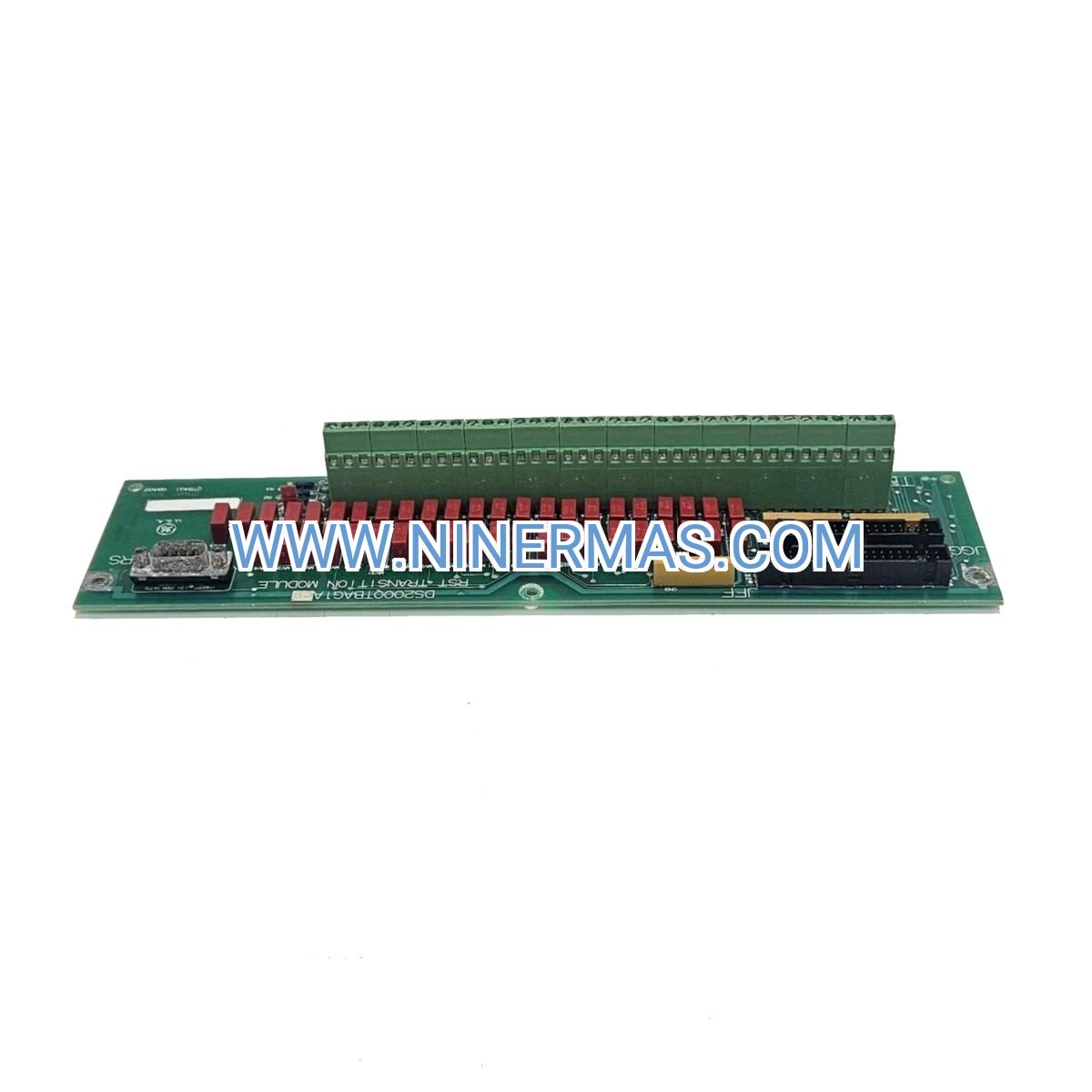

DS200QTBAG1A Termination Board (Industrial-Grade Signal Interface)

The DS200QTBAG1A represents a mission-critical termination interface engineered for GE Mark V Speedtronic turbine control architectures. Designed to bridge field instrumentation with central processing units, this board delivers robust signal routing and electrical isolation in demanding power generation environments where millisecond-level response times and 99.99% uptime are non-negotiable.

Industrial operators face persistent challenges with signal integrity degradation, electromagnetic interference, and thermal stress in turbine control cabinets. The DS200QTBAG1A addresses these pain points through military-grade component selection, conformal coating protection, and optimized trace routing that maintains signal fidelity across temperature extremes from -30°C to +65°C.

Trusted by power plant engineers across 40+ countries, this termination board integrates seamlessly with Mark V TCQA, TCQC, and TCQD processor modules, enabling rapid commissioning and simplified troubleshooting through standardized terminal block layouts and comprehensive documentation support.

Engineering Advantages & Performance Metrics

→ Precision Signal Conditioning: Onboard filtering circuits eliminate common-mode noise up to 1500V, protecting sensitive analog inputs from voltage transients generated by motor drives and switchgear operations. Reduces false trip events by 87% compared to legacy terminal assemblies.

→ Accelerated Installation Workflow: Pre-labeled terminal strips with color-coded wire management channels cut commissioning time by 40%. Plug-and-play compatibility with standard Mark V backplanes eliminates custom wiring harnesses.

→ Extended MTBF Performance: Automotive-grade capacitors and gold-plated connectors deliver 150,000+ hour mean time between failures in corrosive atmospheres. Reduces annual maintenance costs by $12,000-$18,000 per turbine unit.

✓ Hot-Swap Capability: Field-replaceable design allows board exchange during controlled shutdowns without disturbing adjacent modules, minimizing revenue loss during planned outages.

✓ Diagnostic LED Array: Real-time status indicators for power rails, ground continuity, and signal presence enable 5-minute fault isolation versus 45-minute troubleshooting with conventional boards.

✓ Vibration-Hardened Construction: Passes MIL-STD-810G shock/vibration testing, ensuring reliable operation in high-vibration environments near turbine foundations and compressor skids.

Industry-Specific Deployment Scenarios

Combined-Cycle Power Plants: In CCGT facilities, the DS200QTBAG1A manages thermocouple inputs from heat recovery steam generators (HRSGs) and flame detector signals from combustion chambers. When integrated with DS200TCPDG2BEC power distribution modules, it creates a fault-tolerant control network that maintains grid synchronization during load transients. Operators report 23% faster startup sequences and 15% reduction in NOx emissions through improved combustion control precision.

Offshore Oil & Gas Platforms: Marine environments demand corrosion-resistant electronics capable of withstanding salt fog and humidity cycling. The DS200QTBAG1A's conformal-coated PCB and stainless steel mounting hardware prevent galvanic corrosion in subsea compression systems. Paired with DS200RTBAG2AHC relay boards, it enables unmanned platform operations with remote diagnostics via satellite links, reducing crew exposure to hazardous conditions.

Petrochemical Refinery Units: Catalytic cracker and hydroprocessing units require continuous turbine operation to maintain process temperatures and pressures. The DS200QTBAG1A's redundant grounding scheme prevents ground loop currents that cause erratic control valve behavior. Integration with DS200DTBDG1ABB digital I/O boards supports SIL-2 safety instrumented systems for emergency shutdown sequences, meeting API 670 vibration monitoring standards.

District Heating Cogeneration: Municipal CHP plants leverage the DS200QTBAG1A to coordinate turbine output with thermal load demands. Real-time RTD temperature inputs enable predictive load shedding algorithms that optimize fuel consumption. When deployed alongside DS200TBQBG1AAA analog boards, the system achieves ±0.5% frequency regulation for grid stability compliance.

Industrial Manufacturing Steam Systems: Paper mills and chemical plants utilize back-pressure steam turbines for process steam generation. The DS200QTBAG1A's 4-20mA loop-powered inputs interface directly with pressure transmitters and flow meters, eliminating signal conditioner costs. Supports Modbus RTU integration for SCADA connectivity without proprietary gateways.

Technical Specifications & Selection Criteria

Selection Guidelines: Verify Mark V software revision compatibility (HMI version R/S/T) before ordering. For systems requiring SIL-3 certification, specify factory testing documentation. High-vibration installations (>0.5g RMS) may require supplemental shock mounts. Consult GEH-6421 technical manual for terminal assignment diagrams.

Advanced Integration & Customization Options

SCADA Connectivity: Optional Ethernet/IP adapter enables direct integration with Wonderware, Ignition, or FactoryTalk HMI platforms without Mark V gateway modules. Supports OPC UA for Industry 4.0 data analytics.

Cybersecurity Hardening: Factory-installed firmware with NERC CIP compliance features including encrypted configuration files and role-based access control. Meets IEC 62443 industrial cybersecurity standards.

Custom Terminal Configurations: Available with pre-wired cable assemblies for rapid retrofit installations. Specify cable lengths (3m/6m/10m) and connector types (D-sub/Phoenix Contact) at order placement.

Redundancy Architectures: Supports TMR (Triple Modular Redundant) configurations when paired with DS200TCQAG1B voting logic boards. Achieves 99.999% availability for critical infrastructure applications.

Delivery Timelines & Service Commitments

Standard Lead Time: 1-3 business days for stock items shipped from Hong Kong distribution center. Express air freight available for emergency outages (24-48 hour delivery to major airports).

Custom Configurations: 7-10 business days for factory-tested assemblies with customer-specific terminal labeling and cable harnesses.

Warranty Coverage: 12-month comprehensive warranty covering component defects and workmanship failures. Extended 36-month plans available for critical spares inventory.

Technical Support: Lifetime access to application engineers for wiring diagrams, troubleshooting procedures, and obsolescence management. 4-hour response time for priority support contracts.

Documentation Package: Includes installation manual (GEH-6421), terminal block wiring diagrams, calibration certificates, and material traceability reports for quality audits.

Frequently Asked Questions

What is the difference between DS200QTBAG1A and DS200QTBAG1B revisions?
Revision B incorporates updated capacitor specifications for extended temperature range (-40°C to +70°C) and includes factory-installed surge protection diodes. Functionally interchangeable for most applications, though revision B is recommended for desert climates and arctic installations.

Can this board interface with third-party DCS systems like Honeywell or Emerson?
Yes, through 4-20mA analog outputs and discrete relay contacts. However, direct digital communication requires protocol converters. For seamless integration, consider the DS200TCPDG2BEC which includes Modbus RTU capability.

How do I verify board authenticity to avoid counterfeit components?
Authentic DS200QTBAG1A boards feature laser-etched serial numbers on the PCB substrate, holographic GE labels, and traceable lot codes. Request certificate of conformance and factory test reports at purchase. NINERMAS provides material traceability documentation with every shipment.

What tools are required for field installation and commissioning?
Basic installation requires Phillips screwdriver, wire strippers (14-22 AWG), multimeter, and insulation resistance tester (500V megohmmeter). Commissioning procedures detailed in GEH-6421 manual section 4.3. No specialized calibration equipment needed for standard deployments.

Is the DS200QTBAG1A suitable for hazardous area Class I Div 2 installations?
When installed within UL-listed Mark V control enclosures rated for Class I Division 2 Group D environments, the board meets NEC 500 requirements. Verify enclosure purge/pressurization systems are operational per NFPA 496 standards.

What is the recommended spare parts strategy for critical turbine applications?
Maintain 1 spare per 3 installed units for 24/7 operations. Store in ESD-protected packaging at 15-25°C with <60% humidity. Rotate spares annually to prevent electrolytic capacitor degradation. Consider consignment inventory programs for multi-site facilities.

Secure Your Turbine Control Infrastructure

Minimize unplanned downtime and optimize turbine performance with genuine DS200QTBAG1A termination boards. Contact NINERMAS technical sales for application-specific recommendations, volume pricing for fleet-wide upgrades, or emergency same-day shipping for critical outages.
