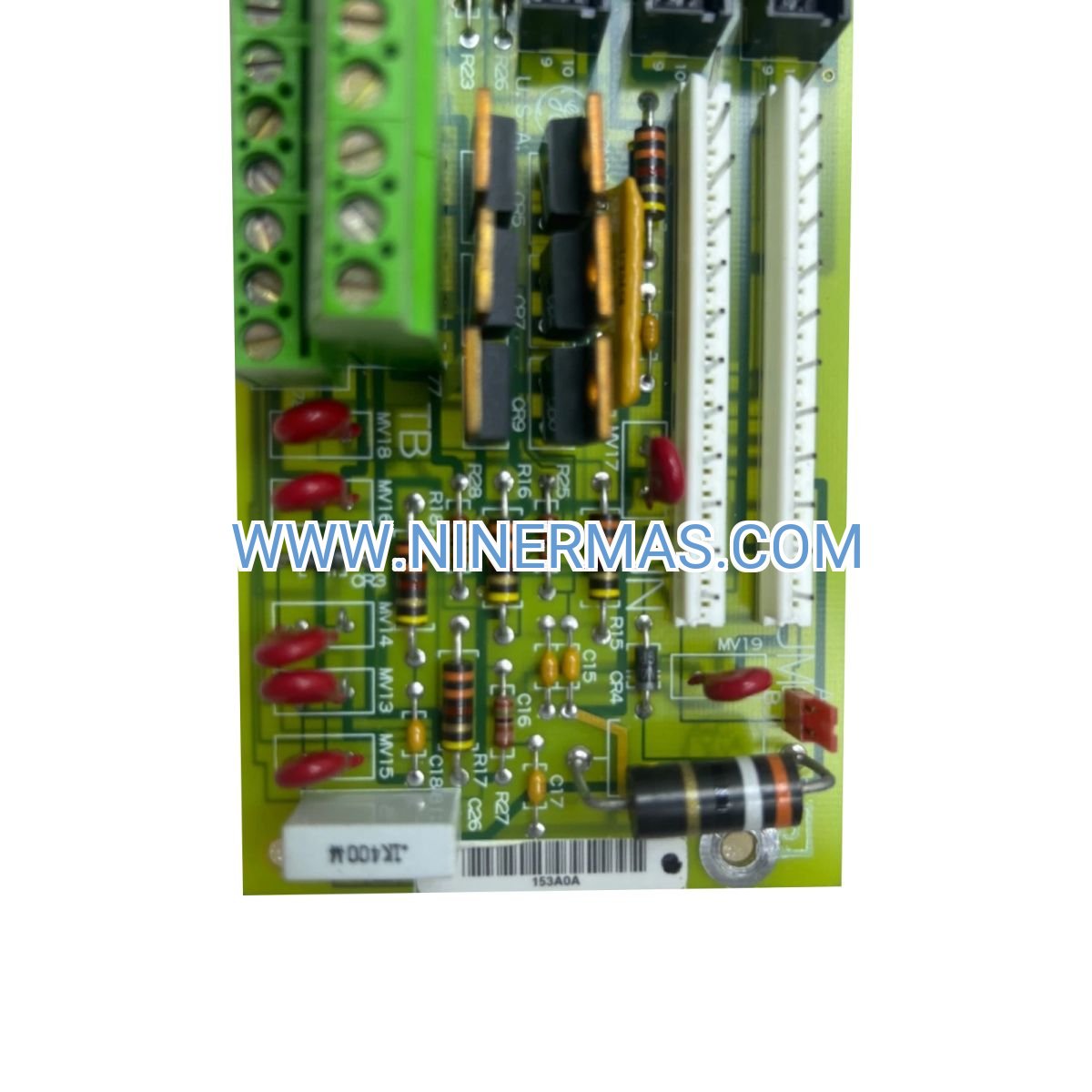

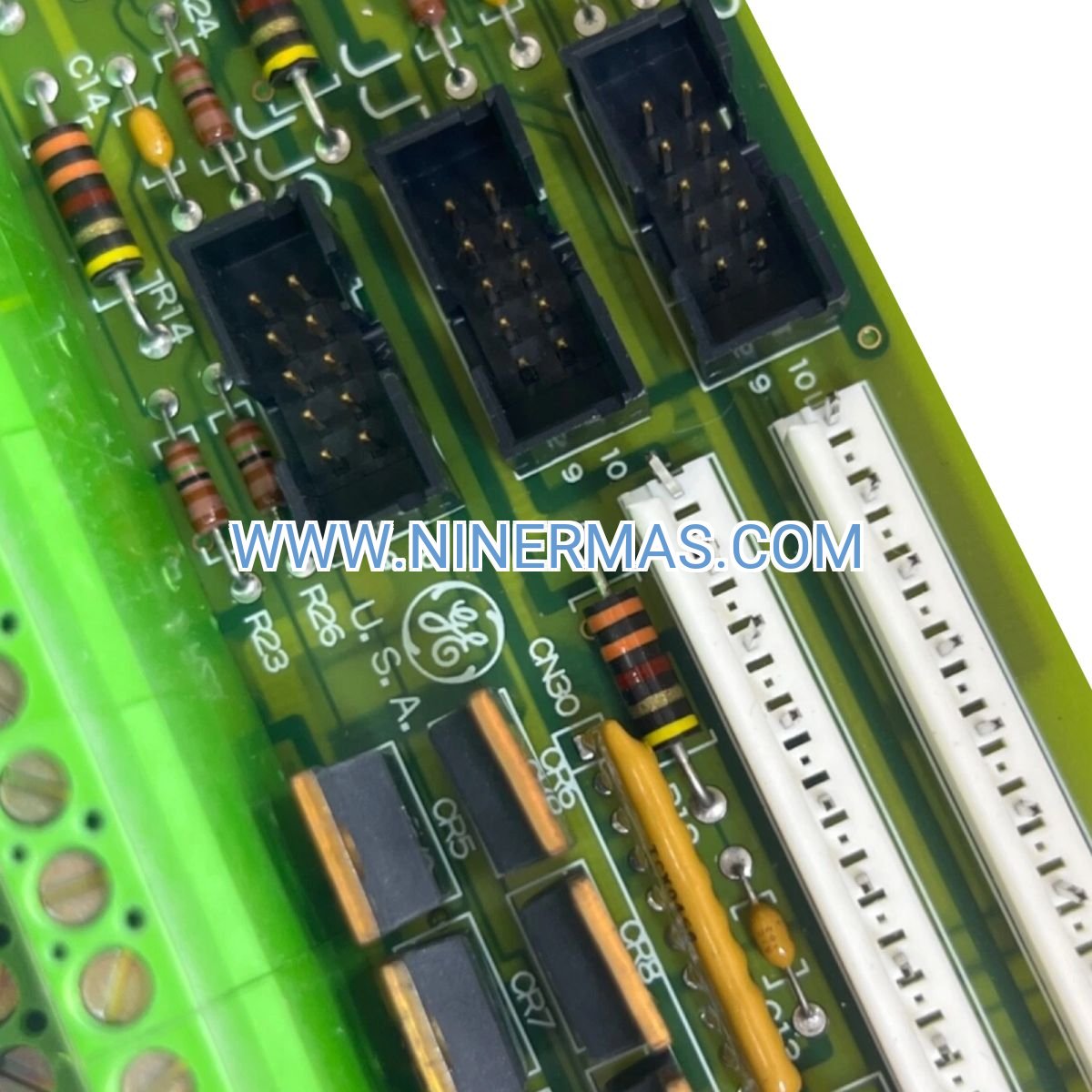

DS200PTBAG1A Protection Terminal Board (Industrial-Grade Turbine Safety Module)

The DS200PTBAG1A serves as a critical protection termination interface within General Electric's Mark V Speedtronic turbine control architecture, delivering fail-safe signal conditioning and circuit isolation for power generation facilities, petrochemical plants, and industrial compression systems. Engineered for continuous operation in demanding environments, this terminal board ensures protection circuits respond accurately to overspeed events, vibration anomalies, and thermal deviations across gas and steam turbine installations.

Designed for integration with Mark V control platforms, the DS200PTBAG1A addresses the operational challenge of maintaining turbine safety integrity while minimizing false trips that disrupt production schedules. Target users include power plant maintenance engineers, turbine OEMs, and industrial automation contractors responsible for critical rotating equipment protection systems.

Key differentiators include triple-modular redundancy compatibility for high-availability installations, conformal coating for harsh industrial atmospheres, and hot-swap capability enabling maintenance without process interruption. The module's proven MTBF exceeding 100,000 hours reduces lifecycle costs while meeting SIL 2/3 safety requirements for turbomachinery applications.

Application Scenarios & Industry Solutions

→ Power Generation Facilities: Combined-cycle and cogeneration plants deploy the DS200PTBAG1A to terminate protection sensor signals from turbine-generator sets, enabling rapid shutdown response to bearing temperature excursions, lube oil pressure loss, or flame detection failures. The module's diagnostic LEDs accelerate troubleshooting during planned outages, reducing mean time to repair by 40% compared to legacy termination systems.

→ Offshore Oil & Gas Platforms: Marine compression and power generation turbines operating in corrosive salt-spray environments rely on the DS200PTBAG1A's conformal-coated circuitry to maintain protection system reliability. Integration with redundant Mark V controllers ensures continuous operation during harsh weather conditions while meeting API 670 vibration monitoring standards for rotating equipment.

→ Petrochemical Process Units: Refinery and chemical plant turbine-driven compressors utilize this terminal board to interface emergency shutdown systems with Mark V control logic, protecting high-value process equipment from catastrophic failures. The module's Class I Division 2 compatibility enables installation in hazardous classified areas without additional barriers.

→ District Heating & Cogeneration: Municipal utility turbines benefit from the DS200PTBAG1A's extended temperature range (-30°C to +70°C), maintaining protection circuit accuracy during seasonal temperature swings. The module's low power consumption (max 2.5A) reduces auxiliary load on turbine control power supplies in distributed generation installations.

→ Industrial Manufacturing Plants: Captive power generation systems in steel mills, paper plants, and automotive facilities leverage the DS200PTBAG1A's backward compatibility to upgrade aging Mark V protection systems without costly controller replacements, extending asset life by 10-15 years while improving safety compliance.

Technical Specifications & Selection Criteria

Selection Guidance: Choose the DS200PTBAG1A for new Mark V installations or direct replacement of failed protection termination modules. For high-noise environments with severe EMI/RFI interference, consider the DS200PTBAG1ABA variant with enhanced filtering. Verify compatibility with existing Mark V software revision (R-series or S-series) before ordering. Consult factory documentation for specific I/O point assignments and wiring termination requirements.

Performance Benefits & Technical Advantages

✓ Redundancy Architecture Support: Seamlessly integrates with 2-out-of-3 voting logic in triple-modular redundant Mark V configurations, enabling online module replacement without compromising protection system availability or triggering spurious turbine trips.

✓ Environmental Hardening: Conformal coating protects sensitive circuitry from sulfur dioxide, hydrogen sulfide, and chlorine exposure common in petrochemical environments, extending service life 3-5x compared to uncoated alternatives in corrosive atmospheres.

✓ Diagnostic Intelligence: Onboard LED indicators provide real-time status for power supply health, signal integrity, and fault conditions, reducing troubleshooting time from hours to minutes during emergency outages or planned maintenance windows.

✓ Thermal Management: Optimized component layout and low-power design minimize heat generation, allowing operation in ambient temperatures up to 70°C without forced cooling—critical for turbine control cabinets in tropical climates or poorly ventilated enclosures.

✓ Legacy System Compatibility: Drop-in replacement for original GE modules with identical form factor, pinout, and electrical characteristics, eliminating need for software reconfiguration or control logic modifications during retrofit projects.

✓ Signal Isolation: Galvanic isolation between field wiring and control logic prevents ground loops and electrical noise propagation, maintaining protection circuit accuracy within ±0.1% across full operating temperature range.

Advanced Integration & IoT Connectivity

Modern Mark V installations leverage the DS200PTBAG1A within digitalized turbine control ecosystems, interfacing with SCADA systems via Modbus TCP/IP gateways for remote monitoring of protection circuit status. Integration with predictive maintenance platforms enables condition-based monitoring of termination board health, tracking parameters such as connector resistance drift, power supply ripple, and signal-to-noise ratios to predict failures before they impact turbine availability.

For facilities implementing IIoT strategies, the DS200PTBAG1A's diagnostic data streams into cloud-based analytics platforms, correlating protection system events with operational parameters to identify patterns indicating sensor degradation, wiring faults, or environmental stress factors. This data-driven approach reduces unplanned downtime by 25-30% through early intervention on developing issues.

Customization Options: Engineering teams can specify factory-configured modules with pre-terminated connectors, custom labeling, or modified filtering networks to match specific turbine OEM requirements. Consult our applications engineering group for projects requiring non-standard voltage inputs, extended temperature ratings, or specialized EMC performance.

Delivery Timeline & Technical Support Services

Standard Lead Time: 3-5 business days for in-stock units with expedited shipping available for emergency outage support. Custom-configured modules ship within 10-15 business days following engineering review and order confirmation.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Advance replacement program available for critical applications requiring <4-hour response times.

Technical Support: Unlimited access to application engineers with Mark V expertise for installation guidance, troubleshooting assistance, and system integration consulting. Support includes wiring diagram review, startup commissioning checklists, and post-installation validation procedures.

Documentation Package: Each module ships with installation manual, dimensional drawings, I/O assignment tables, and compliance certificates. Digital resources include AutoCAD panel layout files, spare parts cross-reference guides, and recommended maintenance procedures.

Frequently Asked Questions

How does the DS200PTBAG1A differ from the DS200PTBAG1ABA variant?
The base DS200PTBAG1A model suits standard industrial environments with typical EMI levels. The DS200PTBAG1ABA incorporates additional RC filtering and shielding for installations near high-power VFDs, arc furnaces, or radio transmitters where electromagnetic interference exceeds 10V/m field strength. Both variants share identical mounting dimensions and pinouts for interchangeable installation.

Can this protection terminal board be retrofitted into Mark VI turbine control systems?
No, the DS200PTBAG1A is electrically and mechanically specific to Mark V Speedtronic platforms. Mark VI systems require IS200-series modules with different voltage levels, communication protocols, and physical form factors. Attempting cross-platform installation will result in incompatibility and potential equipment damage.

What is the recommended spare parts inventory strategy for critical turbine installations?
For single-turbine facilities, maintain one spare DS200PTBAG1A module. Multi-turbine plants should stock spares at a ratio of 1:8 (one spare per eight installed modules). High-availability installations with N+1 redundancy should pre-configure backup modules with identical settings for immediate hot-swap deployment during failures.

Does the module require firmware updates or software configuration after installation?
The DS200PTBAG1A is a hardware-based termination interface with no embedded firmware or software. Configuration is managed entirely through the Mark V controller's protection logic programming. After physical installation and wiring verification, the module operates immediately without additional setup steps.

What environmental conditions void the warranty or reduce module lifespan?
Operation outside the specified -30°C to +70°C temperature range, exposure to condensing humidity above 95% RH, or installation in environments with corrosive gas concentrations exceeding ISA-71.04 G2 severity levels will accelerate component degradation. Proper enclosure selection with adequate ventilation and environmental sealing is essential for achieving rated MTBF.

How can I verify compatibility with my existing Mark V control system revision?
The DS200PTBAG1A is compatible with all Mark V software revisions from R-series through S-series. Verify your controller's software version through the HMI diagnostic screens (typically displayed as "Rx.xx" or "Sx.xx"). For systems running pre-R software, contact our engineering team to confirm backward compatibility and any required control logic modifications.

Request Technical Consultation

Our turbine control specialists provide complimentary pre-sales engineering support to ensure the DS200PTBAG1A meets your specific application requirements. Contact us with your turbine model, Mark V software revision, and protection system architecture for customized integration recommendations and project-specific pricing.
