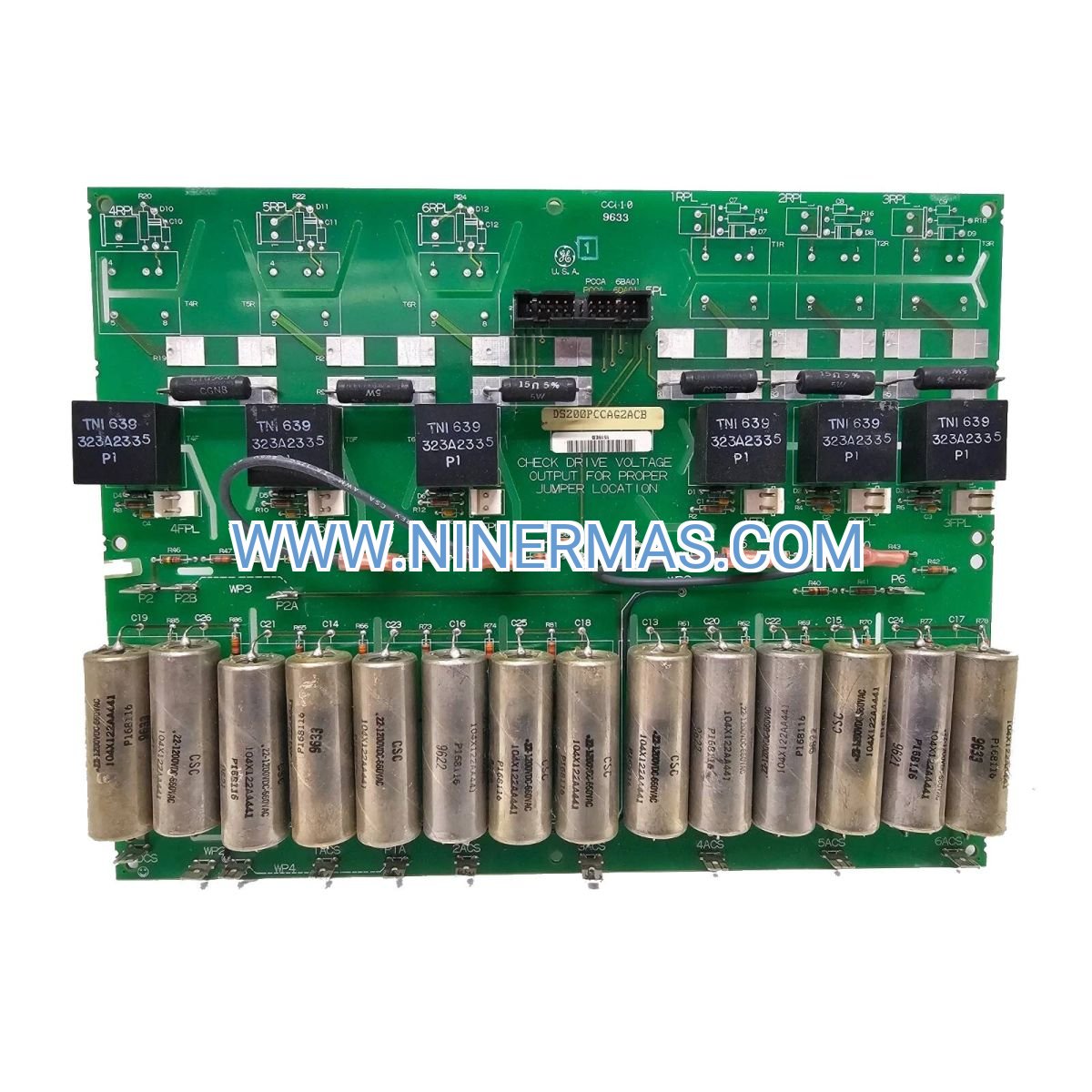

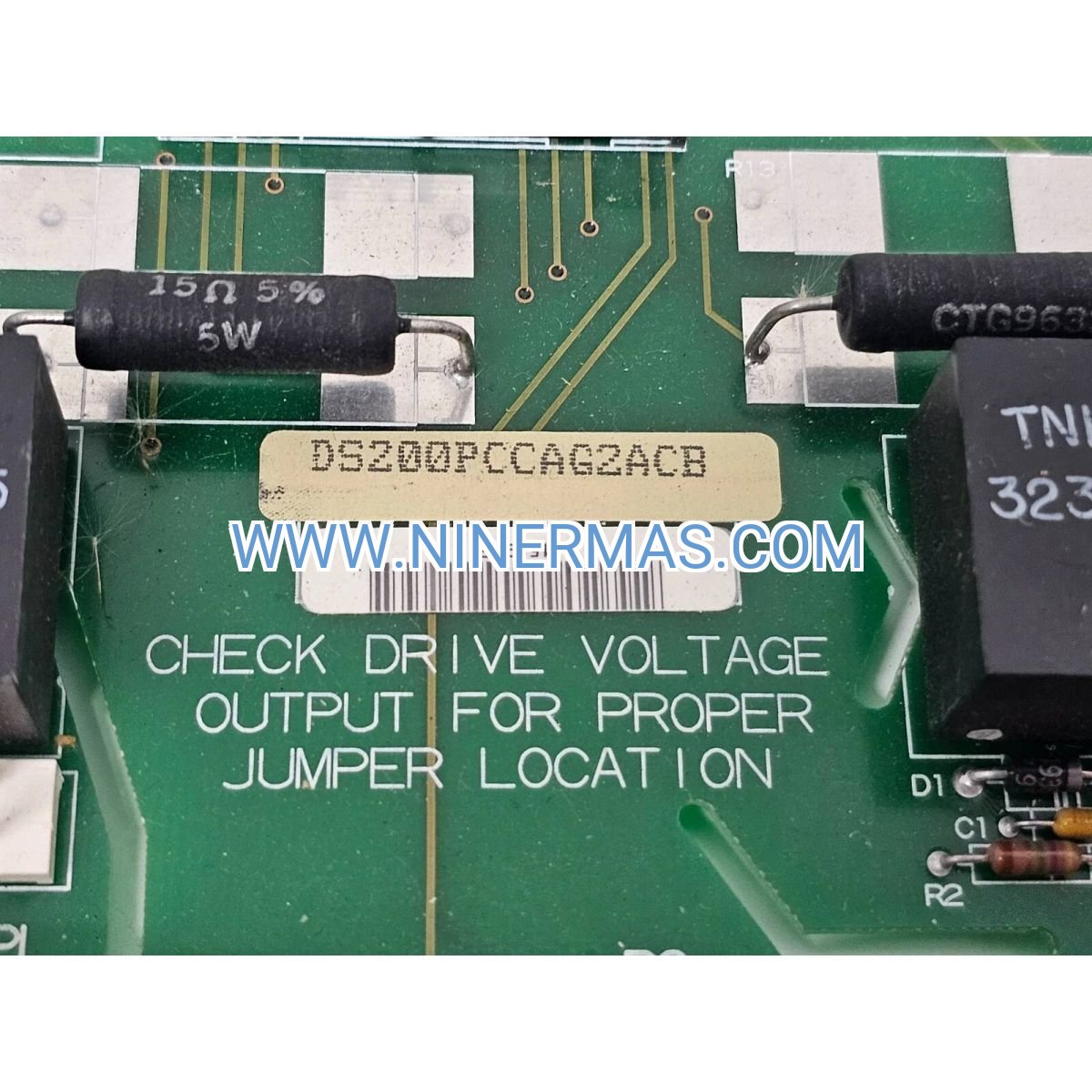

GE DS200PCCAG2ACB Power Connect Board – Industrial-Grade DC Distribution for Mark V Turbine Control

The GE DS200PCCAG2ACB is a precision-engineered DC power connect board designed exclusively for Mark V Speedtronic turbine control platforms. Serving as the backbone of power distribution architecture, this board delivers stable 125V DC connectivity to critical control modules across gas turbine, steam turbine, and wind energy installations. Built to withstand extreme industrial conditions from -30°C to +65°C, it ensures uninterrupted operation in power generation facilities, offshore platforms, and process industries worldwide.

Engineered for high-reliability applications including combined-cycle power plants, cogeneration systems, and renewable energy integration projects, the DS200PCCAG2ACB addresses common challenges such as voltage fluctuations, power supply failures, and system downtime. Its hot-swappable architecture and conformal coating protection make it the preferred choice for plant engineers, system integrators, and maintenance teams requiring minimal disruption during service operations.

With factory calibration, plug-and-play installation, and comprehensive diagnostic capabilities, this power connect board reduces commissioning time by up to 40% compared to legacy solutions. Backed by rigorous quality testing and 12-month warranty coverage, it delivers measurable improvements in system uptime, maintenance efficiency, and total cost of ownership for mission-critical turbine control applications.

Core Capabilities & Performance Advantages

Precision Power Distribution Architecture
Utilizes multi-layer PCB design with isolated power planes and dedicated ground paths to eliminate crosstalk and voltage ripple. Integrated current-limiting circuits protect downstream modules from transient surges, while redundant connector interfaces ensure fail-safe operation during partial system failures.

Advanced Environmental Protection
Features military-grade conformal coating that shields sensitive components from moisture ingress, corrosive gases, and conductive dust particles. This protection extends operational lifespan by 3-5 years in harsh environments including coastal installations, chemical processing facilities, and desert power stations.

Hot-Swap Maintenance Capability
Supports live replacement without system shutdown through controlled power sequencing and arc suppression circuitry. Maintenance windows are reduced from 4-6 hours to under 30 minutes, minimizing production losses and enabling predictive maintenance strategies.

Intelligent Diagnostic Integration
Equipped with multi-color LED indicators providing real-time status feedback for input voltage, output channels, and fault conditions. Diagnostic data interfaces with Mark V HMI systems for remote monitoring, trend analysis, and automated alarm generation.

Universal Mark V Compatibility
Backward-compatible with all Mark V Speedtronic revisions from R-series through T-series firmware. Seamlessly integrates with existing control racks, power supplies, and I/O modules without requiring system reconfiguration or software updates.

Certified Industrial Resilience
Meets IEC 61131-2 industrial controller standards and withstands vibration levels up to 2G per IEC 60068-2-6. Proven performance in seismic zones, mobile power generation units, and marine propulsion applications where mechanical stress is constant.

Target Application Environments

The DS200PCCAG2ACB power connect board excels in applications demanding continuous power availability, rapid fault recovery, and long-term reliability under variable operating conditions:

Combined-Cycle & Simple-Cycle Gas Turbine Plants
Distributes regulated DC power to flame detection systems, fuel valve actuators, vibration monitoring modules, and emergency shutdown circuits. Supports dual-fuel configurations and black-start capabilities essential for grid stability and peak demand response.

Steam Turbine Control & Cogeneration Systems
Provides stable power to governor control boards, extraction pressure regulators, and condenser vacuum protection modules. Interfaces with district heating controls and industrial steam networks requiring precise pressure and temperature management.

Wind Farm Turbine Control Networks
Enables reliable power delivery to pitch control systems, yaw drive controllers, and SCADA communication interfaces. Withstands temperature cycling and humidity variations typical of offshore and high-altitude wind installations.

Industrial Process Automation & Critical Infrastructure
Integrates into refinery control systems, water treatment facilities, and data center backup power architectures. Ensures continuous operation of safety instrumented systems (SIS) and emergency power distribution networks.

Technical Specifications & Selection Parameters

To facilitate accurate system design and component selection, the following specifications define the operational envelope and physical characteristics of the DS200PCCAG2ACB:

Selection Guidance for System Designers
When specifying the DS200PCCAG2ACB for new installations or retrofit projects, consider the following factors: total DC load current requirements across all connected modules, ambient temperature extremes within the control cabinet, existing Mark V firmware revision and compatibility matrix, available rack space and cable routing constraints, and redundancy requirements for critical safety systems. For complex configurations involving multiple power distribution boards or integration with third-party monitoring systems, consult with application engineers to validate system architecture and ensure optimal performance. Technical datasheets, wiring diagrams, and installation manuals are provided with each shipment to streamline commissioning and reduce field engineering time.

System Integration & Complementary Components

The DS200PCCAG2ACB functions as a central power distribution node within the Mark V control ecosystem, interfacing with multiple subsystems to create a cohesive turbine control solution. Understanding these integration points is essential for system reliability and maintenance planning.

Power Supply Coordination
The board receives regulated 125V DC input from primary power supply modules that convert facility AC power or battery backup sources. Proper coordination with upstream circuit protection devices ensures selective tripping during fault conditions, preventing cascading failures across the control network.

I/O Module Power Distribution
Distributes isolated power channels to analog input boards, digital output modules, and communication interfaces. Each output channel incorporates individual fusing and status monitoring to isolate faults and maintain system availability during component failures.

Redundancy Architecture Support
In triple-modular redundant (TMR) configurations, multiple DS200PCCAG2ACB boards operate in parallel with automatic load sharing and failover capabilities. This architecture achieves 99.99% availability targets required for critical power generation and safety-critical applications.

Diagnostic Network Integration
Status signals from the power connect board feed into the Mark V diagnostic processor, enabling predictive maintenance algorithms to detect degradation trends before failures occur. Integration with plant-wide asset management systems supports condition-based maintenance strategies and spare parts optimization.

Delivery, Service & Quality Assurance

Lead Times & Availability
In-stock units ship within 1-3 business days via express courier services with full tracking and insurance coverage. Custom configurations or volume orders typically require 7-14 days for quality verification and documentation preparation. Expedited processing is available for emergency outage situations and critical path project schedules.

Warranty & Support Terms
All DS200PCCAG2ACB boards include comprehensive 12-month warranty coverage protecting against manufacturing defects, component failures, and workmanship issues under normal operating conditions. Extended warranty programs and advance replacement services are available for high-availability installations requiring guaranteed uptime.

Technical Assistance & Field Support
Our application engineering team provides pre-sales consultation for system design validation, installation guidance, and troubleshooting support throughout the product lifecycle. Remote diagnostic assistance is available 24/7 for critical issues, with on-site field service coordination available in major industrial regions.

Documentation & Certification Package
Each shipment includes complete technical documentation: dimensional drawings, electrical schematics, connector pinout diagrams, installation procedures, and test certificates. Material traceability records and compliance certifications (RoHS, REACH, UL recognition) are provided upon request for regulatory compliance and quality audits.

Frequently Asked Questions

Q: Can the DS200PCCAG2ACB replace earlier DS200PCCAG1ACB variants in existing Mark V installations?
A: Yes, the DS200PCCAG2ACB is a direct form-fit-function replacement with enhanced specifications including improved thermal management and extended temperature range. Verify that your Mark V firmware revision supports the updated board revision, though compatibility is maintained across all standard configurations. No system recalibration or software modifications are required for standard replacement scenarios.

Q: What is the expected service life of the DS200PCCAG2ACB in continuous operation environments?
A: Under typical industrial conditions with ambient temperatures below 50°C and proper ventilation, the board demonstrates a mean time between failures (MTBF) exceeding 150,000 hours (approximately 17 years). Actual service life depends on operating environment, load cycling, and maintenance practices. Preventive replacement intervals of 10-12 years are common in critical applications to maintain optimal reliability margins.

Q: Does this power connect board support integration with Mark VI or Mark VIe control systems?
A: The DS200PCCAG2ACB is specifically engineered for Mark V Speedtronic platforms and is not compatible with Mark VI or Mark VIe architectures due to different power distribution topologies and connector standards. For newer control platform upgrades, consult our team for appropriate power distribution solutions matching your target system configuration.

Q: What diagnostic capabilities are available for monitoring board health and performance?
A: The board features integrated LED status indicators for input power presence, output channel status, and fault conditions. These signals interface with the Mark V diagnostic system to provide real-time monitoring, historical trend logging, and predictive maintenance alerts. Advanced diagnostics include voltage level monitoring, current draw analysis, and thermal status reporting accessible through the turbine control HMI.

Q: Are field repairs or component-level servicing supported for the DS200PCCAG2ACB?
A: While the board is designed for high reliability, field repairs are generally not recommended due to the precision calibration and testing required to maintain performance specifications. Board-level replacement is the standard maintenance practice, with failed units eligible for factory repair and recertification programs. This approach minimizes downtime and ensures consistent quality standards across all deployed units.

Q: What environmental testing and certifications does this board carry?
A: The DS200PCCAG2ACB undergoes comprehensive environmental qualification testing including temperature cycling per IEC 60068-2-14, vibration testing per IEC 60068-2-6, humidity exposure per IEC 60068-2-78, and electromagnetic compatibility (EMC) verification per IEC 61000-6-2. Conformal coating application meets IPC-CC-830C standards for harsh environment protection. Compliance documentation is available for regulatory submissions and quality audits.

Procurement & Application Engineering Support

To ensure optimal component selection and system integration success, we recommend providing the following information when requesting quotations or technical consultation:

• Project name, facility location, and application type (gas turbine, steam turbine, wind, industrial process)
• Mark V control system firmware revision and existing hardware configuration
• Total DC power load requirements and number of connected I/O modules
• Operating environment conditions: ambient temperature range, altitude, humidity, vibration levels
• Redundancy requirements and system availability targets
• Delivery timeline, quantity requirements, and any special packaging or documentation needs

Our application engineering team will analyze your requirements and provide detailed recommendations including bill of materials, wiring diagrams, installation procedures, and commissioning checklists. For complex retrofit projects or multi-unit installations, we offer on-site technical support and training services to ensure successful deployment and long-term operational excellence.
