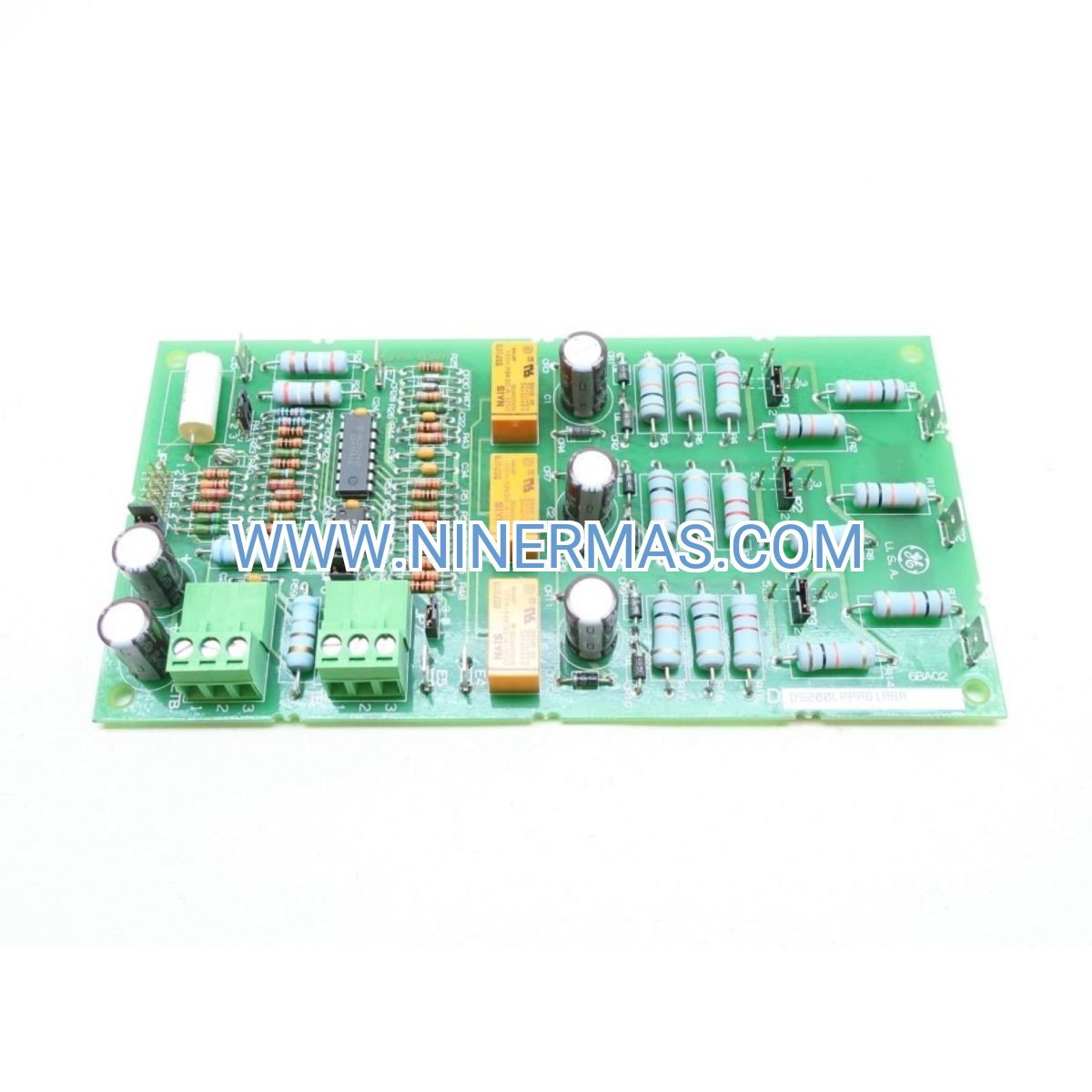

DS200LPPAG1ABA Industrial Power Amplifier Board (Mark V & EX2100 Compatible)

The DS200LPPAG1ABA represents a mission-critical power amplification solution engineered specifically for GE's Mark V Speedtronic turbine controllers and EX2100 excitation platforms. This industrial-grade circuit board combines precision signal conditioning with robust line protection capabilities, delivering the reliability demanded by utility-scale power generation facilities and industrial cogeneration plants worldwide.

Designed to operate continuously in harsh electrical environments, this amplifier module safeguards generator excitation circuits while maintaining microsecond-level response accuracy. Whether you're managing a combined-cycle facility, upgrading legacy infrastructure, or maintaining critical backup generation systems, the DS200LPPAG1ABA provides the performance foundation your operation requires.

With proven compatibility across GE's most widely deployed control architectures, this board integrates seamlessly into existing installations—minimizing downtime and eliminating costly system reconfigurations. Factory-calibrated and ready for immediate deployment, it's the trusted choice for plant engineers who refuse to compromise on uptime.

Performance Advantages & Technical Capabilities

→ Multi-Layer Circuit Protection
Integrated overvoltage, undervoltage, and transient suppression circuits actively monitor excitation pathways, triggering protective responses within microseconds to prevent generator damage and extend equipment lifespan.

→ Precision Signal Amplification
High-fidelity amplification circuitry maintains signal integrity across the full operating range, ensuring accurate field current control and stable voltage regulation even during rapid load transitions.

→ Extended Environmental Range
Operates reliably from -30°C to +65°C with conformal coating protection against humidity, dust, and corrosive atmospheres—ideal for outdoor substations and industrial plant environments.

→ Drop-In Replacement Architecture
Physically and electrically identical to original GE specifications, enabling rapid field replacement without firmware updates, wiring modifications, or control logic changes.

✓ Wide Input Voltage Compatibility
Accepts 24-125 VDC input range, accommodating various power supply configurations and providing operational flexibility across different installation standards.

✓ Diagnostic-Ready Design
Built-in test points and LED indicators facilitate rapid troubleshooting, reducing mean time to repair (MTTR) and supporting predictive maintenance programs.

Industry Applications & Use Cases

Combined-Cycle Power Plants
In CCGT facilities, the DS200LPPAG1ABA manages excitation control for gas turbine generators operating in base-load and peaking modes. Its fast-response protection prevents voltage excursions during rapid start sequences and load-following operations, protecting both the generator and downstream grid infrastructure.

Steam Turbine Generator Systems
Coal, nuclear, and biomass plants rely on this amplifier board to maintain precise AVR (Automatic Voltage Regulator) control during steady-state operation and transient events. The board's thermal stability ensures consistent performance across seasonal temperature variations.

Industrial Cogeneration Facilities
Manufacturing plants with on-site generation use the DS200LPPAG1ABA to coordinate excitation control with process loads. Its robust design withstands the electrical noise common in industrial environments while maintaining tight voltage regulation for sensitive equipment.

Excitation System Modernization Projects
Utilities upgrading aging Mark V installations choose this board as a cost-effective alternative to complete system replacement. It extends the operational life of proven control platforms while maintaining OEM performance standards.

Emergency Backup Generation
Critical infrastructure facilities—hospitals, data centers, water treatment plants—depend on the DS200LPPAG1ABA for standby generator excitation control, where failure is not an option.

Technical Specifications & Selection Guide

Selection Criteria: Verify your system's card rack configuration and firmware revision before ordering. The DS200LPPAG1ABA is compatible with Mark V systems running firmware R, S, and T revisions, as well as all EX2100 platform versions. For systems requiring redundant protection, order in pairs for N+1 configuration.

Advanced Integration & System Expansion

The DS200LPPAG1ABA functions as part of a coordinated excitation control architecture. For comprehensive voltage regulation, combine with the DS200VPBLG2A Voltage Protection Board, which provides additional monitoring and fault detection capabilities. Gate control functionality is managed by the DS200EXDEG1ADA Excitation Drive Gate Driver Board, while stable DC power delivery comes from the DS200EXPSG1ACB Excitation Power Supply Board.

High-voltage inverter applications benefit from pairing this amplifier with the DSC200SHVIG1BHD High Voltage Inverter Gate Driver Board. Discharge path protection is handled by the DS200XDSAG1A Excitation Discharge Board, creating a complete protection envelope for your generator assets.

For Mark V turbine control integration, the DS200LPPAG1ABA interfaces with the DS200TCPDG2BEC Power Distribution Board and DS200TCPSG1APE Turbine Control Power Supply. Terminal connections are managed through the DS200PTBAG1BBA Power Terminal Board, ensuring proper signal routing and grounding.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship same-day for orders confirmed before 3:00 PM CST. Domestic shipments arrive within 2-3 business days via expedited carrier. International deliveries reach most destinations within 5-7 business days, with customs documentation prepared in advance.

Warranty Terms: Every DS200LPPAG1ABA includes a comprehensive 12-month warranty covering manufacturing defects, component failures, and workmanship issues. Warranty service includes advance replacement options to minimize operational downtime.

Technical Support: Our application engineers provide pre-sale consultation, installation guidance, and troubleshooting assistance. Support includes wiring diagrams, configuration checklists, and integration documentation specific to your system architecture.

Documentation Package: Each board ships with dimensional drawings, terminal identification charts, and recommended spare parts lists. Digital copies of all documentation are available for immediate download upon order confirmation.

Frequently Asked Questions

What voltage levels does the DS200LPPAG1ABA amplifier support for excitation control applications?
The board accepts input voltages ranging from 24 VDC to 125 VDC, making it compatible with both low-voltage control circuits and higher-voltage excitation power supplies commonly found in utility-scale installations.

How quickly can I receive a replacement DS200LPPAG1ABA for an urgent turbine outage?
We maintain ready inventory with same-day shipping for critical outages. Expedited air freight can deliver to most North American locations within 24-48 hours. Contact our emergency support line for priority processing.

Does this power amplifier board require calibration after installation in a Mark V system?
No field calibration is required. Each DS200LPPAG1ABA is factory-calibrated to GE specifications and tested under load conditions. Simply install the board, verify LED indicators, and resume normal operation.

Can the DS200LPPAG1ABA operate in outdoor substation environments with temperature extremes?
Yes, the board's -30°C to +65°C operating range covers most outdoor installations. For extreme environments, ensure the control cabinet maintains IP20 minimum protection and consider supplemental heating/cooling if ambient conditions exceed specifications.

What diagnostic capabilities are built into the DS200LPPAG1ABA for predictive maintenance programs?
The board features accessible test points for voltage monitoring, current measurement, and signal verification. LED status indicators provide real-time operational feedback, enabling condition-based maintenance strategies.

Is professional repair service available if the DS200LPPAG1ABA fails outside the warranty period?
Yes, we offer certified repair services performed by factory-trained technicians. Repairs typically cost 40-60% less than replacement and include a 90-day service warranty. Turnaround time is 5-7 business days for most repairs.

Order Your DS200LPPAG1ABA Today

Ensure uninterrupted excitation control for your critical power generation assets. Our team is ready to process your order, answer technical questions, and coordinate expedited delivery to meet your project timeline.

Contact us now: sales@ninermas.com | +0086 187 5021 5667
