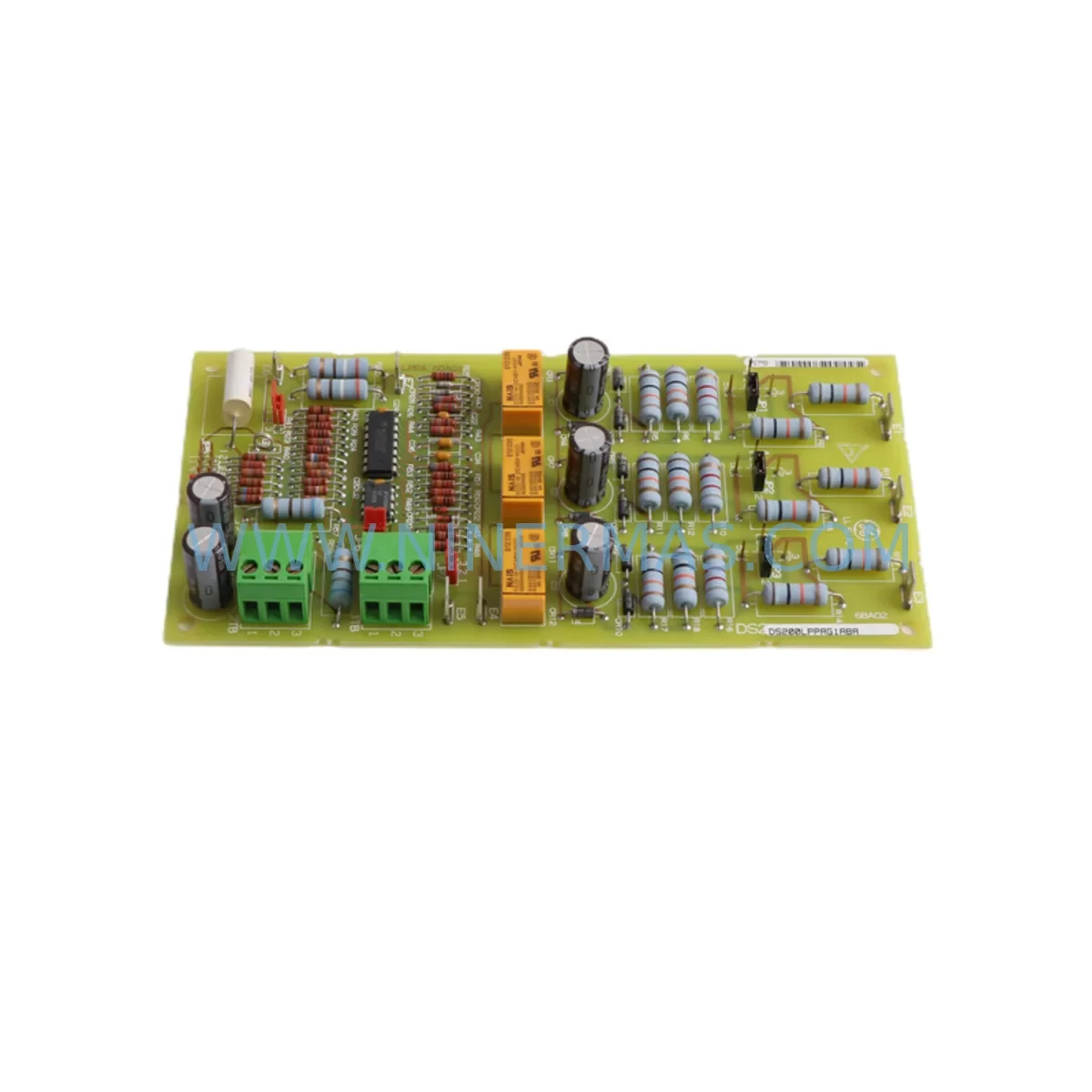

The GE DS200LPPAG1A is a critical low-pass filter and power amplifier board designed for use within the GE Mark V Speedtronic Turbine Control System. As industrial facilities continue to operate aging turbine control infrastructure, maintaining a reliable inventory of service-ready spare parts like the DS200LPPAG1A is essential for minimizing unplanned downtime, accelerating fault recovery, and sustaining long-term system availability. At NINERMAS, every DS200LPPAG1A unit is sourced, inspected, and tested prior to shipment, backed by a 12-month warranty and long-term supply commitment.

Whether you are managing a gas turbine power plant, a combined-cycle facility, or a heavy industrial process line, the DS200LPPAG1A plays a pivotal role in signal conditioning and power amplification within the Mark V control cabinet. Failure of this board can result in erratic turbine behavior, loss of control loop integrity, or complete unit trip — all scenarios that demand immediate spare part availability and a proven replacement workflow.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DS200LPPAG1A failure is identified during routine control cabinet inspection or post-trip fault analysis, maintenance engineers should treat the replacement as part of a broader system health review. The Mark V control architecture is an interconnected ecosystem — a fault in the low-pass filter and power amplifier stage often indicates stress on adjacent boards and power distribution components.

During the same maintenance window, engineers are strongly advised to inspect the DS200SDCCG3A SDCC processor board, which coordinates control logic and may exhibit degraded performance if signal quality from the LPPAG1A has been compromised over time. Similarly, the DS200TCQAG1BHF TCQ analog I/O board should be checked for signal drift, as it operates in close electrical proximity within the same rack assembly.

Power integrity is equally critical. The DS200PCCAG1A power converter board and associated DS200DCFBG1A DC feedback board should be verified for stable voltage output and ripple within specification. Any degradation in the internal ±15 VDC or +5 VDC rails can accelerate wear on the DS200LPPAG1A and neighboring analog processing boards.

For facilities operating Mark V TMR (Triple Modular Redundant) configurations, it is best practice to simultaneously audit the DS200TCCAG1A TMR communication board and confirm that all three control paths are operating symmetrically. An asymmetric fault in one channel — even if masked by redundancy — can propagate to a full system trip under load transients.

I/O integrity checks should extend to the DS200IOCAG1A I/O controller board and any associated terminal boards connected to field instrumentation. Loose terminations, corroded connectors, or degraded signal isolators in the field wiring loop can introduce noise that stresses the low-pass filter stage of the DS200LPPAG1A prematurely.

Communication health should also be reviewed: the DS200CPCAG1A communication processor board handles HMI and SCADA data exchange, and any communication faults logged around the time of a DS200LPPAG1A failure may indicate a broader control system issue rather than an isolated board fault. Fuse integrity across the Mark V power distribution panel and the condition of the DS200EXPAG1A expander board should be documented as part of the annual inspection record.

Procurement engineers should maintain a minimum buffer stock of the DS200LPPAG1A alongside complementary boards such as the DS200SDCCG3A and DS200TCQAG1BHF to ensure that any single-board failure can be resolved within one shift, without waiting on international logistics or extended lead times.

Site Replacement Workflow

Step 1 — Fault Isolation: Use the Mark V diagnostic interface or HMI alarm log to confirm the DS200LPPAG1A as the root cause. Cross-reference with I/O signal quality readings and power rail measurements before pulling the board.

Step 2 — Safe Removal: Follow GE Mark V lockout/tagout procedures. Power down the affected control panel section, discharge any residual voltage, and document the board’s slot position and wiring configuration with photographs before removal.

Step 3 — Compatibility Verification: Confirm that the replacement DS200LPPAG1A matches the revision level required by your Mark V system configuration. NINERMAS technical support can assist with revision compatibility verification prior to shipment if required.

Step 4 — Installation and Seating: Insert the replacement board firmly into the Mark V backplane slot, ensuring all edge connector pins are fully engaged. Secure the board retaining hardware and reconnect any discrete wiring harnesses per the original documentation.

Step 5 — Power-Up and Functional Test: Restore power to the control panel section and monitor the HMI for alarm clearance. Verify that all analog signal channels associated with the DS200LPPAG1A are reading within expected ranges before returning the turbine or process unit to service.

Step 6 — Documentation: Record the replacement in the site maintenance management system (CMMS), including the old board serial number, replacement date, and post-installation test results. Update the spare parts inventory to trigger reorder of a replacement buffer unit.

This structured workflow reduces average replacement time, minimizes the risk of secondary faults caused by improper installation, and ensures full system compatibility — keeping your Mark V turbine control system operational and your production line running.

Spare Parts Support FAQ

Q1: Is the DS200LPPAG1A tested before shipment?
Yes. Every DS200LPPAG1A unit supplied by NINERMAS undergoes functional and electrical testing prior to dispatch. Test records are available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q2: How do I confirm compatibility with my specific Mark V configuration?
The DS200LPPAG1A is compatible with standard GE Mark V, Mark V LM, and Mark V TMR control systems. If your system uses a specific firmware revision or hardware variant, please share your panel configuration details with our technical team at sale@ninermas.com before ordering. We will verify compatibility and advise on any revision-specific requirements.

Q3: Can NINERMAS support long-term or repeat procurement of the DS200LPPAG1A?
Yes. NINERMAS maintains ongoing inventory of the DS200LPPAG1A and related Mark V spare parts to support facilities with annual maintenance schedules, multi-unit fleets, or strategic buffer stock programs. We offer stable pricing and consistent lead times for repeat procurement customers.

Q4: What should I do if the replacement board does not resolve the fault?
If installing a new DS200LPPAG1A does not clear the fault condition, the issue may reside in an adjacent board, the backplane, or the field wiring. Contact NINERMAS technical support with your HMI alarm log and diagnostic data. Our engineers can assist with fault tree analysis and recommend additional spare parts for investigation — including power converter boards, I/O controllers, and communication processors within the Mark V system.
