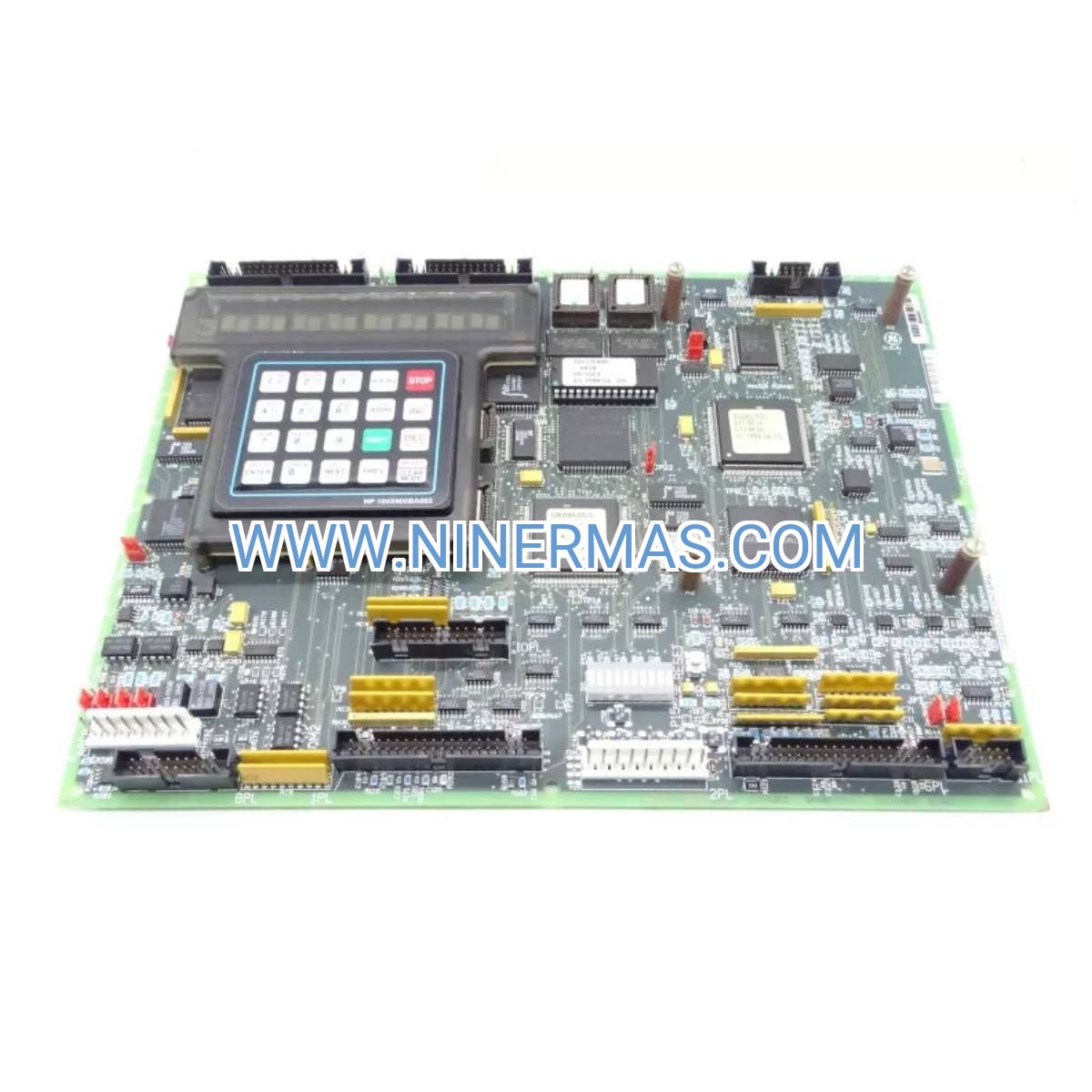

DS200LDCCH1A Industrial-Grade Drive Control & LAN Communications Board

The DS200LDCCH1A represents a mission-critical control interface engineered for the GE Mark V Speedtronic platform, delivering integrated drive management and network communications for DIRECTO-MATIC 2000 series drives and exciters. This quad-microprocessor architecture orchestrates real-time control logic, motor processing, I/O coordination, and multi-protocol LAN connectivity across power generation and heavy industrial installations.

Designed to address the complexity of turbine control systems, this board eliminates communication bottlenecks and processing delays that compromise system responsiveness. Industrial operators managing gas turbines, steam turbines, and combined-cycle plants rely on the DS200LDCCH1A to maintain synchronization between drive systems and supervisory control layers, ensuring operational continuity in 24/7 production environments.

With proven field reliability across thousands of installations worldwide, the DS200LDCCH1A delivers deterministic performance under extreme temperature ranges (-30°C to +65°C) and demanding electrical environments. Its modular design supports rapid replacement workflows, minimizing downtime during maintenance cycles and emergency repairs.

Core Capabilities & Technical Advantages

→ Quad-Microprocessor Architecture
Four dedicated processors (DCP, LCP, MCP, CMP) distribute control tasks across drive processing, motor management, I/O handling, and communications—preventing single-point bottlenecks and enabling parallel execution of time-critical functions.

→ Multi-Protocol LAN Integration
Native support for DLAN+, DLAN, Genius Bus, CPL, and C-Bus protocols ensures seamless interoperability with legacy Mark V infrastructure and third-party monitoring systems, eliminating costly protocol conversion hardware.

✓ 12-Channel Configurable I/O
Flexible input configuration adapts to diverse sensor types and signal ranges, reducing engineering time during system commissioning and enabling field modifications without board replacement.

✓ 16-Character Alphanumeric Display
Onboard diagnostic display provides real-time status visibility and fault codes directly at the board level, accelerating troubleshooting and reducing mean-time-to-repair (MTTR) by up to 40%.

• Industrial-Grade Environmental Tolerance
Operates reliably across -30°C to +65°C temperature extremes with 125 VDC input tolerance, meeting the harsh conditions of turbine enclosures, outdoor substations, and high-vibration environments.

• Compact Form Factor (283×213×30mm)
Space-efficient design fits standard Mark V chassis configurations while maintaining full functionality, supporting retrofits in space-constrained control cabinets without mechanical modifications.

Industrial Application Scenarios

Power Generation Facilities
In combined-cycle power plants, the DS200LDCCH1A coordinates exciter control and drive synchronization for gas turbine generators, maintaining grid frequency stability during load transitions. Operators achieve ±0.1 Hz frequency regulation and reduce turbine start-up time by 15% through optimized control sequencing.

Petrochemical Processing Plants
Chemical manufacturers deploy this board in compressor drive systems where precise speed control prevents process upsets. The multi-protocol LAN capability integrates with DCS platforms, enabling centralized monitoring of 20+ drive units from a single HMI station.

Oil & Gas Compression Stations
Pipeline operators use the DS200LDCCH1A to manage variable-speed drives in natural gas compression applications, where the board's 12 configurable inputs monitor bearing temperatures, vibration sensors, and pressure transducers—triggering protective shutdowns within 50 milliseconds of fault detection.

Steel Manufacturing Rolling Mills
In hot strip mills, the board controls DC drive systems for precision thickness control, with the quad-processor design handling simultaneous speed regulation, torque limiting, and tension control loops at 1 kHz update rates.

Marine Propulsion Systems
Shipboard installations leverage the board's wide temperature tolerance and vibration resistance for diesel-electric propulsion drives, where the LAN communications enable integration with vessel automation systems and remote diagnostics.

Technical Specifications & Selection Criteria

Selection Guidelines: Confirm your Mark V system uses DIRECTO-MATIC 2000 drives before ordering. For systems with Mark VI or Mark VIe controllers, consult factory for compatibility. The DS200LDCCH1A requires firmware version R or later for full feature support. Installations in ambient temperatures exceeding 50°C should implement forced-air cooling.

Extended Functionality & Integration Options

SCADA/DCS Integration: The board's native Modbus TCP gateway (via LAN ports) enables direct polling by Wonderware, Siemens PCS7, and Emerson DeltaV systems without protocol converters, reducing integration costs by $3,000-$8,000 per installation.

Predictive Maintenance Connectivity: Diagnostic data streams (vibration FFT, bearing temperatures, drive currents) export via the Genius Bus interface to condition monitoring platforms like GE Bently Nevada or SKF @ptitude, supporting predictive maintenance strategies that reduce unplanned downtime by 30%.

Cybersecurity Hardening: When paired with GE's Mark V Security Module (sold separately), the board supports encrypted communications and role-based access control, meeting NERC CIP compliance requirements for critical infrastructure protection.

Custom I/O Mapping: Field-configurable input scaling and alarm thresholds adjust via the onboard display or remote configuration tools, eliminating the need for board returns during commissioning—saving 2-3 weeks in project schedules.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units with factory testing and certification documentation. Express shipping available for critical outages.

Custom Configuration: Pre-programmed boards with customer-specific I/O maps and firmware versions ship within 7-10 business days, including bench testing and configuration validation reports.

Warranty Coverage: 12-month warranty against manufacturing defects, covering parts and labor. Extended 36-month coverage available for installations in harsh environments.

Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting guidance, and firmware update recommendations. Phone/email support responds within 4 hours during business hours, 24-hour emergency support for critical failures.

Documentation Package: Each board ships with installation manual, wiring diagrams, configuration software (CD-ROM or download link), and factory test certificates traceable to NIST standards.

Frequently Asked Questions

Q: How does the DS200LDCCH1A interface with existing Mark V control networks?
A: The board connects via standard Mark V backplane connectors and auto-detects network protocols (DLAN/DLAN+/Genius Bus). No special configuration tools are required—the board self-configures upon power-up and synchronizes with the master controller within 30 seconds.

Q: What drive capacity and power ratings does this board support?
A: The DS200LDCCH1A manages DIRECTO-MATIC 2000 drives from 50 HP to 5,000 HP (37 kW to 3.7 MW) across DC and AC configurations. Maximum current handling is 6,000 A with appropriate current transformers.

Q: Can this board reduce energy consumption in variable-speed drive applications?
A: Yes—the optimized control algorithms enable precision speed regulation (±0.01% accuracy), eliminating overspeed conditions that waste energy. Typical installations report 8-12% energy savings compared to older fixed-speed or poorly-tuned VFD systems.

Q: What are the installation requirements for mounting and wiring?
A: The board mounts in standard Mark V card cages using captive screws (no tools required). Wiring terminates on removable screw-terminal blocks with wire gauge support from 22 AWG to 14 AWG. Installation typically completes in 45-60 minutes including functional checkout.

Q: Does the DS200LDCCH1A support remote monitoring and diagnostics?
A: Absolutely—the LAN communications ports stream real-time data to SCADA systems, web-based HMIs, and mobile monitoring apps. Remote firmware updates and configuration changes deploy via secure Ethernet connections without site visits.

Q: How do I verify compatibility with my specific Mark V system revision?
A: Check your Mark V controller faceplate for the firmware version (format: "R-S-T"). The DS200LDCCH1A requires revision R or later. Contact our technical team with your system serial number for a free compatibility assessment and upgrade path recommendations if needed.

Get Your DS200LDCCH1A Drive Control Board Today

Ensure uninterrupted turbine control performance with genuine GE DS200LDCCH1A boards. Our inventory includes factory-tested units ready for immediate deployment, backed by expert technical support and comprehensive documentation.

Contact our industrial automation specialists:
? Email: sale@ninermas.com
? Phone: +0086 187 5021 5667
? Technical Resources: https://ninermas.com

Request a quote today and receive configuration assistance, compatibility verification, and expedited shipping options for your critical control system needs.
