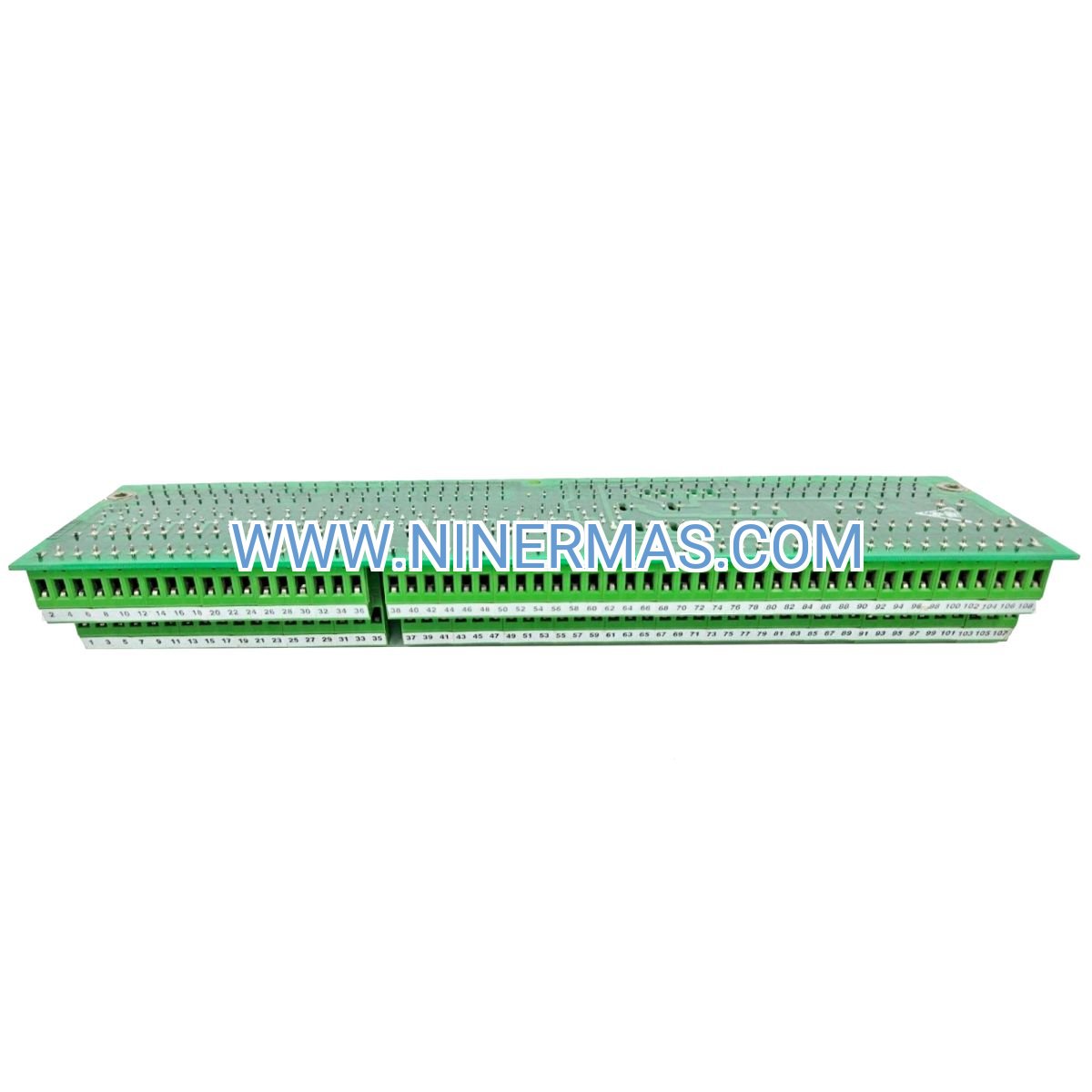

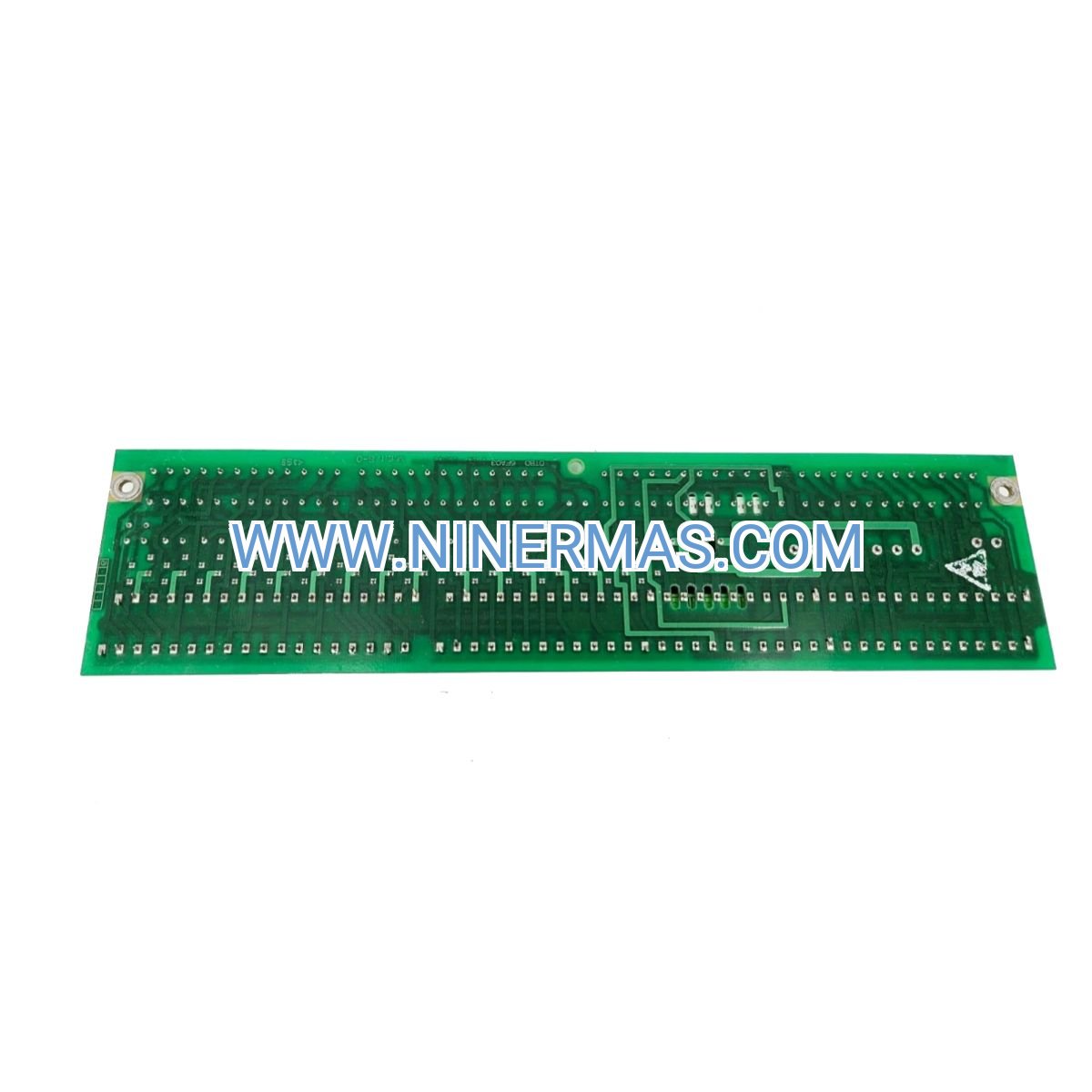

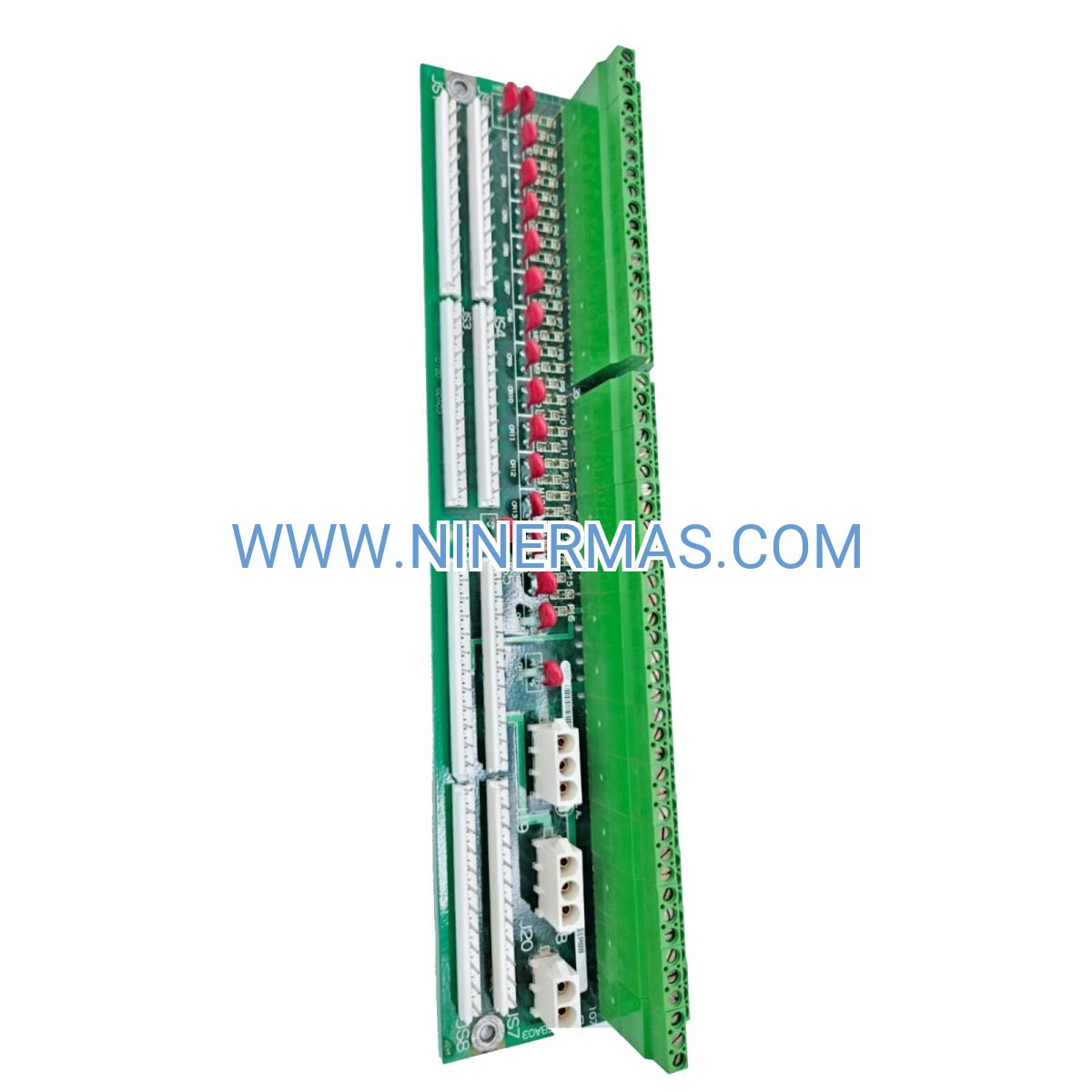

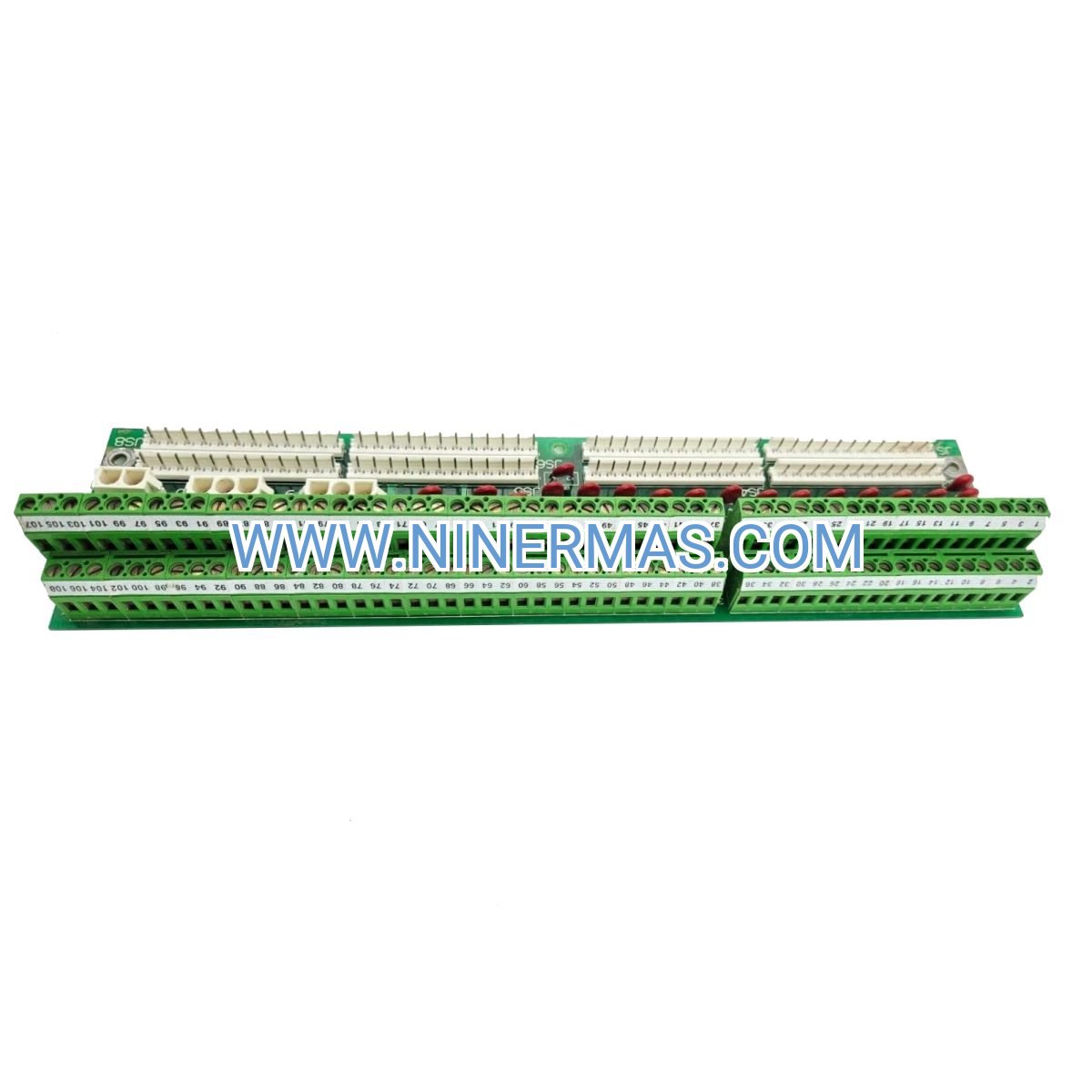

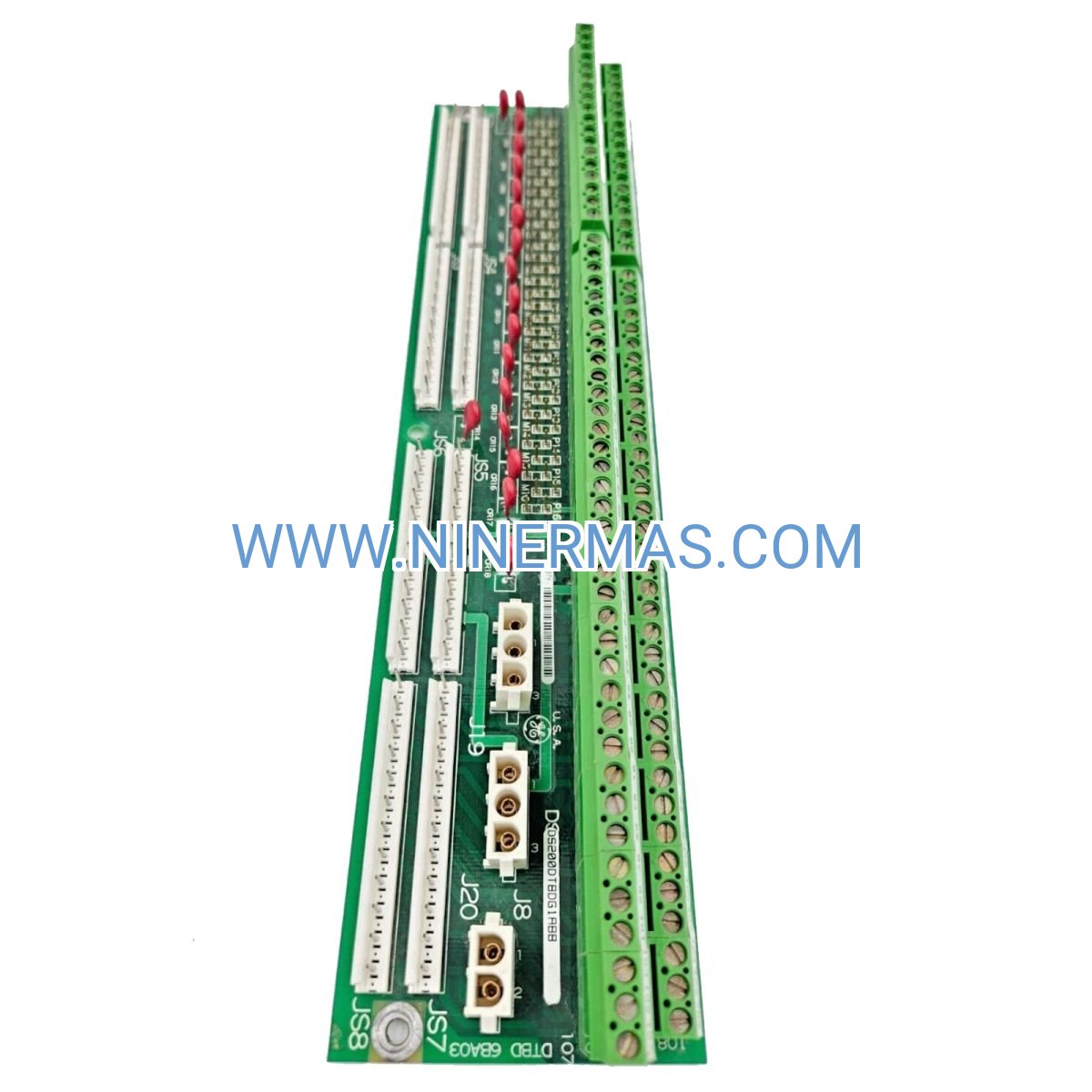

DS200DTBDG1ABB Digital Terminal Board – Industrial-Grade I/O Interface for Mark V Speedtronic Turbine Control

The DS200DTBDG1ABB Digital Terminal Board is a precision-engineered field wiring interface module designed for Mark V Speedtronic turbine control systems. Through high-density screw-clamp terminal blocks and channel-to-channel isolation architecture, this board delivers secure digital signal termination and distribution for gas turbine generators, steam turbine plants, and combined-cycle power facilities.

Ideal for power generation OEMs, plant maintenance teams, control system integrators, and turbine retrofit projects, the DS200DTBDG1ABB addresses critical challenges including unreliable field connections, signal noise interference, limited I/O expansion capacity, and prolonged downtime during terminal board failures.

Featuring robust industrial construction, Mark V native compatibility, and comprehensive terminal identification, this terminal board enables rapid installation, simplified troubleshooting, and long-term operational reliability. Contact our turbine control specialists for application-specific wiring diagrams, compatibility verification, and technical quotations.

Core Functions & Advantages

High-Density Digital Termination
Maximizes I/O point density within compact Mark V rack footprints, supporting extensive discrete sensor networks including limit switches, proximity detectors, pressure switches, and valve position feedback devices while maintaining organized cable management and clear signal routing.

Industrial-Grade Reliability
Screw-clamp terminal blocks withstand continuous vibration exposure, thermal cycling from 0°C to 60°C, and high-humidity power plant environments, ensuring stable electrical connections over multi-year service intervals without terminal loosening or contact degradation.

Native Mark V Speedtronic Integration
Direct plug-and-play compatibility with Mark V digital I/O modules, control processors, and system architecture eliminates custom interface development, reduces commissioning time by approximately 40%, and maintains full GE diagnostic tool support for system-wide health monitoring.

Enhanced Signal Integrity Protection
Built-in channel-to-channel isolation shields control circuits from field-side electrical transients, ground loop currents, and electromagnetic interference common in turbine halls, reducing false trip incidents and improving overall system availability to 99.5%+ levels.

Simplified Installation & Maintenance
Comprehensive terminal labeling, color-coded wire zones, and standard 14-22 AWG wire gauge support enable technicians to complete field wiring tasks 30% faster compared to unmarked terminal strips, while facilitating rapid fault isolation during emergency troubleshooting scenarios.

Flexible System Scalability
Modular DIN rail or panel mounting design allows seamless addition of multiple terminal boards as turbine control requirements expand, supporting phased plant upgrades, auxiliary system integration, and future I/O point additions without major cabinet redesign.

Typical Application Scenarios

The DS200DTBDG1ABB digital terminal board serves as the critical field-to-control interface across diverse turbine automation environments, particularly in installations demanding high signal reliability, extensive I/O counts, and stringent safety compliance:

Gas Turbine Generator Digital I/O Networks
Terminates discrete signals from combustion monitoring sensors, fuel valve position switches, compressor anti-surge controls, and generator protection relays in natural gas, syngas, and dual-fuel turbine installations. Supports integration with emergency shutdown systems, flame detection arrays, and vibration monitoring networks for comprehensive turbine protection.

Steam Turbine Control & Safety Systems
Interfaces trip system inputs, steam valve actuator feedback, condenser vacuum switches, bearing temperature alarms, and auxiliary equipment status monitors in utility-scale steam turbines, industrial cogeneration plants, and combined-cycle heat recovery steam generators (HRSGs). Enables coordinated control between turbine governor systems and boiler master controls.

Emergency Overspeed & Protection Circuits
Provides isolated termination for critical safety signals including mechanical overspeed trip inputs, electrical overspeed detection, emergency stop pushbuttons, turbine casing vibration limits, and thrust bearing failure alarms. Works in conjunction with redundant protection logic to meet NFPA 85 and API 670 safety standards for turbine trip systems.

Auxiliary Equipment Integration
Connects digital status and command signals from lube oil pumps, hydraulic fluid conditioning skids, seal steam systems, cooling water circulation equipment, fuel gas compressors, and generator excitation systems to the centralized Mark V control platform, enabling unified HMI operation and automated sequence control.

Turbine Modernization & Retrofit Projects
Facilitates control system upgrades from legacy relay-based logic to modern Mark V Speedtronic platforms by providing standardized field wiring termination that accommodates existing sensor infrastructure while enabling advanced diagnostic capabilities and remote monitoring integration.

Technical Parameters & Selection Guide

To ensure optimal system performance and long-term compatibility, the DS200DTBDG1ABB terminal board offers the following technical specifications:

Selection Recommendations
When specifying the DS200DTBDG1ABB for your turbine control project, consider the following factors: total digital I/O point count required, field signal voltage levels (24V DC vs. 120V AC), environmental conditions (temperature extremes, vibration levels, humidity), available cabinet mounting space, existing Mark V system configuration, and future expansion requirements. For systems requiring mixed analog and digital termination, combine with GE analog terminal boards for comprehensive signal interface solutions. Our application engineers can review your P&ID drawings, I/O lists, and control narratives to recommend optimal terminal board quantities and configurations.

Extended Capabilities

Remote Monitoring Integration
When paired with Mark V Ethernet communication modules, the DS200DTBDG1ABB enables remote diagnostic access to field I/O status, allowing plant engineers to monitor terminal board health, verify signal states, and troubleshoot wiring issues from centralized control rooms or off-site operations centers via secure VPN connections.

Redundant System Architecture Support
Supports dual-redundant Mark V controller configurations by providing isolated termination for parallel I/O channels, ensuring continuous turbine control capability during controller switchover events and maintaining bumpless transfer of digital signals between primary and backup control processors.

Cybersecurity Hardening
Physical terminal board design incorporates tamper-evident features and secure mounting provisions that align with NERC CIP compliance requirements for critical infrastructure protection, preventing unauthorized access to field wiring connections in power generation facilities.

Delivery, Service & Quality Assurance

Lead Time & Availability
Standard DS200DTBDG1ABB units ship from stock within 2-5 business days for emergency replacement needs. Custom-configured terminal assemblies with pre-wired harnesses or special labeling require 10-15 business days. Expedited shipping options available for critical outage support.

Warranty & Support
Each terminal board includes a comprehensive 12-month warranty covering manufacturing defects, component failures, and workmanship issues. Technical support includes remote troubleshooting assistance, wiring diagram verification, and compatibility confirmation with existing Mark V systems. On-site commissioning support and training available upon request for major turbine control upgrades.

Documentation Package
Every DS200DTBDG1ABB ships with terminal identification labels, basic installation guidelines, and material traceability certificates. Complete system integration documentation including detailed wiring diagrams, terminal assignment tables, I/O module interface specifications, and Mark V system drawings available through GE technical documentation portals or your authorized system integrator.

Quality Inspection
All terminal boards undergo multi-point inspection including visual examination for physical damage, continuity testing of all terminal positions, insulation resistance verification, and functional testing with simulated I/O signals prior to shipment, ensuring field-ready condition upon delivery.

Frequently Asked Questions

Q: What distinguishes the DS200DTBDG1ABB from the DS200DTBDG1AAA revision?
A: The ABB suffix indicates a later manufacturing revision incorporating enhanced component specifications, improved solder joint reliability, and updated conformal coating formulations based on field performance data from thousands of installed units. Both revisions maintain full functional compatibility with Mark V Speedtronic systems and can be mixed within the same control cabinet, though the ABB revision offers extended service life in high-vibration applications.

Q: Can this terminal board handle both 24V DC and 120V AC signals simultaneously?
A: Yes, the DS200DTBDG1ABB supports mixed voltage applications within its dual-rated design. However, proper electrical installation practices require physical separation of different voltage circuits, use of appropriate wire color coding per NEC standards, and adherence to minimum clearance distances between AC and DC terminal groups. Always reference your site-specific electrical drawings and consult Mark V system documentation for approved voltage assignment patterns.

Q: How many discrete I/O points does a single DS200DTBDG1ABB board terminate?
A: Terminal point capacity varies based on associated Mark V I/O module configuration and system architecture. Typical installations utilize one terminal board per 16-32 digital I/O channels depending on signal density and wiring complexity. Consult your Mark V system layout drawings or contact our applications team with your specific I/O module part numbers for exact channel count determination.

Q: What tools are required for field wiring installation?
A: Standard electrical installation tools suffice: flat-blade and Phillips screwdrivers for terminal connections (typically #2 size), wire strippers rated for 14-22 AWG, digital multimeters for continuity and voltage verification, torque screwdrivers for critical connections (if specified), and cable labeling equipment. No proprietary GE tools or special calibration equipment needed for mechanical installation or electrical termination tasks.

Q: What preventive maintenance schedule is recommended?
A: Annual inspection during scheduled turbine outages should include visual examination for terminal discoloration indicating overheating, verification of terminal screw tightness using calibrated torque tools, inspection for wire insulation damage or fraying, and thermal imaging scans to identify developing high-resistance connections. In high-vibration environments or coastal installations with salt air exposure, semi-annual inspections provide additional reliability assurance.

Q: Is the DS200DTBDG1ABB compatible with non-GE turbine control systems?
A: This terminal board is specifically engineered for Mark V Speedtronic architecture and utilizes GE-proprietary mounting dimensions, connector pinouts, and signal level specifications. While the terminal blocks themselves are industry-standard components, integration with non-GE control platforms requires custom interface engineering and is not recommended. For non-Mark V applications, consult your control system vendor for approved terminal board solutions.

Q: Can I retrofit this board into a Mark IV or Mark VI system?
A: The DS200DTBDG1ABB is designed exclusively for Mark V Speedtronic systems. Mark IV systems utilize different terminal board families with incompatible mounting and electrical interfaces. Mark VI systems employ newer terminal board designs optimized for that platform's architecture. For Mark IV or Mark VI upgrades, contact our team to identify the correct terminal board part numbers for your specific control system generation.

Request Technical Consultation & Quotation

To receive detailed application guidance, compatibility verification, and competitive pricing for the DS200DTBDG1ABB digital terminal board, please provide the following project information:

• Turbine type and manufacturer (gas turbine, steam turbine, model number)
• Existing Mark V system configuration (controller part numbers, I/O module types)
• Total digital I/O point count required (inputs and outputs)
• Field signal voltage levels (24V DC, 120V AC, or mixed)
• Quantity of terminal boards needed (including spares)
• Project timeline and delivery location
• Special requirements (pre-wired assemblies, custom labeling, expedited delivery)

Our turbine control specialists will respond within 24 hours with application-specific recommendations, system integration guidance, and detailed quotations including shipping options to your facility worldwide.
