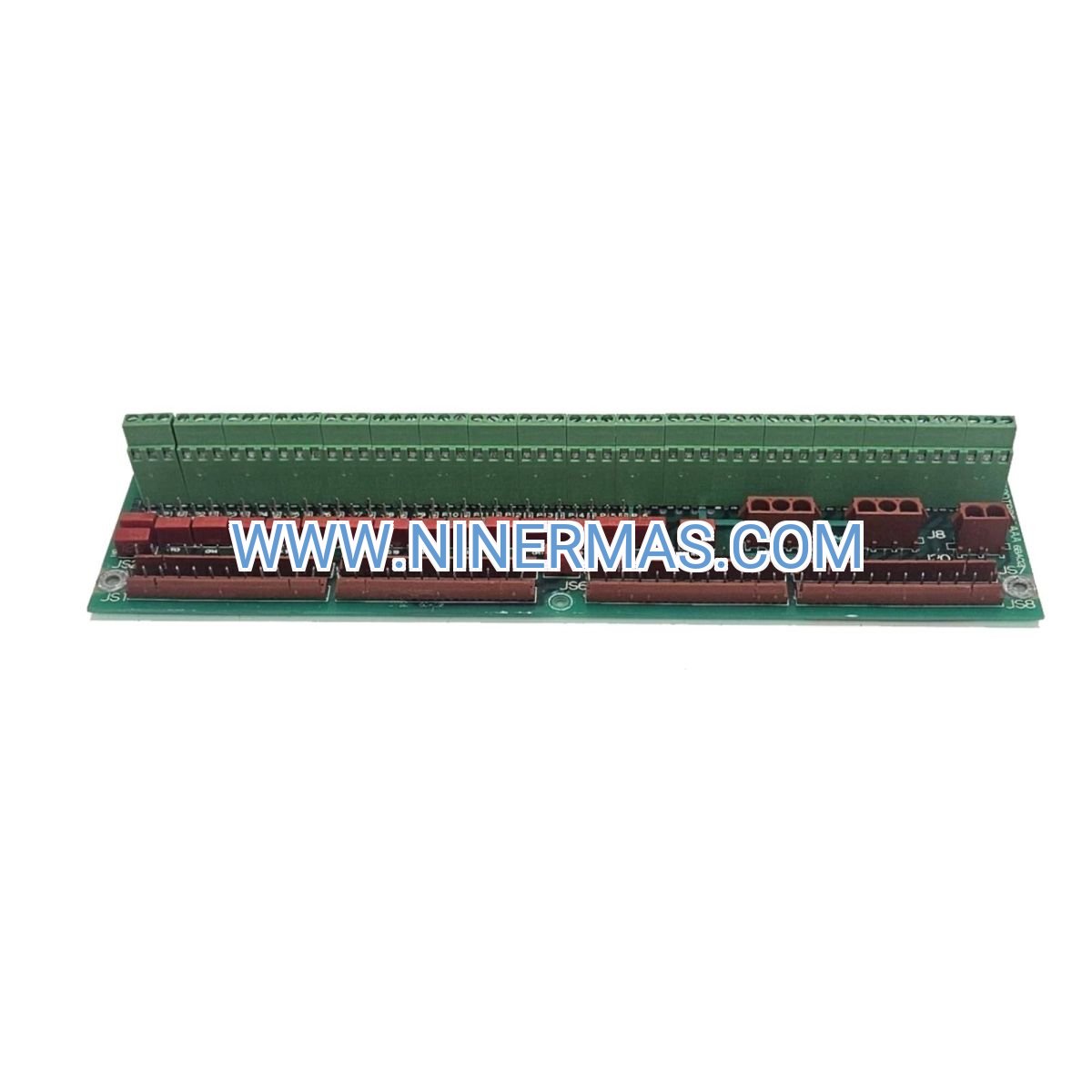

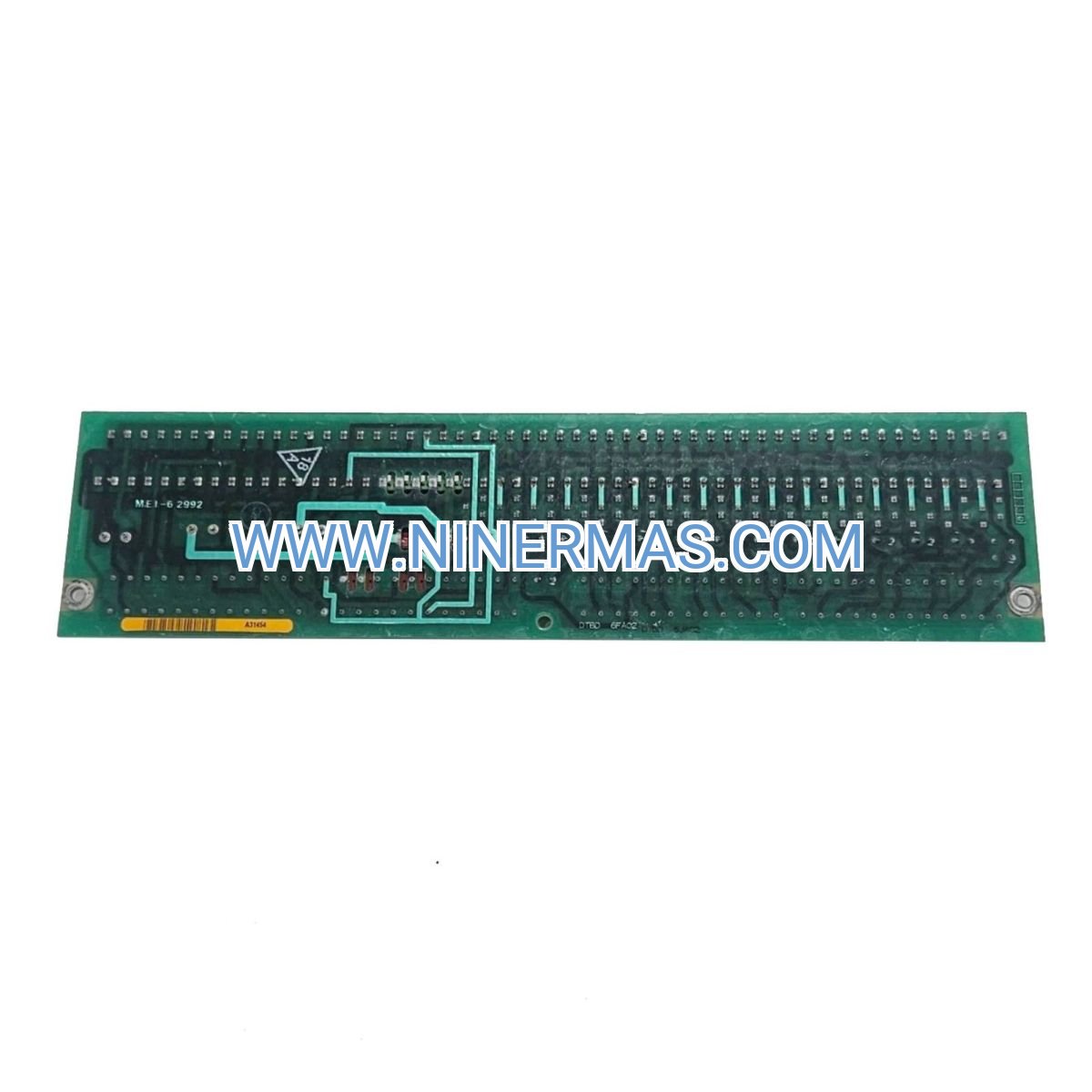

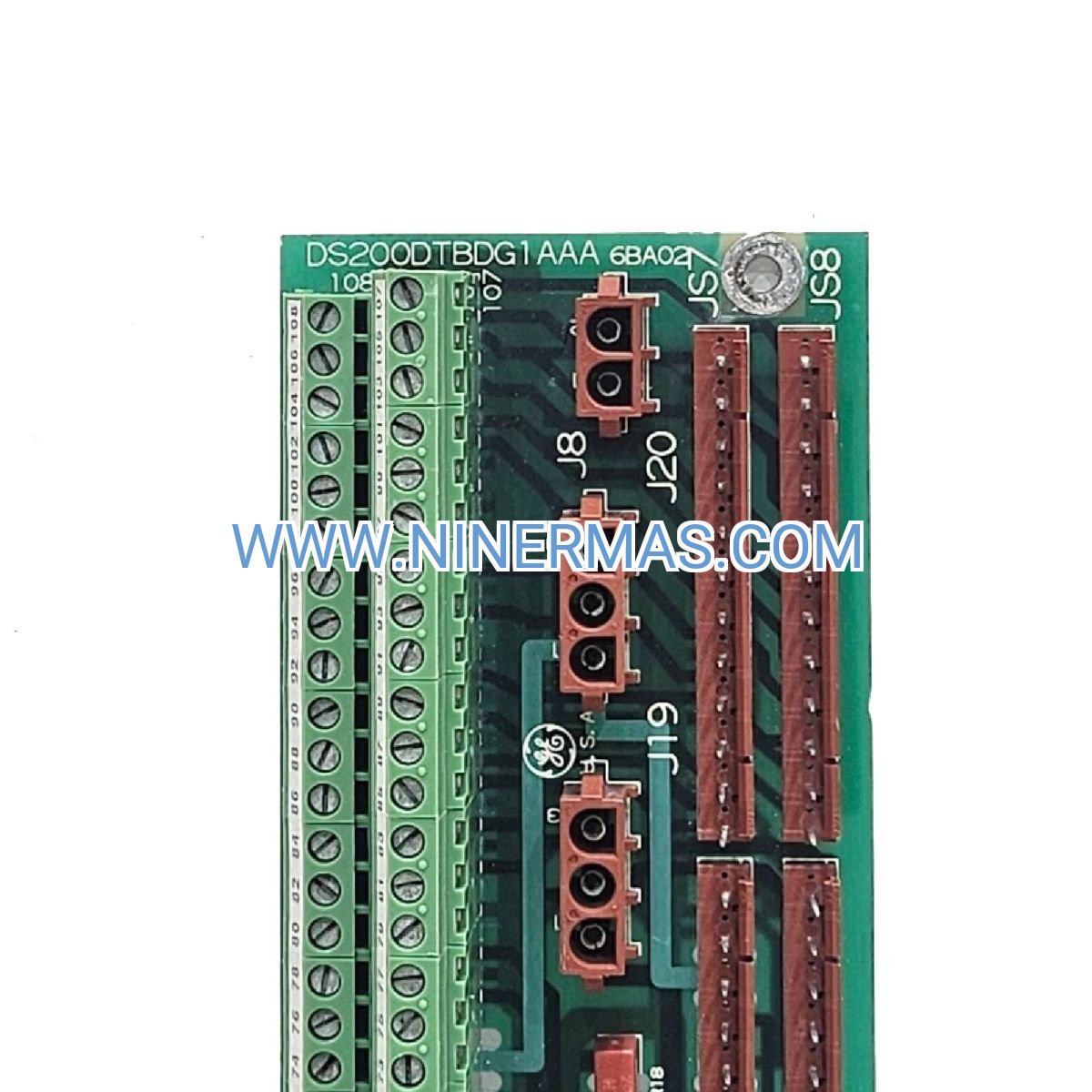

DS200DTBDG1AAA Digital Terminal Board for Industrial Turbine Control Systems

The DS200DTBDG1AAA is a high-density digital terminal board engineered for critical signal termination and distribution in industrial turbine control applications. Through precision-designed screw terminal architecture and robust isolation technology, this module delivers reliable digital I/O interfacing between field devices and control processors in demanding power generation environments.

Designed specifically for gas and steam turbine installations across power plants, combined-cycle facilities, and industrial cogeneration systems, this terminal board addresses common challenges including signal integrity degradation, electrical noise interference, installation complexity, and field wiring management in high-vibration, temperature-variable control cabinets.

Built on proven GE Speedtronic platform standards with field-customizable channel configuration, the DS200DTBDG1AAA offers exceptional signal isolation, comprehensive surge protection, and simplified maintenance access—making it the preferred choice for system integrators, plant engineers, OEM turbine manufacturers, and facility maintenance teams. Contact our application engineers for system-specific configuration guidance and technical documentation.

Core Capabilities & Technical Advantages

High-Density Signal Termination
Provides 64 independent digital I/O termination points with industrial-grade screw terminals, enabling consolidated field wiring connections while reducing cabinet space requirements and simplifying troubleshooting access during commissioning and maintenance operations.

Robust Electrical Isolation
Features 1500V galvanic isolation between field-side circuits and system backplane, protecting sensitive control electronics from ground loops, transient voltage spikes, and electrical faults originating in field instrumentation or actuator circuits.

Flexible Channel Configuration
Supports configurable assignment of termination points as digital inputs or outputs to match specific turbine control architectures, accommodating 24V DC powered signals, dry contact closures, and solid-state sensor interfaces without hardware modifications.

Comprehensive Circuit Protection
Integrates multi-layer protection including surge suppression, short-circuit limiting, reverse polarity safeguards, and EMI/RFI shielding to minimize unplanned shutdowns, reduce component failure rates, and extend mean time between maintenance interventions.

Industrial-Grade Environmental Resilience
Qualified for continuous operation across -30°C to +70°C ambient temperature range with conformal coating protection against humidity, dust, and chemical exposure typical in turbine enclosure environments, ensuring consistent performance throughout seasonal variations.

Diagnostic-Ready Architecture
Incorporates LED status indicators and test point access for rapid signal verification during installation validation, routine inspections, and fault isolation procedures, reducing mean time to repair and supporting predictive maintenance strategies.

Primary Application Environments

This terminal board is engineered for installations requiring high-reliability digital signal management with stringent safety and availability requirements, particularly in:

Power Generation Turbine Control
Serves as the critical interface layer in gas turbine, steam turbine, and combined-cycle control systems, managing discrete signals from flame detectors, vibration sensors, valve position switches, and emergency shutdown circuits in utility-scale and distributed generation facilities.

Industrial Cogeneration & CHP Systems
Enables integration of turbine control logic with facility automation systems in chemical plants, refineries, paper mills, and manufacturing complexes where process steam and electrical generation must coordinate with production schedules and load-following requirements.

Mechanical Drive Applications
Supports turbine-driven compressor, pump, and generator control in oil & gas pipeline compression stations, LNG facilities, and offshore platforms where remote operation, harsh environmental conditions, and extended service intervals demand proven component reliability.

Retrofit & Modernization Projects
Facilitates control system upgrades and obsolescence mitigation in aging turbine installations, providing backward-compatible termination for existing field wiring while enabling integration with modern distributed control systems and SCADA networks.

Technical Specifications & Selection Parameters

To support accurate system design and procurement, the following specifications define the DS200DTBDG1AAA's operational envelope and physical characteristics:

Selection Guidance
When specifying this terminal board, engineering teams should evaluate: total digital I/O point count requirements, field device voltage/current characteristics, control cabinet ambient temperature profile, existing Mark V system configuration, available panel mounting space, and integration with redundant controller architectures. For application-specific validation or custom configuration requirements, provide your system architecture documentation, I/O list, and environmental conditions to our technical team for detailed compatibility assessment.

Advanced Integration Features

Redundancy Support
Compatible with dual-redundant Mark V controller configurations, enabling fault-tolerant signal distribution for critical turbine protection functions including overspeed detection, flame failure response, and emergency shutdown sequencing.

Hot-Swap Capability
Depending on system configuration, supports online replacement procedures to minimize process interruption during scheduled maintenance or component failure recovery in continuous-operation facilities.

Wiring Documentation Integration
Terminal labeling and connection mapping align with GE standard drawing conventions, streamlining installation verification, as-built documentation, and future modification traceability throughout the asset lifecycle.

Vibration & Shock Resistance
Mechanical design validated for turbine enclosure mounting locations subject to operational vibration, startup transients, and transportation loads per IEC 60068-2 test protocols.

Delivery, Documentation & Technical Support

Availability & Lead Time
Factory-new units typically ship within 3-5 business days from stock; remanufactured and tested surplus inventory available for expedited delivery. Custom-configured assemblies or quantity orders may require 2-4 weeks—contact our sales team for current availability and project-specific scheduling.

Quality Assurance
All units undergo functional testing including isolation verification, continuity checks, and visual inspection prior to shipment. Standard warranty coverage provides 12-month protection against manufacturing defects; extended warranty and advance replacement programs available for critical spares inventory.

Technical Documentation Package
Each shipment includes installation instructions, terminal assignment diagrams, electrical specifications, and dimensional drawings. Complete Mark V system integration manuals, wiring schematics, and configuration software documentation available upon request to support commissioning and maintenance activities.

Application Engineering Services
Our turbine control specialists provide remote technical consultation for installation planning, troubleshooting support, and system optimization. On-site commissioning assistance and training services available for major projects or complex retrofit installations (geographic restrictions may apply).

Frequently Asked Questions

Q: How does the DS200DTBDG1AAA terminal board integrate with existing Mark V control systems?
A: The board mounts in standard Mark V control cabinets and connects to I/O processor modules via the system backplane. Field wiring terminates at labeled screw terminals on the board face, while system-side connections are made through backplane connectors. Installation requires matching the board's channel configuration to your I/O processor card assignments and updating the control system database to reflect termination point mappings.

Q: What is the maximum number of terminal boards supported in a single Mark V system?
A: Configuration limits depend on your specific Mark V controller model and I/O expansion capacity. A typical triple-modular redundant (TMR) system can accommodate 12-16 terminal boards across multiple I/O racks. Consult your system architecture documentation or contact our engineers with your controller part numbers for exact expansion capabilities.

Q: Can this terminal board be used with non-GE control systems or other turbine platforms?
A: The DS200DTBDG1AAA is specifically designed for GE Mark V Speedtronic systems with proprietary backplane interfaces and signal conditioning. While the terminal block portion could theoretically interface with other 24V DC systems, the board's full functionality, diagnostics, and isolation features require Mark V system integration. For non-GE applications, we recommend platform-appropriate terminal solutions.

Q: What environmental protection does the board provide for harsh installation locations?
A: The board features conformal coating on circuit assemblies for moisture and contaminant resistance, operates reliably across -30°C to +70°C, and includes EMI shielding for electrical noise immunity. However, it requires installation within an enclosed control cabinet—it is not rated for direct exposure to weather, corrosive atmospheres, or washdown environments. Ensure cabinet NEMA/IP ratings match your site conditions.

Q: How do I verify proper operation after installation or during troubleshooting?
A: The board includes LED indicators for power status and channel activity (configuration-dependent). Use a multimeter to verify 24V DC supply voltage at designated test points, check continuity between field terminals and I/O processor connections, and confirm isolation resistance between field and system grounds exceeds 10 megohms. The Mark V diagnostic software can also perform loop-back tests and signal verification when the system is energized.

Q: Are replacement parts or repair services available for damaged boards?
A: Yes—we stock common replacement components including terminal blocks, isolation barriers, and connector assemblies. Board-level repair services are available for units with component failures, physical damage, or environmental degradation. Turnaround time for repair typically ranges from 5-10 business days. For critical applications, consider maintaining a configured spare board to minimize downtime during repair cycles.

Q: Does the terminal board support remote monitoring or predictive maintenance capabilities?
A: When integrated with Mark V systems equipped with Ethernet communication modules and connected to plant DCS or SCADA networks, diagnostic data including channel status, isolation faults, and power supply conditions can be monitored remotely. This enables condition-based maintenance strategies and early fault detection. Specific capabilities depend on your Mark V software version and network architecture.

Request Technical Consultation & Quotation

For detailed application engineering support, system compatibility verification, or project quotations, please provide our team with the following information: project name and location, turbine make/model and control system generation, total digital I/O point requirements, existing Mark V controller part numbers, environmental conditions (temperature range, altitude, hazardous area classification if applicable), delivery timeline, and quantity requirements. Our turbine control specialists will respond within one business day with tailored recommendations, configuration validation, and commercial terms.
