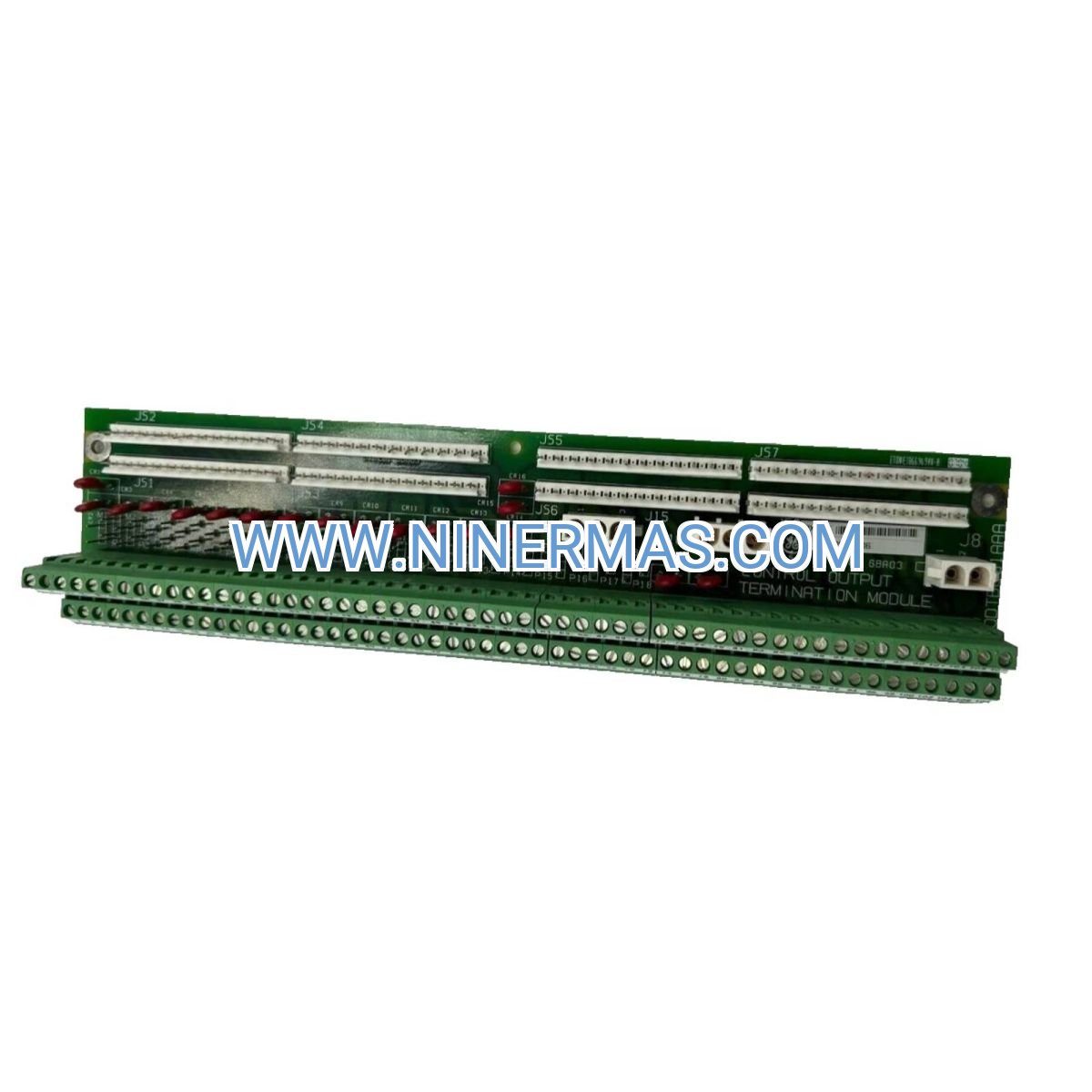

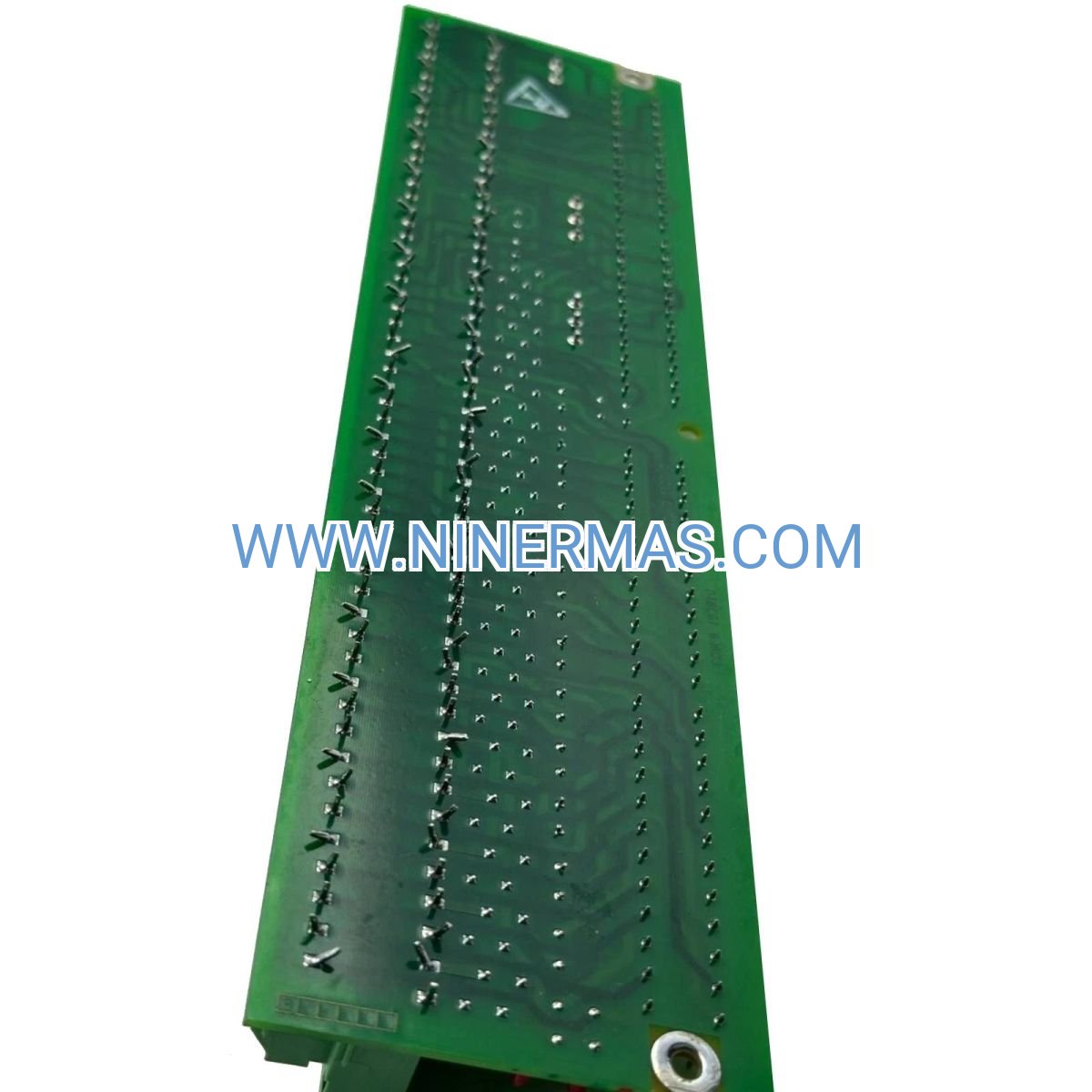

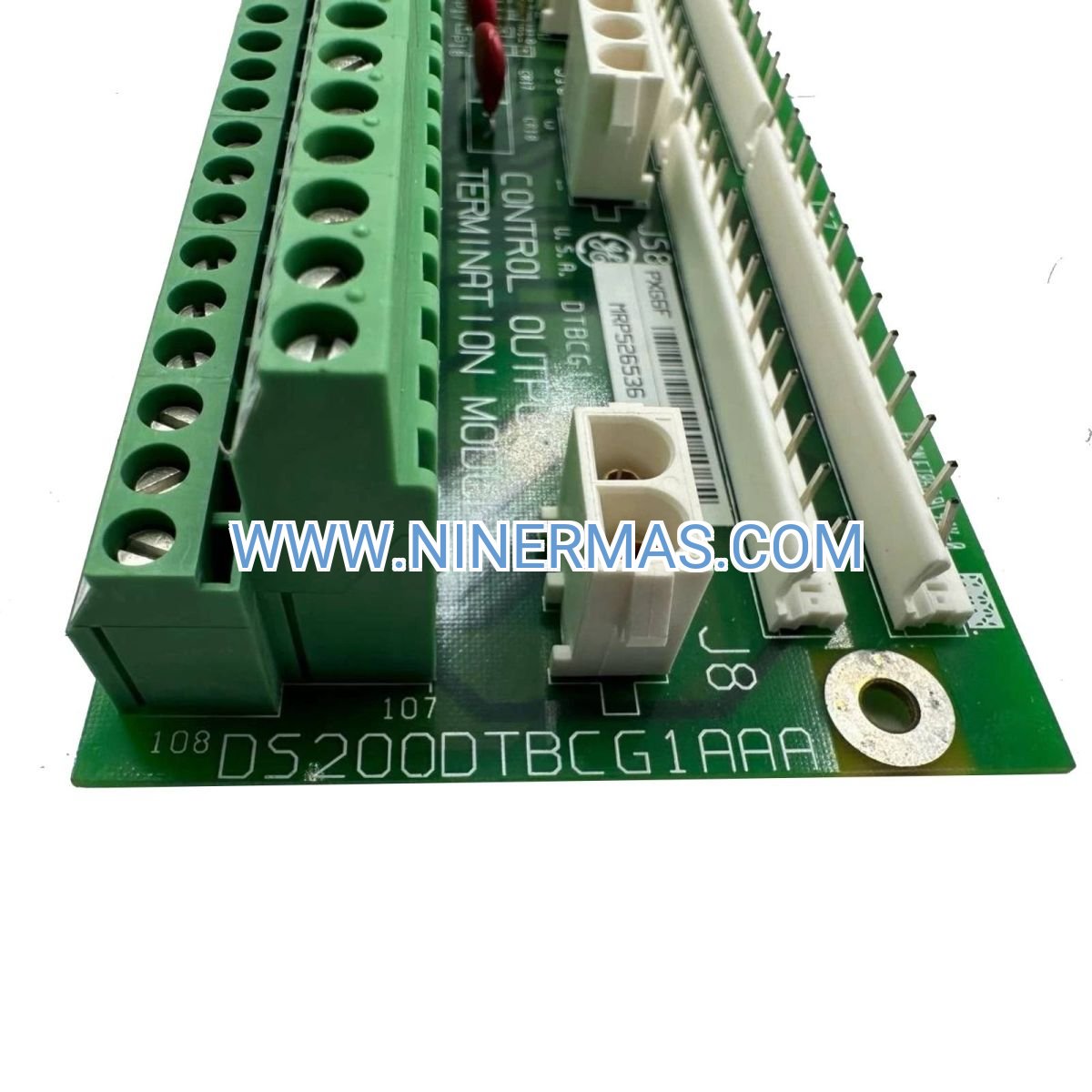

DS200DTBCG1AAA Digital Terminal Board for Mark V Speedtronic Turbine Control Systems

The GE DS200DTBCG1AAA is an industrial-grade digital terminal board engineered for high-density I/O termination in Mark V Speedtronic turbine control systems. Through precision signal routing, galvanic isolation, and robust screw-terminal connections, it enables reliable field wiring integration for digital inputs and outputs in mission-critical power generation environments.

Designed for power plants, combined-cycle facilities, and industrial turbine installations, this terminal board addresses challenges such as signal noise interference, field wiring complexity, installation time constraints, and the need for diagnostic-ready termination infrastructure. It supports both dry contact and powered digital signals with comprehensive surge and short-circuit protection.

With standardized mounting dimensions and proven compatibility across Mark V platforms, the DS200DTBCG1AAA delivers field-proven reliability, simplified commissioning workflows, and long-term serviceability. Ideal for OEMs, system integrators, plant maintenance teams, and retrofit projects requiring genuine GE components. Contact our engineering team for application-specific wiring diagrams, compatibility verification, and technical consultation.

Core Functions & Technical Advantages

High-Density I/O Termination
Provides 64 individual screw-terminal positions for digital signal connections, reducing panel space requirements and simplifying field wiring organization in complex control cabinets.

Galvanic Isolation Protection
1500V DC isolation between field side and system backplane protects sensitive control electronics from ground loops, transient surges, and electrical faults originating in field devices.

Flexible Signal Configuration
Supports both digital inputs (dry contact, powered 24V DC) and outputs with configurable channel assignments, accommodating diverse sensor types, actuators, and auxiliary equipment interfaces.

Built-In Diagnostic Capability
Integrated LED indicators and system-level diagnostics enable rapid troubleshooting of wiring faults, open circuits, and signal integrity issues, reducing mean time to repair during commissioning and operation.

Ruggedized Industrial Construction
Operates reliably across -30°C to +70°C ambient temperature range with EMI shielding, conformal coating, and vibration-resistant terminal blocks designed for harsh power generation environments.

Plug-and-Play System Integration
Direct compatibility with Mark V I/O modules and backplane architecture ensures seamless installation without custom adapters, firmware modifications, or field calibration procedures.

Typical Application Scenarios

This terminal board is engineered for applications demanding high signal integrity, installation efficiency, and long-term reliability, particularly in:

Gas & Steam Turbine Control Systems
Serves as the primary field wiring interface for turbine protection sensors, valve position feedback, auxiliary system status monitoring, and emergency shutdown circuits in utility-scale and industrial power generation facilities.

Combined-Cycle Power Plants
Facilitates integration of heat recovery steam generator (HRSG) instrumentation, duct burner controls, and balance-of-plant equipment with the Mark V control platform, supporting coordinated plant startup and load-following operations.

Retrofit & Modernization Projects
Enables phased control system upgrades by maintaining existing field wiring infrastructure while replacing obsolete I/O hardware, minimizing outage duration and installation risk in operating plants.

Distributed Control Architecture
Supports remote I/O expansion in geographically distributed turbine installations, compressor stations, and multi-unit power facilities requiring centralized monitoring with local signal conditioning.

Technical Specifications & Selection Guide

To ensure optimal system performance and compatibility, review the following specifications during project planning and procurement:

Selection Considerations:
When specifying this terminal board, verify: (1) Mark V system revision and I/O module compatibility, (2) field device signal types and voltage levels, (3) control cabinet space allocation and mounting provisions, (4) ambient temperature and environmental conditions, (5) required spare capacity for future expansion. For application-specific guidance, provide system configuration details, I/O count requirements, and field device specifications to our technical team for validated recommendations.

Extended Capabilities & Integration Options

Redundant System Support
Compatible with dual-redundant Mark V configurations, enabling fault-tolerant I/O architectures for critical turbine protection and control functions in high-availability power generation applications.

Remote Monitoring Integration
Supports connection to SCADA systems, plant DCS platforms, and remote diagnostic tools via Mark V communication interfaces, enabling real-time signal status monitoring and predictive maintenance analytics.

Custom Wiring Harness Coordination
Pre-terminated cable assemblies and custom wiring harnesses can be engineered to match specific field device layouts, reducing installation time and improving wiring documentation accuracy.

Delivery, Service & Quality Assurance

Product Availability: Standard catalog items typically ship within 3-5 business days from our distribution center. Custom-configured assemblies or large-quantity orders may require 7-14 days lead time depending on current inventory levels and regional logistics.

Warranty Coverage: All units include a comprehensive 12-month warranty covering manufacturing defects and material failures under normal operating conditions. Extended warranty and advance replacement programs available for critical applications.

Technical Support: Our engineering team provides pre-sales application consultation, installation guidance, wiring diagram verification, and post-installation troubleshooting support. Remote diagnostic assistance and on-site commissioning services available in select regions (subject to project scope and location).

Documentation Package: Each terminal board ships with complete technical documentation including dimensional drawings, terminal assignment diagrams, wiring specifications, installation instructions, and compliance certificates. CAD models and system integration manuals available upon request.

Frequently Asked Questions (FAQ)

Q: How does the DS200DTBCG1AAA terminal board integrate with existing Mark V I/O modules?
A: The terminal board mounts directly to the Mark V control cabinet panel and connects to I/O modules via ribbon cables or backplane connectors (depending on system configuration). Field wiring terminates at screw terminals on the board face, with signal routing handled internally. Installation requires verification of I/O module slot assignments and proper cable orientation per GE wiring diagrams.

Q: What is the maximum wire gauge supported by the screw terminals?
A: Terminal blocks accommodate 12-22 AWG (0.25-3.3 mm²) solid or stranded copper wire. Ferrules are recommended for stranded wire to ensure reliable contact pressure and prevent strand breakage. Torque specifications and terminal preparation guidelines are provided in the installation manual.

Q: Can this terminal board be used in hazardous area (Class I Div 2) installations?
A: The DS200DTBCG1AAA is designed for general industrial environments and control room installations. For hazardous area applications, verify that the control cabinet enclosure meets applicable area classification requirements (NEMA 4X, IP65, or explosion-proof as needed). Consult local electrical codes and GE application guidelines for specific installations.

Q: Is the terminal board compatible with Mark VI or Mark VIe control systems?
A: This terminal board is specifically engineered for Mark V Speedtronic platforms. Mark VI and Mark VIe systems use different I/O architectures and terminal board designs. Cross-platform compatibility is not supported. Contact our team to identify the correct terminal board part number for Mark VI/VIe applications.

Q: What diagnostic features are available for troubleshooting field wiring issues?
A: The board includes per-channel LED indicators that display signal status (active/inactive) and fault conditions. The Mark V control system provides additional diagnostics including open-circuit detection, short-circuit alarms, and signal quality monitoring accessible through the HMI or diagnostic software tools.

Q: Are replacement terminal blocks or individual components available for field repair?
A: GE recommends board-level replacement rather than component-level repair to maintain system integrity and warranty coverage. However, terminal block assemblies and certain field-replaceable components may be available through authorized service centers for specific repair scenarios. Contact technical support for repair feasibility assessment.

Request Technical Consultation & Quotation

To receive detailed application guidance, compatibility verification, or project-specific pricing, please provide the following information to our engineering team:

• Project name and application type (new installation, retrofit, spare parts)
• Mark V system configuration (software revision, I/O module types, redundancy architecture)
• Required I/O channel count and signal types (digital input/output, voltage levels)
• Field device specifications and wiring distance requirements
• Installation environment (ambient temperature, enclosure type, area classification)
• Delivery timeline and quantity requirements

Our technical specialists will provide validated recommendations, wiring coordination support, and competitive quotations tailored to your project requirements.
