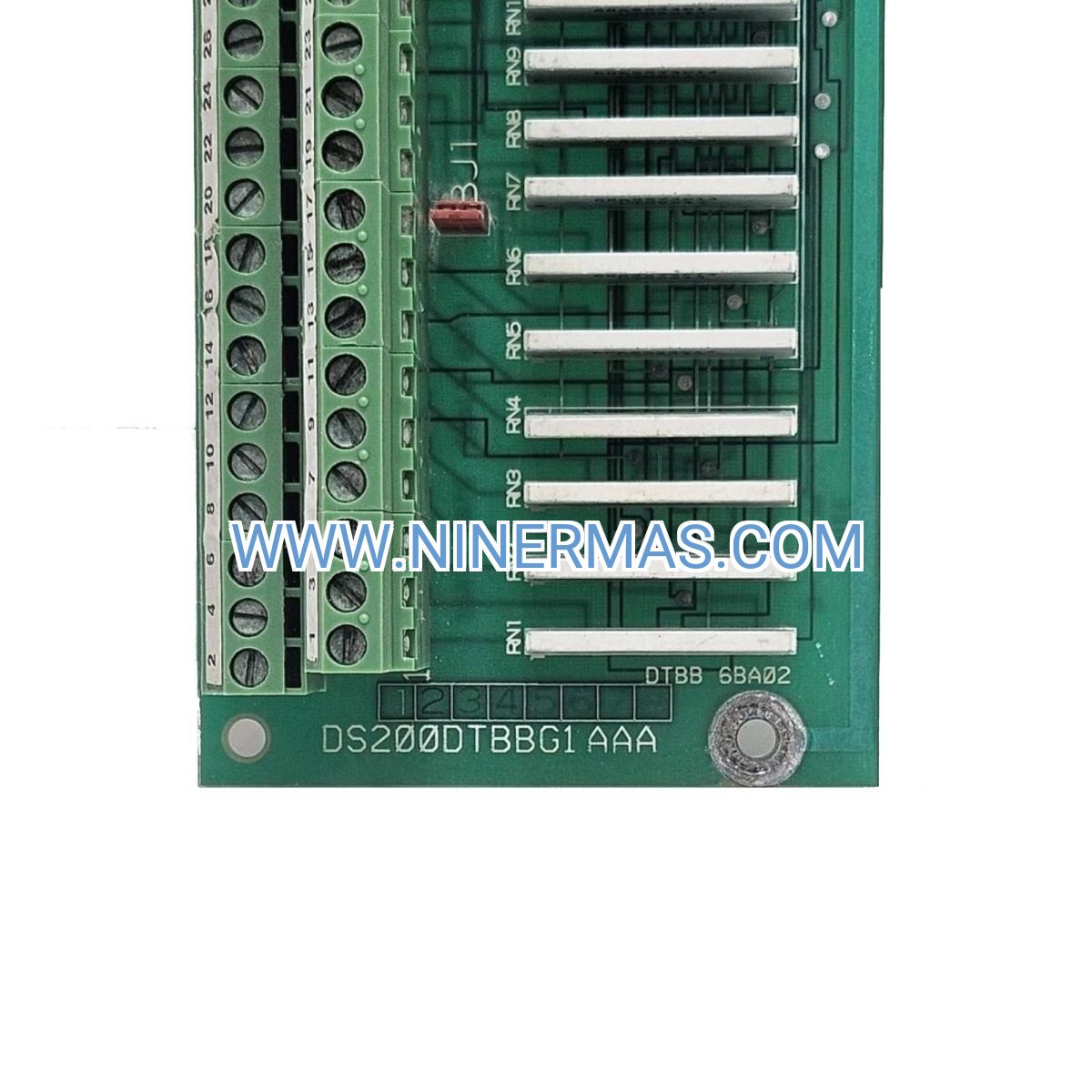

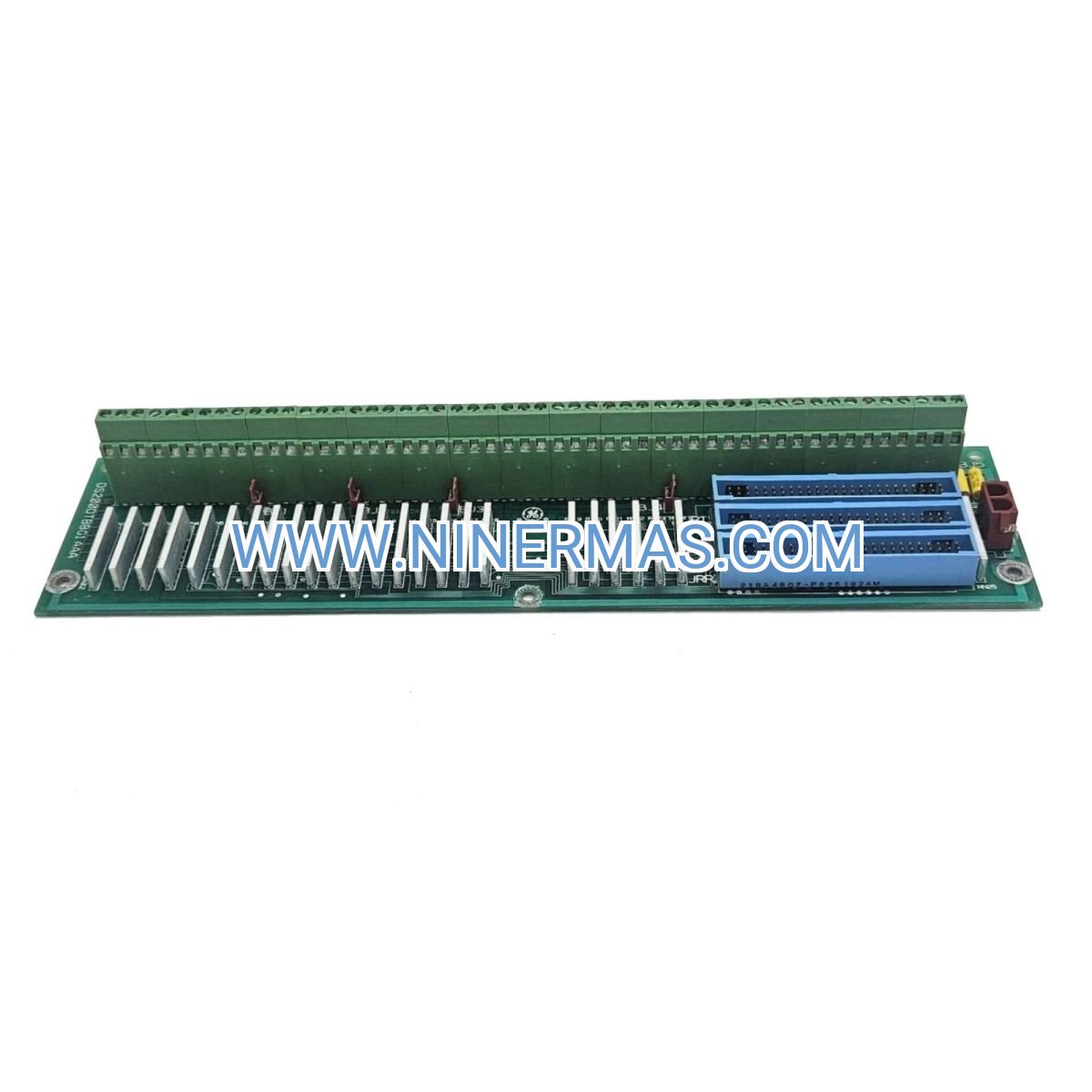

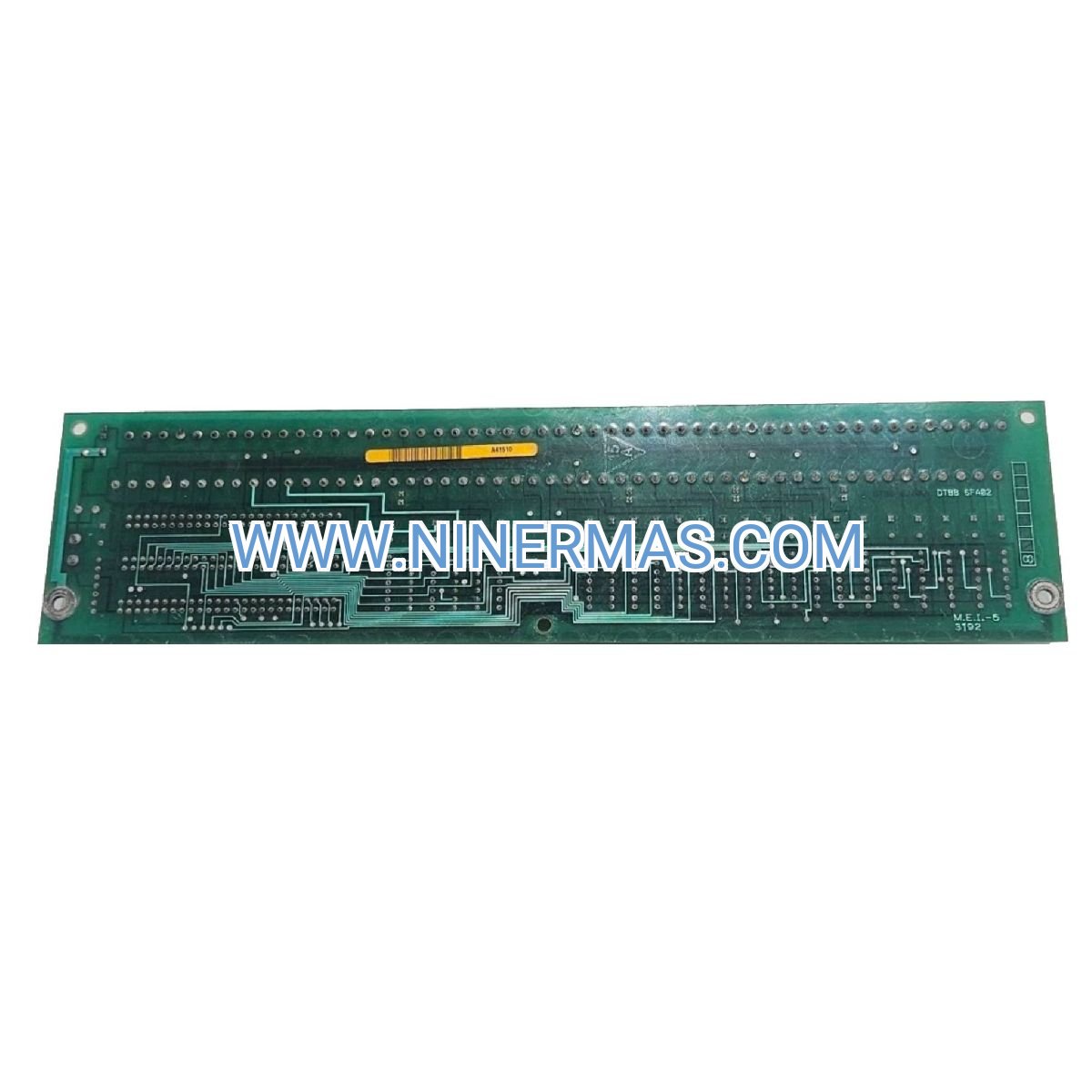

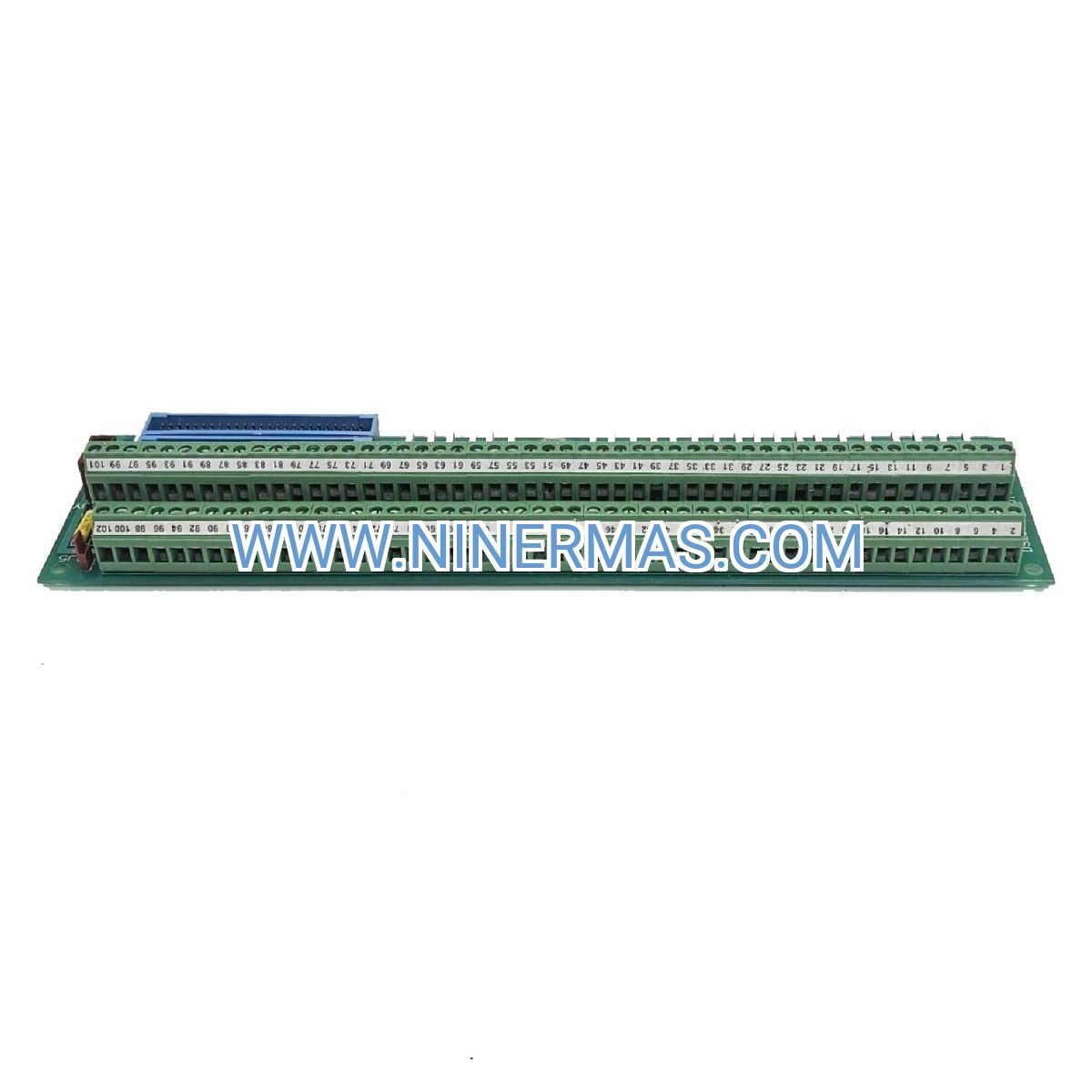

DS200DTBBG1AAA Digital Terminal Board – Industrial Turbine Control I/O Solution

The DS200DTBBG1AAA Digital Terminal Board is a mission-critical I/O termination module designed for GE Mark V Speedtronic turbine control platforms. Through precision-engineered signal distribution architecture and robust field wiring interfaces, this terminal board enables reliable digital signal processing for gas turbine, steam turbine, and combined-cycle power generation systems operating in the most demanding industrial environments worldwide.

Deployed across power generation facilities, oil & gas installations, and petrochemical plants, the DS200DTBBG1AAA addresses critical challenges including signal integrity degradation, electrical noise interference, field wiring complexity, and maintenance downtime. Designed for design engineers, system integrators, plant maintenance teams, and OEM partners requiring proven I/O termination solutions with documented reliability and comprehensive technical support.

Featuring standardized terminal configurations with customizable I/O mapping options, this terminal board delivers electrical isolation protection, visual diagnostic capabilities, modular hot-swap architecture, and environmental hardening for continuous operation. Contact our turbine control specialists to receive application-specific wiring diagrams, integration guidance, and competitive project quotations.

Core Functions & Technical Advantages

Precision Signal Distribution Architecture
Engineered with isolated signal channels and gold-plated backplane connectors, the DS200DTBBG1AAA maintains signal integrity across 24V DC and 120V AC digital I/O circuits. Advanced PCB layout minimizes crosstalk and electromagnetic interference, ensuring accurate data transmission between field devices and Mark V control processors even in high-noise industrial environments.

Field-Hardened Terminal Interface
Heavy-duty screw-clamp terminals accommodate 12-22 AWG wire gauges with integrated strain relief mechanisms, reducing installation time by approximately 40% compared to traditional terminal blocks. Clearly labeled connection points with color-coded wire routing guides minimize commissioning errors and simplify troubleshooting during maintenance operations.

Electrical Isolation & Surge Protection
Integrated optical isolation and transient voltage suppression circuits protect sensitive Mark V control electronics from field-side voltage spikes, ground loops, and electrical noise. This multi-layer protection architecture extends control system lifespan and reduces unplanned downtime caused by electrical faults.

Real-Time Visual Diagnostics
Onboard LED status indicators provide instant visibility into I/O channel health, power supply status, and communication integrity. Maintenance technicians can rapidly identify faulty circuits without specialized test equipment, reducing mean time to repair (MTTR) by up to 60% during critical turbine outages.

Hot-Swap Modular Design
In redundant Mark V configurations, the DS200DTBBG1AAA supports controlled module replacement during turbine operation when proper safety interlocks are engaged. This zero-downtime maintenance capability is essential for baseload power plants and continuous process industries where turbine availability directly impacts revenue.

Environmental Resilience Engineering
Conformal-coated PCB assemblies withstand temperature extremes (-30°C to +65°C), humidity variations (5-95% non-condensing), mechanical vibration, and corrosive atmospheres typical of offshore platforms, desert installations, and coastal power facilities. IP20 enclosure rating suits standard control room environments with optional protective housings available for harsh field mounting.

Industrial Application Scenarios

The DS200DTBBG1AAA terminal board serves as the essential field-to-control interface in applications demanding uncompromising reliability and precise turbine monitoring:

Power Generation & Cogeneration Facilities
Combined-cycle power plants, simple-cycle peaking units, and industrial cogeneration systems rely on the DS200DTBBG1AAA for critical turbine protection signals including emergency shutdown circuits, flame detection systems, and vibration monitoring interfaces. The terminal board's proven reliability supports grid stability requirements and regulatory compliance for utility-scale generation assets.

Oil & Gas Production Operations
Offshore production platforms, gas compression stations, pipeline booster facilities, and LNG processing plants utilize DS200DTBBG1AAA modules to interface gas turbine drives with process control systems. Harsh environmental conditions including salt spray, temperature cycling, and continuous vibration demand the terminal board's ruggedized construction and corrosion-resistant materials.

Petrochemical & Refining Industries
Refineries, chemical processing complexes, and manufacturing facilities employ steam turbine mechanical drives for compressors, pumps, and generators. The DS200DTBBG1AAA provides reliable I/O termination for turbine control loops, enabling precise speed regulation, load control, and protective relay integration essential for process safety and production efficiency.

District Energy & Municipal Power Systems
Combined heat and power (CHP) plants serving urban districts, university campuses, and industrial parks depend on DS200DTBBG1AAA terminal boards for turbine-generator control integration. The module's compatibility with building management systems and SCADA platforms enables centralized monitoring and optimized dispatch strategies.

Marine Propulsion & Naval Applications
LNG carrier propulsion systems, naval vessel power generation, and offshore support vessel drives incorporate DS200DTBBG1AAA modules within Mark V control architectures. The terminal board's shock and vibration resistance meets stringent maritime classification society requirements for shipboard electrical equipment.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement decisions, we provide comprehensive technical specifications for the DS200DTBBG1AAA terminal board:

Selection Considerations & Engineering Guidance
When specifying the DS200DTBBG1AAA for turbine control projects, engineers should evaluate: total digital I/O point count requirements, field device voltage levels and signal types, control room environmental conditions (temperature/humidity/vibration), available panel space and mounting constraints, redundancy architecture (simplex vs. TMR configurations), and integration with existing Mark V processor modules. For complex applications requiring customized I/O mapping, signal conditioning, or special environmental protection, our application engineering team provides complimentary design review services. Submit your project parameters including turbine model, I/O schedule, electrical drawings, and installation environment specifications to receive tailored component recommendations and integration support.

System Integration & Complementary Components

The DS200DTBBG1AAA operates as part of a comprehensive Mark V Speedtronic control architecture. For complete turbine control solutions, consider these compatible modules from our technical inventory:

• Digital I/O Processing Modules: Pair with high-density digital I/O boards for expanded control point capacity in large turbine installations requiring hundreds of discrete signals
• Power Distribution Boards: Integrate regulated DC power supplies to ensure stable voltage delivery to terminal boards and I/O modules, critical for signal accuracy and system reliability
• Analog Signal Conditioning: Combine with analog I/O boards for temperature, pressure, flow, and vibration sensor interfaces requiring precision signal conversion and linearization
• Emergency Protection Systems: Deploy alongside triple-redundant overspeed detection boards to meet turbine safety integrity level (SIL) requirements for critical shutdown functions
• Communication Interfaces: Connect to Ethernet and serial communication modules for SCADA integration, remote monitoring, and predictive maintenance data collection

For Mark V system modernization projects, the DS200DTBBG1AAA integrates seamlessly with upgraded processor boards, expanded memory modules, and enhanced HMI platforms. Our technical team maintains current compatibility matrices and can recommend optimal component combinations based on your specific turbine model, control system vintage, and performance objectives.

Installation Guidelines & Commissioning Procedures

The DS200DTBBG1AAA mounts directly to standard 35mm DIN rail using integrated spring clips or can be panel-mounted using the supplied mounting brackets and hardware. Field wiring terminates at clearly labeled, color-coded screw-clamp terminals supporting wire gauges from 12 AWG to 22 AWG. The terminal board interfaces with Mark V core control modules through high-reliability backplane connectors featuring gold-plated contacts engineered for 100,000+ mating cycles and long-term signal integrity in industrial environments.

Proper installation requires strict adherence to GE's documented wiring practices including: minimum 50mm separation between power and signal cable routing, proper grounding techniques using dedicated ground bars, cable shielding termination at a single point to prevent ground loops, and use of ferrules on stranded wire for reliable screw terminal connections. All field wiring should be labeled using permanent wire markers corresponding to approved loop diagrams and I/O assignment documentation.

Configuration and commissioning are performed using GE ToolboxST software, which provides comprehensive parameter configuration, I/O mapping verification, calibration functions, and diagnostic capabilities. During commissioning, technicians should verify: correct I/O channel assignment, proper signal polarity and voltage levels, LED indicator functionality, backplane communication integrity, and integration with turbine protection logic. Complete functional testing including simulated fault injection and emergency shutdown sequence verification is essential before releasing the turbine for commercial operation.

Preventive Maintenance & Reliability Optimization

Systematic preventive maintenance ensures optimal DS200DTBBG1AAA performance and maximizes service life in continuous-duty turbine applications. Recommended maintenance activities include:

• Quarterly Terminal Inspection: Visual examination of all screw terminal connections for proper tightness (recommended torque: 0.5-0.6 Nm), signs of corrosion or oxidation, wire insulation damage, and evidence of overheating. Re-torque terminals as needed and replace damaged wiring.
• Semi-Annual Diagnostic Verification: Observe LED diagnostic indicators during normal turbine operation to confirm proper I/O channel status, power supply health, and communication integrity. Document any anomalies for trending analysis.
• Annual Thermal Survey: Conduct infrared thermal imaging of the terminal board during loaded operation to identify abnormal heating patterns indicating loose connections, excessive contact resistance, or component degradation. Temperature differentials exceeding 10°C warrant investigation.
• Firmware & Configuration Backup: Verify current firmware revision using ToolboxST software and maintain archived copies of I/O configuration files, parameter settings, and calibration data. Implement version control procedures for all configuration changes.
• Environmental Monitoring: Track control room temperature, humidity, and airborne contamination levels. Excessive dust accumulation or humidity excursions can degrade terminal board performance and should be addressed through improved HVAC filtration or environmental controls.

All maintenance activities should be documented in the turbine control system maintenance logbook with date, technician identification, findings, and corrective actions taken. Trending of maintenance data enables predictive maintenance strategies and early identification of degradation patterns before they impact turbine availability.

Frequently Asked Questions

Q: How does the DS200DTBBG1AAA integrate with existing Mark V control systems?
A: The DS200DTBBG1AAA connects to Mark V control processors through standardized backplane connectors and communicates via the Mark V internal data bus. Integration requires I/O mapping configuration using GE ToolboxST software to assign physical terminal points to control logic variables. Field wiring from sensors, switches, and actuators terminates at the board's screw-clamp terminals. Our technical team can provide application-specific wiring diagrams and configuration assistance to ensure seamless integration with your existing Mark V architecture.

Q: What is the maximum number of digital I/O points supported per terminal board?
A: The DS200DTBBG1AAA provides termination for a specific number of digital I/O channels as defined in the GE technical manual for this board variant. For applications requiring expanded I/O capacity, multiple terminal boards can be deployed within the Mark V chassis. Contact our engineering team with your total I/O point count requirements, and we'll recommend the optimal combination of terminal boards and I/O processor modules.

Q: Can the DS200DTBBG1AAA be replaced during turbine operation?
A: Hot-swap capability depends on your Mark V system configuration and redundancy architecture. In triple-modular redundant (TMR) control systems with proper safety interlocks and voting logic, controlled replacement of individual terminal boards may be possible during turbine operation following GE's approved maintenance procedures. Simplex configurations typically require turbine shutdown for terminal board replacement. Always coordinate module replacement activities with qualified control system engineers and follow site-specific safety protocols.

Q: What documentation and technical support is provided with the terminal board?
A: Each DS200DTBBG1AAA ships with a certificate of conformity, traceability documentation linking the board to manufacturing records, and basic installation guidelines. Complete technical manuals including detailed specifications, wiring diagrams, I/O assignment tables, and troubleshooting procedures are available through GE's technical documentation portal. Our in-house turbine control specialists provide complimentary pre-sales technical support and post-delivery integration assistance to ensure successful project execution.

Q: What are typical delivery times for the DS200DTBBG1AAA terminal board?
A: In-stock DS200DTBBG1AAA boards typically ship within 1-2 business days via our expedited fulfillment process. We maintain strategic inventory of critical Mark V components to support emergency turbine outages and planned maintenance turnarounds. For urgent requirements, we offer same-day shipping and next-day air delivery options to minimize turbine downtime. Lead times for large quantity orders or special configurations will be confirmed upon receipt of your purchase order.

Q: Does the 12-month warranty cover all failure modes?
A: Our comprehensive 12-month warranty covers manufacturing defects, component failures, and workmanship issues under normal operating conditions within published environmental specifications. The warranty does not cover damage resulting from improper installation, electrical overstress exceeding rated limits, environmental conditions outside specified ranges, unauthorized modifications, or physical damage during handling. Extended warranty programs and advance replacement options are available for critical applications requiring enhanced protection and minimized downtime risk.

Delivery, Service & Quality Assurance

Fulfillment & Logistics
Standard DS200DTBBG1AAA terminal boards ship from our distribution center within 1-2 business days for in-stock items. Customized configurations or large quantity orders typically require 5-10 business days for preparation and quality verification. We offer flexible shipping options including standard ground freight, expedited 2-day service, and next-day air delivery for emergency turbine outages. International shipments are supported with complete export documentation, customs coordination, and DDP (Delivered Duty Paid) terms available upon request.

Quality Verification & Testing
Every DS200DTBBG1AAA undergoes rigorous inspection and functional testing before shipment. Our quality assurance process includes: visual inspection for physical damage or component anomalies, electrical continuity testing of all terminal connections, power-on self-test verification, LED diagnostic indicator functionality check, and packaging integrity inspection. Each board ships with test documentation, serial number traceability, and certificate of conformity confirming compliance with published specifications.

Warranty Coverage & Technical Support
All DS200DTBBG1AAA terminal boards include a comprehensive 12-month warranty covering manufacturing defects and component failures under normal operating conditions. Our in-house turbine control specialists provide responsive technical assistance including: pre-sales application engineering support, installation guidance and wiring diagram review, commissioning assistance and troubleshooting support, and warranty claim processing with rapid replacement for confirmed failures. Extended warranty programs and advance exchange options are available for critical applications.

Technical Documentation & Resources
Complete technical documentation accompanies each DS200DTBBG1AAA shipment including installation guidelines, terminal wiring diagrams, and basic troubleshooting procedures. Comprehensive technical manuals, I/O assignment tables, ToolboxST configuration guides, and maintenance procedures are available upon request. Our technical library includes application notes, compatibility matrices, and integration guides to support successful Mark V system projects.

Contact Our Turbine Control Specialists

For detailed technical specifications, application-specific recommendations, competitive project quotations, or integration support, please provide the following information to our engineering team:

• Project name and turbine application (power generation, oil & gas, petrochemical, etc.)
• Turbine manufacturer, model, and rated capacity
• Current Mark V control system configuration and processor modules
• Total digital I/O point count requirements (inputs and outputs)
• Field device voltage levels and signal types
• Control room environmental conditions (temperature range, humidity, vibration)
• Redundancy requirements (simplex, dual, or TMR configuration)
• Project timeline and delivery requirements

Our turbine control specialists will provide tailored component recommendations, integration guidance, and competitive pricing to support your Mark V system projects. We serve design engineers, system integrators, plant maintenance teams, and OEM partners worldwide with authentic GE components, technical expertise, and responsive customer service.
