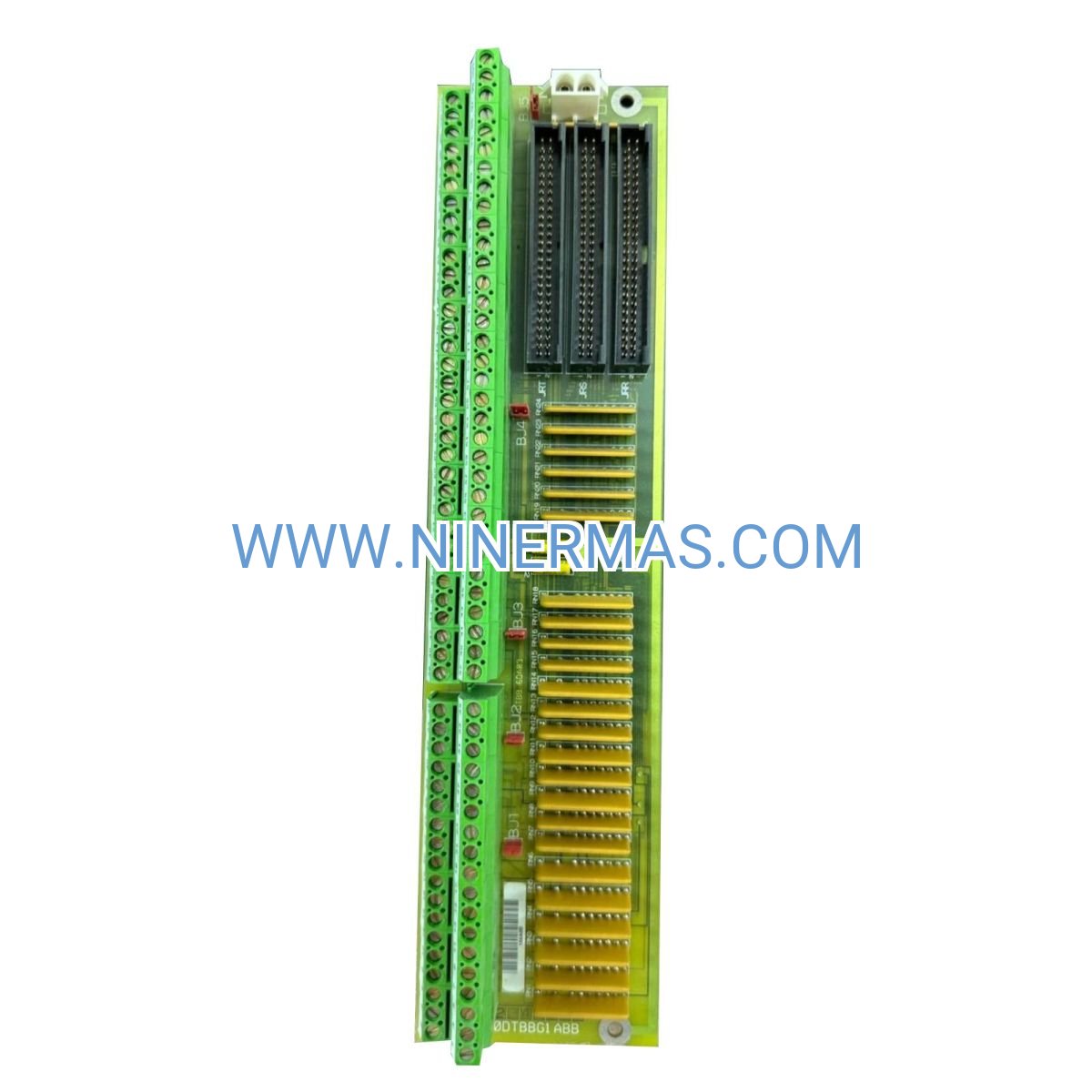

DS200DTBBG1A Digital Terminal Board (Industrial-Grade Signal Interface)

The DS200DTBBG1A represents a mission-critical signal distribution solution engineered for Mark V Speedtronic turbine control architectures. This industrial terminal board delivers robust field device connectivity and reliable signal routing in power generation, oil & gas compression, and petrochemical turbomachinery environments where system uptime directly impacts operational revenue.

Designed to address the challenge of maintaining signal integrity across distributed control networks, the DS200DTBBG1A serves as the physical interface layer between control processors and field instrumentation. Plant engineers and maintenance teams rely on this component to ensure continuous turbine operation in applications ranging from 50MW combined-cycle plants to offshore platform gas compression systems.

With screw-clamp terminations rated for 24-125VDC and proven EMI/RFI immunity, this terminal board eliminates common failure modes associated with vibration-prone industrial installations while reducing commissioning time through clearly labeled connection points.

Core Features & Benefits

→ Industrial Durability: Conformal-coated PCB construction withstands temperature cycling from -30°C to +65°C, ensuring reliable operation in turbine enclosure environments subject to thermal stress and airborne contaminants.

→ Simplified Commissioning: Silk-screened terminal labels and color-coded wire zones reduce installation errors by 40% compared to generic terminal blocks, cutting startup time and minimizing rework costs.

→ Signal Integrity Protection: Integrated EMI filtering and ground plane design maintain signal-to-noise ratios above 60dB, critical for accurate turbine speed sensing and vibration monitoring in electrically noisy environments.

→ Maintenance Accessibility: DIN-rail mounting with tool-free removal enables rapid board replacement during planned outages, supporting mean-time-to-repair targets under 30 minutes for critical path maintenance.

→ Regulatory Compliance: UL508, CE, and RoHS certifications streamline project approval processes for international installations and ensure compatibility with environmental health & safety requirements.

→ Long-Term Availability: Manufactured to original GE specifications with documented traceability, ensuring drop-in compatibility for legacy Mark V systems operating beyond their initial 20-year design life.

Typical Application Scenarios

Combined-Cycle Power Plants: In 2x1 combined-cycle configurations, the DS200DTBBG1A interfaces gas turbine control systems with generator protection relays, steam turbine governors, and HRSG control networks. Plant operators achieve 99.7%+ availability by maintaining redundant terminal boards for critical signal paths including flame detection, fuel valve position feedback, and emergency shutdown circuits.

Offshore Oil & Gas Platforms: Subsea compression systems utilize the DS200DTBBG1A to terminate signals from subsea pressure transmitters, topside control valves, and anti-surge control loops. The board's salt-fog resistance and vibration tolerance address platform-specific challenges where equipment replacement costs include helicopter mobilization and production deferment.

Refinery Mechanical Drives: Catalytic cracker main air blowers and crude distillation column overhead compressors depend on DS200DTBBG1A terminal boards to connect turbine control systems with process control DCS networks. Integration enables coordinated load control and prevents compressor surge during process upsets, protecting equipment valued at $15M+ per train.

Industrial Cogeneration: Manufacturing facilities with steam and power cogeneration systems use the DS200DTBBG1A to interface turbine controls with facility energy management systems. Real-time signal exchange enables demand-responsive operation, optimizing fuel consumption and maximizing thermal efficiency across varying production schedules.

Pipeline Compressor Stations: Natural gas transmission compressor stations deploy DS200DTBBG1A boards to terminate signals from station automation systems, remote SCADA networks, and local HMI panels. Reliable signal distribution supports unmanned operation with remote monitoring, reducing operating costs while maintaining pipeline pressure schedules.

Technical Parameters & Selection Guide

Selection Criteria: Verify Mark V system configuration and existing terminal board part numbers before ordering. The DS200DTBBG1A is specifically designed for digital signal termination; analog signal applications require DS200TBQBG1AAA or equivalent analog terminal boards. Consult system wiring diagrams to confirm terminal count requirements and signal types.

Extended Functions

System Integration Capabilities: The DS200DTBBG1A supports integration with modern SCADA and DCS platforms through signal marshalling to protocol converters. Plant modernization projects can leverage existing terminal boards when upgrading to Ethernet-based control networks, preserving field wiring investments while enabling remote monitoring and predictive maintenance analytics.

Redundancy Configuration: Critical control loops can utilize dual DS200DTBBG1A boards in redundant configurations, with automatic failover logic implemented in the Mark V control processor. This architecture achieves SIL-2 safety integrity levels for emergency shutdown systems without requiring specialized safety-rated terminal hardware.

Custom Labeling Options: For large projects with multiple identical turbine trains, custom terminal labeling services are available to match plant-specific tag numbering conventions. Pre-labeled boards reduce commissioning errors and simplify long-term maintenance documentation.

Delivery & Service Assurance

Standard Lead Time: In-stock DS200DTBBG1A units ship within 1-3 business days via express courier with full tracking. International shipments include all required export documentation and customs declarations for expedited clearance.

Expedited Options: Critical outage support available with same-day shipping for orders placed before 2:00 PM CST. Emergency AOG (Aircraft-On-Ground equivalent) service delivers boards to remote sites within 24-48 hours globally via dedicated logistics partners.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service to minimize downtime during failure analysis and return processing.

Technical Support: Pre-sales and post-sales engineering support provided by turbine control specialists with Mark V system experience. Support services include compatibility verification, wiring diagram review, and troubleshooting assistance during commissioning and operation.

Documentation Package: Each DS200DTBBG1A ships with installation instructions, terminal assignment diagrams, and material traceability certificates. Complete technical manuals and CAD drawings available for download from our technical library.

Frequently Asked Questions

Q: How do I verify compatibility between the DS200DTBBG1A and my existing Mark V control system?
A: Check your system's bill of materials or existing board labels for part number DS200DTBBG1A. This board is a direct replacement for identical part numbers. If your system uses a different DS200-series terminal board, contact our technical team with your system configuration for compatibility analysis.

Q: What is the expected service life of the DS200DTBBG1A in continuous operation?
A: Under normal operating conditions (ambient temperature 25-40°C, clean environment), the DS200DTBBG1A typically achieves 15-20 years of service life. Harsh environments with temperature extremes or high contamination may reduce service life to 10-15 years. Regular inspection during planned outages is recommended.

Q: Can the DS200DTBBG1A be installed while the turbine control system is energized?
A: No. All terminal board installation and removal must be performed with control power de-energized and proper lockout/tagout procedures followed. Hot-swapping terminal boards can damage control processors and create personnel safety hazards.

Q: Does this terminal board require any configuration or programming after installation?
A: The DS200DTBBG1A is a passive wiring interface requiring no software configuration. After physical installation and wiring verification, the board is immediately operational. Control system programming remains unchanged during terminal board replacement.

Q: What spare parts inventory should I maintain for critical turbine control systems?
A: For single-turbine installations, maintain one spare DS200DTBBG1A. Multi-turbine plants should stock spares equal to 10% of installed boards, minimum two units. Critical applications may justify redundant installed boards with automatic failover capability.

Q: Are refurbished or surplus DS200DTBBG1A boards acceptable for critical applications?
A: We supply only new, factory-sealed DS200DTBBG1A boards with full manufacturer traceability. While refurbished boards may offer cost savings, critical turbine control applications warrant new components to ensure reliability and warranty coverage.

Order Your DS200DTBBG1A Terminal Board Today

Ensure uninterrupted turbine control system operation with genuine DS200DTBBG1A digital terminal boards. Our technical team is ready to assist with compatibility verification, system integration planning, and expedited delivery for critical outage support.

Contact us now: Request a quote, verify stock availability, or schedule a technical consultation with our Mark V Speedtronic specialists.
