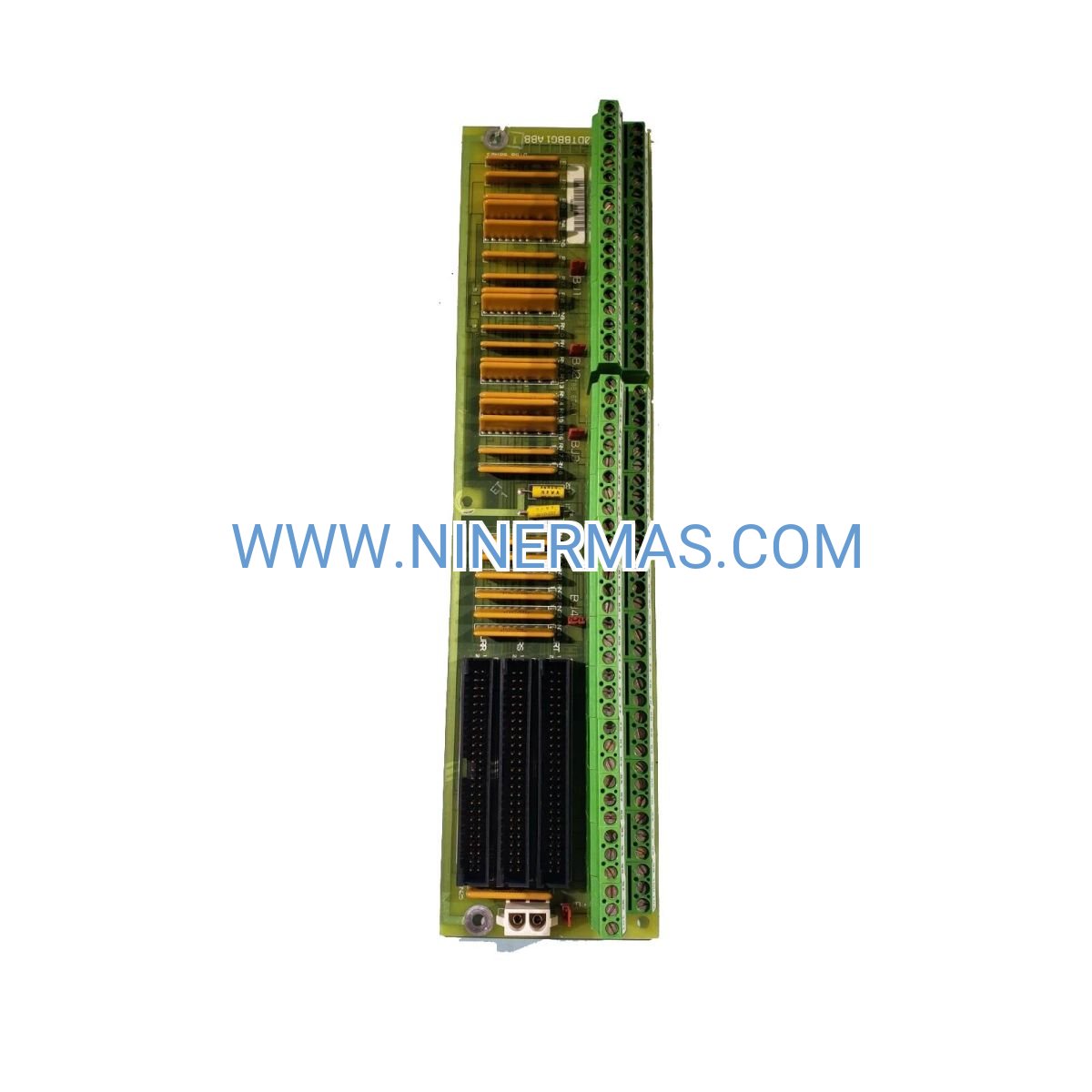

DS200DTBAG1A Digital I/O Terminal Board (Industrial-Grade Mark V Interface)

The DS200DTBAG1A serves as a critical digital signal interface module within General Electric's Mark V Speedtronic turbine control ecosystem, delivering precision-engineered termination capabilities for power generation and industrial process environments. This terminal board establishes reliable electrical pathways between field instrumentation and central control processors, ensuring signal integrity in applications where operational continuity is non-negotiable.

Engineered for turbine control cabinets in power plants, compressor stations, and mechanical drive systems, the DS200DTBAG1A handles digital I/O distribution with industrial-grade reliability. Its robust construction and standardized terminal layout reduce installation time while providing the electrical isolation necessary to protect sensitive control electronics from field-level transients and noise.

Whether you're maintaining legacy Mark V installations or upgrading existing turbine control infrastructure, this terminal board delivers the proven performance that keeps critical rotating equipment operating safely and efficiently. With comprehensive compatibility across Mark V platforms and straightforward integration protocols, the DS200DTBAG1A represents a dependable solution for demanding industrial control applications.

Key Features & Technical Advantages

→ Precision Signal Termination: Organized screw-terminal blocks provide secure connection points for 24VDC digital signals, minimizing wiring errors and accelerating commissioning timelines in complex turbine control panels.

→ Electrical Isolation Protection: Built-in 1500 VDC minimum isolation safeguards control processors from field-level voltage spikes, ground loops, and electromagnetic interference common in high-power industrial environments.

→ Environmental Resilience: Operates reliably across -30°C to +70°C temperature ranges with 5-95% non-condensing humidity tolerance, meeting the demanding conditions found in turbine enclosures and control rooms.

→ Maintenance-Optimized Design: Clearly labeled terminals and standardized Mark V wiring conventions reduce troubleshooting time, enabling faster fault diagnosis and component replacement during scheduled outages.

→ Flexible Mounting Options: Compatible with both DIN rail and panel-mount configurations, allowing integration into diverse control cabinet layouts without custom fabrication requirements.

→ Certified Compliance: UL, CE, and CSA certifications ensure regulatory compliance for installations across North America, Europe, and international markets.

Industrial Application Scenarios

✓ Combined-Cycle Power Plants: In CCGT facilities, the DS200DTBAG1A manages digital I/O for gas turbine protective systems, handling trip circuit signals, valve position confirmations, and auxiliary system status inputs that ensure safe turbine operation during load changes and emergency shutdowns.

✓ Pipeline Compression Stations: Natural gas transmission networks rely on this terminal board to interface turbine-driven compressor controls with field instrumentation, processing signals from vibration sensors, bearing temperature monitors, and surge detection systems that prevent catastrophic equipment failures.

✓ Refinery Mechanical Drives: Petrochemical facilities deploy the DS200DTBAG1A in turbine control systems powering process compressors and pumps, where it terminates digital signals from lube oil pressure switches, cooling system monitors, and emergency stop circuits critical to process safety.

✓ Industrial Cogeneration Systems: Manufacturing plants with on-site power generation use this terminal board to integrate turbine controls with facility automation systems, managing digital communications between turbine protective relays and plant-wide SCADA networks.

✓ Offshore Platform Power Generation: In marine environments, the DS200DTBAG1A's corrosion-resistant construction and wide operating temperature range make it suitable for turbine control systems on oil platforms and FPSO vessels where reliability in harsh conditions is essential.

Technical Specifications & Selection Criteria

Selection Guidelines: When specifying the DS200DTBAG1A for your Mark V system, verify I/O point requirements against your control architecture drawings. Confirm terminal board revision compatibility with existing control processors, and ensure adequate cabinet space for proper heat dissipation. For systems requiring expanded I/O capacity, multiple DS200DTBAG1A boards can be installed in parallel configurations.

Advanced Integration Capabilities

System Expansion: The DS200DTBAG1A supports modular I/O expansion strategies, allowing control system designers to add digital termination capacity as turbine monitoring requirements grow without replacing existing infrastructure.

Retrofit Compatibility: This terminal board integrates seamlessly into legacy Mark V installations during modernization projects, maintaining backward compatibility with original GE control architectures while supporting upgraded monitoring instrumentation.

Diagnostic Integration: When connected to Mark V diagnostic software, the DS200DTBAG1A enables real-time signal monitoring and troubleshooting capabilities, reducing mean time to repair during unplanned maintenance events.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock DS200DTBAG1A units ship within 1-3 business days via expedited carriers, with typical delivery to major industrial centers within 5-7 business days.

Warranty Coverage: Every DS200DTBAG1A terminal board includes a comprehensive 12-month warranty protecting against manufacturing defects and component failures, ensuring your investment delivers long-term value.

Technical Support: Our turbine control specialists provide pre-sale application consultation, installation guidance, and post-delivery troubleshooting assistance to ensure successful system integration.

Documentation Package: Each shipment includes installation instructions, wiring diagrams, and compliance certificates to streamline commissioning and regulatory approval processes.

Frequently Asked Questions

How does the DS200DTBAG1A interface with Mark V control processors?
The terminal board connects to Mark V control modules via ribbon cables or backplane connections (depending on cabinet configuration), providing organized termination points for field wiring while maintaining electrical isolation between field and control circuits.

What wire gauge is recommended for DS200DTBAG1A terminal connections?
Screw terminals accommodate 14-22 AWG wire sizes. For optimal reliability in vibration-prone environments, use stranded copper wire with ferrule terminations and apply manufacturer-specified torque values during installation.

Can the DS200DTBAG1A be used in hazardous area classifications?
The terminal board itself is designed for control room environments (typically non-hazardous areas). For installations requiring hazardous area certification, consult GE's application guidelines and consider appropriate intrinsic safety barriers for field wiring.

What is the expected service life of a DS200DTBAG1A terminal board?
Under normal operating conditions with proper environmental controls, the DS200DTBAG1A typically provides 15-20 years of reliable service. Actual lifespan depends on operating temperature, humidity exposure, and electrical stress factors.

Are replacement parts available for DS200DTBAG1A terminal boards?
While individual component-level repair is possible, most facilities opt for complete board replacement to minimize downtime. We maintain ready inventory of DS200DTBAG1A units for immediate shipment to support critical maintenance activities.

Does the DS200DTBAG1A require periodic calibration or testing?
Digital terminal boards do not require calibration. However, periodic inspection of terminal tightness, visual examination for corrosion or damage, and verification of signal continuity during scheduled turbine outages is recommended.

Order Your DS200DTBAG1A Terminal Board Today

Maintain peak reliability in your Mark V Speedtronic turbine control system with genuine GE components. Contact our technical sales team for application-specific recommendations, volume pricing, or expedited delivery options. We're ready to support your turbine control requirements with expert guidance and responsive service.

Request a quote now or reach out with technical questions about integrating the DS200DTBAG1A into your control architecture.
