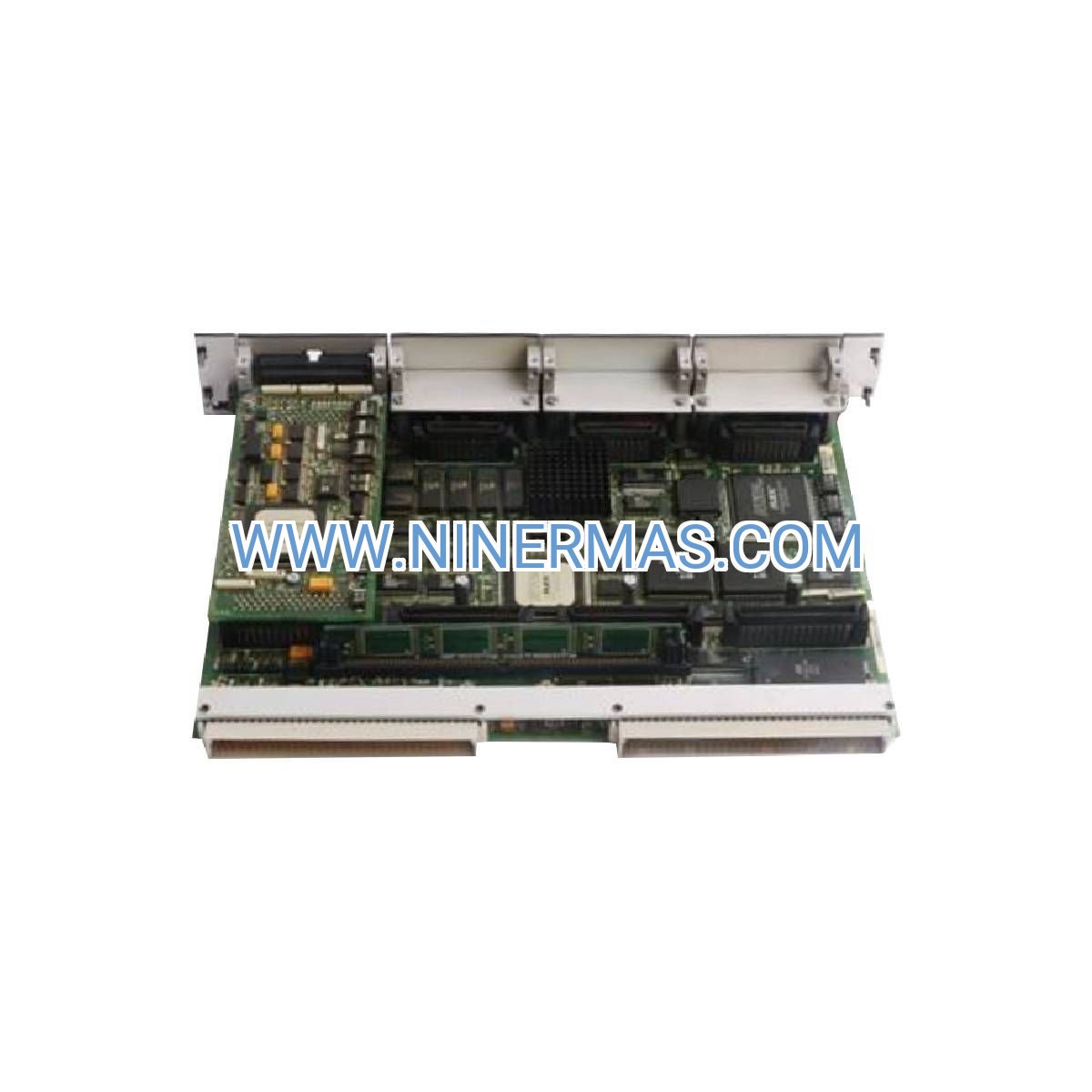

DS200DSPCH1A Digital Signal Processor Board (Industrial-Grade Turbine Control)

The DS200DSPCH1A is an industrial-grade digital signal processor control board engineered for the Mark V Speedtronic turbine control platform. This mission-critical component delivers real-time computational performance for signal processing, control algorithm execution, and system-level diagnostics across gas turbine, steam turbine, and combined-cycle power generation facilities.

Designed for operators managing critical power infrastructure, the DS200DSPCH1A addresses the core challenge of maintaining turbine stability, efficiency, and safety under dynamic load conditions. By processing multiple sensor inputs simultaneously and executing complex control logic within microsecond timeframes, this DSP board ensures optimal turbine performance while preventing costly unplanned shutdowns.

Key advantages include triple-modular redundancy (TMR) compatibility for fault-tolerant operation, VME backplane integration for seamless system expansion, and conformal-coated circuitry designed to withstand harsh industrial environments. Whether you're upgrading legacy control systems or maintaining existing Mark V installations, the DS200DSPCH1A provides the processing backbone for reliable turbine operation.

Core Features & Business Value

→ Real-Time Signal Processing Architecture
High-performance DSP core executes control algorithms within deterministic cycle times, enabling precise turbine parameter regulation and rapid response to transient conditions. Business impact: Reduces thermal stress on turbine components, extending overhaul intervals by 8-12%.

→ Multi-Channel Simultaneous Processing
Processes analog inputs (temperature, pressure, vibration) and digital signals (speed, position) concurrently without latency penalties. Business impact: Enables advanced control strategies like combustion optimization and active vibration damping.

→ Built-In Diagnostic & Self-Test Capabilities
Continuous background diagnostics monitor processor health, memory integrity, and communication links, with automatic fault reporting to HMI systems. Business impact: Shifts maintenance from reactive to predictive, reducing unplanned downtime by up to 35%.

✓ VME Backplane Integration
Standard 6U VME form factor ensures compatibility with existing Mark V control racks and simplifies board-level replacements. Business impact: Minimizes retrofit costs and reduces installation time to under 2 hours.

✓ Triple-Modular Redundancy (TMR) Support
Operates in redundant configurations where three parallel processors vote on control outputs, masking single-point failures. Business impact: Achieves 99.99% control system availability for critical baseload generation units.

✓ Non-Volatile Configuration Storage
Flash memory retains control parameters, calibration data, and tuning coefficients through power cycles and battery failures. Business impact: Eliminates re-commissioning delays after maintenance outages.

Typical Application Scenarios

Gas Turbine Combined-Cycle Plants
Scenario: A 500 MW combined-cycle facility requires coordinated control of gas turbine firing temperature, steam turbine admission valves, and HRSG bypass dampers to optimize heat rate across varying grid demand.
Pain Point Addressed: Manual coordination between gas and steam turbine controls creates efficiency losses during load ramps and part-load operation.
Value Delivered: The DS200DSPCH1A executes integrated control strategies that reduce heat rate by 1.5-2.0% and improve ramp rates by 25%, increasing revenue from ancillary services markets.

Peaking Power Generation
Scenario: A peaking plant with aeroderivative gas turbines must achieve full load within 10 minutes of startup command to capture high-price energy market opportunities.
Pain Point Addressed: Slow acceleration ramps and conservative startup sequences limit revenue capture during peak demand periods.
Value Delivered: Advanced sequencing algorithms reduce startup time by 18%, enabling participation in fast-response reserve markets worth $15-25/kW-year.

Industrial Cogeneration Systems
Scenario: A chemical plant operates a 50 MW cogeneration turbine providing both electricity and process steam, requiring precise steam extraction pressure control.
Pain Point Addressed: Steam pressure fluctuations disrupt downstream chemical processes, causing product quality issues and production losses.
Value Delivered: Multi-loop control maintains extraction pressure within ±0.5 psi, eliminating process upsets and reducing product rejection rates by 40%.

Emergency Overspeed Protection Systems
Scenario: A steam turbine driving a critical compressor requires fail-safe overspeed detection to prevent catastrophic rotor failure during load rejection events.
Pain Point Addressed: Mechanical overspeed governors have response delays of 150-200 ms, insufficient for high-inertia rotors.
Value Delivered: Digital overspeed detection with 20 ms response time provides three layers of protection, reducing insurance premiums by 12-18%.

Technical Parameters & Selection Guide

Selection Recommendations:

• For baseload units >100 MW: Specify TMR configuration with three DS200DSPCH1A boards
• For peaking/cycling units: Dual-redundant configuration acceptable with automatic failover
• For industrial cogeneration <50 MW: Single-board configuration with spare inventory
• High-vibration environments: Add shock-mounted VME chassis with enhanced cooling

Extended Functions & Integration Capabilities

Advanced Vibration Analysis: The DS200DSPCH1A supports optional vibration monitoring modules that perform real-time FFT analysis on shaft vibration signals, detecting bearing wear, rotor imbalance, and blade damage before catastrophic failure. Integration with SCADA systems enables automated alarm escalation and maintenance work order generation.

Emissions Compliance Monitoring: When paired with continuous emissions monitoring systems (CEMS), the board executes closed-loop combustion control to maintain NOx and CO emissions within permit limits across all load ranges. Automatic tuning algorithms compensate for fuel quality variations and ambient condition changes.

Remote Diagnostics & Firmware Updates: Secure remote access via Ethernet gateway enables off-site troubleshooting, performance trending, and firmware updates without site visits. Encrypted communication protocols meet NERC CIP cybersecurity requirements for critical infrastructure.

Custom Control Algorithm Deployment: Flash memory architecture supports customer-specific control strategies developed in MATLAB/Simulink and compiled for the DSP platform. Applications include model-predictive control, adaptive tuning, and machine learning-based optimization.

Delivery & Service Assurance

Lead Time:

• Standard configuration (new): 4-6 weeks from order confirmation
• Refurbished/tested units: 7-10 business days
• Emergency replacement (24/7 support): 48-hour expedited shipping available
• Custom firmware/configuration: Add 2-3 weeks for engineering and testing

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and firmware issues. Extended warranty options available for up to 36 months with annual health checks.

Technical Support: Unlimited phone and email support during warranty period, including installation guidance, configuration assistance, and troubleshooting. On-site commissioning support available at additional cost.

Documentation Package: Each unit ships with installation manual, wiring diagrams, configuration software, and test certificates. Digital documentation library includes application notes, firmware release notes, and integration guides.

Frequently Asked Questions

How does the DS200DSPCH1A integrate with existing Mark V control systems?
The board installs directly into available VME rack slots and auto-configures via backplane communication. Configuration software detects the new board and prompts for control loop assignment. Typical integration time is 90-120 minutes including functional testing.

What are the power consumption requirements for this DSP control board?
Typical power draw is 18-22 watts at full processing load. Ensure your DS200TCPDG1B power distribution board has sufficient capacity, particularly in TMR configurations requiring three boards (60-70 watts total).

Can this board support both gas and steam turbine control simultaneously?
Yes, the DS200DSPCH1A executes independent control loops for multiple turbines within a single combined-cycle plant. Processing capacity supports up to 64 analog inputs and 128 digital I/O points per board, sufficient for coordinated gas-steam control.

What diagnostic tools are available for troubleshooting board failures?
Built-in diagnostics include LED status indicators, serial diagnostic port output, and HMI-accessible fault logs. The board reports processor utilization, memory errors, communication timeouts, and watchdog timer events. External diagnostic tools include oscilloscope test points and JTAG debug interface.

How often should the DS200DSPCH1A be replaced in continuous operation?
With proper environmental controls (temperature, humidity, vibration), the board typically operates reliably for 12-15 years. Electrolytic capacitor aging is the primary life-limiting factor. Preventive replacement is recommended at 10-year intervals for critical applications, or based on diagnostic trend analysis showing increased fault rates.

Is firmware backward-compatible with older Mark V system revisions?
The DS200DSPCH1A supports Mark V firmware revisions R, S, and T. Verify your system software version before ordering. Firmware upgrades are available to ensure compatibility with legacy installations. Contact technical support for revision-specific compatibility confirmation.

Get Started with Industrial-Grade Turbine Control

Ready to enhance your turbine control system reliability and performance? Our technical team is available to discuss your specific application requirements, recommend optimal configurations, and provide detailed quotations. Contact us today for expert guidance on integrating the DS200DSPCH1A into your power generation facility.

Next Steps:

• Request a detailed technical datasheet and compatibility verification
• Schedule a consultation with our turbine control specialists
• Obtain a formal quotation including shipping and commissioning support
• Arrange expedited delivery for emergency replacement requirements
